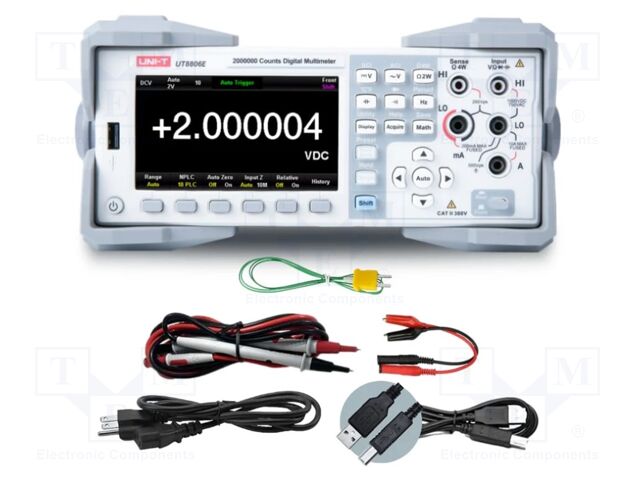

UT8806E UNI-T
Hersteller: UNI-TCategory: Benchtop digital multimeters
Description: Benchtop multimeter; LCD TFT 4,3"; 6,5 digit (2000000)
Type of meter: benchtop multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; resistance (2-wire); resistance (4-wire); temperature
Kind of display used: LCD TFT 4,3"

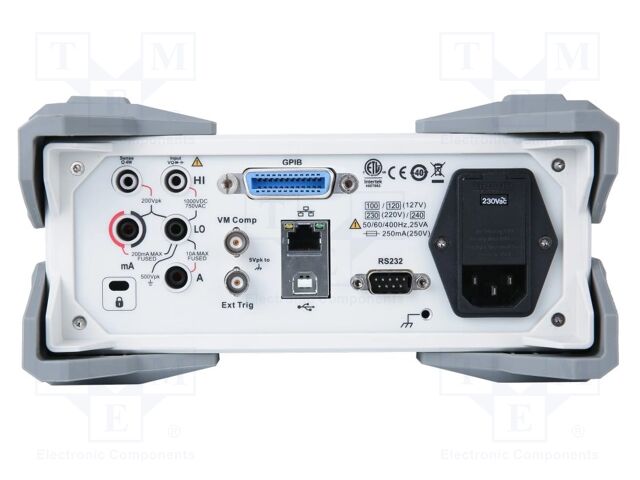

Interface: GPIB (option); LAN; RS232C; USB device; USB Host
Standard equipment: mains cable; probe; RS232 cable; software; USB cable
Test: diodes
True effective value measurement: True RMS
Bargraph: yes
Illumination: yes
Diode test: 0...4V
Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 20mF; 100mF
DC current measuring range: 2µA; 20µA; 0.2mA; 2mA; 20mA; 200mA; 2A; 10A
AC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 2A; 10A
DC voltage measuring accuracy: ±(0.0015% + 0.0004% range); ±(0.002% + 0.0003% range); ±(0.002% + 0.0005% range); ±(0.002% + 0.0015% range)
Resistance measuring accuracy: ±(0.002%+0.0005% range); ±(0.002%+0.001% range); ±(0.003%+0.0031% range); ±(0.008%+0.006% range); ±(0.015%+0.001% range); ±(0.2%+0.001% range); ±(2%+0.001% range)
DC current measuring accuracy: ±(0.006% + 0.008% range); ±(0.007% + 0.001% range); ±(0.009% + 0.001% range); ±(0.009% + 0.002% range); ±(0.009% + 0.01% range); ±(0.045% + 0.015% range)
Resistance measuring range: 20Ω; 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 10MΩ; 100MΩ; 1GΩ
Dimensions: 215x88x390.2mm
AC voltage measuring accuracy: ±(0.04% + 0.02% range); ±(0.1% + 0.04% range); ±(0.35% + 0.02% range); ±(0.55% + 0.08% range); ±(1% + 0.02% range); ±(4% + 0.5% range)
DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV
Frequency measuring accuracy: ±(0.1% + 0.04% range); ±(1% + 0.04% range)
AC voltage measuring range: 200mV; 2V; 20V; 200V; 750V
Capacitance measuring accuracy: ±(0.9%+ 0.1% range); ±(1.8%+ 2.4% range); ±(2.8%+ 0.1% range)
Frequency measuring range: 3Hz...1MHz
Supply voltage: 100...240V AC
Measuring instrument features: Histogram - graphical visualisation of measurement results; MIN/MAX/MEDIUM function; Pass/Fail function
Display parameters: 6,5 digit (2000000)
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 898.47 EUR |
