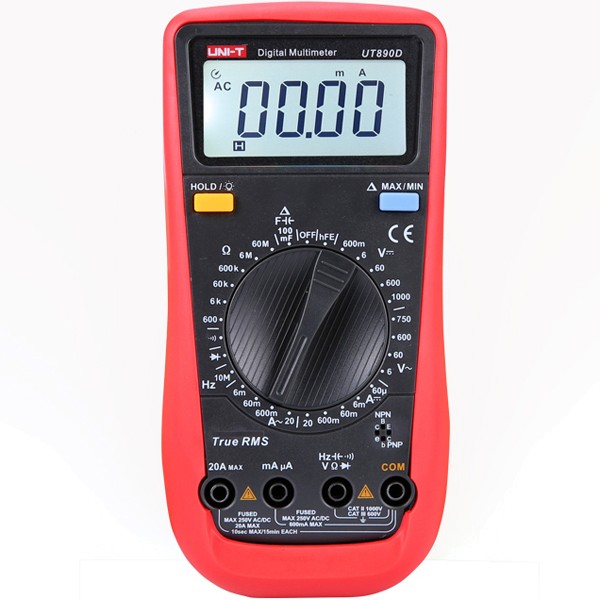

UT890D+ UNI-T
Hersteller: UNI-TCategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; transistors' gain hFE
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 750V
AC voltage measuring accuracy: ±(0.8% + 3 digit)
DC current measuring range: 60µA; 600µA; 6mA; 60mA; 600mA; 20A
DC current measuring accuracy: ±(0.8% + 8 digit)
AC current measuring range: 60µA; 600µA; 6mA; 60mA; 600mA; 20A
AC current measuring accuracy: ±(1% + 12 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF
Capacitance measuring accuracy: ±(3%+ 10 digit)
Frequency measuring range: 10...10MHz
Frequency measuring accuracy: ±(1%+5 digit)
Resistance measuring accuracy: ±(0.8%+3 digit)
Diode test: 0...3V
Continuity test: acoustic indication; <10Ω
Operating temperature: 0...40°C
Power supply: battery R6 AA 1,5V x2
Standard equipment: test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Dimensions (W x H x D): 88x183x56mm
Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX function; overflow indicator; REL function
Battery/ rechargeable battery: battery R6 AA 1,5V x2
Illumination: yes
Anzahl je Verpackung: 1 Stücke
auf Bestellung 82 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 3+ | 25.73 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT890D+ UNI-T
Category: Portable digital multimeters, Description: Digital multimeter; LCD; (5999); VDC: 0.1÷600mV,6V,60V,600V,1kV, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; transistors' gain hFE, Kind of display used: LCD, Display parameters: (5999), DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.5% + 2 digit), AC voltage measuring range: 1mV...6V; 60V; 600V; 750V, AC voltage measuring accuracy: ±(0.8% + 4 digit), DC current measuring range: 0.01...60µA; 6mA; 60mA; 600mA; 20A, DC current measuring accuracy: ±(0.8% + 8 digit), AC current measuring range: 0.001...6mA; 60mA; 600mA; 20A, AC current measuring accuracy: ±(1% + 12 digit), True effective value measurement: True RMS, Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 0.001...10nF; 100nF; 1mF; 10mF; 100mF, Capacitance measuring accuracy: ±(2.5%+ 20 digit), Frequency measuring range: 10...10MHz, Frequency measuring accuracy: ±(0.1%+5 digit), Resistance measuring accuracy: ±(0.8%+3 digit), Diode test: 0...3V, Continuity test: acoustic indication; .
Weitere Produktangebote UT890D+ nach Preis ab 25.73 EUR bis 25.73 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
|---|---|---|---|---|---|---|---|---|---|
|
+4 |
UT890D+ | Hersteller : UNI-T |
Category: Portable digital multimeters Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV Type of meter: digital multimeter Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; transistors' gain hFE Kind of display used: LCD Display parameters: (6000) DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV DC voltage measuring accuracy: ±(0.5% + 2 digit) AC voltage measuring range: 6V; 60V; 600V; 750V AC voltage measuring accuracy: ±(0.8% + 3 digit) DC current measuring range: 60µA; 600µA; 6mA; 60mA; 600mA; 20A DC current measuring accuracy: ±(0.8% + 8 digit) AC current measuring range: 60µA; 600µA; 6mA; 60mA; 600mA; 20A AC current measuring accuracy: ±(1% + 12 digit) True effective value measurement: True RMS Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF Capacitance measuring accuracy: ±(3%+ 10 digit) Frequency measuring range: 10...10MHz Frequency measuring accuracy: ±(1%+5 digit) Resistance measuring accuracy: ±(0.8%+3 digit) Diode test: 0...3V Continuity test: acoustic indication; <10Ω Operating temperature: 0...40°C Power supply: battery R6 AA 1,5V x2 Standard equipment: test leads Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010 Dimensions (W x H x D): 88x183x56mm Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX function; overflow indicator; REL function Battery/ rechargeable battery: battery R6 AA 1,5V x2 Illumination: yes |
auf Bestellung 82 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
 |
UT890D+ (UNI-T) Produktcode: 121225 |
Hersteller : Uni-Trend (Uni-T) |
Werkzeuge und Geräte > Messgeräte Gruppe: Мультиметри Beschreibung: Цифровий мультиметр. Вимірювання: напруга, струм, опір, ємність, частота, тест діодів, тест транзисторів. Утримання даних, автоматичне вимкнення. Живлення: 6F22. Габарити: 186x91x39мм 10 Hz...10 MHz Вимірювання напруги та струму: 600 mV...1000V / 6 mA...20 A Вимірювання опору: 600 Ohm...60 MOhm Вимірювання індуктивності: нема Вимірювання ємності: 10 nF...100 mF Перевірка транзисторів: присутня |
Produkt ist nicht verfügbar
|
|||||
 +1 |
UT890D | Hersteller : UNI-T |
Category: Portable digital multimeters Description: Digital multimeter; LCD; (5999); VDC: 0.1÷600mV,6V,60V,600V,1kV Type of meter: digital multimeter Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; transistors' gain hFE Kind of display used: LCD Display parameters: (5999) DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV DC voltage measuring accuracy: ±(0.5% + 2 digit) AC voltage measuring range: 1mV...6V; 60V; 600V; 750V AC voltage measuring accuracy: ±(0.8% + 4 digit) DC current measuring range: 0.01...60µA; 6mA; 60mA; 600mA; 20A DC current measuring accuracy: ±(0.8% + 8 digit) AC current measuring range: 0.001...6mA; 60mA; 600mA; 20A AC current measuring accuracy: ±(1% + 12 digit) True effective value measurement: True RMS Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ Capacitance measuring range: 0.001...10nF; 100nF; 1mF; 10mF; 100mF Capacitance measuring accuracy: ±(2.5%+ 20 digit) Frequency measuring range: 10...10MHz Frequency measuring accuracy: ±(0.1%+5 digit) Resistance measuring accuracy: ±(0.8%+3 digit) Diode test: 0...3V Continuity test: acoustic indication; <10Ω Operating temperature: 0...40°C Power supply: battery 6F22 9V x1 Standard equipment: test leads Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010 Dimensions (W x H x D): 88x185x40mm Measuring instrument features: automatic power-off; HOLD function; low battery indicator; MIN/MAX function; overflow indicator; REL function Battery/ rechargeable battery: battery 6F22 9V x1 Illumination: yes |
Produkt ist nicht verfügbar |
