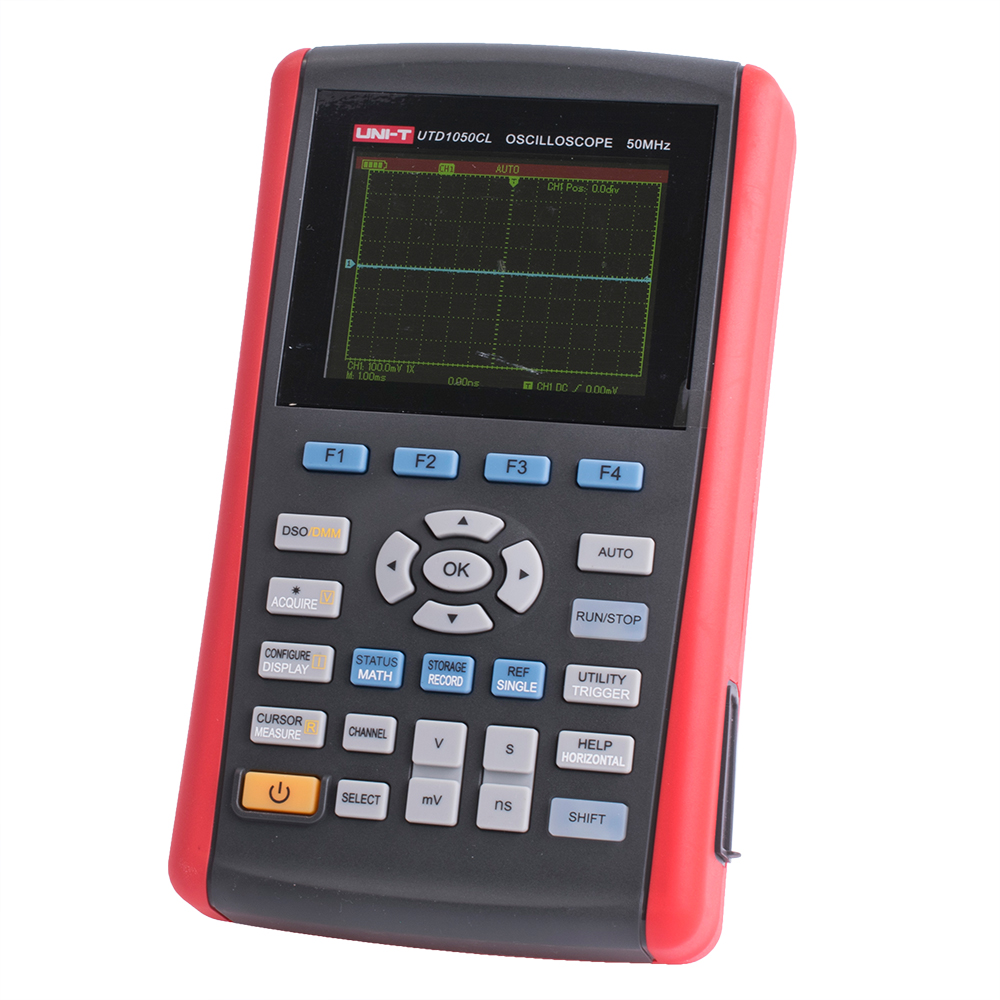

UTD1050CL Uni-Trend (Uni-T)

Hersteller: UNI-T
Category: Portable Oscilloscopes, Scopemeters
Description: Portable oscilloscope; 50MHz; LCD TFT 3,5"; Ch: 1; 200Msps; 12kpts
Type of oscilloscope: portable oscilloscope
Number of channels: 1
Band: 50MHz
Sampling: 200Msps
Memory record length: 12kpts
Kind of display used: LCD TFT 3,5"
Trigger: falling-edge; impulse width; rising-edge; slope; video signal
Time base: 5n...50s/div

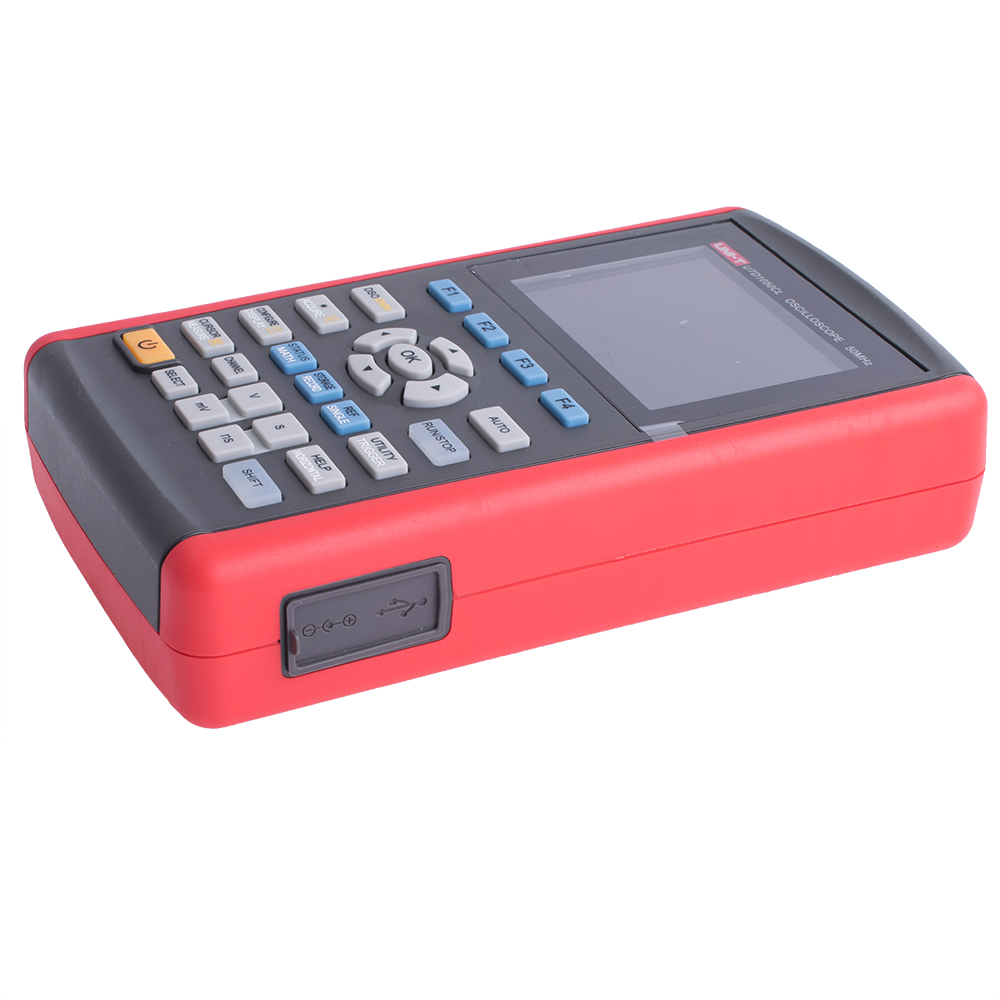

Interface: USB mini
Rise time: ≤7ns
Input sensitivity: 5mV/div...20V/div
Measuring instrument features: automatic measurement of many parameters

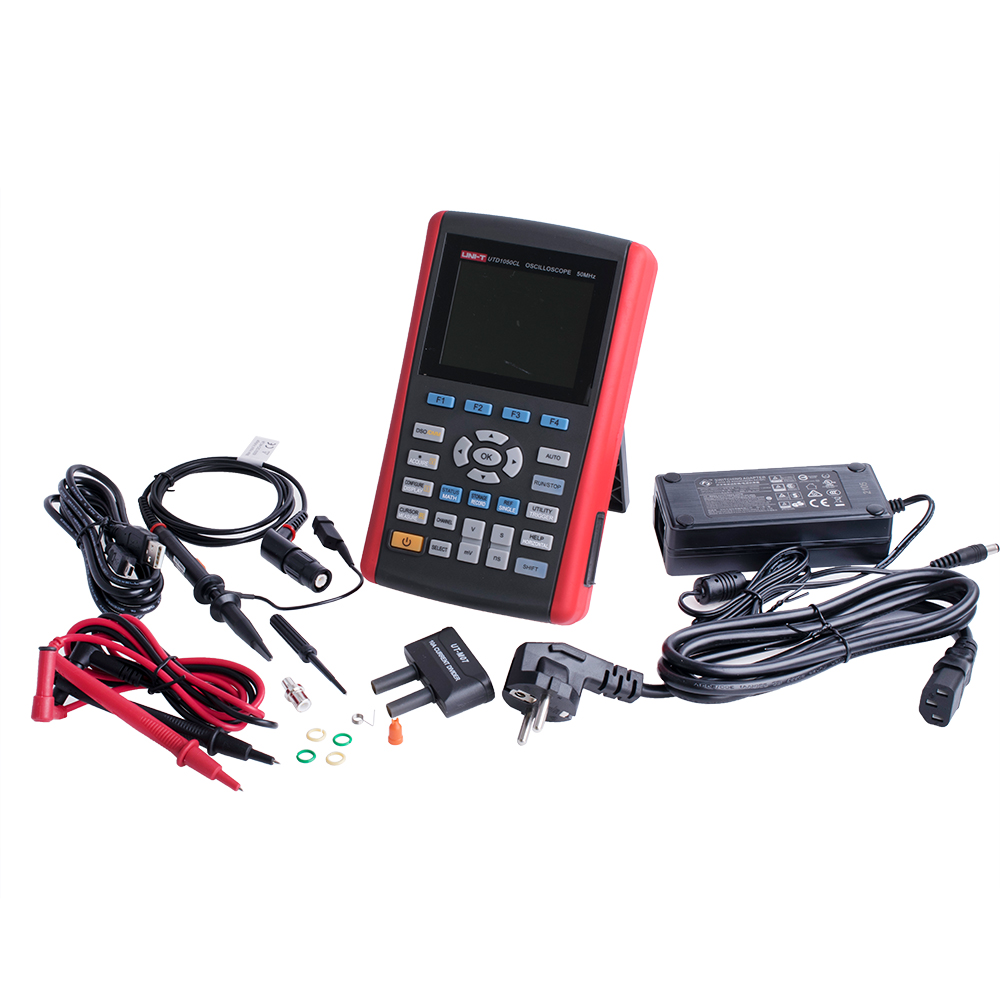

Standard equipment: CD with documentation; current shunt; mains cable; measuring probe; power supply; test leads; test probe x1; USB cable
Dimensions: 199x118x49mm
Display resolution: 320x240
Test: diodes
Power supply: mains power supply; rechargeable battery Li-Ion 7,4V 3600mAh x1
Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 3600mAh x1
Capacitance measuring range: 51.2nF; 512nF; 5.12µF; 51.2µF; 100µF
DC current measuring range: 0.4mA; 4mA; 40mA; 4A
AC current measuring range: 0.4mA; 4mA; 40mA; 4A
AC voltage measuring range: 400mV; 4V; 40V; 400V
DC voltage measuring range: 400mV; 4V; 40V; 400V
DC voltage measuring accuracy: ±(1.2% + 5 digit)
Resistance measuring accuracy: ±(1.2%+5 digit); ±(1.5%+5 digit)@(40MΩ)
AC voltage measuring accuracy: ±(1.2% + 5 digit)
Capacitance measuring accuracy: ±(3%+ 5 digit)
Max. input voltage: 400V
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Display parameters: (3999)
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance
