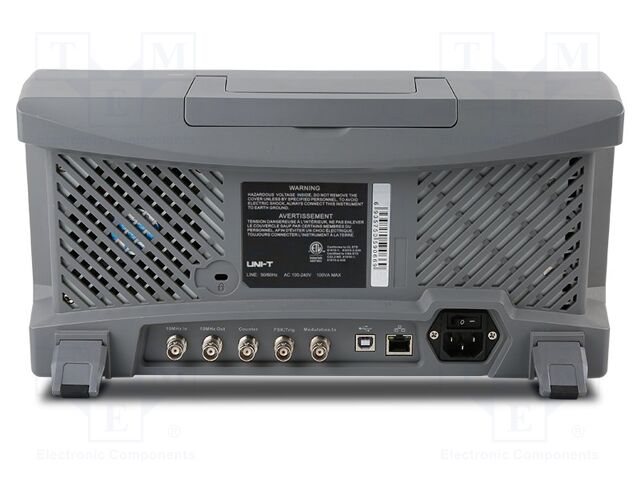

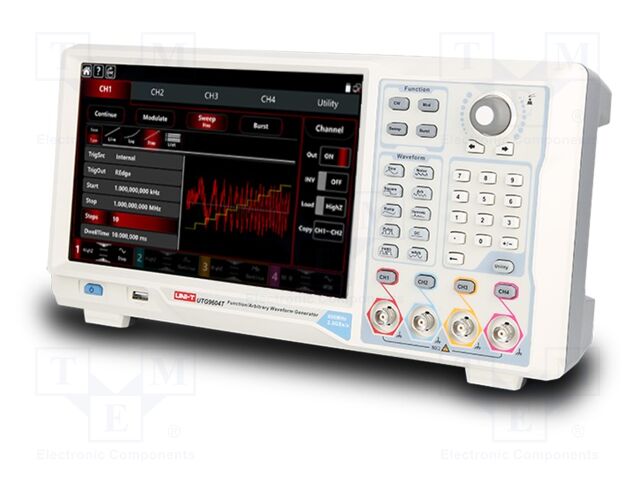

UTG9504T UNI-TREND TECHNOLOGY EU GmbH
Hersteller: UNI-TREND TECHNOLOGY EU GmbH
Description: waveform generator 500MHz 4Ch
Packaging: Retail Package
Display Type: Touchscreen
Function: Arbitrary
Type: Function Generator
Supply Voltage: 100 ~ 240V
Signal Types: Sine, Square, Pulse, Ramp, Noise, and Harmonic
Number of Channels: 4
Frequency - Max: 500 MHz
| Anzahl | Privatkunde |
|---|---|
| 1+ | 10997.92 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details UTG9504T UNI-TREND TECHNOLOGY EU GmbH
Category: Generators and Frequency Meters, Description: Laboratory generator: arbitrary, function; 500MHz; LCD TFT 8", Interface: HDMI; LAN; USB, Dimensions: 361x209x106mm, Operating temperature: 10...40°C, Manufacturer series: UTG, Standard equipment: cable BNC-BNC x4; mains cable; USB cable, Vertical resolution: 16bit, Protection: anti-overload OCP; short circuit protection SCP, Waveforms: arbitrary; DC; harmonic; impulse; noise; PRBS; ramp; sinus; square, Waveform frequency range: 1µHz...20MHz (ramp waveform); 1µHz...50MHz (arbitrary waveform); 1µHz...120MHz (pulse waveform); 1µHz...170MHz (square waveform); 1µHz...500MHz (sinus waveform), Kind of display used: LCD TFT 8", Type of laboratory generator: arbitrary, function, Sampling: 2,5Gsps, Display resolution: 1280x800, Maximum waveform frequency: 500MHz, Kind of modulation: 3FSK; 4FSK; AM; ASK; BPSK; DSB-AM; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM, Communictions protocol: I2C; SPI; UART, Number of channels: 4, Software: NeptuneLab, Supply voltage: 100...240V AC.
Weitere Produktangebote UTG9504T
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
   |
UTG9504T | UNI-T |
Category: Generators and Frequency Meters Description: Laboratory generator: arbitrary, function; 500MHz; 1280x800 Number of channels: 4 Sampling: 2,5Gsps Kind of display used: LCD TFT 10,1"; touch screen Vertical resolution: 14bit Interface: LAN; USB Standard equipment: BNC cable - crocodile clip; mains cable; USB cable Dimensions: 370x115x185mm Display resolution: 1280x800 Kind of modulation: AM; ASK; BPSK; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM Communictions protocol: I2C; SPI; UART Supply voltage: 100...240V AC Waveforms: arbitrary; DC; harmonic; impulse; noise; ramp; sinus; square Waveform frequency range: 1µHz...30MHz (ramp waveform); 1µHz...100MHz (arbitrary waveform); 1µHz...160MHz (pulse waveform); 1µHz...160MHz (square waveform); 1µHz...500MHz (sinus waveform) Type of laboratory generator: arbitrary, function Maximum waveform frequency: 500MHz |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
    |
UTG9504T+ | UNI-T |
Category: Generators and Frequency Meters Description: Laboratory generator: arbitrary, function; 500MHz; LCD TFT 8" Interface: HDMI; LAN; USB Dimensions: 361x209x106mm Operating temperature: 10...40°C Manufacturer series: UTG Standard equipment: cable BNC-BNC x4; mains cable; USB cable Vertical resolution: 16bit Protection: anti-overload OCP; short circuit protection SCP Waveforms: arbitrary; DC; harmonic; impulse; noise; PRBS; ramp; sinus; square Waveform frequency range: 1µHz...20MHz (ramp waveform); 1µHz...50MHz (arbitrary waveform); 1µHz...120MHz (pulse waveform); 1µHz...170MHz (square waveform); 1µHz...500MHz (sinus waveform) Kind of display used: LCD TFT 8" Type of laboratory generator: arbitrary, function Sampling: 2,5Gsps Display resolution: 1280x800 Maximum waveform frequency: 500MHz Kind of modulation: 3FSK; 4FSK; AM; ASK; BPSK; DSB-AM; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM Communictions protocol: I2C; SPI; UART Number of channels: 4 Software: NeptuneLab Supply voltage: 100...240V AC |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| UTG9504T |
|
Hersteller: UNI-T
Category: Generators and Frequency Meters
Description: Laboratory generator: arbitrary, function; 500MHz; 1280x800
Number of channels: 4
Sampling: 2,5Gsps
Kind of display used: LCD TFT 10,1"; touch screen
Vertical resolution: 14bit
Interface: LAN; USB
Standard equipment: BNC cable - crocodile clip; mains cable; USB cable
Dimensions: 370x115x185mm
Display resolution: 1280x800
Kind of modulation: AM; ASK; BPSK; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM
Communictions protocol: I2C; SPI; UART
Supply voltage: 100...240V AC
Waveforms: arbitrary; DC; harmonic; impulse; noise; ramp; sinus; square
Waveform frequency range: 1µHz...30MHz (ramp waveform); 1µHz...100MHz (arbitrary waveform); 1µHz...160MHz (pulse waveform); 1µHz...160MHz (square waveform); 1µHz...500MHz (sinus waveform)
Type of laboratory generator: arbitrary, function
Maximum waveform frequency: 500MHz
Category: Generators and Frequency Meters
Description: Laboratory generator: arbitrary, function; 500MHz; 1280x800
Number of channels: 4
Sampling: 2,5Gsps
Kind of display used: LCD TFT 10,1"; touch screen
Vertical resolution: 14bit
Interface: LAN; USB
Standard equipment: BNC cable - crocodile clip; mains cable; USB cable
Dimensions: 370x115x185mm
Display resolution: 1280x800
Kind of modulation: AM; ASK; BPSK; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM
Communictions protocol: I2C; SPI; UART
Supply voltage: 100...240V AC
Waveforms: arbitrary; DC; harmonic; impulse; noise; ramp; sinus; square
Waveform frequency range: 1µHz...30MHz (ramp waveform); 1µHz...100MHz (arbitrary waveform); 1µHz...160MHz (pulse waveform); 1µHz...160MHz (square waveform); 1µHz...500MHz (sinus waveform)
Type of laboratory generator: arbitrary, function
Maximum waveform frequency: 500MHz
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| UTG9504T+ |
|
Hersteller: UNI-T
Category: Generators and Frequency Meters
Description: Laboratory generator: arbitrary, function; 500MHz; LCD TFT 8"
Interface: HDMI; LAN; USB
Dimensions: 361x209x106mm
Operating temperature: 10...40°C
Manufacturer series: UTG
Standard equipment: cable BNC-BNC x4; mains cable; USB cable
Vertical resolution: 16bit
Protection: anti-overload OCP; short circuit protection SCP
Waveforms: arbitrary; DC; harmonic; impulse; noise; PRBS; ramp; sinus; square
Waveform frequency range: 1µHz...20MHz (ramp waveform); 1µHz...50MHz (arbitrary waveform); 1µHz...120MHz (pulse waveform); 1µHz...170MHz (square waveform); 1µHz...500MHz (sinus waveform)
Kind of display used: LCD TFT 8"
Type of laboratory generator: arbitrary, function
Sampling: 2,5Gsps
Display resolution: 1280x800
Maximum waveform frequency: 500MHz
Kind of modulation: 3FSK; 4FSK; AM; ASK; BPSK; DSB-AM; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM
Communictions protocol: I2C; SPI; UART
Number of channels: 4
Software: NeptuneLab
Supply voltage: 100...240V AC
Category: Generators and Frequency Meters
Description: Laboratory generator: arbitrary, function; 500MHz; LCD TFT 8"
Interface: HDMI; LAN; USB
Dimensions: 361x209x106mm
Operating temperature: 10...40°C
Manufacturer series: UTG
Standard equipment: cable BNC-BNC x4; mains cable; USB cable
Vertical resolution: 16bit
Protection: anti-overload OCP; short circuit protection SCP
Waveforms: arbitrary; DC; harmonic; impulse; noise; PRBS; ramp; sinus; square
Waveform frequency range: 1µHz...20MHz (ramp waveform); 1µHz...50MHz (arbitrary waveform); 1µHz...120MHz (pulse waveform); 1µHz...170MHz (square waveform); 1µHz...500MHz (sinus waveform)
Kind of display used: LCD TFT 8"
Type of laboratory generator: arbitrary, function
Sampling: 2,5Gsps
Display resolution: 1280x800
Maximum waveform frequency: 500MHz
Kind of modulation: 3FSK; 4FSK; AM; ASK; BPSK; DSB-AM; FM; FSK; OSK; PM; PSK; PWM; QAM; QPSK; SUM
Communictions protocol: I2C; SPI; UART
Number of channels: 4
Software: NeptuneLab
Supply voltage: 100...240V AC
