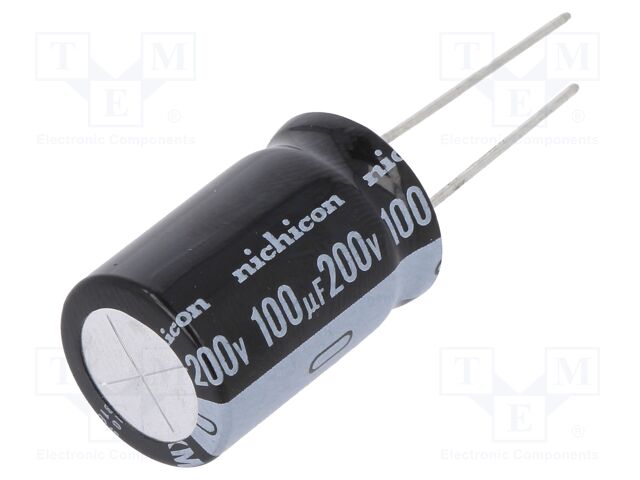

UVY2D101MHD NICHICON
Hersteller: NICHICON
Category: THT electrolytic capacitors
Description: Capacitor: electrolytic; THT; 100uF; 200VDC; Ø16x25mm; Pitch: 7.5mm
Type of capacitor: electrolytic
Mounting: THT
Capacitance: 100µF
Operating voltage: 200V DC
Body dimensions: Ø16x25mm
Terminal pitch: 7.5mm
Tolerance: ±20%
Service life: 1000h
Operating temperature: -55...105°C
Manufacturer series: UVY
Operating current: 1625mA
Height: 25mm
Diameter: 16mm
| Anzahl | Privatkunde |
|---|---|
| 36+ | 2.37 EUR |
| 57+ | 1.5 EUR |
| 70+ | 1.23 EUR |
| 100+ | 1.14 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UVY2D101MHD NICHICON
Description: CAP ALUM 100UF 20% 200V RADIAL, Packaging: Bulk, Tolerance: ±20%, Package / Case: Radial, Can, Size / Dimension: 0.630" Dia (16.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 105°C, Applications: General Purpose, Lead Spacing: 0.295" (7.50mm), Lifetime @ Temp.: 2000 Hrs @ 105°C, Height - Seated (Max): 1.063" (27.00mm), Capacitance: 100 µF, Voltage - Rated: 200 V, Ripple Current @ Low Frequency: 320 mA @ 120 Hz, Ripple Current @ High Frequency: 368 mA @ 10 kHz.
Weitere Produktangebote UVY2D101MHD nach Preis ab 1.34 EUR bis 3.67 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UVY2D101MHD | Nichicon |
Aluminium Electrolytic Capacitors - Radial Leaded 200volts 100uF 16x25 20% 7.5LS |
auf Bestellung 435 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
UVY2D101MHD | Nichicon |
Description: CAP ALUM 100UF 20% 200V RADIAL Packaging: Bulk Tolerance: ±20% Package / Case: Radial, Can Size / Dimension: 0.630" Dia (16.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -40°C ~ 105°C Applications: General Purpose Lead Spacing: 0.295" (7.50mm) Lifetime @ Temp.: 2000 Hrs @ 105°C Height - Seated (Max): 1.063" (27.00mm) Capacitance: 100 µF Voltage - Rated: 200 V Ripple Current @ Low Frequency: 320 mA @ 120 Hz Ripple Current @ High Frequency: 368 mA @ 10 kHz |
auf Bestellung 744 Stücke: Lieferzeit 10-14 Tag (e) |
|
| UVY2D101MHD |
|
Hersteller: Nichicon
Aluminium Electrolytic Capacitors - Radial Leaded 200volts 100uF 16x25 20% 7.5LS
Aluminium Electrolytic Capacitors - Radial Leaded 200volts 100uF 16x25 20% 7.5LS
auf Bestellung 435 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 3.67 EUR |
| 10+ | 2.34 EUR |
| 50+ | 1.89 EUR |
| 100+ | 1.82 EUR |
| 400+ | 1.34 EUR |
| UVY2D101MHD |
|
Hersteller: Nichicon
Description: CAP ALUM 100UF 20% 200V RADIAL
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 2000 Hrs @ 105°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 100 µF
Voltage - Rated: 200 V
Ripple Current @ Low Frequency: 320 mA @ 120 Hz
Ripple Current @ High Frequency: 368 mA @ 10 kHz
Description: CAP ALUM 100UF 20% 200V RADIAL
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 2000 Hrs @ 105°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 100 µF
Voltage - Rated: 200 V
Ripple Current @ Low Frequency: 320 mA @ 120 Hz
Ripple Current @ High Frequency: 368 mA @ 10 kHz
auf Bestellung 744 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 6+ | 3.67 EUR |
| 10+ | 2.4 EUR |
| 50+ | 1.87 EUR |
| 400+ | 1.45 EUR |
