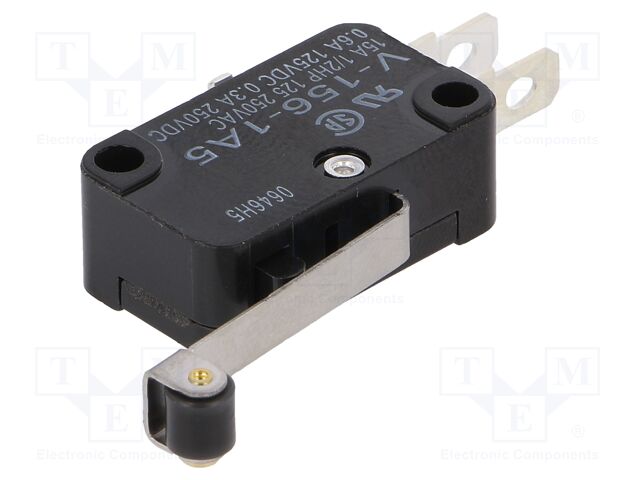

V-156-1A5

V-156-1A5 OMRON Electronic Components


pVersion=0046&contRep=ZT&docId=005056AB752F1ED38C81D6D6305169E4&compId=en-v.pdf?ci_sign=b77e7b8fa4058f4371b22bf8735ee5b8545fd822 Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 15A/250VAC; 0.6A/125VDC; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
Switching method: ON-(ON)
Leads: connectors; for soldering
Electrical life: 100000 cycles
Max. contact resistance:: 15mΩ
Body dimensions: 27.8x10.3x15.9mm
Operating temperature: -25...80°C
Leads dimensions: 4.75x0.5mm
IP rating: IP40
AC contacts rating @R: 15A / 250V AC
DC contacts rating @R: 0.6A / 125V DC
Operating Force: 1.96N
Lever length: 25.9mm
Switches features: with lever (with roller)
Manufacturer series: V
Mechanical durability: 50000000 cycles
auf Bestellung 87 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
17+4.35 EUR
35+2.04 EUR
38+1.93 EUR
Mindestbestellmenge: 17
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details V-156-1A5 OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 15A/250VAC; 0.6A/125VDC; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPDT, Switching method: ON-(ON), Leads: connectors; for soldering, Electrical life: 100000 cycles, Max. contact resistance:: 15mΩ, Body dimensions: 27.8x10.3x15.9mm, Operating temperature: -25...80°C, Leads dimensions: 4.75x0.5mm, IP rating: IP40, AC contacts rating @R: 15A / 250V AC, DC contacts rating @R: 0.6A / 125V DC, Operating Force: 1.96N, Lever length: 25.9mm, Switches features: with lever (with roller), Manufacturer series: V, Mechanical durability: 50000000 cycles.

Weitere Produktangebote V-156-1A5 nach Preis ab 4.75 EUR bis 9.05 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
V-156-1A5 V-156-1A5 Hersteller : Omron Electronics B010_E1-3446697.pdf Basic / Snap Action Switches MINIATURE BASIC SWITCH
auf Bestellung 37 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+9.05 EUR
10+6.69 EUR
50+6.53 EUR
100+5.51 EUR
200+5.17 EUR
500+4.91 EUR
1000+4.75 EUR
Im Einkaufswagen  Stück im Wert von  UAH
V-156-1A5
Produktcode: 107517
zu Favoriten hinzufügen Lieblingsprodukt

V_Mini_Basic_Switch.pdf Verschiedene Bauteile > Other components 3
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
V-156-1A5 V-156-1A5 Hersteller : Omron Electronics Inc-EMC Div V_Mini_Basic_Switch.pdf Description: SWITCH SNAP ACTION SPDT 15A 250V
Packaging: Bulk
Current Rating (Amps): 15A (AC), 600mA (DC)
Mounting Type: Chassis Mount
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -25°C ~ 80°C
Termination Style: Solder, Quick Connect - 0.187" (4.7mm)
Actuator Type: Lever, Roller
Operating Force: 125gf
Ingress Protection: IP40
Release Force: 14gf
Pretravel: 0.157" (4.0mm)
Differential Travel: 0.060" (1.5mm)
Overtravel: 0.062" (1.6mm)
Operating Position: 0.815" (20.7mm)
Voltage Rating - AC: 250 V
Voltage Rating - DC: 125 V
