Produkte > SUNON > MF30101V2-1000U-A99

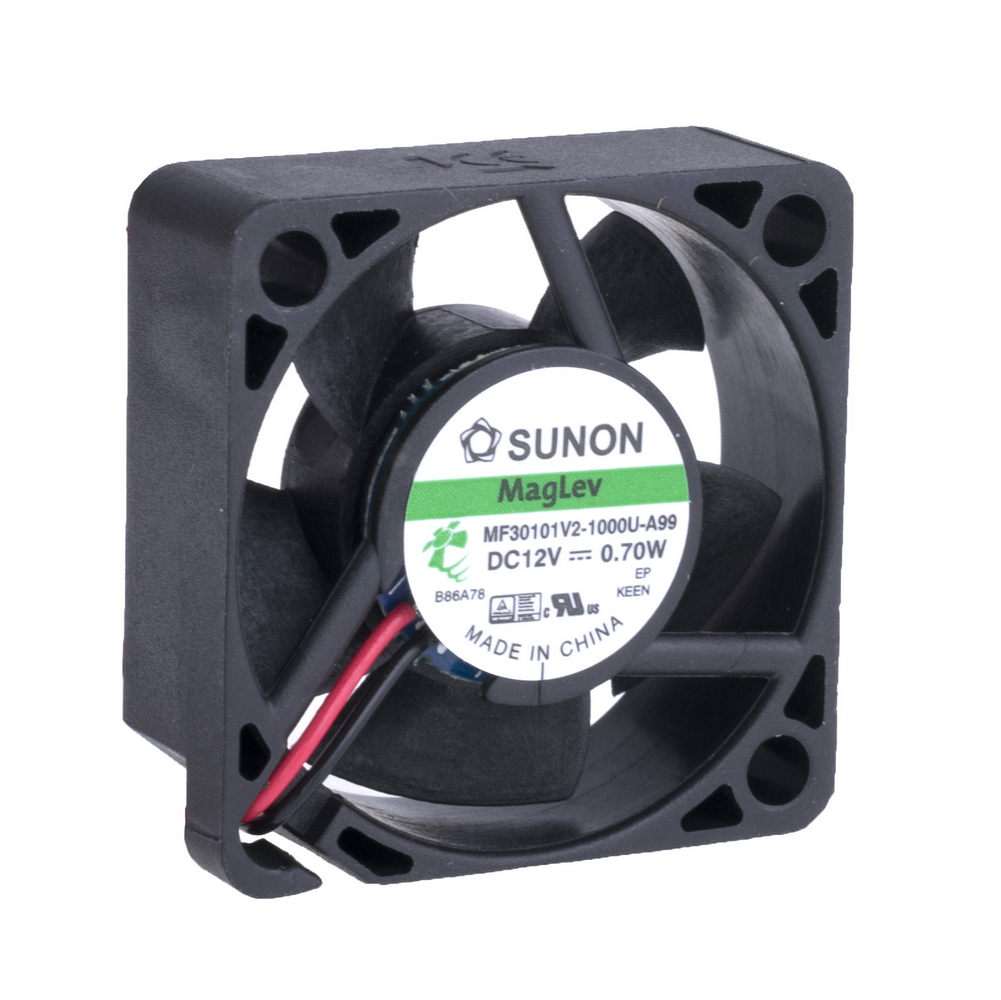

MF30101V2-1000U-A99

MF30101V2-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC4B820&compId=MF30101V2-A99-A.pdf?ci_sign=8e5d6bc720dd82134ca6f9283a8d41fafd1026d2 Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; 8600rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.39W
Current rating: 32mA
Fan efficiency: 7.77m3/h
Noise level: 20dBA
Kind of Bearing: Vapo
Rotational rate/speed: 8600rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Static pressure: 3.56mm H2O
Flammability rating: UL94V-0
Wire size: 28AWG
Fan motor: brushless DC
Lead length: 0.145m
Additional functions: autorestart
Insulation class: A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 75 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
12+6.38 EUR
13+5.58 EUR
40+5.03 EUR
200+4.49 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MF30101V2-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; 8600rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 30x30x10mm, Power consumption: 0.39W, Current rating: 32mA, Fan efficiency: 7.77m3/h, Noise level: 20dBA, Kind of Bearing: Vapo, Rotational rate/speed: 8600rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Static pressure: 3.56mm H2O, Flammability rating: UL94V-0, Wire size: 28AWG, Fan motor: brushless DC, Lead length: 0.145m, Additional functions: autorestart, Insulation class: A, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote MF30101V2-1000U-A99 nach Preis ab 5.03 EUR bis 17.97 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
MF30101V2-1000U-A99 MF30101V2-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC4B820&compId=MF30101V2-A99-A.pdf?ci_sign=8e5d6bc720dd82134ca6f9283a8d41fafd1026d2 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 7.77m3/h; 20dBA; Vapo; 8600rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.39W
Current rating: 32mA
Fan efficiency: 7.77m3/h
Noise level: 20dBA
Kind of Bearing: Vapo
Rotational rate/speed: 8600rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Static pressure: 3.56mm H2O
Flammability rating: UL94V-0
Wire size: 28AWG
Fan motor: brushless DC
Lead length: 0.145m
Additional functions: autorestart
Insulation class: A
auf Bestellung 75 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
12+6.38 EUR
13+5.58 EUR
40+5.03 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V2-1000U-A99 MF30101V2-1000U-A99 Hersteller : Sunon Fans (D03033610G-01)-1.pdf Description: FAN AXIAL 30X10MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 30mm L x 30mm H
Bearing Type: Vapo-Bearing™
RPM: 8600 RPM
Air Flow: 4.6 CFM (0.129m³/min)
Width: 10.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 20.0dB(A)
Static Pressure: 0.140 in H2O (34.9 Pa)
Part Status: Active
Power (Watts): 390 mW
auf Bestellung 256 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+17.62 EUR
10+14.52 EUR
25+13.33 EUR
50+12.47 EUR
100+11.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V2-1000U-A99 MF30101V2-1000U-A99 Hersteller : Sunon (D03033610G-01)-1.pdf DC Fans Axial Fan, 30x30x10mm, 12VDC, 4.6CFM, 0.14"H2O, Vapo, Wire, Auto Restart
auf Bestellung 55 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+17.97 EUR
10+16 EUR
25+15.28 EUR
50+14.77 EUR
100+14.26 EUR
250+13.31 EUR
400+12.85 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V2-1000U-A99 Hersteller : Sunon (D03033610G-01)-1.pdf DC Fan Axial Vapo Bearing 12V 6V to 13.8V 4.6CFM 20dB 30 X 30 X 10mm Middle Speed Box
auf Bestellung 775 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
15+9.65 EUR
40+8.21 EUR
200+7.08 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Вентилятор 30x30x10, 12V, (MF30101V2-A99-A) Вентилятор 30x30x10, 12V, (MF30101V2-A99-A)
Produktcode: 151662
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 30x30x10 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 7,77 м³/год.
Leistung, Watt: 0,39 Вт
Lärm, dB: 20 дБ
Rotationsgeschwindigkeit, r/min: 8600 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MF30101V2-1000U-A99 вентилятор
Produktcode: 203503
zu Favoriten hinzufügen Lieblingsprodukt

Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
