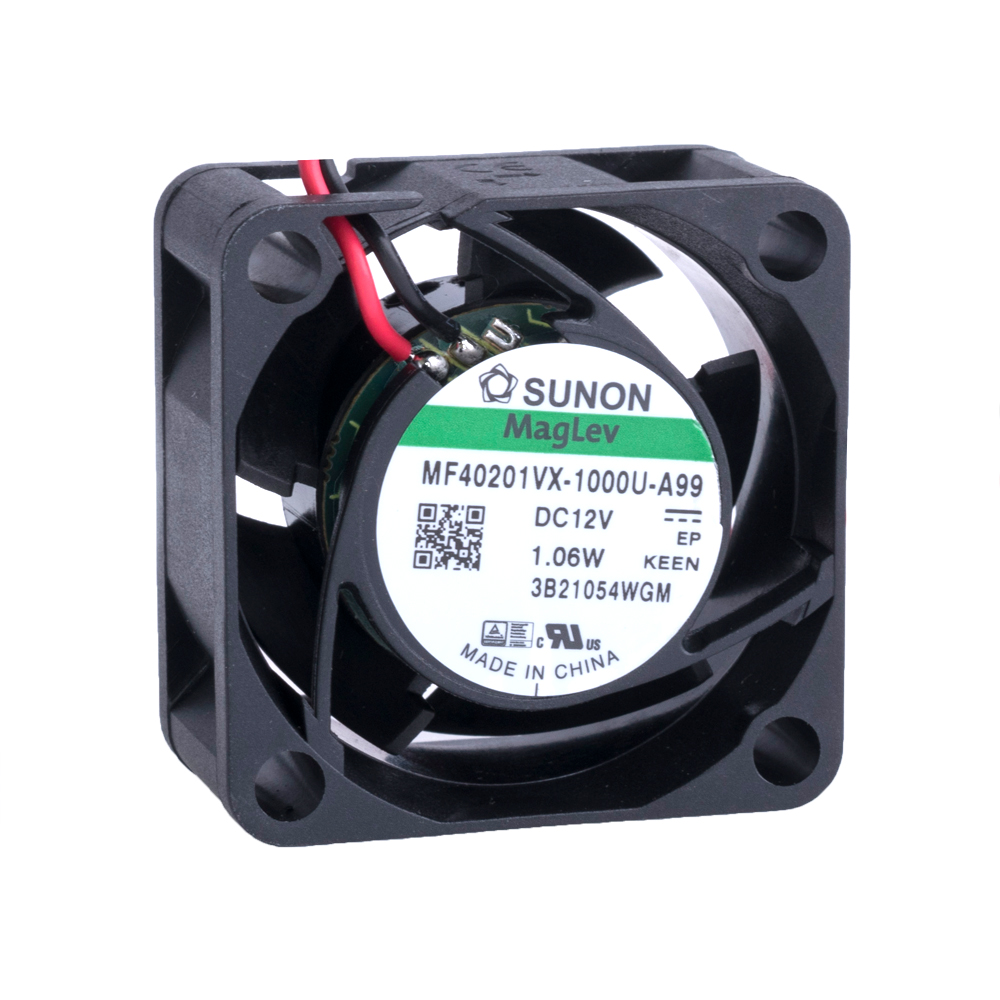

MF40201VX-1000U-A99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.25m3/h; 27.5dBA; Vapo; 8000rpm
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Current rating: 80mA
Fan dimensions: 40x40x20mm
Lead length: 0.305m
Insulation class: A
Power consumption: 0.96W
Supply voltage: 12V DC
Static pressure: 7.37mm H2O
Operating voltage: 4.5...13.8V DC
Fan efficiency: 18.25m3/h
Noise level: 27.5dBA
Wire size: 26AWG
Rotational rate/speed: 8000rpm
Min. insulation resistance: 10MΩ
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: Vapo
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Enclosure material: thermoplastic
auf Bestellung 4470 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 15+ | 4.86 EUR |
| 50+ | 3.75 EUR |
| 100+ | 3.25 EUR |
| 200+ | 3.06 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF40201VX-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.25m3/h; 27.5dBA; Vapo; 8000rpm, Operating temperature: -10...70°C, Impeller material: thermoplastic, Flammability rating: UL94V-0, Current rating: 80mA, Fan dimensions: 40x40x20mm, Lead length: 0.305m, Insulation class: A, Power consumption: 0.96W, Supply voltage: 12V DC, Static pressure: 7.37mm H2O, Operating voltage: 4.5...13.8V DC, Fan efficiency: 18.25m3/h, Noise level: 27.5dBA, Wire size: 26AWG, Rotational rate/speed: 8000rpm, Min. insulation resistance: 10MΩ, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: Vapo, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Enclosure material: thermoplastic, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF40201VX-1000U-A99 nach Preis ab 3.06 EUR bis 12.41 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF40201VX-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x20mm; 18.25m3/h; 27.5dBA; Vapo; 8000rpm Operating temperature: -10...70°C Impeller material: thermoplastic Flammability rating: UL94V-0 Current rating: 80mA Fan dimensions: 40x40x20mm Lead length: 0.305m Insulation class: A Power consumption: 0.96W Supply voltage: 12V DC Static pressure: 7.37mm H2O Operating voltage: 4.5...13.8V DC Fan efficiency: 18.25m3/h Noise level: 27.5dBA Wire size: 26AWG Rotational rate/speed: 8000rpm Min. insulation resistance: 10MΩ Additional functions: autorestart Kind of fan: axial Kind of Bearing: Vapo Fan motor: brushless DC Type of fan: DC Leads: leads x2 Enclosure material: thermoplastic Anzahl je Verpackung: 1 Stücke |
auf Bestellung 4470 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
MF40201VX-1000U-A99 | Hersteller : Sunon |
DC Fan Axial Vapo Bearing 12V 10.8CFM 27.5dB 40 X 40 X 20mm Super High Speed |
auf Bestellung 5970 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
MF40201VX-1000U-A99 | Hersteller : Sunon |
DC Fan Axial Vapo Bearing 12V 10.8CFM 27.5dB 40 X 40 X 20mm Super High Speed |
auf Bestellung 5574 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
MF40201VX-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 40x40x20mm, 12VDC, 10.8CFM, 0.29"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 3522 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
MF40201VX-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 40X20MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 8000 RPM Air Flow: 10.8 CFM (0.302m³/min) Width: 20.00mm Weight: 0.064 lb (29.03 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 27.5dB(A) Static Pressure: 0.290 in H2O (72.2 Pa) Part Status: Active Power (Watts): 960 mW |
auf Bestellung 1956 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
Вентилятор 40х40х20, 12V (MF40201VX-1000U-A99)(MF40201VX-A99-A) Produktcode: 175617
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 40x40x20 mm Spannung, V: 12 DC Luftvolumen, m3/Stunde: 18,25 м³/год. Leistung, Watt: 0,96 Вт Lärm, dB: 27,5 дБ Rotationsgeschwindigkeit, r/min: 8000 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
