Produkte > SUNON > PF92251V1-1000U-A99
PF92251V1-1000U-A99

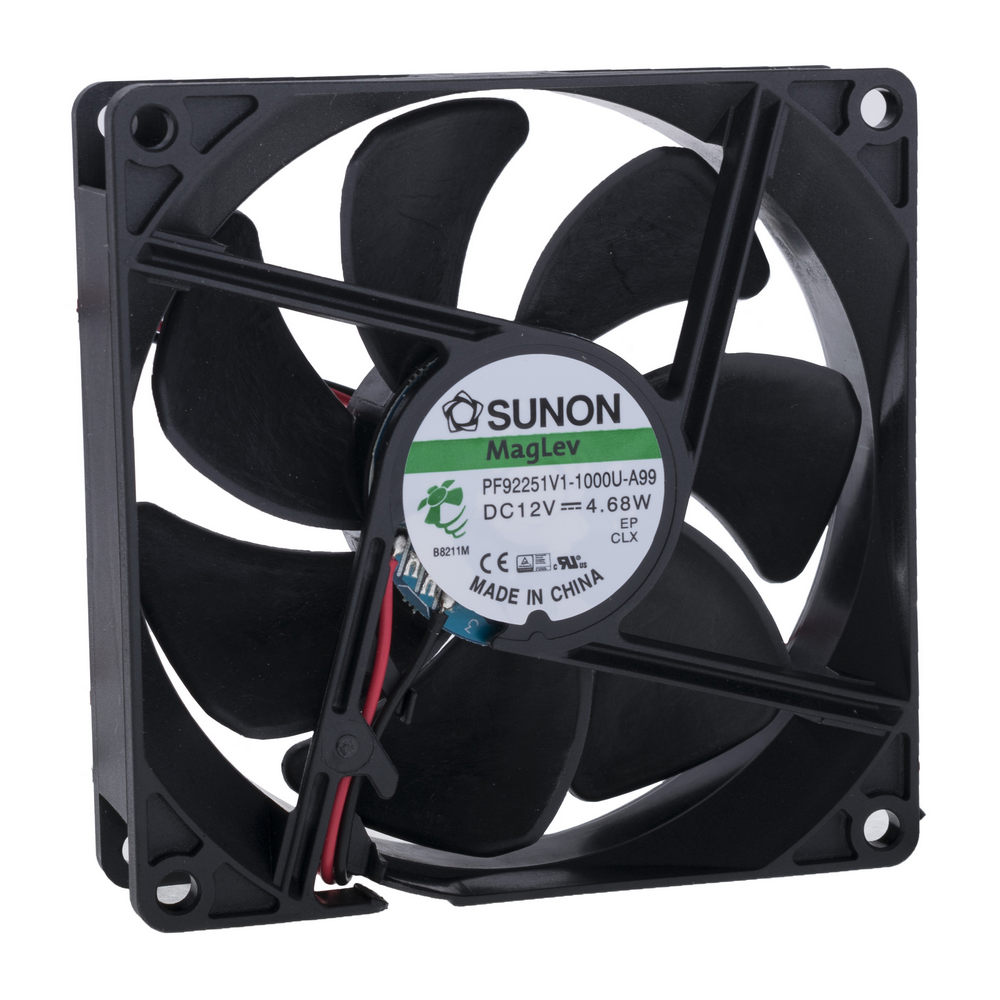

PF92251V1-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB752F1ED7AD80B00527102A13&compId=PF92251V1-1000U-A99%20D09034450G-00.pdf?ci_sign=6c862f1ecf0369359c4efd3f04554af083e098db Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 0.37A
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 6...13.8V DC
Type of fan: DC
Fan dimensions: 92x92x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 126.75m3/h
Static pressure: 8.89mm H2O
Noise level: 45.5dBA
Rotational rate/speed: 4500rpm
Power consumption: 4.44W
Wire size: 24AWG
Lead length: 0.305m
Additional functions: autorestart
Kind of fan: axial
auf Bestellung 678 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+10.18 EUR
10+8.84 EUR
56+7.48 EUR
224+6.66 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PF92251V1-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Enclosure material: thermoplastic, Current rating: 0.37A, Supply voltage: 12V DC, Leads: leads x2, Operating voltage: 6...13.8V DC, Type of fan: DC, Fan dimensions: 92x92x25mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 126.75m3/h, Static pressure: 8.89mm H2O, Noise level: 45.5dBA, Rotational rate/speed: 4500rpm, Power consumption: 4.44W, Wire size: 24AWG, Lead length: 0.305m, Additional functions: autorestart, Kind of fan: axial, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote PF92251V1-1000U-A99 nach Preis ab 6.66 EUR bis 32.52 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
PF92251V1-1000U-A99 PF92251V1-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1ED7AD80B00527102A13&compId=PF92251V1-1000U-A99%20D09034450G-00.pdf?ci_sign=6c862f1ecf0369359c4efd3f04554af083e098db Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 0.37A
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 6...13.8V DC
Type of fan: DC
Fan dimensions: 92x92x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 126.75m3/h
Static pressure: 8.89mm H2O
Noise level: 45.5dBA
Rotational rate/speed: 4500rpm
Power consumption: 4.44W
Wire size: 24AWG
Lead length: 0.305m
Additional functions: autorestart
Kind of fan: axial
Anzahl je Verpackung: 1 Stücke
auf Bestellung 678 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
8+10.18 EUR
10+8.84 EUR
56+7.48 EUR
224+6.66 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
PF92251V1-1000U-A99 PF92251V1-1000U-A99 Hersteller : Sunon (D09034450G-02)-1.pdf DC Fans Axial Fan, 92x92x25mm, 12VDC, 75CFM, 0.35"H2O, Vapo, Auto Restart, High Airflow
auf Bestellung 409 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+25.47 EUR
10+24.11 EUR
25+20.79 EUR
56+20.40 EUR
280+20.38 EUR
Im Einkaufswagen  Stück im Wert von  UAH
PF92251V1-1000U-A99 Hersteller : Sunon (D09034450G-02)-1.pdf PF92251V1-1000U-A99
auf Bestellung 832 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
10+15.88 EUR
11+13.27 EUR
56+10.80 EUR
224+9.28 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
PF92251V1-1000U-A99 Hersteller : Sunon (D09034450G-02)-1.pdf PF92251V1-1000U-A99
auf Bestellung 217 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+32.52 EUR
10+26.72 EUR
25+22.17 EUR
56+20.80 EUR
112+18.12 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Вентилятор 92x92x25, 12V, (PF92251V1-A99-A) Вентилятор 92x92x25, 12V, (PF92251V1-A99-A)
Produktcode: 144652
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon pf92251v1-1000u-a99-datasheet.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 92x92x25 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 126,75 м³/год.
Leistung, Watt: 4,44 Вт
Lärm, dB: 45,5 дБ
Rotationsgeschwindigkeit, r/min: 4500 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PF92251V1-1000U-A99 PF92251V1-1000U-A99 Hersteller : Sunon Fans (D09034450G-02)-1.pdf Description: FAN AXIAL 92X25MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 4500 RPM
Air Flow: 75.0 CFM (2.10m³/min)
Width: 25.00mm
Weight: 0.234 lb (106.14 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 45.5dB(A)
Static Pressure: 0.350 in H2O (87.2 Pa)
Part Status: Active
Power (Watts): 4.44 W
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
