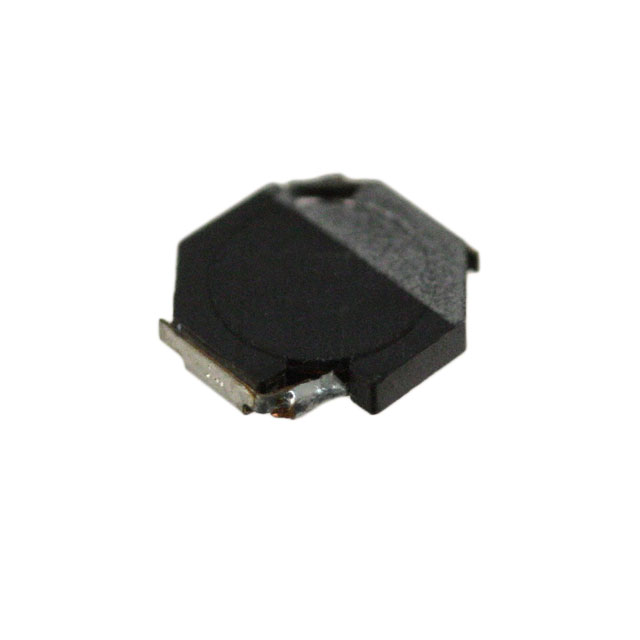

VLF4012ST-2R2M1R3 TDK Corporation
Hersteller: TDK CorporationDescription: FIXED IND 2.2UH 1.3A 120MOHM SMD
Packaging: Tape & Reel (TR)
Tolerance: ±20%
Package / Case: Nonstandard
Size / Dimension: 0.150" L x 0.142" W (3.80mm x 3.60mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 105°C
DC Resistance (DCR): 120mOhm Max
Current - Saturation (Isat): 1.7A
Material - Core: Ferrite
Inductance Frequency - Test: 1 MHz
Height - Seated (Max): 0.047" (1.20mm)
Inductance: 2.2 µH
Current Rating (Amps): 1.3 A
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details VLF4012ST-2R2M1R3 TDK Corporation
Description: FIXED IND 2.2UH 1.3A 120MOHM SMD, Packaging: Tape & Reel (TR), Tolerance: ±20%, Package / Case: Nonstandard, Size / Dimension: 0.150" L x 0.142" W (3.80mm x 3.60mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Drum Core, Wirewound, Operating Temperature: -40°C ~ 105°C, DC Resistance (DCR): 120mOhm Max, Current - Saturation (Isat): 1.7A, Material - Core: Ferrite, Inductance Frequency - Test: 1 MHz, Height - Seated (Max): 0.047" (1.20mm), Inductance: 2.2 µH, Current Rating (Amps): 1.3 A.
Weitere Produktangebote VLF4012ST-2R2M1R3
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
VLF4012ST-2R2M1R3 | Hersteller : TDK Corporation |
Description: FIXED IND 2.2UH 1.3A 120MOHM SMD Tolerance: ±20% Packaging: Cut Tape (CT) Package / Case: Nonstandard Size / Dimension: 0.150" L x 0.142" W (3.80mm x 3.60mm) Mounting Type: Surface Mount Shielding: Shielded Type: Drum Core, Wirewound Operating Temperature: -40°C ~ 105°C DC Resistance (DCR): 120mOhm Max Current - Saturation (Isat): 1.7A Material - Core: Ferrite Inductance Frequency - Test: 1 MHz Height - Seated (Max): 0.047" (1.20mm) Inductance: 2.2 µH Current Rating (Amps): 1.3 A |
Produkt ist nicht verfügbar |
|
 |
VLF4012ST-2R2M1R3 | Hersteller : TDK |
Fixed Inductors 2.2uH 0.12ohms 1.7A |
Produkt ist nicht verfügbar |
