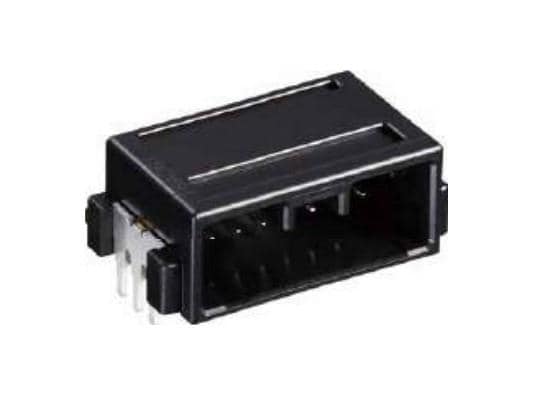

ZE05-24DP-2H(A) Hirose Connector
Hersteller: Hirose ConnectorAutomotive Connectors Plug 24pos 0.5 Size 2mm pitch Automotive Interface Connector
auf Bestellung 596 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 4.96 EUR |
| 10+ | 4.52 EUR |
| 25+ | 4.24 EUR |
| 100+ | 3.98 EUR |
| 300+ | 3.48 EUR |
| 600+ | 3.41 EUR |
| 900+ | 3.08 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ZE05-24DP-2H(A) Hirose Connector
Description: CONN RECEPTACLE 24POS, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 60VAC/DC, Current Rating (Amps): 2A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 24, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Shape: Rectangular, Insulation Height: 0.348" (8.84mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
Weitere Produktangebote ZE05-24DP-2H(A) nach Preis ab 3.67 EUR bis 5.53 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZE05-24DP-2H(A) | Hersteller : Hirose Electric Co Ltd |
Description: CONN RECEPTACLE 24POS Features: Solder Retention Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 60VAC/DC Current Rating (Amps): 2A Mounting Type: Surface Mount, Right Angle Number of Positions: 24 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 39.4µin (1.00µm) Contact Shape: Rectangular Insulation Height: 0.348" (8.84mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon |
auf Bestellung 300 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
|
|
ZE05-24DP-2H(A) | Hersteller : Hirose Electric Co Ltd |
Description: CONN RECEPTACLE 24POS Features: Solder Retention Packaging: Tape & Reel (TR) Connector Type: Header Voltage Rating: 60VAC/DC Current Rating (Amps): 2A Mounting Type: Surface Mount, Right Angle Number of Positions: 24 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 39.4µin (1.00µm) Contact Shape: Rectangular Insulation Height: 0.348" (8.84mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon |
Produkt ist nicht verfügbar |
