| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1-12B | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 2A Manufacturer series: S1 Switched voltage: max. 24V DC; max. 120V AC Relay variant: subminiature Mounting: PCB Coil resistance: 700Ω Body dimensions: 15.7x11.3x10.7mm Coil power consumption: 200mW Mechanical durability: 10000000 cycles Coil current: 17mA Operating temperature: -25...75°C Contact resistance: 100mΩ DC contacts rating @R: 2A / 24V DC AC contacts rating @R: 1A / 120V AC Electrical life: 100000 cycles Terminal pitch: 2.54mm |
auf Bestellung 897 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S10-1A-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Relay variant: automotive Coil voltage min.: 9V DC Coil voltage max.: 18V DC Manufacturer series: S10 Coil resistance: 80Ω Coil power consumption: 1.8W Contact material: silver alloy Operating temperature: -30...80°C Body dimensions: 28.6x28.6x25.3mm Mounting: on panel; socket Contact resistance: 100mΩ Leads: connectors Leads dimensions: 6.3x0.8mm Mechanical durability: 10000000 cycles Coil current: 150mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 |
auf Bestellung 2634 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S10-1A-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A Manufacturer series: S10 Relay variant: automotive Mounting: on panel; socket Coil resistance: 320Ω Coil voltage min.: 18V DC Coil voltage max.: 36V DC Body dimensions: 28.6x28.6x25.3mm Coil power consumption: 1.8W Mechanical durability: 10000000 cycles Contact material: silver alloy Coil current: 75mA Operating temperature: -30...80°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 40A / 12V DC Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Leads: connectors |
auf Bestellung 302 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S10-1C-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Relay variant: automotive Coil voltage min.: 9V DC Coil voltage max.: 18V DC Manufacturer series: S10 Coil resistance: 80Ω Coil power consumption: 1.8W Contact material: silver alloy Operating temperature: -30...80°C Body dimensions: 28.6x28.6x25.3mm Mounting: on panel; socket Contact resistance: 100mΩ Leads: connectors Leads dimensions: 6.3x0.8mm Mechanical durability: 10000000 cycles Coil current: 150mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 |
auf Bestellung 3704 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S10-1C-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 40A Manufacturer series: S10 Relay variant: automotive Mounting: on panel; socket Coil resistance: 320Ω Coil voltage min.: 18V DC Coil voltage max.: 36V DC Body dimensions: 28.6x28.6x25.3mm Coil power consumption: 1.8W Mechanical durability: 10000000 cycles Contact material: silver alloy Coil current: 75mA Operating temperature: -30...80°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 40A / 12V DC Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Leads: connectors |
auf Bestellung 3720 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S10-1A-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Relay variant: automotive Coil voltage min.: 9V DC Coil voltage max.: 18V DC Manufacturer series: S10 Coil resistance: 80Ω Coil power consumption: 1.8W Contact material: silver alloy Operating temperature: -30...80°C Body dimensions: 28.6x28.6x25.3mm Mounting: on panel; socket Contact resistance: 100mΩ Leads: connectors Leads dimensions: 6.3x0.8mm Mechanical durability: 10000000 cycles Coil current: 150mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2634 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S10-1A-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A Manufacturer series: S10 Relay variant: automotive Mounting: on panel; socket Coil resistance: 320Ω Coil voltage min.: 18V DC Coil voltage max.: 36V DC Body dimensions: 28.6x28.6x25.3mm Coil power consumption: 1.8W Mechanical durability: 10000000 cycles Contact material: silver alloy Coil current: 75mA Operating temperature: -30...80°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 40A / 12V DC Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Leads: connectors Anzahl je Verpackung: 1 Stücke |
auf Bestellung 302 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S10-1C-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Relay variant: automotive Coil voltage min.: 9V DC Coil voltage max.: 18V DC Manufacturer series: S10 Coil resistance: 80Ω Coil power consumption: 1.8W Contact material: silver alloy Operating temperature: -30...80°C Body dimensions: 28.6x28.6x25.3mm Mounting: on panel; socket Contact resistance: 100mΩ Leads: connectors Leads dimensions: 6.3x0.8mm Mechanical durability: 10000000 cycles Coil current: 150mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3704 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S10-1C-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 40A Manufacturer series: S10 Relay variant: automotive Mounting: on panel; socket Coil resistance: 320Ω Coil voltage min.: 18V DC Coil voltage max.: 36V DC Body dimensions: 28.6x28.6x25.3mm Coil power consumption: 1.8W Mechanical durability: 10000000 cycles Contact material: silver alloy Coil current: 75mA Operating temperature: -30...80°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 40A / 12V DC Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 Leads: connectors Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3720 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S11-1A-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: automotive Coil voltage min.: 7.8V DC Manufacturer series: S11 Coil resistance: 0.1Ω Coil power consumption: 1.4W Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 61x27.7x23mm Mounting: socket Mechanical durability: 5000000 cycles Coil current: 116mA Release time: 10ms Leads dimensions: 6.3x0.8mm Leads: connectors Coil voltage max.: 14.4V DC Electrical life: 100000 cycles DC contacts rating @R: 30A / 12V DC Operate time: 10ms Contact resistance: 100mΩ |
auf Bestellung 1406 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S11-1A-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 30A Manufacturer series: S11 Relay variant: automotive Mounting: socket Coil resistance: 0.1Ω Coil voltage min.: 15.6V DC Coil voltage max.: 26.4V DC Body dimensions: 61x27.7x23mm Coil power consumption: 1.4W Mechanical durability: 5000000 cycles Contact material: silver alloy Coil current: 58mA Operating temperature: -30...85°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 30A / 12V DC Electrical life: 100000 cycles Leads: connectors |
auf Bestellung 512 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S11-1A-C1-12VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: automotive Coil voltage min.: 7.8V DC Manufacturer series: S11 Coil resistance: 0.1Ω Coil power consumption: 1.4W Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 61x27.7x23mm Mounting: socket Mechanical durability: 5000000 cycles Coil current: 116mA Release time: 10ms Leads dimensions: 6.3x0.8mm Leads: connectors Coil voltage max.: 14.4V DC Electrical life: 100000 cycles DC contacts rating @R: 30A / 12V DC Operate time: 10ms Contact resistance: 100mΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1406 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S11-1A-C1-24VDC | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 30A Manufacturer series: S11 Relay variant: automotive Mounting: socket Coil resistance: 0.1Ω Coil voltage min.: 15.6V DC Coil voltage max.: 26.4V DC Body dimensions: 61x27.7x23mm Coil power consumption: 1.4W Mechanical durability: 5000000 cycles Contact material: silver alloy Coil current: 58mA Operating temperature: -30...85°C Release time: 10ms Operate time: 10ms Leads dimensions: 6.3x0.8mm Contact resistance: 100mΩ DC contacts rating @R: 30A / 12V DC Electrical life: 100000 cycles Leads: connectors Anzahl je Verpackung: 1 Stücke |
auf Bestellung 512 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S1-12B | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 2A Manufacturer series: S1 Switched voltage: max. 24V DC; max. 120V AC Relay variant: subminiature Mounting: PCB Coil resistance: 700Ω Body dimensions: 15.7x11.3x10.7mm Coil power consumption: 200mW Mechanical durability: 10000000 cycles Coil current: 17mA Operating temperature: -25...75°C Contact resistance: 100mΩ DC contacts rating @R: 2A / 24V DC AC contacts rating @R: 1A / 120V AC Electrical life: 100000 cycles Terminal pitch: 2.54mm Anzahl je Verpackung: 1 Stücke |
auf Bestellung 897 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-PAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 77mA Release time: 10ms Electrical life: 10000 cycles Operate time: 15ms Contact resistance: 50mΩ |
auf Bestellung 620 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12-PAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Relay variant: power Mounting: PCB Body dimensions: 19.5x26.8x31.9mm Operating temperature: -30...85°C Contact material: silver alloy Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 30A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Manufacturer series: S12 |
auf Bestellung 463 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12-PCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Release time: 10ms Operate time: 15ms Coil current: 77mA Contact resistance: 50mΩ Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contact material: silver alloy |
auf Bestellung 291 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|

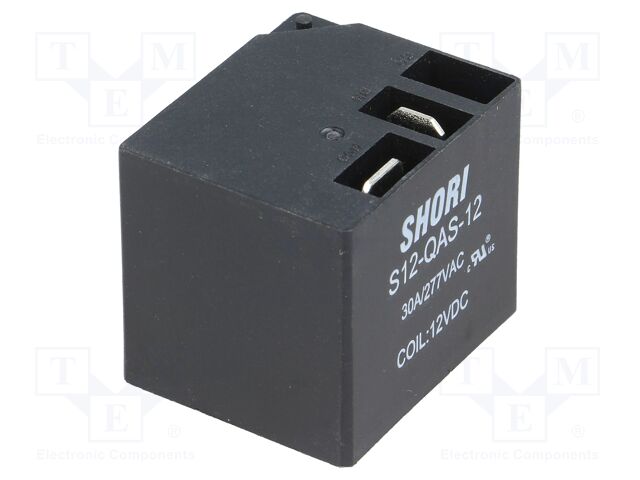

S12-QAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 27.1x28.8x32mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 77mA Release time: 10ms Electrical life: 10000 cycles Operate time: 15ms Contact resistance: 50mΩ |
auf Bestellung 120 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12-QAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Relay variant: power Mounting: PCB Body dimensions: 27.1x28.8x32mm Operating temperature: -30...85°C Contact material: silver alloy Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 30A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Manufacturer series: S12 |
auf Bestellung 15 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12-QCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A Body dimensions: 27.1x28.8x32mm Mounting: PCB Manufacturer series: S12 Relay variant: power Contact material: silver alloy Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 20A Coil resistance: 155Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contacts configuration: SPDT Type of relay: electromagnetic |
auf Bestellung 37 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12-QCS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A Body dimensions: 27.1x28.8x32mm Mounting: PCB Manufacturer series: S12 Relay variant: power Contact material: silver alloy Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Coil current: 36mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 20A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contacts configuration: SPDT Type of relay: electromagnetic |
auf Bestellung 467 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12H-PAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A Mounting: PCB Relay variant: power Contacts configuration: SPST-NO Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Body dimensions: 19.5x26.8x31.9mm Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 40A Coil resistance: 155Ω Mechanical durability: 10000000 cycles Electrical life: 10000 cycles Contact material: silver alloy Manufacturer series: S12H Type of relay: electromagnetic Leads: terminal |
auf Bestellung 75 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12H-PAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A Relay variant: power Manufacturer series: S12H Coil resistance: 660Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Electrical life: 10000 cycles Contact material: silver alloy |
auf Bestellung 77 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12H-PCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A Mounting: PCB Relay variant: power Contacts configuration: SPDT Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Body dimensions: 19.5x26.8x31.9mm Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 40A Coil resistance: 155Ω Mechanical durability: 10000000 cycles Electrical life: 10000 cycles Contact material: silver alloy Manufacturer series: S12H Type of relay: electromagnetic Leads: terminal |
auf Bestellung 17 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12H-PCS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 40A Relay variant: power Manufacturer series: S12H Coil resistance: 660Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Electrical life: 10000 cycles Contact material: silver alloy |
auf Bestellung 41 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S12H-PAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A Mounting: PCB Relay variant: power Contacts configuration: SPST-NO Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Body dimensions: 19.5x26.8x31.9mm Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 40A Coil resistance: 155Ω Mechanical durability: 10000000 cycles Electrical life: 10000 cycles Contact material: silver alloy Manufacturer series: S12H Type of relay: electromagnetic Leads: terminal Anzahl je Verpackung: 1 Stücke |
auf Bestellung 75 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12H-PAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A Relay variant: power Manufacturer series: S12H Coil resistance: 660Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Electrical life: 10000 cycles Contact material: silver alloy Anzahl je Verpackung: 1 Stücke |
auf Bestellung 77 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12H-PCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A Mounting: PCB Relay variant: power Contacts configuration: SPDT Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Body dimensions: 19.5x26.8x31.9mm Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 40A Coil resistance: 155Ω Mechanical durability: 10000000 cycles Electrical life: 10000 cycles Contact material: silver alloy Manufacturer series: S12H Type of relay: electromagnetic Leads: terminal Anzahl je Verpackung: 1 Stücke |
auf Bestellung 17 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12H-PCS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 40A Relay variant: power Manufacturer series: S12H Coil resistance: 660Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Electrical life: 10000 cycles Contact material: silver alloy Anzahl je Verpackung: 1 Stücke |
auf Bestellung 41 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-PAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 77mA Release time: 10ms Electrical life: 10000 cycles Operate time: 15ms Contact resistance: 50mΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 620 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-PAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Relay variant: power Mounting: PCB Body dimensions: 19.5x26.8x31.9mm Operating temperature: -30...85°C Contact material: silver alloy Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 30A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Manufacturer series: S12 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 463 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-PCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Operating temperature: -30...85°C Body dimensions: 19.5x26.8x31.9mm Mounting: PCB Release time: 10ms Operate time: 15ms Coil current: 77mA Contact resistance: 50mΩ Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contact material: silver alloy Anzahl je Verpackung: 1 Stücke |
auf Bestellung 291 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
| S12-PCS-24 | SHORI ELECTRIC | S12-PCS-24 Power Electromagnetic Relays |
auf Bestellung 164 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
|
S12-QAS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 30A Relay variant: power Manufacturer series: S12 Coil resistance: 155Ω Coil power consumption: 930mW Contact material: silver alloy Operating temperature: -30...85°C Body dimensions: 27.1x28.8x32mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 77mA Release time: 10ms Electrical life: 10000 cycles Operate time: 15ms Contact resistance: 50mΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 120 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-QAS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A Type of relay: electromagnetic Contacts configuration: SPST-NO Relay variant: power Mounting: PCB Body dimensions: 27.1x28.8x32mm Operating temperature: -30...85°C Contact material: silver alloy Release time: 10ms Operate time: 15ms Contact resistance: 50mΩ Coil current: 36mA Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 30A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Manufacturer series: S12 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 15 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-QCS-12 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A Body dimensions: 27.1x28.8x32mm Mounting: PCB Manufacturer series: S12 Relay variant: power Contact material: silver alloy Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Coil current: 77mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 12V DC Contact current max.: 20A Coil resistance: 155Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contacts configuration: SPDT Type of relay: electromagnetic Anzahl je Verpackung: 1 Stücke |
auf Bestellung 37 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S12-QCS-24 | SHORI ELECTRIC |
Category: Power Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A Body dimensions: 27.1x28.8x32mm Mounting: PCB Manufacturer series: S12 Relay variant: power Contact material: silver alloy Operating temperature: -30...85°C Release time: 10ms Operate time: 15ms Coil current: 36mA Contact resistance: 50mΩ Coil power consumption: 930mW Rated coil voltage: 24V DC Contact current max.: 20A Coil resistance: 660Ω Electrical life: 10000 cycles Mechanical durability: 10000000 cycles Contacts configuration: SPDT Type of relay: electromagnetic Anzahl je Verpackung: 1 Stücke |
auf Bestellung 467 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S13-24V-2C | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Manufacturer series: S13 Switched voltage: max. 125V AC; max. 125V DC Relay variant: miniature Mounting: PCB Coil resistance: 2.89kΩ Body dimensions: 20.2x9.8x12mm Coil power consumption: 200mW Terminal pitch: 5mm Operating temperature: -25...70°C Coil current: 8.3mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 15000000 cycles |
auf Bestellung 405 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| S13-12V-2C | SHORI ELECTRIC | S13-12V-2C Miniature Electromagnetic Relays |
auf Bestellung 332 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
|
S13-24V-2C | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Manufacturer series: S13 Switched voltage: max. 125V AC; max. 125V DC Relay variant: miniature Mounting: PCB Coil resistance: 2.89kΩ Body dimensions: 20.2x9.8x12mm Coil power consumption: 200mW Terminal pitch: 5mm Operating temperature: -25...70°C Coil current: 8.3mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 15000000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 405 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S16-12-1AP | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 80A Relay variant: automotive Coil voltage min.: 9.6V DC Manufacturer series: S16 Coil resistance: 75Ω Switched voltage: max. 14V DC Operating temperature: -30...85°C Body dimensions: 28.6x28.6x41.6mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 160mA |
auf Bestellung 2388 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S16-12-1AP | SHORI ELECTRIC |
Category: Automotive Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 80A Relay variant: automotive Coil voltage min.: 9.6V DC Manufacturer series: S16 Coil resistance: 75Ω Switched voltage: max. 14V DC Operating temperature: -30...85°C Body dimensions: 28.6x28.6x41.6mm Mounting: PCB Mechanical durability: 10000000 cycles Coil current: 160mA Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2388 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S2-12B | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 3A; S2 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 3A Manufacturer series: S2 Switched voltage: max. 24V DC; max. 120V AC Relay variant: subminiature Mounting: PCB Coil resistance: 700Ω Body dimensions: 15.7x10.7x11.3mm Coil power consumption: 200mW Mechanical durability: 10000000 cycles Coil current: 17mA Operating temperature: -25...50°C Contact resistance: 100mΩ DC contacts rating @R: 2A / 24V DC AC contacts rating @R: 1A / 120V AC Electrical life: 100000 cycles Terminal pitch: 2.54mm |
auf Bestellung 2074 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20E-12B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: miniature Manufacturer series: S20 Coil resistance: 360Ω Coil power consumption: 400mW Operating temperature: -40...85°C Body dimensions: 12.7x15.7x29mm Mounting: PCB Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 30000000 cycles |
auf Bestellung 678 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20E-12B-1CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: miniature Manufacturer series: S20 Coil resistance: 360Ω Coil power consumption: 400mW Operating temperature: -40...85°C Body dimensions: 12.7x15.7x29mm Mounting: PCB Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 30000000 cycles |
auf Bestellung 739 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20E-24B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 20A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 591 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20E-24B-1CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 20A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 300 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20E-12B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: miniature Manufacturer series: S20 Coil resistance: 360Ω Coil power consumption: 400mW Operating temperature: -40...85°C Body dimensions: 12.7x15.7x29mm Mounting: PCB Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 30000000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 678 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20E-12B-1CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 20A Relay variant: miniature Manufacturer series: S20 Coil resistance: 360Ω Coil power consumption: 400mW Operating temperature: -40...85°C Body dimensions: 12.7x15.7x29mm Mounting: PCB Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Mechanical durability: 30000000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 739 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20E-24B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 20A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 591 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20E-24B-1CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20 Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 20A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 300 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20H-12B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 12A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 1253 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20H-12B-1CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 12A; S20 Contacts configuration: SPDT Electrical life: 100000 cycles Mechanical durability: 30000000 cycles Operating temperature: -40...85°C Relay variant: miniature Body dimensions: 12.7x15.7x29mm Coil current: 33mA Contact resistance: 100mΩ Coil power consumption: 400mW Contact current max.: 12A Rated coil voltage: 12V DC Coil resistance: 360Ω Manufacturer series: S20 Type of relay: electromagnetic Mounting: PCB |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||
|
S20H-12B-1AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 12A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1253 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20M-12B-2AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 12V DC Contact current max.: 10A Relay variant: miniature Manufacturer series: S20 Mounting: PCB Body dimensions: 12.7x15.7x29mm Coil resistance: 360Ω Coil power consumption: 400mW Mechanical durability: 30000000 cycles Operating temperature: -40...85°C Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 1419 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20M-12B-2CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 12V DC Contact current max.: 10A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 1556 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20M-24B-2AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 24V DC Contact current max.: 10A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 147 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20M-24B-2CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A; S20 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 10A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 17mA Contact resistance: 100mΩ Electrical life: 100000 cycles |
auf Bestellung 552 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
S20M-12B-2AS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 12V DC Contact current max.: 10A Relay variant: miniature Manufacturer series: S20 Mounting: PCB Body dimensions: 12.7x15.7x29mm Coil resistance: 360Ω Coil power consumption: 400mW Mechanical durability: 30000000 cycles Operating temperature: -40...85°C Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1419 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
|
S20M-12B-2CS | SHORI ELECTRIC |
Category: Miniature Electromagnetic RelaysDescription: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 12V DC Contact current max.: 10A Manufacturer series: S20 Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Body dimensions: 12.7x15.7x29mm Coil power consumption: 400mW Operating temperature: -40...85°C Mechanical durability: 30000000 cycles Coil current: 33mA Contact resistance: 100mΩ Electrical life: 100000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1556 Stücke: Lieferzeit 7-14 Tag (e) |
|
| S1-12B |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
Manufacturer series: S1
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x11.3x10.7mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...75°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
Manufacturer series: S1
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x11.3x10.7mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...75°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
auf Bestellung 897 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 69+ | 1.04 EUR |
| 71+ | 1.01 EUR |
| 114+ | 0.63 EUR |
| 121+ | 0.59 EUR |
| S10-1A-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
auf Bestellung 2634 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 39+ | 1.86 EUR |
| 43+ | 1.7 EUR |
| 61+ | 1.17 EUR |
| 65+ | 1.12 EUR |
| S10-1A-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
auf Bestellung 302 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 38+ | 1.9 EUR |
| 61+ | 1.19 EUR |
| 64+ | 1.13 EUR |
| S10-1C-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
auf Bestellung 3704 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.23 EUR |
| 37+ | 1.96 EUR |
| 54+ | 1.34 EUR |
| 57+ | 1.27 EUR |
| S10-1C-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
auf Bestellung 3720 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 30+ | 2.42 EUR |
| 33+ | 2.22 EUR |
| 52+ | 1.39 EUR |
| 55+ | 1.32 EUR |
| S10-1A-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2634 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 39+ | 1.86 EUR |
| 43+ | 1.7 EUR |
| 61+ | 1.17 EUR |
| 65+ | 1.12 EUR |
| S10-1A-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Anzahl je Verpackung: 1 Stücke
auf Bestellung 302 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 38+ | 1.9 EUR |
| 61+ | 1.19 EUR |
| 64+ | 1.13 EUR |
| S10-1C-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Manufacturer series: S10
Coil resistance: 80Ω
Coil power consumption: 1.8W
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Contact resistance: 100mΩ
Leads: connectors
Leads dimensions: 6.3x0.8mm
Mechanical durability: 10000000 cycles
Coil current: 150mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3704 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.23 EUR |
| 37+ | 1.96 EUR |
| 54+ | 1.34 EUR |
| 57+ | 1.27 EUR |
| S10-1C-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; S10
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Body dimensions: 28.6x28.6x25.3mm
Coil power consumption: 1.8W
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Coil current: 75mA
Operating temperature: -30...80°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 40A / 12V DC
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Leads: connectors
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3720 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 30+ | 2.42 EUR |
| 33+ | 2.22 EUR |
| 52+ | 1.39 EUR |
| 55+ | 1.32 EUR |
| S11-1A-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: automotive
Coil voltage min.: 7.8V DC
Manufacturer series: S11
Coil resistance: 0.1Ω
Coil power consumption: 1.4W
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 61x27.7x23mm
Mounting: socket
Mechanical durability: 5000000 cycles
Coil current: 116mA
Release time: 10ms
Leads dimensions: 6.3x0.8mm
Leads: connectors
Coil voltage max.: 14.4V DC
Electrical life: 100000 cycles
DC contacts rating @R: 30A / 12V DC
Operate time: 10ms
Contact resistance: 100mΩ
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: automotive
Coil voltage min.: 7.8V DC
Manufacturer series: S11
Coil resistance: 0.1Ω
Coil power consumption: 1.4W
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 61x27.7x23mm
Mounting: socket
Mechanical durability: 5000000 cycles
Coil current: 116mA
Release time: 10ms
Leads dimensions: 6.3x0.8mm
Leads: connectors
Coil voltage max.: 14.4V DC
Electrical life: 100000 cycles
DC contacts rating @R: 30A / 12V DC
Operate time: 10ms
Contact resistance: 100mΩ
auf Bestellung 1406 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.8 EUR |
| 42+ | 1.73 EUR |
| 57+ | 1.26 EUR |
| 61+ | 1.19 EUR |
| S11-1A-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 30A
Manufacturer series: S11
Relay variant: automotive
Mounting: socket
Coil resistance: 0.1Ω
Coil voltage min.: 15.6V DC
Coil voltage max.: 26.4V DC
Body dimensions: 61x27.7x23mm
Coil power consumption: 1.4W
Mechanical durability: 5000000 cycles
Contact material: silver alloy
Coil current: 58mA
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 30A / 12V DC
Electrical life: 100000 cycles
Leads: connectors
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 30A
Manufacturer series: S11
Relay variant: automotive
Mounting: socket
Coil resistance: 0.1Ω
Coil voltage min.: 15.6V DC
Coil voltage max.: 26.4V DC
Body dimensions: 61x27.7x23mm
Coil power consumption: 1.4W
Mechanical durability: 5000000 cycles
Contact material: silver alloy
Coil current: 58mA
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 30A / 12V DC
Electrical life: 100000 cycles
Leads: connectors
auf Bestellung 512 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 41+ | 1.76 EUR |
| 44+ | 1.63 EUR |
| 69+ | 1.04 EUR |
| 73+ | 0.99 EUR |
| S11-1A-C1-12VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: automotive
Coil voltage min.: 7.8V DC
Manufacturer series: S11
Coil resistance: 0.1Ω
Coil power consumption: 1.4W
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 61x27.7x23mm
Mounting: socket
Mechanical durability: 5000000 cycles
Coil current: 116mA
Release time: 10ms
Leads dimensions: 6.3x0.8mm
Leads: connectors
Coil voltage max.: 14.4V DC
Electrical life: 100000 cycles
DC contacts rating @R: 30A / 12V DC
Operate time: 10ms
Contact resistance: 100mΩ
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: automotive
Coil voltage min.: 7.8V DC
Manufacturer series: S11
Coil resistance: 0.1Ω
Coil power consumption: 1.4W
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 61x27.7x23mm
Mounting: socket
Mechanical durability: 5000000 cycles
Coil current: 116mA
Release time: 10ms
Leads dimensions: 6.3x0.8mm
Leads: connectors
Coil voltage max.: 14.4V DC
Electrical life: 100000 cycles
DC contacts rating @R: 30A / 12V DC
Operate time: 10ms
Contact resistance: 100mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1406 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.8 EUR |
| 42+ | 1.73 EUR |
| 57+ | 1.26 EUR |
| 61+ | 1.19 EUR |
| S11-1A-C1-24VDC |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 30A
Manufacturer series: S11
Relay variant: automotive
Mounting: socket
Coil resistance: 0.1Ω
Coil voltage min.: 15.6V DC
Coil voltage max.: 26.4V DC
Body dimensions: 61x27.7x23mm
Coil power consumption: 1.4W
Mechanical durability: 5000000 cycles
Contact material: silver alloy
Coil current: 58mA
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 30A / 12V DC
Electrical life: 100000 cycles
Leads: connectors
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 30A
Manufacturer series: S11
Relay variant: automotive
Mounting: socket
Coil resistance: 0.1Ω
Coil voltage min.: 15.6V DC
Coil voltage max.: 26.4V DC
Body dimensions: 61x27.7x23mm
Coil power consumption: 1.4W
Mechanical durability: 5000000 cycles
Contact material: silver alloy
Coil current: 58mA
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 10ms
Leads dimensions: 6.3x0.8mm
Contact resistance: 100mΩ
DC contacts rating @R: 30A / 12V DC
Electrical life: 100000 cycles
Leads: connectors
Anzahl je Verpackung: 1 Stücke
auf Bestellung 512 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 41+ | 1.76 EUR |
| 44+ | 1.63 EUR |
| 69+ | 1.04 EUR |
| 73+ | 0.99 EUR |
| S1-12B |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
Manufacturer series: S1
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x11.3x10.7mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...75°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 2A; S1
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
Manufacturer series: S1
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x11.3x10.7mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...75°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 897 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 69+ | 1.04 EUR |
| 71+ | 1.01 EUR |
| 114+ | 0.63 EUR |
| 121+ | 0.59 EUR |
| S12-PAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
auf Bestellung 620 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.79 EUR |
| 44+ | 1.64 EUR |
| 70+ | 1.03 EUR |
| 73+ | 0.99 EUR |
| S12-PAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 19.5x26.8x31.9mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 19.5x26.8x31.9mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
auf Bestellung 463 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 38+ | 1.89 EUR |
| 42+ | 1.73 EUR |
| 66+ | 1.09 EUR |
| 67+ | 1.07 EUR |
| 71+ | 1.02 EUR |
| S12-PCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contact material: silver alloy
auf Bestellung 291 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.82 EUR |
| 43+ | 1.67 EUR |
| 64+ | 1.13 EUR |
| 67+ | 1.07 EUR |
| S12-QAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
auf Bestellung 120 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 41+ | 1.76 EUR |
| 46+ | 1.57 EUR |
| 69+ | 1.04 EUR |
| 73+ | 0.99 EUR |
| S12-QAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 27.1x28.8x32mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 27.1x28.8x32mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 15+ | 4.76 EUR |
| S12-QCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 20A
Coil resistance: 155Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 20A
Coil resistance: 155Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
auf Bestellung 37 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 37+ | 1.93 EUR |
| S12-QCS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 36mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 20A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 36mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 20A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
auf Bestellung 467 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 34+ | 2.16 EUR |
| 38+ | 1.93 EUR |
| 53+ | 1.37 EUR |
| 55+ | 1.3 EUR |
| S12H-PAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPST-NO
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPST-NO
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
auf Bestellung 75 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.2 EUR |
| 37+ | 1.97 EUR |
| 50+ | 1.43 EUR |
| 54+ | 1.34 EUR |
| S12H-PAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
auf Bestellung 77 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 28+ | 2.57 EUR |
| 32+ | 2.3 EUR |
| 50+ | 1.43 EUR |
| 54+ | 1.34 EUR |
| S12H-PCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPDT
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPDT
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
auf Bestellung 17 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 17+ | 4.2 EUR |
| S12H-PCS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
auf Bestellung 41 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 31+ | 2.33 EUR |
| 35+ | 2.07 EUR |
| 41+ | 1.74 EUR |
| S12H-PAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPST-NO
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPST-NO
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Anzahl je Verpackung: 1 Stücke
auf Bestellung 75 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.2 EUR |
| 37+ | 1.97 EUR |
| 50+ | 1.43 EUR |
| 54+ | 1.34 EUR |
| S12H-PAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
auf Bestellung 77 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 28+ | 2.57 EUR |
| 32+ | 2.3 EUR |
| 50+ | 1.43 EUR |
| 54+ | 1.34 EUR |
| S12H-PCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPDT
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 40A
Mounting: PCB
Relay variant: power
Contacts configuration: SPDT
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Body dimensions: 19.5x26.8x31.9mm
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 40A
Coil resistance: 155Ω
Mechanical durability: 10000000 cycles
Electrical life: 10000 cycles
Contact material: silver alloy
Manufacturer series: S12H
Type of relay: electromagnetic
Leads: terminal
Anzahl je Verpackung: 1 Stücke
auf Bestellung 17 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 17+ | 4.2 EUR |
| 31+ | 2.3 EUR |
| S12H-PCS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 40A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 40A
Relay variant: power
Manufacturer series: S12H
Coil resistance: 660Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Electrical life: 10000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
auf Bestellung 41 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 31+ | 2.33 EUR |
| 35+ | 2.07 EUR |
| 41+ | 1.74 EUR |
| S12-PAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 620 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.79 EUR |
| 44+ | 1.64 EUR |
| 70+ | 1.03 EUR |
| 73+ | 0.99 EUR |
| S12-PAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 19.5x26.8x31.9mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 19.5x26.8x31.9mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Anzahl je Verpackung: 1 Stücke
auf Bestellung 463 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 38+ | 1.89 EUR |
| 42+ | 1.73 EUR |
| 66+ | 1.09 EUR |
| 67+ | 1.07 EUR |
| 71+ | 1.02 EUR |
| S12-PCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Operating temperature: -30...85°C
Body dimensions: 19.5x26.8x31.9mm
Mounting: PCB
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contact material: silver alloy
Anzahl je Verpackung: 1 Stücke
auf Bestellung 291 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.82 EUR |
| 43+ | 1.67 EUR |
| 64+ | 1.13 EUR |
| 67+ | 1.07 EUR |
| S12-PCS-24 |
Hersteller: SHORI ELECTRIC
S12-PCS-24 Power Electromagnetic Relays
S12-PCS-24 Power Electromagnetic Relays
auf Bestellung 164 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 38+ | 1.89 EUR |
| 65+ | 1.12 EUR |
| 68+ | 1.06 EUR |
| S12-QAS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay variant: power
Manufacturer series: S12
Coil resistance: 155Ω
Coil power consumption: 930mW
Contact material: silver alloy
Operating temperature: -30...85°C
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 77mA
Release time: 10ms
Electrical life: 10000 cycles
Operate time: 15ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 120 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 41+ | 1.76 EUR |
| 46+ | 1.57 EUR |
| 69+ | 1.04 EUR |
| 73+ | 0.99 EUR |
| S12-QAS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 27.1x28.8x32mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Relay variant: power
Mounting: PCB
Body dimensions: 27.1x28.8x32mm
Operating temperature: -30...85°C
Contact material: silver alloy
Release time: 10ms
Operate time: 15ms
Contact resistance: 50mΩ
Coil current: 36mA
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 30A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S12
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 15+ | 4.76 EUR |
| 27+ | 2.65 EUR |
| 73+ | 0.97 EUR |
| S12-QCS-12 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 20A
Coil resistance: 155Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 77mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 12V DC
Contact current max.: 20A
Coil resistance: 155Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 37 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 37+ | 1.93 EUR |
| 48+ | 1.49 EUR |
| S12-QCS-24 |
![]() |
Hersteller: SHORI ELECTRIC
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 36mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 20A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Body dimensions: 27.1x28.8x32mm
Mounting: PCB
Manufacturer series: S12
Relay variant: power
Contact material: silver alloy
Operating temperature: -30...85°C
Release time: 10ms
Operate time: 15ms
Coil current: 36mA
Contact resistance: 50mΩ
Coil power consumption: 930mW
Rated coil voltage: 24V DC
Contact current max.: 20A
Coil resistance: 660Ω
Electrical life: 10000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: SPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 467 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 34+ | 2.16 EUR |
| 38+ | 1.93 EUR |
| 53+ | 1.37 EUR |
| 55+ | 1.3 EUR |
| S13-24V-2C |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: S13
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.89kΩ
Body dimensions: 20.2x9.8x12mm
Coil power consumption: 200mW
Terminal pitch: 5mm
Operating temperature: -25...70°C
Coil current: 8.3mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 15000000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: S13
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.89kΩ
Body dimensions: 20.2x9.8x12mm
Coil power consumption: 200mW
Terminal pitch: 5mm
Operating temperature: -25...70°C
Coil current: 8.3mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 15000000 cycles
auf Bestellung 405 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.8 EUR |
| 44+ | 1.63 EUR |
| 55+ | 1.3 EUR |
| 58+ | 1.24 EUR |
| 100+ | 1.19 EUR |
| S13-12V-2C |
Hersteller: SHORI ELECTRIC
S13-12V-2C Miniature Electromagnetic Relays
S13-12V-2C Miniature Electromagnetic Relays
auf Bestellung 332 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.83 EUR |
| 55+ | 1.32 EUR |
| 58+ | 1.24 EUR |
| 100+ | 1.22 EUR |
| S13-24V-2C |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: S13
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.89kΩ
Body dimensions: 20.2x9.8x12mm
Coil power consumption: 200mW
Terminal pitch: 5mm
Operating temperature: -25...70°C
Coil current: 8.3mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 15000000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; S13
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: S13
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.89kΩ
Body dimensions: 20.2x9.8x12mm
Coil power consumption: 200mW
Terminal pitch: 5mm
Operating temperature: -25...70°C
Coil current: 8.3mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 15000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 405 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 40+ | 1.8 EUR |
| 44+ | 1.63 EUR |
| 55+ | 1.3 EUR |
| 58+ | 1.24 EUR |
| 100+ | 1.19 EUR |
| S16-12-1AP |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 80A
Relay variant: automotive
Coil voltage min.: 9.6V DC
Manufacturer series: S16
Coil resistance: 75Ω
Switched voltage: max. 14V DC
Operating temperature: -30...85°C
Body dimensions: 28.6x28.6x41.6mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 160mA
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 80A
Relay variant: automotive
Coil voltage min.: 9.6V DC
Manufacturer series: S16
Coil resistance: 75Ω
Switched voltage: max. 14V DC
Operating temperature: -30...85°C
Body dimensions: 28.6x28.6x41.6mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 160mA
auf Bestellung 2388 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 26+ | 2.83 EUR |
| 27+ | 2.7 EUR |
| 38+ | 1.93 EUR |
| 40+ | 1.83 EUR |
| S16-12-1AP |
![]() |
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 80A
Relay variant: automotive
Coil voltage min.: 9.6V DC
Manufacturer series: S16
Coil resistance: 75Ω
Switched voltage: max. 14V DC
Operating temperature: -30...85°C
Body dimensions: 28.6x28.6x41.6mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 160mA
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 80A
Relay variant: automotive
Coil voltage min.: 9.6V DC
Manufacturer series: S16
Coil resistance: 75Ω
Switched voltage: max. 14V DC
Operating temperature: -30...85°C
Body dimensions: 28.6x28.6x41.6mm
Mounting: PCB
Mechanical durability: 10000000 cycles
Coil current: 160mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2388 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 26+ | 2.83 EUR |
| 27+ | 2.7 EUR |
| 38+ | 1.93 EUR |
| 40+ | 1.83 EUR |
| S2-12B |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 3A; S2
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 3A
Manufacturer series: S2
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x10.7x11.3mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...50°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 3A; S2
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 3A
Manufacturer series: S2
Switched voltage: max. 24V DC; max. 120V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 700Ω
Body dimensions: 15.7x10.7x11.3mm
Coil power consumption: 200mW
Mechanical durability: 10000000 cycles
Coil current: 17mA
Operating temperature: -25...50°C
Contact resistance: 100mΩ
DC contacts rating @R: 2A / 24V DC
AC contacts rating @R: 1A / 120V AC
Electrical life: 100000 cycles
Terminal pitch: 2.54mm
auf Bestellung 2074 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 107+ | 0.67 EUR |
| 113+ | 0.64 EUR |
| 127+ | 0.57 EUR |
| 140+ | 0.51 EUR |
| 148+ | 0.48 EUR |
| S20E-12B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
auf Bestellung 678 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 37+ | 1.97 EUR |
| 44+ | 1.63 EUR |
| 47+ | 1.54 EUR |
| S20E-12B-1CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
auf Bestellung 739 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.2 EUR |
| 34+ | 2.12 EUR |
| 41+ | 1.74 EUR |
| 44+ | 1.66 EUR |
| S20E-24B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 591 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 36+ | 1.99 EUR |
| 44+ | 1.63 EUR |
| 47+ | 1.54 EUR |
| S20E-24B-1CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 300 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.17 EUR |
| 35+ | 2.06 EUR |
| 51+ | 1.42 EUR |
| 54+ | 1.34 EUR |
| S20E-12B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 678 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 37+ | 1.97 EUR |
| 44+ | 1.63 EUR |
| 47+ | 1.54 EUR |
| S20E-12B-1CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 20A
Relay variant: miniature
Manufacturer series: S20
Coil resistance: 360Ω
Coil power consumption: 400mW
Operating temperature: -40...85°C
Body dimensions: 12.7x15.7x29mm
Mounting: PCB
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 739 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.2 EUR |
| 34+ | 2.12 EUR |
| 41+ | 1.74 EUR |
| 44+ | 1.66 EUR |
| S20E-24B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 591 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.06 EUR |
| 36+ | 1.99 EUR |
| 44+ | 1.63 EUR |
| 47+ | 1.54 EUR |
| S20E-24B-1CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A; S20
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 300 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 33+ | 2.17 EUR |
| 35+ | 2.06 EUR |
| 51+ | 1.42 EUR |
| 54+ | 1.34 EUR |
| S20H-12B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 12A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 12A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 1253 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 47+ | 1.54 EUR |
| 49+ | 1.49 EUR |
| 55+ | 1.32 EUR |
| 58+ | 1.24 EUR |
| 500+ | 1.2 EUR |
| S20H-12B-1CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 12A; S20
Contacts configuration: SPDT
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Relay variant: miniature
Body dimensions: 12.7x15.7x29mm
Coil current: 33mA
Contact resistance: 100mΩ
Coil power consumption: 400mW
Contact current max.: 12A
Rated coil voltage: 12V DC
Coil resistance: 360Ω
Manufacturer series: S20
Type of relay: electromagnetic
Mounting: PCB
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 12A; S20
Contacts configuration: SPDT
Electrical life: 100000 cycles
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Relay variant: miniature
Body dimensions: 12.7x15.7x29mm
Coil current: 33mA
Contact resistance: 100mΩ
Coil power consumption: 400mW
Contact current max.: 12A
Rated coil voltage: 12V DC
Coil resistance: 360Ω
Manufacturer series: S20
Type of relay: electromagnetic
Mounting: PCB
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| S20H-12B-1AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 12A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 12A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1253 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 47+ | 1.54 EUR |
| 49+ | 1.49 EUR |
| 55+ | 1.32 EUR |
| 58+ | 1.24 EUR |
| 500+ | 1.2 EUR |
| S20M-12B-2AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Relay variant: miniature
Manufacturer series: S20
Mounting: PCB
Body dimensions: 12.7x15.7x29mm
Coil resistance: 360Ω
Coil power consumption: 400mW
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Relay variant: miniature
Manufacturer series: S20
Mounting: PCB
Body dimensions: 12.7x15.7x29mm
Coil resistance: 360Ω
Coil power consumption: 400mW
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 1419 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 43+ | 1.69 EUR |
| 45+ | 1.6 EUR |
| 54+ | 1.34 EUR |
| 57+ | 1.27 EUR |
| S20M-12B-2CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 1556 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.07 EUR |
| 36+ | 2 EUR |
| 41+ | 1.74 EUR |
| 44+ | 1.64 EUR |
| 500+ | 1.62 EUR |
| S20M-24B-2AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 24V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 24V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 147 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 38+ | 1.92 EUR |
| 39+ | 1.84 EUR |
| 45+ | 1.6 EUR |
| 48+ | 1.52 EUR |
| S20M-24B-2CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 17mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
auf Bestellung 552 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 32+ | 2.3 EUR |
| 33+ | 2.17 EUR |
| 40+ | 1.8 EUR |
| 43+ | 1.7 EUR |
| S20M-12B-2AS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Relay variant: miniature
Manufacturer series: S20
Mounting: PCB
Body dimensions: 12.7x15.7x29mm
Coil resistance: 360Ω
Coil power consumption: 400mW
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Relay variant: miniature
Manufacturer series: S20
Mounting: PCB
Body dimensions: 12.7x15.7x29mm
Coil resistance: 360Ω
Coil power consumption: 400mW
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1419 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 43+ | 1.69 EUR |
| 45+ | 1.6 EUR |
| 54+ | 1.34 EUR |
| 57+ | 1.27 EUR |
| S20M-12B-2CS |
![]() |
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 10A; S20
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: S20
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Body dimensions: 12.7x15.7x29mm
Coil power consumption: 400mW
Operating temperature: -40...85°C
Mechanical durability: 30000000 cycles
Coil current: 33mA
Contact resistance: 100mΩ
Electrical life: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1556 Stücke:
Lieferzeit 7-14 Tag (e)| Anzahl | Preis |
|---|---|
| 35+ | 2.07 EUR |
| 36+ | 2 EUR |
| 41+ | 1.74 EUR |
| 44+ | 1.64 EUR |
| 500+ | 1.62 EUR |
Wählen Sie Seite:
1
2
[ Nächste Seite >> ]
