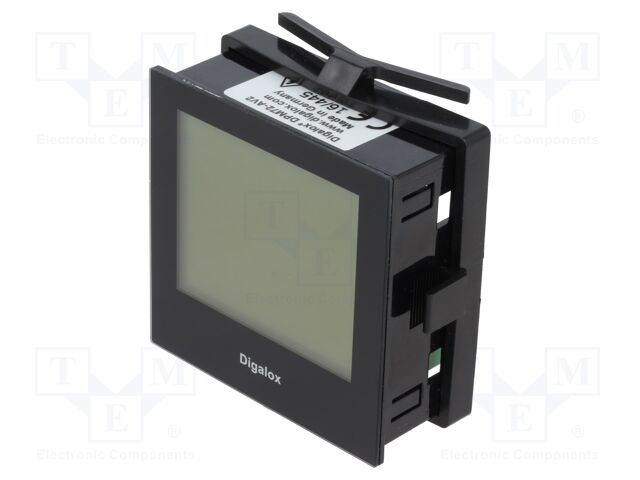

Hersteller: TDE INSTRUMENTS
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LCD
Type of meter: network parameters
Kind of display used: LCD
Power supply: USB
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
Interface: USB
Mounting: on panel
Kind of measurement: indirect with 5A current transformer
IP rating: IP65 from the front
Backlight colour: white
DC voltage measuring range: -500...500V
Operating temperature: 0...50°C
DC current measuring range: -10...10A
AC current measuring range: 0...10A
AC voltage measuring range: 0...500V
Frequency measuring range: 10...1000Hz
Mounting hole diameter: 68x68mm
Dimensions (W x H x D): 72x72mm
Frequency measuring accuracy: ±0.1Hz
DC voltage measuring accuracy: ±1%
AC voltage measuring accuracy: ±1%
AC current measuring accuracy: ±1%
DC current measuring accuracy: ±1%
Supply voltage: 10...30V AC; 10...30V DC
Display resolution: 192x160
Measurement: AC current; AC voltage; DC current; DC voltage; frequency
Kind of meter: digital; mounting

Hersteller: TDE INSTRUMENTS
Category: Voltmeters
Description: Voltmeter; digital,mounting; -200÷200mV; on panel; LCD; 3,5 digit
Type of meter: voltmeter
Mounting: on panel
DC voltage measuring range: -200...200mV
Measurement: DC voltage
Kind of meter: digital; mounting
Dimensions (W x H x D): 48x24mm
Manufacturer series: DPM
Digit height: 10mm
Operating temperature: 0...50°C
Kind of display used: LCD
Backlight colour: green
Sampling: 3x/s
Illumination: yes
Display parameters: 3,5 digit
Supply voltage: 5V DC; 9V DC

Hersteller: TDE INSTRUMENTS
Category: Voltmeters
Description: Voltmeter; digital,mounting; -200÷200mV; on panel; LCD; 3,5 digit
Type of meter: voltmeter
Kind of meter: digital; mounting
Mounting: on panel
Kind of display used: LCD
Display parameters: 3,5 digit
Measurement: DC voltage
Operating temperature: 0...50°C
Display height 1: 14mm
DC voltage measuring range: -200...200mV
Backlight colour: green
Sampling: 3x/s
Dimensions (W x H x D): 72x36mm
Illumination: yes
Supply voltage: 5V DC; 9V DC

Hersteller: TDE INSTRUMENTS
Category: Voltmeters
Description: Voltmeter; digital,mounting; -200÷200mV; on panel; LCD; 3,5 digit
Type of meter: voltmeter
Mounting: on panel
DC voltage measuring range: -200...200mV
Measurement: DC voltage
Kind of meter: digital; mounting
Dimensions (W x H x D): 72x36mm
Operating temperature: 0...50°C
Display height 1: 14mm
Kind of display used: LCD
Backlight colour: white
Sampling: 3x/s
Illumination: yes
Display parameters: 3,5 digit
Supply voltage: 5V DC; 9V DC
