Produkte > BRIDGELUX > Alle Produkte des Herstellers BRIDGELUX (4293) > Seite 29 nach 72

Wählen Sie Seite:   [  << Vorherige Seite ]  1 7 14 21 24 25 26 27 28 29 30 31 32 33 34 35 42 49 56 63 70 72  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BXRC-30G1000-D-72 BXRC-30G1000-D-72 Bridgelux Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf Description: LED COB VERO WM WH STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-72-SE BXRC-30G1000-D-72-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO SE 10 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 116 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1024lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73 BXRC-30G1000-D-73 Bridgelux Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf Description: LED COB VERO WHT STARBRD 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
auf Bestellung 366 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.46 EUR
50+5.26 EUR
100+4.87 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73
+1

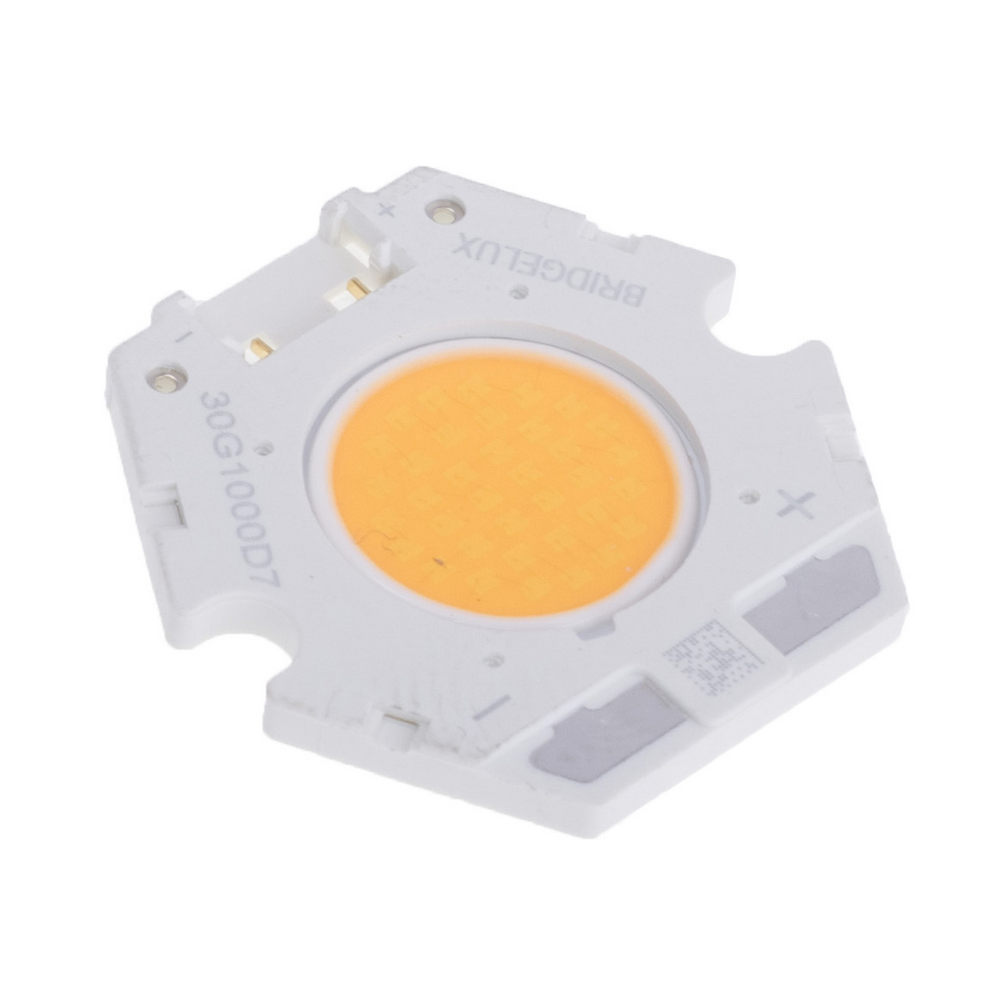

 		BXRC-30G1000-D-73 BRIDGELUX BXRC-27E1000-D-73.pdf Category: White power LEDs - COB
Description: Power LED; COB; 8.9W; 3000K; 1054lm; 120°; Front: flat; CRImin: 90
Power: 8.9W
Operating voltage: 25.3V DC
Number of pins: 4
Thermal resistance: 0.49K/W
LED current: 350mA
Viewing angle: 120°
Luminosity: 1054lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 119lm/W
Storage temperature: -40...105°C
Manufacturer series: VERO® 10
Min. colour rendering index: 90
Front: flat
Binning: 3-STEP
Components: Pico-EZMate
Type of diode: power LED
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
4+17.88 EUR
5+14.30 EUR
13+5.51 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73 BXRC-30G1000-D-73
Produktcode: 154396
zu Favoriten hinzufügen Lieblingsprodukt

BRIDGELUX bxrc-27e1000-d-73.pdf LEDs > LEDs sichtbare Spektrum starke
Farbe (Wellenlänge): Білий теплий
Leistung: 8,9 W
Spannungsfall, V: 26 V
Strom: 350 mA
Lichtstärke / Lichtstrom: 1054 lm
Lichtwinkel: 120°
ZCODE: 3000 K
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73-SE BXRC-30G1000-D-73-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 116 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1024lm (Typ)
Part Status: Active
auf Bestellung 163 Stücke:
Lieferzeit 10-14 Tag (e)
4+4.70 EUR
50+4.53 EUR
100+4.38 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-82 Bridgelux Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: VERO 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 24.9V
Height: 1.80mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 144 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 899lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-82-SE Bridgelux Bridgelux%20DS430%20Vero%20SE%2010%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf Description: VERO SE 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 24.9V
Height: 3.50mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 140 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 874lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-83 Bridgelux Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: VERO 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 24.9V
Height: 1.80mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 144 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 899lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-83-SE Bridgelux Bridgelux%20DS430%20Vero%20SE%2010%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf Description: VERO SE 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 24.9V
Height: 3.50mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 140 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 874lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-B-73-SE BXRC-30G100C-B-73-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO 10 SE 3000K ROUND
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34V
Height: 3.60mm
Current - Test: 270mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 107 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 981lm (Typ)
Part Status: Active
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
4+4.80 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-D-73 Bridgelux Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf Description: LED COB VERO WHT STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 119 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1087lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-D-73-SE BXRC-30G100C-D-73-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 107 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 950lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-72-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf Description: VERO SE 10C WARM WHITE LED ARRAY
Features: Dimming
Packaging: Tray
Color: White, Warm
Size / Dimension: 29.00mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.8V
Height: 3.50mm
Current - Test: 360mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 720mA
Lumens/Watt @ Current - Test: 120 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1466lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-73-SE Bridgelux Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf Description: VERO SE 10C WARM WHITE LED ARRAY
Features: Dimming
Packaging: Tray
Color: White, Warm
Size / Dimension: 29.00mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.8V
Height: 3.50mm
Current - Test: 360mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 720mA
Lumens/Watt @ Current - Test: 120 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1466lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-83 BXRC-30G10H0-C-83 Bridgelux Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: LED COB VERO 10C STARBRD 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 30.7V
Height: 1.80mm
Current - Test: 300mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 151 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1395lm (Typ)
auf Bestellung 145 Stücke:
Lieferzeit 10-14 Tag (e)
2+9.29 EUR
10+6.59 EUR
80+5.30 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-83-SE BXRC-30G10H0-C-83-SE Bridgelux Description: LED COB VERO SE10C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 30.7V
Height: 3.60mm
Current - Test: 300mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 147 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1356lm (Typ)
Part Status: Active
auf Bestellung 85 Stücke:
Lieferzeit 10-14 Tag (e)
2+12.30 EUR
10+8.92 EUR
80+7.37 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-72 BXRC-30G10K0-B-72 Bridgelux Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf Description: LED COB VERO 29 WM WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 1.90mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12437lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-73 BXRC-30G10K0-B-73 Bridgelux Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 1.90mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12437lm (Typ)
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
1+36.45 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-73-SE BXRC-30G10K0-B-73-SE Bridgelux Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 3.60mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12449lm (Typ)
auf Bestellung 100 Stücke:
Lieferzeit 10-14 Tag (e)
1+32.75 EUR
50+31.59 EUR
100+30.60 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-72-SE BXRC-30G10K0-C-72-SE Bridgelux Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf Description: VERO SE 29C WARM WHITE LED ARRAY
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-72-SE
+1
 		BXRC-30G10K0-C-72-SE BRIDGELUX BXRC-17E10K0-C-74S.pdf VeroSE-PCN.pdf Category: White power LEDs - COB
Description: Power LED; COB; 118.7W; 3000K; 16336lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® SE 29
Front: flat
Binning: 2-STEP
Type of diode: power LED
Power: 118.7W
Operating voltage: 69.4V DC
Thermal resistance: 0.04K/W
LED current: 1710mA
Viewing angle: 120°
Luminosity: 16336lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 138lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 1 Stücke
auf Bestellung 21 Stücke:
Lieferzeit 7-14 Tag (e)
2+36.04 EUR
3+34.08 EUR
5+34.06 EUR
25+32.76 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73 BXRC-30G10K0-C-73 Bridgelux Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 69.4V
Height: 1.90mm
Current - Test: 1.71A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.42A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 15768lm (Typ)
Part Status: Active
auf Bestellung 30 Stücke:
Lieferzeit 10-14 Tag (e)
1+48.44 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73
+1
 		BXRC-30G10K0-C-73 BRIDGELUX BXRC-30E10K0-D-73.pdf Category: White power LEDs - COB
Description: Power LED; COB; 116.4W; 3000K; 14191lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® 29
Front: flat
Binning: 3-STEP
Type of diode: power LED
Power: 116.4W
Operating voltage: 68.1V DC
Thermal resistance: 0.04K/W
LED current: 1710mA
Viewing angle: 120°
Luminosity: 14191lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 122lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 50 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73-SE BXRC-30G10K0-C-73-SE Bridgelux Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 69.4V
Height: 3.60mm
Current - Test: 1.71A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.42A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 15784lm (Typ)
Part Status: Active
auf Bestellung 33 Stücke:
Lieferzeit 10-14 Tag (e)
1+42.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-83 BXRC-30G10K0-C-83 Bridgelux Bridgelux%20DS423%20Vero%2029%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf Description: LED COB VERO 29C WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 1.90mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 13023lm (Typ)
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
1+61.90 EUR
10+48.48 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-83-SE BXRC-30G10K0-C-83-SE Bridgelux Bridgelux%20DS433%20Vero%20SE%2029%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: LED COB VERO SE29C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 3.60mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12991lm (Typ)
auf Bestellung 47 Stücke:
Lieferzeit 10-14 Tag (e)
1+62.08 EUR
10+48.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-72-SE BXRC-30G10K0-D-72-SE Bridgelux Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf Description: LED COB VERO SE 29 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 3.60mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10502lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73 BXRC-30G10K0-D-73 Bridgelux Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 1.90mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10491lm (Typ)
auf Bestellung 188 Stücke:
Lieferzeit 10-14 Tag (e)
1+36.45 EUR
50+35.16 EUR
100+32.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73
+1
 		BXRC-30G10K0-D-73 BRIDGELUX BXRC-30E10K0-D-73.pdf Category: White power LEDs - COB
Description: Power LED; COB; 76.8W; 3000K; 9442lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® 29
Front: flat
Binning: 3-STEP
Type of diode: power LED
Power: 76.8W
Operating voltage: 36.6V DC
Thermal resistance: 0.06K/W
LED current: 2100mA
Viewing angle: 120°
Luminosity: 9442lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 123lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
4+21.91 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73-SE BXRC-30G10K0-D-73-SE Bridgelux Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 3.60mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10502lm (Typ)
auf Bestellung 51 Stücke:
Lieferzeit 10-14 Tag (e)
1+32.75 EUR
50+31.59 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-83 BXRC-30G10K0-D-83 Bridgelux Product%20Sell%20Sheets%20-%20Bridgelux%20Gen%208%2020200211%20Rev%20A.pdf Description: LED COB VERO 29C WHT RND 3000K
Packaging: Tube
Features: With Connector
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 36.4V
Height: 1.90mm
Current - Test: 1.7A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 5.5A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 9290lm (Typ)
auf Bestellung 132 Stücke:
Lieferzeit 10-14 Tag (e)
1+46.68 EUR
10+37.62 EUR
80+32.77 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-02 BXRC-30G10K0-L-02 Bridgelux DS33%20Bridgelux%20Vero%2029%20Data%20Sheet%20Rev%20K.pdf Description: LED ARRAY 10000LM WARM WHITE
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-03 BXRC-30G10K0-L-03 Bridgelux Vero_29_Array_Series.pdf Description: LED COB VERO29 WARM WHITE ROUND
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-22 BXRC-30G10K0-L-22 Bridgelux DS33%20Bridgelux%20Vero%2029%20Data%20Sheet%20Rev%20K.pdf Description: LED ARRAY 10000LM WARM WHITE COB
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-23 BXRC-30G10K0-L-23 Bridgelux DS33%20Vero%2029%20Array%20Data%20Sheet%20Rev%20L%2020160606.pdf Description: LED ARRAY 10000LM WARM WHITE COB
auf Bestellung 60 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1KH0-C-83 BXRC-30G1KH0-C-83 Bridgelux Bridgelux%20DS423%20Vero%2029%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf Description: VERO 29C WARM WHITE LED ARRAY
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
1+72.18 EUR
10+56.52 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1KH0-C-83-SE BXRC-30G1KH0-C-83-SE Bridgelux Bridgelux%20DS433%20Vero%20SE%2029%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: LED COB VERO SE29C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 3.60mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 157 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 13602lm (Typ)
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
1+62.08 EUR
10+48.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-72 BXRC-30G2000-B-72 Bridgelux Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf Description: LED COB VERO 13 WM WHT RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1807lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-72-SE BXRC-30G2000-B-72-SE Bridgelux Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO SE 13 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.9V
Height: 3.60mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 121 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1846lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-73 BXRC-30G2000-B-73 Bridgelux Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf Description: LED COB VERO 13 WM WH RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1807lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-73-SE BXRC-30G2000-B-73-SE Bridgelux Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 3.60mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 115 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1771lm (Typ)
Part Status: Active
auf Bestellung 119 Stücke:
Lieferzeit 10-14 Tag (e)
3+7.32 EUR
50+7.06 EUR
100+6.83 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-82 Bridgelux Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: VERO 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1693lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-82-SE Bridgelux Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf Description: VERO SE 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1659lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-83 Bridgelux Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: VERO 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1693lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-83-SE Bridgelux Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf Description: VERO SE 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1659lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-02 BXRC-30G2000-C-02 Bridgelux Vero_13_BXRC-xxx2000-C-%2802%2C03%2C04%29.pdf Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 98 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1600lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-03 BXRC-30G2000-C-03 Bridgelux Vero_13_BXRC-xxx2000-C-%2803%2C04%29.pdf Description: LED COB VERO 13 ARRAY RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 98 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1600lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-22 BXRC-30G2000-C-22 Bridgelux Vero_13_BXRC-xxx2000-C-%2822%2C23%29.pdf Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.3V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 111 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1785lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-23 BXRC-30G2000-C-23 Bridgelux Vero_13_BXRC-xxx2000-C-%2822%2C23%29.pdf Description: LED COB VERO 13 ARRAY RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.3V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 111 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1785lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-72 BXRC-30G2000-C-72 Bridgelux Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf Description: LED COB VERO 13 WM WHT RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 630mA
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2530lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-72-SE BXRC-30G2000-C-72-SE Bridgelux Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO SE 13 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.9V
Height: 3.60mm
Current - Test: 630mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 121 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2585lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73 BXRC-30G2000-C-73 Bridgelux Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf Description: LED COB VERO 13 WM WH RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 630mA
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2530lm (Typ)
Part Status: Active
auf Bestellung 189 Stücke:
Lieferzeit 10-14 Tag (e)
2+10.58 EUR
50+10.21 EUR
100+9.45 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73 BXRC-30G2000-C-73 BRIDGELUX 2718305.pdf Description: BRIDGELUX - BXRC-30G2000-C-73 - LED, warmweiß, CRI 90, 22.1W, 2000lm, 630mA, 120°, 35V, 3000K, rund, flache Oberseite
tariffCode: 85414100
Lumen/Watt bei Strom - Test: 127lm/W
rohsCompliant: YES
COB-Breite: -
Lichtaustrittsfläche: 13.2mm
Höhe: 1.9mm
Linsenform: Rund, oben flach
hazardous: false
rohsPhthalatesCompliant: YES
COB-Länge: -
Lichtstrom bei Test: 2000lm
Nennleistung: 22.1W
usEccn: EAR99
Durchlassspannung (VF), typ.: 35V
Linsentyp: -
Bauform des Optokopplers: -
euEccn: NLR
Abstrahlwinkel: 120°
Farbwiedergabeindex, max.: 90
COB-Farbe: Warmweiß
Produktpalette: Gen 7 Vero 13 Array
productTraceability: No
Durchlassstrom bei Prüfung: 630mA
Nominelle CCT (K): 3000K
SVHC: No SVHC (21-Jan-2025)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73-SE BXRC-30G2000-C-73-SE Bridgelux Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 3.60mm
Current - Test: 630mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 115 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2479lm (Typ)
Part Status: Active
auf Bestellung 185 Stücke:
Lieferzeit 10-14 Tag (e)
3+8.78 EUR
50+8.46 EUR
100+8.20 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-82 Bridgelux Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: VERO 13C WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2419lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-82-SE Bridgelux Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf Description: VERO SE 13C WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2371lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-83 BXRC-30G2000-C-83 Bridgelux Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: LED COB VERO 13C WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2419lm (Typ)
Part Status: Active
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
2+15.61 EUR
10+12.00 EUR
80+10.04 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-83-SE BXRC-30G2000-C-83-SE Bridgelux Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%202020622%20Rev%20A.pdf Description: LED COB VERO SE13C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.60mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2371lm (Typ)
Part Status: Active
auf Bestellung 170 Stücke:
Lieferzeit 10-14 Tag (e)
2+15.65 EUR
10+12.02 EUR
80+10.06 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-Z2 BXRC-30G2000-C-Z2 Bridgelux Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 31.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 88 lm/W
CCT (K): 3000K
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1385lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-72 Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf
BXRC-30G1000-D-72
Hersteller: Bridgelux
Description: LED COB VERO WM WH STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-72-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G1000-D-72-SE
Hersteller: Bridgelux
Description: LED COB VERO SE 10 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 116 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1024lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73 Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf
BXRC-30G1000-D-73
Hersteller: Bridgelux
Description: LED COB VERO WHT STARBRD 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 129 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1172lm (Typ)
auf Bestellung 366 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+5.46 EUR
50+5.26 EUR
100+4.87 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73 BXRC-27E1000-D-73.pdf
BXRC-30G1000-D-73
+1
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 8.9W; 3000K; 1054lm; 120°; Front: flat; CRImin: 90
Power: 8.9W
Operating voltage: 25.3V DC
Number of pins: 4
Thermal resistance: 0.49K/W
LED current: 350mA
Viewing angle: 120°
Luminosity: 1054lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 119lm/W
Storage temperature: -40...105°C
Manufacturer series: VERO® 10
Min. colour rendering index: 90
Front: flat
Binning: 3-STEP
Components: Pico-EZMate
Type of diode: power LED
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
4+17.88 EUR
5+14.30 EUR
13+5.51 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73
Produktcode: 154396
zu Favoriten hinzufügen Lieblingsprodukt

bxrc-27e1000-d-73.pdf
BXRC-30G1000-D-73
Hersteller: BRIDGELUX
LEDs > LEDs sichtbare Spektrum starke
Farbe (Wellenlänge): Білий теплий
Leistung: 8,9 W
Spannungsfall, V: 26 V
Strom: 350 mA
Lichtstärke / Lichtstrom: 1054 lm
Lichtwinkel: 120°
ZCODE: 3000 K
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-73-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf
BXRC-30G1000-D-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 116 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1024lm (Typ)
Part Status: Active
auf Bestellung 163 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+4.70 EUR
50+4.53 EUR
100+4.38 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-82 Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: VERO 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 24.9V
Height: 1.80mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 144 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 899lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-82-SE Bridgelux%20DS430%20Vero%20SE%2010%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf
Hersteller: Bridgelux
Description: VERO SE 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 24.9V
Height: 3.50mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 140 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 874lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-83 Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: VERO 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 24.9V
Height: 1.80mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 144 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 899lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1000-D-83-SE Bridgelux%20DS430%20Vero%20SE%2010%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf
Hersteller: Bridgelux
Description: VERO SE 10D WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 24.9V
Height: 3.50mm
Current - Test: 250mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 140 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 874lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-B-73-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G100C-B-73-SE
Hersteller: Bridgelux
Description: LED COB VERO 10 SE 3000K ROUND
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34V
Height: 3.60mm
Current - Test: 270mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 107 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 981lm (Typ)
Part Status: Active
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+4.80 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-D-73 Bridgelux%20DS90%20Vero%2010%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf
Hersteller: Bridgelux
Description: LED COB VERO WHT STARBRD 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 26V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 119 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1087lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G100C-D-73-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf
BXRC-30G100C-D-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 25.3V
Height: 3.60mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 700mA
Lumens/Watt @ Current - Test: 107 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 950lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-72-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf
Hersteller: Bridgelux
Description: VERO SE 10C WARM WHITE LED ARRAY
Features: Dimming
Packaging: Tray
Color: White, Warm
Size / Dimension: 29.00mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.8V
Height: 3.50mm
Current - Test: 360mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 720mA
Lumens/Watt @ Current - Test: 120 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1466lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-73-SE Bridgelux%20DS120%20Vero%20SE%2010%20Array%20Data%20Sheet%2020190222%20Rev%20L.pdf
Hersteller: Bridgelux
Description: VERO SE 10C WARM WHITE LED ARRAY
Features: Dimming
Packaging: Tray
Color: White, Warm
Size / Dimension: 29.00mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.8V
Height: 3.50mm
Current - Test: 360mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 720mA
Lumens/Watt @ Current - Test: 120 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 9.90mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1466lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-83 Bridgelux%20DS420%20Vero10%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
BXRC-30G10H0-C-83
Hersteller: Bridgelux
Description: LED COB VERO 10C STARBRD 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 20.00mm Dia
Type: Chip On Board (COB)
Configuration: Starboard
Voltage - Forward (Vf) (Typ): 30.7V
Height: 1.80mm
Current - Test: 300mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 151 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1395lm (Typ)
auf Bestellung 145 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+9.29 EUR
10+6.59 EUR
80+5.30 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10H0-C-83-SE
BXRC-30G10H0-C-83-SE
Hersteller: Bridgelux
Description: LED COB VERO SE10C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 30.80mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 30.7V
Height: 3.60mm
Current - Test: 300mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1A
Lumens/Watt @ Current - Test: 147 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1356lm (Typ)
Part Status: Active
auf Bestellung 85 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+12.30 EUR
10+8.92 EUR
80+7.37 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-72 Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf
BXRC-30G10K0-B-72
Hersteller: Bridgelux
Description: LED COB VERO 29 WM WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 1.90mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12437lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-73 Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf
BXRC-30G10K0-B-73
Hersteller: Bridgelux
Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 1.90mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12437lm (Typ)
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+36.45 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-B-73-SE Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf
BXRC-30G10K0-B-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 52V
Height: 3.60mm
Current - Test: 1.8A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.6A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12449lm (Typ)
auf Bestellung 100 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+32.75 EUR
50+31.59 EUR
100+30.60 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-72-SE Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf
BXRC-30G10K0-C-72-SE
Hersteller: Bridgelux
Description: VERO SE 29C WARM WHITE LED ARRAY
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-72-SE BXRC-17E10K0-C-74S.pdf VeroSE-PCN.pdf
BXRC-30G10K0-C-72-SE
+1
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 118.7W; 3000K; 16336lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® SE 29
Front: flat
Binning: 2-STEP
Type of diode: power LED
Power: 118.7W
Operating voltage: 69.4V DC
Thermal resistance: 0.04K/W
LED current: 1710mA
Viewing angle: 120°
Luminosity: 16336lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 138lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 1 Stücke
auf Bestellung 21 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
2+36.04 EUR
3+34.08 EUR
5+34.06 EUR
25+32.76 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73 Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf
BXRC-30G10K0-C-73
Hersteller: Bridgelux
Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 69.4V
Height: 1.90mm
Current - Test: 1.71A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.42A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 15768lm (Typ)
Part Status: Active
auf Bestellung 30 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+48.44 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73 BXRC-30E10K0-D-73.pdf
BXRC-30G10K0-C-73
+1
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 116.4W; 3000K; 14191lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® 29
Front: flat
Binning: 3-STEP
Type of diode: power LED
Power: 116.4W
Operating voltage: 68.1V DC
Thermal resistance: 0.04K/W
LED current: 1710mA
Viewing angle: 120°
Luminosity: 14191lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 122lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 50 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-73-SE Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf
BXRC-30G10K0-C-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 69.4V
Height: 3.60mm
Current - Test: 1.71A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 3.42A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 15784lm (Typ)
Part Status: Active
auf Bestellung 33 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+42.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-83 Bridgelux%20DS423%20Vero%2029%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf
BXRC-30G10K0-C-83
Hersteller: Bridgelux
Description: LED COB VERO 29C WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 1.90mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 13023lm (Typ)
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+61.90 EUR
10+48.48 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-C-83-SE Bridgelux%20DS433%20Vero%20SE%2029%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
BXRC-30G10K0-C-83-SE
Hersteller: Bridgelux
Description: LED COB VERO SE29C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 3.60mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 12991lm (Typ)
auf Bestellung 47 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+62.08 EUR
10+48.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-72-SE Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf
BXRC-30G10K0-D-72-SE
Hersteller: Bridgelux
Description: LED COB VERO SE 29 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 3.60mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10502lm (Typ)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73 Bridgelux%20DS93%20Vero%2029%20Gen%207%20Array%20Data%20Sheet%2020180403%20Rev%20M.pdf
BXRC-30G10K0-D-73
Hersteller: Bridgelux
Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 1.90mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10491lm (Typ)
auf Bestellung 188 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+36.45 EUR
50+35.16 EUR
100+32.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73 BXRC-30E10K0-D-73.pdf
BXRC-30G10K0-D-73
+1
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 76.8W; 3000K; 9442lm; 120°; Front: flat; CRImin: 90
Manufacturer series: VERO® 29
Front: flat
Binning: 3-STEP
Type of diode: power LED
Power: 76.8W
Operating voltage: 36.6V DC
Thermal resistance: 0.06K/W
LED current: 2100mA
Viewing angle: 120°
Luminosity: 9442lm
Colour temperature: 3000K
LED version: COB
Light source efficiency: 123lm/W
Dimensions: Ø49.2mm
Storage temperature: -40...105°C
Min. colour rendering index: 90
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
4+21.91 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-73-SE Bridgelux%20DS123%20Vero%20SE%2029%20Array%20Data%20Sheet%2020180403%20Rev%20H.pdf
BXRC-30G10K0-D-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 3.60mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 133 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 10502lm (Typ)
auf Bestellung 51 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+32.75 EUR
50+31.59 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-D-83 Product%20Sell%20Sheets%20-%20Bridgelux%20Gen%208%2020200211%20Rev%20A.pdf
BXRC-30G10K0-D-83
Hersteller: Bridgelux
Description: LED COB VERO 29C WHT RND 3000K
Packaging: Tube
Features: With Connector
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 36.4V
Height: 1.90mm
Current - Test: 1.7A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 5.5A
Lumens/Watt @ Current - Test: 150 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 9290lm (Typ)
auf Bestellung 132 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+46.68 EUR
10+37.62 EUR
80+32.77 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-02 DS33%20Bridgelux%20Vero%2029%20Data%20Sheet%20Rev%20K.pdf
BXRC-30G10K0-L-02
Hersteller: Bridgelux
Description: LED ARRAY 10000LM WARM WHITE
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-03 Vero_29_Array_Series.pdf
BXRC-30G10K0-L-03
Hersteller: Bridgelux
Description: LED COB VERO29 WARM WHITE ROUND
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-22 DS33%20Bridgelux%20Vero%2029%20Data%20Sheet%20Rev%20K.pdf
BXRC-30G10K0-L-22
Hersteller: Bridgelux
Description: LED ARRAY 10000LM WARM WHITE COB
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G10K0-L-23 DS33%20Vero%2029%20Array%20Data%20Sheet%20Rev%20L%2020160606.pdf
BXRC-30G10K0-L-23
Hersteller: Bridgelux
Description: LED ARRAY 10000LM WARM WHITE COB
auf Bestellung 60 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1KH0-C-83 Bridgelux%20DS423%20Vero%2029%20Gen%208%20Array%20Data%20Sheet%2020210720%20Rev%20B.pdf
BXRC-30G1KH0-C-83
Hersteller: Bridgelux
Description: VERO 29C WARM WHITE LED ARRAY
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+72.18 EUR
10+56.52 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G1KH0-C-83-SE Bridgelux%20DS433%20Vero%20SE%2029%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
BXRC-30G1KH0-C-83-SE
Hersteller: Bridgelux
Description: LED COB VERO SE29C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 66.7V
Height: 3.60mm
Current - Test: 1.3A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.75A
Lumens/Watt @ Current - Test: 157 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 29.10mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 13602lm (Typ)
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+62.08 EUR
10+48.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-72 Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf
BXRC-30G2000-B-72
Hersteller: Bridgelux
Description: LED COB VERO 13 WM WHT RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1807lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-72-SE Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G2000-B-72-SE
Hersteller: Bridgelux
Description: LED COB VERO SE 13 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.9V
Height: 3.60mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 121 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1846lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-73 Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf
BXRC-30G2000-B-73
Hersteller: Bridgelux
Description: LED COB VERO 13 WM WH RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1807lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-73-SE Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G2000-B-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 3.60mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 115 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1771lm (Typ)
Part Status: Active
auf Bestellung 119 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.32 EUR
50+7.06 EUR
100+6.83 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-82 Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: VERO 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1693lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-82-SE Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf
Hersteller: Bridgelux
Description: VERO SE 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1659lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-83 Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: VERO 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.90mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1693lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-B-83-SE Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf
Hersteller: Bridgelux
Description: VERO SE 13B WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 350mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.25A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1659lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-02 Vero_13_BXRC-xxx2000-C-%2802%2C03%2C04%29.pdf
BXRC-30G2000-C-02
Hersteller: Bridgelux
Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 98 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1600lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-03 Vero_13_BXRC-xxx2000-C-%2803%2C04%29.pdf
BXRC-30G2000-C-03
Hersteller: Bridgelux
Description: LED COB VERO 13 ARRAY RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 98 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1600lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-22 Vero_13_BXRC-xxx2000-C-%2822%2C23%29.pdf
BXRC-30G2000-C-22
Hersteller: Bridgelux
Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.3V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 111 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1785lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-23 Vero_13_BXRC-xxx2000-C-%2822%2C23%29.pdf
BXRC-30G2000-C-23
Hersteller: Bridgelux
Description: LED COB VERO 13 ARRAY RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 32.3V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 111 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1785lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-72 Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf
BXRC-30G2000-C-72
Hersteller: Bridgelux
Description: LED COB VERO 13 WM WHT RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 630mA
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2530lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-72-SE Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G2000-C-72-SE
Hersteller: Bridgelux
Description: LED COB VERO SE 13 WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.9V
Height: 3.60mm
Current - Test: 630mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 121 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2585lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73 Bridgelux%20DS91%20Vero%2013%20Gen%207%20Array%20Data%20Sheet%2020181104%20Rev%20N.pdf
BXRC-30G2000-C-73
Hersteller: Bridgelux
Description: LED COB VERO 13 WM WH RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 630mA
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2530lm (Typ)
Part Status: Active
auf Bestellung 189 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+10.58 EUR
50+10.21 EUR
100+9.45 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73 2718305.pdf
BXRC-30G2000-C-73
Hersteller: BRIDGELUX
Description: BRIDGELUX - BXRC-30G2000-C-73 - LED, warmweiß, CRI 90, 22.1W, 2000lm, 630mA, 120°, 35V, 3000K, rund, flache Oberseite
tariffCode: 85414100
Lumen/Watt bei Strom - Test: 127lm/W
rohsCompliant: YES
COB-Breite: -
Lichtaustrittsfläche: 13.2mm
Höhe: 1.9mm
Linsenform: Rund, oben flach
hazardous: false
rohsPhthalatesCompliant: YES
COB-Länge: -
Lichtstrom bei Test: 2000lm
Nennleistung: 22.1W
usEccn: EAR99
Durchlassspannung (VF), typ.: 35V
Linsentyp: -
Bauform des Optokopplers: -
euEccn: NLR
Abstrahlwinkel: 120°
Farbwiedergabeindex, max.: 90
COB-Farbe: Warmweiß
Produktpalette: Gen 7 Vero 13 Array
productTraceability: No
Durchlassstrom bei Prüfung: 630mA
Nominelle CCT (K): 3000K
SVHC: No SVHC (21-Jan-2025)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-73-SE Bridgelux%20DS121%20Vero%20SE%2013%20Array%20Data%20Sheet%2020181105%20Rev%20K.pdf
BXRC-30G2000-C-73-SE
Hersteller: Bridgelux
Description: LED COB VERO WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 3.60mm
Current - Test: 630mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 115 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2479lm (Typ)
Part Status: Active
auf Bestellung 185 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+8.78 EUR
50+8.46 EUR
100+8.20 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-82 Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: VERO 13C WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2419lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-82-SE Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%2020210902%20Rev%20C.pdf
Hersteller: Bridgelux
Description: VERO SE 13C WARM WHITE LED ARRAY
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.50mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 2-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2371lm (Typ)
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-83 Bridgelux%20DS421%20Vero%2013%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
BXRC-30G2000-C-83
Hersteller: Bridgelux
Description: LED COB VERO 13C WHT RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 1.80mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 145 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2419lm (Typ)
Part Status: Active
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+15.61 EUR
10+12.00 EUR
80+10.04 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-83-SE Bridgelux%20DS431%20Vero%20SE%2013%20Gen%208%20Array%20Data%20Sheet%202020622%20Rev%20A.pdf
BXRC-30G2000-C-83-SE
Hersteller: Bridgelux
Description: LED COB VERO SE13C WH RND 3000K
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 33.4V
Height: 3.60mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.75A
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.30mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2371lm (Typ)
Part Status: Active
auf Bestellung 170 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+15.65 EUR
10+12.02 EUR
80+10.06 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G2000-C-Z2
BXRC-30G2000-C-Z2
Hersteller: Bridgelux
Description: LED COB VERO 13 ARRAY RND 3000K
Features: With Connector
Packaging: Tray
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 31.5V
Height: 1.90mm
Current - Test: 500mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.05A
Lumens/Watt @ Current - Test: 88 lm/W
CCT (K): 3000K
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1385lm (Typ)
Part Status: Obsolete
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 7 14 21 24 25 26 27 28 29 30 31 32 33 34 35 42 49 56 63 70 72  [ Nächste Seite >> ]
