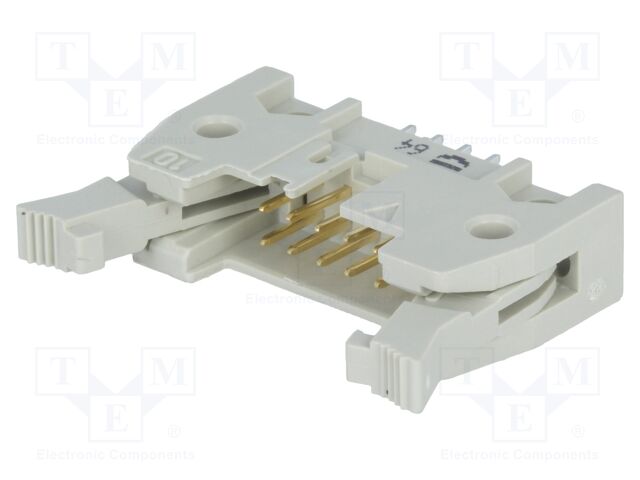

09185106904 HARTING
Hersteller: HARTINGCategory: IDC connectors
Description: Connector: IDC; socket; male; PIN: 10; SEK; straight; 1A; THT; 2.54mm
Type of connector: IDC
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: SEK
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x5
Body colour: grey
Lead length: 2.9mm
Spatial orientation: straight
Engineering PN: SEK-18 SV MA STD STR29 RLG 10P PL2
Mechanical durability: 250 cycles
Operating temperature: -55...125°C
Current rating: 1A
Flammability rating: UL94V-0
Body material: PBT
Contact material: copper alloy
Connector variant: with ejector
Anzahl je Verpackung: 1 Stücke
auf Bestellung 161 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 32+ | 2.30 EUR |
| 41+ | 1.74 EUR |
| 51+ | 1.42 EUR |
| 54+ | 1.34 EUR |
| 1000+ | 1.32 EUR |
| 2500+ | 1.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 09185106904 HARTING
Description: CONN HEADER VERT 10POS 2.54MM, Packaging: Tray, Features: Keying Slot, Mounting Flange, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Gray, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.114" (2.90mm), Insulation Height: 0.681" (17.30mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.650" (16.51mm), Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.228" (5.80mm).
Weitere Produktangebote 09185106904 nach Preis ab 1.34 EUR bis 3.50 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
09185106904 | Hersteller : HARTING |
Category: IDC connectors Description: Connector: IDC; socket; male; PIN: 10; SEK; straight; 1A; THT; 2.54mm Type of connector: IDC Connector: socket Kind of connector: male Number of pins: 10 Manufacturer series: SEK Electrical mounting: THT Contacts pitch: 2.54mm Connector pinout layout: 2x5 Body colour: grey Lead length: 2.9mm Spatial orientation: straight Engineering PN: SEK-18 SV MA STD STR29 RLG 10P PL2 Mechanical durability: 250 cycles Operating temperature: -55...125°C Current rating: 1A Flammability rating: UL94V-0 Body material: PBT Contact material: copper alloy Connector variant: with ejector |
auf Bestellung 161 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
09185106904 | Hersteller : Harting |
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole |
auf Bestellung 1988 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
09185106904 | Hersteller : Harting |
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole |
auf Bestellung 1993 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
09185106904 | Hersteller : HARTING |
Description: CONN HEADER VERT 10POS 2.54MM Packaging: Tray Features: Keying Slot, Mounting Flange Connector Type: Header Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks, Long Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Gray Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.681" (17.30mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.650" (16.51mm) Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.228" (5.80mm) |
auf Bestellung 501 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
09185106904 | Hersteller : HARTING |
Headers & Wire Housings 10P MALE STRT IDC LONG LEVERS |
auf Bestellung 659 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
09 18 510 6904 | Hersteller : HARTING |
Description: HARTING - 09 18 510 6904 - Stiftleiste, gerade, Wire-to-Board, 2.54 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: SEK 18 Series productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm |
auf Bestellung 668 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
09185106904 | Hersteller : Harting |
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Carton |
auf Bestellung 2601 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
| 09 18 510 6904 | Hersteller : Harting | Разъём серии IDC, вилка, 10конт. DIP |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
|
|
09185106904 | Hersteller : Harting |
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole |
Produkt ist nicht verfügbar |
