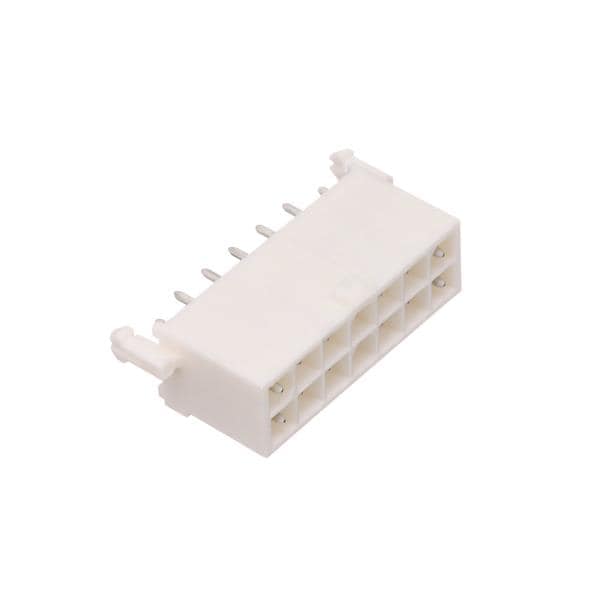

1-794074-0 TE Connectivity / AMP

Description: CONN HEADER VERT 14POS 4.14MM, Packaging: Bulk, Features: Board Lock, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -20°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: White, Pitch - Mating: 0.163" (4.14mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 150.0µin (3.81µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.175" (4.45mm), Insulation Height: 0.531" (13.50mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.163" (4.14mm).
