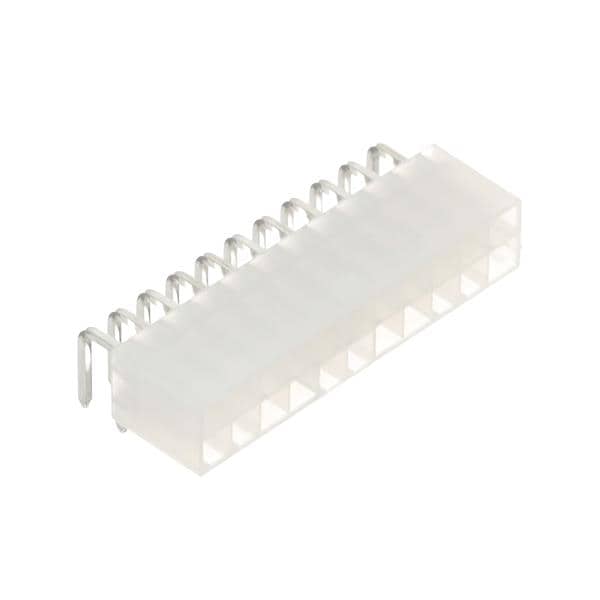

2-1586041-2 TE Connectivity AMP Connectors

Description: CONN HEADER R/A 22POS 4.2MM, Packaging: Tray, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): 9A, Mounting Type: Through Hole, Right Angle, Number of Positions: 22, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-2, Contact Material: Brass Alloy, Insulation Color: Natural, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 80.0µin (2.03µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.142" (3.60mm), Insulation Height: 0.402" (10.20mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.165" (4.20mm).
