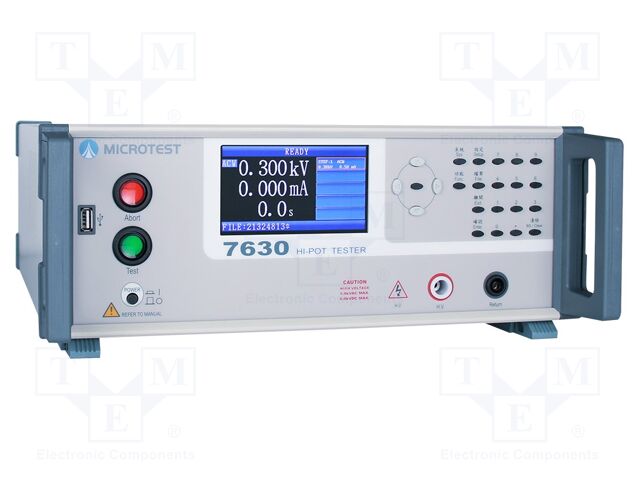

7630 MICROTEST

Category: Electrical Safety Testers, Description: Safety tester; 1Ω÷12GΩ; Utest: 10÷5000VAC,10÷6000VDC; True RMS, Interface: EXT I/O; Remote; RS232; USB device; USB Host, Test frequency: 50/60Hz, Measurement time: 0.1...999s, Display resolution: 480x272, Supply voltage frequency: 50/60Hz, Dimensions: 365x145x430mm, Standard equipment: control pedal F760001; mains cable; test lead x2, Measuring instrument features: 30 sets setting memory; ARC (Arcing detection)- Transient detection; insulation resistance test 100-500V, 1-1000MΩ (±5%); 500-1000V, 2-12000MΩ (±5%); Key-Lock function; manual and automated tests; remote control; safety interlock function; True RMS measurement, Type of meter: safety tester, Test voltage: 10...5000V AC; 10...6000V DC; 10... 1000V DC, Manufacturer series: MCT-7600, True effective value measurement: True RMS, Number of chambers: 1, Kind of meter: Hi-Pot, Rise time: 0.1...10s, Test current: 10mA @ 10V AC...5kV AC; 10mA @ 10V DC...6kV DC; 30mA @ 10V AC...5kV AC, Insulation resistance measuring ranges: 1Ω...12GΩ, Operating temperature: 5...40°C, Kind of display used: LCD TFT 4,3", Supply voltage: 90...264V, Anzahl je Verpackung: 1 Stücke.
