7631
  • 7631
  • 7631

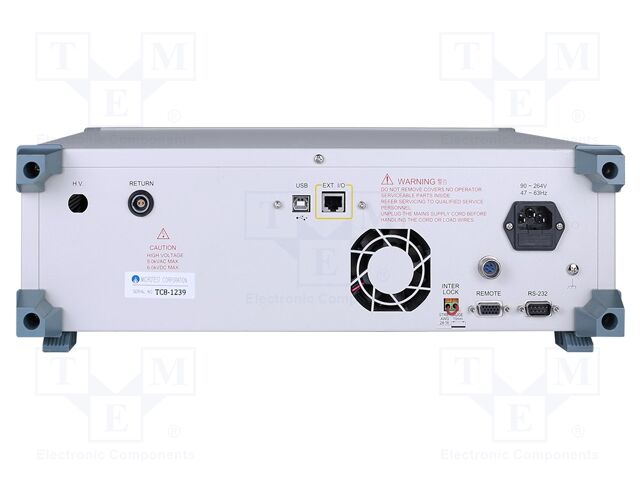

7631 MICROTEST


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF8CF735C61F3AA0D6&compId=7631.pdf?ci_sign=b0788aa96eb4a9910f8515aeb4ea5bc2c70324b0 pVersion=0046&contRep=ZT&docId=005056AB281E1EDF8CF735C61F3BE0D6&compId=7631-INS.pdf?ci_sign=6c0c21f43d1c0cd9e56c38c88ebeb4b65c573f3a Hersteller: MICROTEST
Category: Electrical Safety Testers
Description: Safety tester; 1Ω÷12GΩ; Utest: 10÷5000VAC,10÷6000VDC; True RMS
Interface: EXT I/O; Remote; RS232; USB device; USB Host
Test frequency: 50/60Hz
Measurement time: 0.1...999s
Display resolution: 480x272
Supply voltage frequency: 50/60Hz
Dimensions: 435x145x500mm
Standard equipment: control pedal F760001; mains cable; test lead x2
Measuring instrument features: 30 sets setting memory; ARC (Arcing detection)- Transient detection; insulation resistance test 100-500V, 1-1000MΩ (±5%); 500-1000V, 2-12000MΩ (±5%); Key-Lock function; manual and automated tests; remote control; safety interlock function; True RMS measurement
Type of meter: safety tester
Test voltage: 10...5000V AC; 10...6000V DC; 10... 1000V DC
Manufacturer series: MCT-7600
True effective value measurement: True RMS
Number of chambers: 8
Kind of meter: Hi-Pot
Rise time: 0.1...10s
Test current: 10mA @ 10V DC...6kV DC; 30mA @ 10V AC...5kV AC
Insulation resistance measuring ranges: 1Ω...12GΩ
Operating temperature: 5...40°C
Kind of display used: LCD TFT 4,3"
Supply voltage: 90...264V
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+4417.44 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 7631 MICROTEST

Category: Electrical Safety Testers, Description: Safety tester; 1Ω÷12GΩ; Utest: 10÷5000VAC,10÷6000VDC; True RMS, Interface: EXT I/O; Remote; RS232; USB device; USB Host, Test frequency: 50/60Hz, Measurement time: 0.1...999s, Display resolution: 480x272, Supply voltage frequency: 50/60Hz, Dimensions: 435x145x500mm, Standard equipment: control pedal F760001; mains cable; test lead x2, Measuring instrument features: 30 sets setting memory; ARC (Arcing detection)- Transient detection; insulation resistance test 100-500V, 1-1000MΩ (±5%); 500-1000V, 2-12000MΩ (±5%); Key-Lock function; manual and automated tests; remote control; safety interlock function; True RMS measurement, Type of meter: safety tester, Test voltage: 10...5000V AC; 10...6000V DC; 10... 1000V DC, Manufacturer series: MCT-7600, True effective value measurement: True RMS, Number of chambers: 8, Kind of meter: Hi-Pot, Rise time: 0.1...10s, Test current: 10mA @ 10V DC...6kV DC; 30mA @ 10V AC...5kV AC, Insulation resistance measuring ranges: 1Ω...12GΩ, Operating temperature: 5...40°C, Kind of display used: LCD TFT 4,3", Supply voltage: 90...264V, Anzahl je Verpackung: 1 Stücke.
