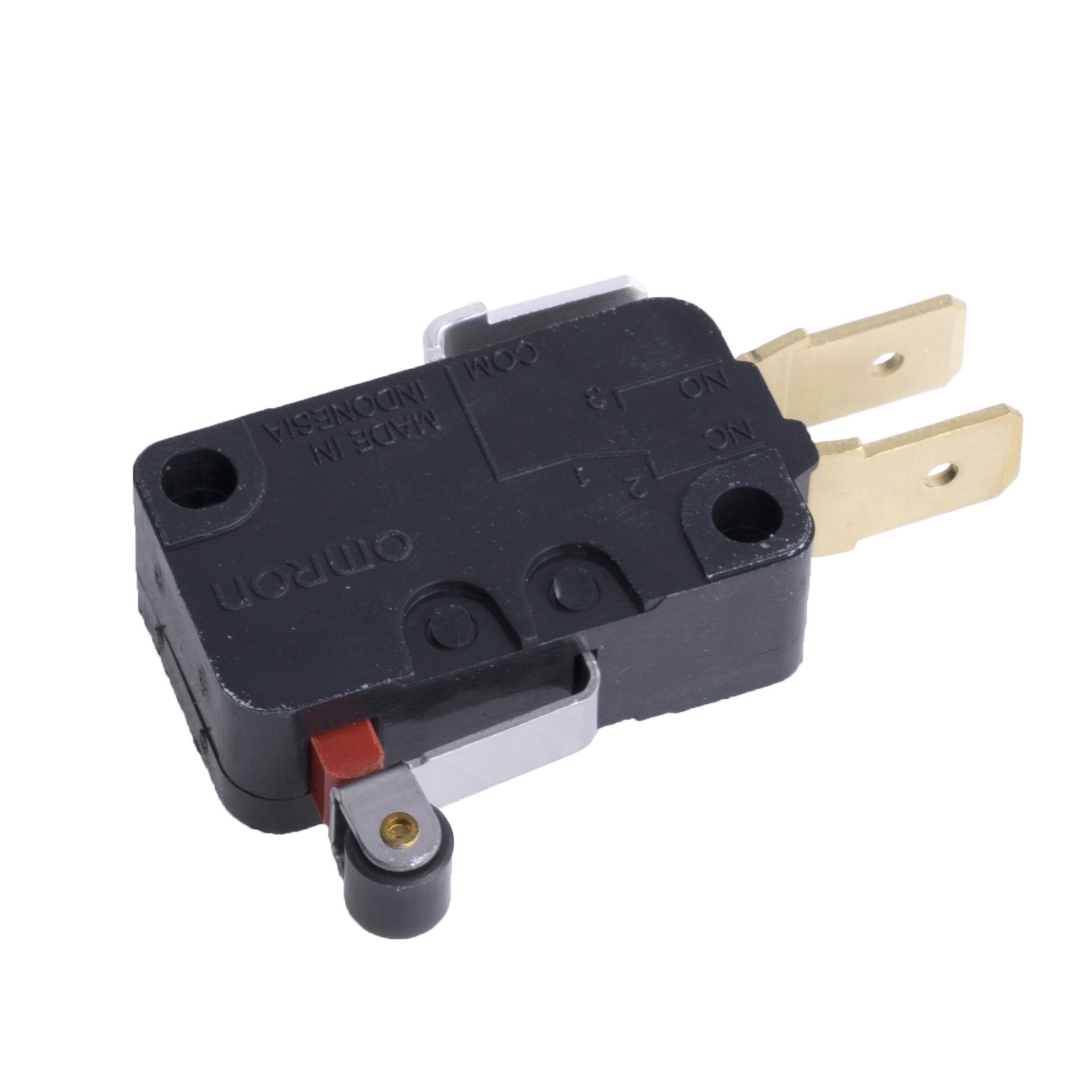

D3V-165-1C5

D3V-165-1C5 OMRON Electronic Components


pVersion=0046&contRep=ZT&docId=E1C049B5264B77F1A6F5005056AB5A8F&compId=d3v.pdf?ci_sign=942f3d99824b77aac64080f854bdad33ce06df92 pVersion=0046&contRep=ZT&docId=E23886EEEF2DAEF1A303005056AB0C4F&compId=D3V.PDF?ci_sign=75ec4a4c2b5a4274526aa47181f90897111d125e Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 16A / 250V AC
Switches features: with lever (with roller)
Contacts configuration: SPDT
Max. contact resistance:: 30mΩ
Switching method: ON-(ON)
Number of positions: 2
Stable positions number: 1
IP rating: IP40
Leads: connectors
Body dimensions: 27.8x10.3x15.9mm
Mechanical durability: 10000000 cycles
Operating temperature: -25...105°C
Operating Force: 1.96N
Electrical life: 100000 cycles
Min. insulation resistance: 0.1GΩ
DC contacts rating @R: 10A / 30V DC
Leads dimensions: 6.3x0.8mm
Lever length: 11.6mm
Contact plating: silver plated
Manufacturer series: D3V
auf Bestellung 768 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
20+3.66 EUR
23+3.2 EUR
58+1.24 EUR
61+1.17 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details D3V-165-1C5 OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 16A / 250V AC, Switches features: with lever (with roller), Contacts configuration: SPDT, Max. contact resistance:: 30mΩ, Switching method: ON-(ON), Number of positions: 2, Stable positions number: 1, IP rating: IP40, Leads: connectors, Body dimensions: 27.8x10.3x15.9mm, Mechanical durability: 10000000 cycles, Operating temperature: -25...105°C, Operating Force: 1.96N, Electrical life: 100000 cycles, Min. insulation resistance: 0.1GΩ, DC contacts rating @R: 10A / 30V DC, Leads dimensions: 6.3x0.8mm, Lever length: 11.6mm, Contact plating: silver plated, Manufacturer series: D3V, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote D3V-165-1C5 nach Preis ab 1.17 EUR bis 9.14 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
D3V-165-1C5 D3V-165-1C5 Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=E1C049B5264B77F1A6F5005056AB5A8F&compId=d3v.pdf?ci_sign=942f3d99824b77aac64080f854bdad33ce06df92 pVersion=0046&contRep=ZT&docId=E23886EEEF2DAEF1A303005056AB0C4F&compId=D3V.PDF?ci_sign=75ec4a4c2b5a4274526aa47181f90897111d125e Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 16A / 250V AC
Switches features: with lever (with roller)
Contacts configuration: SPDT
Max. contact resistance:: 30mΩ
Switching method: ON-(ON)
Number of positions: 2
Stable positions number: 1
IP rating: IP40
Leads: connectors
Body dimensions: 27.8x10.3x15.9mm
Mechanical durability: 10000000 cycles
Operating temperature: -25...105°C
Operating Force: 1.96N
Electrical life: 100000 cycles
Min. insulation resistance: 0.1GΩ
DC contacts rating @R: 10A / 30V DC
Leads dimensions: 6.3x0.8mm
Lever length: 11.6mm
Contact plating: silver plated
Manufacturer series: D3V
Anzahl je Verpackung: 1 Stücke
auf Bestellung 768 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
20+3.66 EUR
23+3.2 EUR
58+1.24 EUR
61+1.17 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5 D3V-165-1C5 Hersteller : Omron b103-e1.pdf Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 16A 250VAC 250VDC 372.85VA 2.35N Screw Mount Quick Connect
auf Bestellung 1088 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
29+5.04 EUR
35+4.06 EUR
50+2.97 EUR
60+2.6 EUR
100+1.84 EUR
200+1.58 EUR
Mindestbestellmenge: 29
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5 D3V-165-1C5 Hersteller : Omron Electronics B103_E1-3439891.pdf Basic / Snap Action Switches Miniature Basic Detection Switch
auf Bestellung 1157 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+6.27 EUR
20+5.91 EUR
50+5.03 EUR
100+4.68 EUR
200+4.52 EUR
2000+4.33 EUR
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5 D3V-165-1C5 Hersteller : Omron b103-e1.pdf Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 16A 250VAC 250VDC 372.85VA 2.35N Screw Mount Quick Connect
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
16+9.14 EUR
50+6.44 EUR
100+5.67 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5 D3V-165-1C5 Hersteller : OMRON 2081954.pdf Description: OMRON - D3V-165-1C5 - Mikroschalter, Miniatur, Kurzer Scharnier-Rollenhebel, SPDT, Steckanschluss, 16 A, 250 V
tariffCode: 85365080
rohsCompliant: YES
Schalteranschlüsse: Steckanschluss
Mikroschalter-Betätiger: Kurzer Scharnier-Rollenhebel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 16A
usEccn: EAR99
AC-Kontaktspannung, nom.: 250V
euEccn: NLR
DC-Kontaktspannung, nom.: 250V
Produktpalette: D3V
productTraceability: No
Betätigungskraft, max.: 1.96N
Kontaktkonfiguration: SPDT
Mikroschaltertyp: Miniatur
auf Bestellung 1646 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5(Schalter)
+1
D3V-165-1C5(Schalter)
Produktcode: 45462
zu Favoriten hinzufügen Lieblingsprodukt

D3V-datasheet.pdf Passive Bauelemente > Schalter, Schubschalter, Kippschalter (alle außer Knopf/Tasten)
Gruppe: Schalter
Ausg. oder SMD : Клеми з отвором
Abmessungen: 27,8x10,3x15,9mm
Länge des Stabs: 11,6 mm
Beschreibung: Мікроперемикач з роликом, контакти SPDT ON-(ON)
16 A / 250 VAC
8536508000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
D3V1651C5 D3V1651C5 Hersteller : Omron b103-e1.pdf Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 16A 250VAC 250VDC 372.85VA 2.35N Screw Mount Quick Connect
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
D3V-165-1C5 D3V-165-1C5 Hersteller : Omron Electronics Inc-EMC Div B103-E1.pdf Description: SWITCH SNAP ACTION SPDT 16A 250V
Packaging: Bulk
Current Rating (Amps): 16A (AC), 600mA (DC)
Mounting Type: Chassis Mount
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -25°C ~ 105°C
Termination Style: Quick Connect - 0.250" (6.3mm)
Actuator Type: Lever, Roller
Operating Force: 240gf
Ingress Protection: IP40
Mechanical Life: 10,000,000 Cycles
Electrical Life: 100,000 Cycles
Release Force: 50gf
Pretravel: 0.063" (1.6mm)
Differential Travel: 0.025" (0.6mm)
Overtravel: 0.031" (0.79mm)
Operating Position: 0.815" (20.7mm)
Part Status: Active
Voltage Rating - AC: 250 V
Voltage Rating - DC: 125 V
