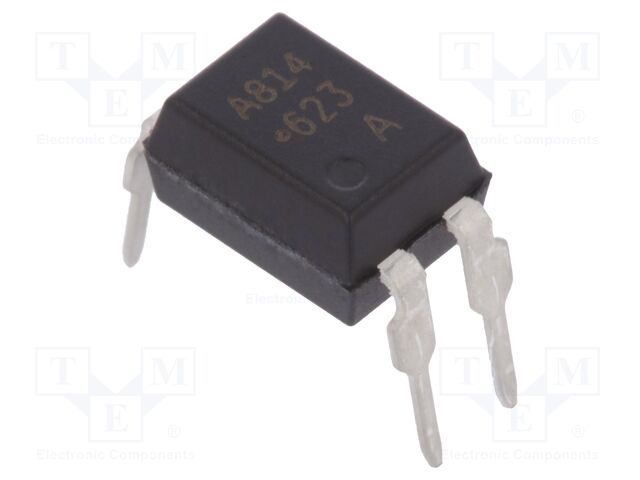

HCPL-814-00AE BROADCOM (AVAGO)
Hersteller: BROADCOM (AVAGO)Category: Optocouplers - analog output
Description: Optocoupler; THT; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 20V; DIP4
Type of optocoupler: optocoupler
Mounting: THT
Number of channels: 1
Kind of output: transistor
Insulation voltage: 5kV
CTR@If: 50-150%@1mA
Collector-emitter voltage: 20V
Case: DIP4
Turn-on time: 18µs
Turn-off time: 3µs
Anzahl je Verpackung: 100 Stücke
auf Bestellung 300 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 900+ | 0.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HCPL-814-00AE BROADCOM (AVAGO)
Description: OPTOISOLATOR 5KV TRANSISTOR 4DIP, Packaging: Tube, Package / Case: 4-DIP (0.300", 7.62mm), Output Type: Transistor, Mounting Type: Through Hole, Operating Temperature: -30°C ~ 100°C, Voltage - Forward (Vf) (Typ): 1.2V, Input Type: AC, DC, Current - Output / Channel: 50mA, Voltage - Isolation: 5000Vrms, Current Transfer Ratio (Min): 50% @ 1mA, Vce Saturation (Max): 200mV, Current Transfer Ratio (Max): 150% @ 1mA, Supplier Device Package: 4-DIP, Voltage - Output (Max): 35V, Rise / Fall Time (Typ): 4µs, 3µs, Number of Channels: 1, Current - DC Forward (If) (Max): 50 mA.
Weitere Produktangebote HCPL-814-00AE
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
HCPL-814-00AE | Hersteller : BROADCOM (AVAGO) |
Category: Optocouplers - analog output Description: Optocoupler; THT; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 20V; DIP4 Type of optocoupler: optocoupler Mounting: THT Number of channels: 1 Kind of output: transistor Insulation voltage: 5kV CTR@If: 50-150%@1mA Collector-emitter voltage: 20V Case: DIP4 Turn-on time: 18µs Turn-off time: 3µs |
auf Bestellung 300 Stücke: Lieferzeit 14-21 Tag (e) |
|
 |
HCPL-814-00AE | Hersteller : Broadcom Limited |
Description: OPTOISOLATOR 5KV TRANSISTOR 4DIP Packaging: Tube Package / Case: 4-DIP (0.300", 7.62mm) Output Type: Transistor Mounting Type: Through Hole Operating Temperature: -30°C ~ 100°C Voltage - Forward (Vf) (Typ): 1.2V Input Type: AC, DC Current - Output / Channel: 50mA Voltage - Isolation: 5000Vrms Current Transfer Ratio (Min): 50% @ 1mA Vce Saturation (Max): 200mV Current Transfer Ratio (Max): 150% @ 1mA Supplier Device Package: 4-DIP Voltage - Output (Max): 35V Rise / Fall Time (Typ): 4µs, 3µs Number of Channels: 1 Current - DC Forward (If) (Max): 50 mA |
Produkt ist nicht verfügbar |
|
 |
HCPL-814-00AE | Hersteller : Broadcom / Avago |
Transistor Output Optocouplers 5000 Vrms 20% CTR |
Produkt ist nicht verfügbar |
