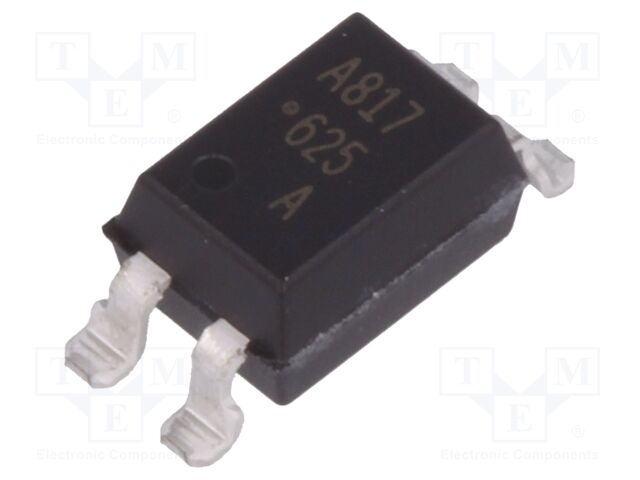

HCPL-817-30AE BROADCOM (AVAGO)
Hersteller: BROADCOM (AVAGO)Category: Optocouplers - analog output
Description: Optocoupler; SMD; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 70V
Type of optocoupler: optocoupler
Mounting: SMD
Number of channels: 1
Kind of output: transistor
Insulation voltage: 5kV
CTR@If: 80-160%@5mA
Collector-emitter voltage: 70V
Case: Gull wing 4
Turn-on time: 4µs
Turn-off time: 3µs
Manufacturer series: HCPL-817
Max. load current: 50mA
Load current: 20mA
Operating temperature: -30...100°C
Collector current: 50mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 896 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 103+ | 0.7 EUR |
| 151+ | 0.48 EUR |
| 192+ | 0.37 EUR |
| 223+ | 0.32 EUR |
| 235+ | 0.3 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HCPL-817-30AE BROADCOM (AVAGO)
Description: OPTOISOLATOR 5KV TRANSISTOR 4SMD, Packaging: Tube, Package / Case: 4-SMD, Gull Wing, Output Type: Transistor, Mounting Type: Surface Mount, Operating Temperature: -30°C ~ 100°C, Voltage - Forward (Vf) (Typ): 1.2V, Input Type: DC, Current - Output / Channel: 50mA, Voltage - Isolation: 5000Vrms, Current Transfer Ratio (Min): 80% @ 5mA, Vce Saturation (Max): 200mV, Current Transfer Ratio (Max): 160% @ 5mA, Supplier Device Package: 4-SMD, Voltage - Output (Max): 70V, Rise / Fall Time (Typ): 4µs, 3µs, Part Status: Active, Number of Channels: 1, Current - DC Forward (If) (Max): 50 mA.
Weitere Produktangebote HCPL-817-30AE nach Preis ab 0.3 EUR bis 0.91 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HCPL-817-30AE | Hersteller : BROADCOM (AVAGO) |
Category: Optocouplers - analog output Description: Optocoupler; SMD; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 70V Type of optocoupler: optocoupler Mounting: SMD Number of channels: 1 Kind of output: transistor Insulation voltage: 5kV CTR@If: 80-160%@5mA Collector-emitter voltage: 70V Case: Gull wing 4 Turn-on time: 4µs Turn-off time: 3µs Manufacturer series: HCPL-817 Max. load current: 50mA Load current: 20mA Operating temperature: -30...100°C Collector current: 50mA |
auf Bestellung 896 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
HCPL-817-30AE | Hersteller : Broadcom / Avago |
Transistor Output Optocouplers 5000 Vrms 50mA |
auf Bestellung 9753 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| HCPL-817-30AE | Hersteller : AVAGO |
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Tube HCPL-817-30AE Avago OOHCPl817-30ae Anzahl je Verpackung: 50 Stücke |
auf Bestellung 100 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
 |
HCPL-817-30AE | Hersteller : Broadcom Limited |
Description: OPTOISOLATOR 5KV TRANSISTOR 4SMD Packaging: Tube Package / Case: 4-SMD, Gull Wing Output Type: Transistor Mounting Type: Surface Mount Operating Temperature: -30°C ~ 100°C Voltage - Forward (Vf) (Typ): 1.2V Input Type: DC Current - Output / Channel: 50mA Voltage - Isolation: 5000Vrms Current Transfer Ratio (Min): 80% @ 5mA Vce Saturation (Max): 200mV Current Transfer Ratio (Max): 160% @ 5mA Supplier Device Package: 4-SMD Voltage - Output (Max): 70V Rise / Fall Time (Typ): 4µs, 3µs Part Status: Active Number of Channels: 1 Current - DC Forward (If) (Max): 50 mA |
Produkt ist nicht verfügbar |
