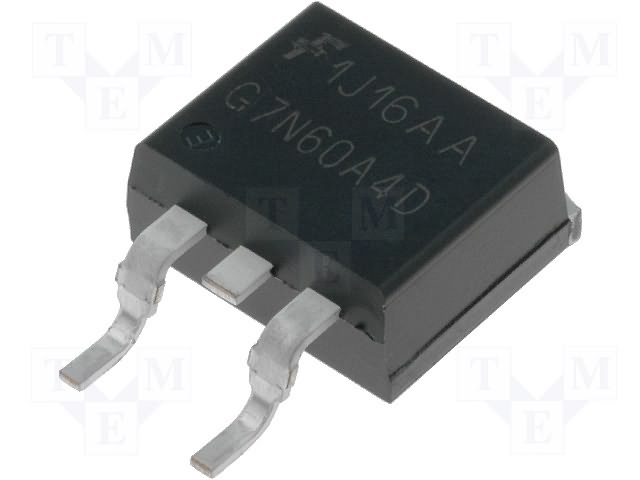

Technische Details HGT1S7N60A4DS FAIRCHILD
Description: IGBT 600V 34A 125W TO263AB, Packaging: Tube, Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Input Type: Standard, Reverse Recovery Time (trr): 34 ns, Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 7A, Supplier Device Package: TO-263 (D2Pak), Td (on/off) @ 25°C: 11ns/100ns, Switching Energy: 55µJ (on), 60µJ (off), Test Condition: 390V, 7A, 25Ohm, 15V, Gate Charge: 37 nC, Part Status: Obsolete, Current - Collector (Ic) (Max): 34 A, Voltage - Collector Emitter Breakdown (Max): 600 V, Current - Collector Pulsed (Icm): 56 A, Power - Max: 125 W.
Weitere Produktangebote HGT1S7N60A4DS
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
|---|---|---|---|---|---|
| HGT1S7N60A4DS | Hersteller : FAIRCHILD |
 07+ TO-263 |
auf Bestellung 21000 Stücke: Lieferzeit 21-28 Tag (e) |
||
 |
HGT1S7N60A4DS Produktcode: 34779 |
Transistoren > Transistoren IGBT, Leistungsmodule |
Produkt ist nicht verfügbar
|
||
 |
HGT1S7N60A4DS | Hersteller : onsemi |
Description: IGBT 600V 34A 125W TO263AB Packaging: Tube Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Input Type: Standard Reverse Recovery Time (trr): 34 ns Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 7A Supplier Device Package: TO-263 (D2Pak) Td (on/off) @ 25°C: 11ns/100ns Switching Energy: 55µJ (on), 60µJ (off) Test Condition: 390V, 7A, 25Ohm, 15V Gate Charge: 37 nC Part Status: Obsolete Current - Collector (Ic) (Max): 34 A Voltage - Collector Emitter Breakdown (Max): 600 V Current - Collector Pulsed (Icm): 56 A Power - Max: 125 W |
Produkt ist nicht verfügbar |
|
 |
HGT1S7N60A4DS | Hersteller : onsemi / Fairchild |
Motor/Motion/Ignition Controllers & Drivers 600V N-Ch IGBT SMPS Series HF |
Produkt ist nicht verfügbar |
