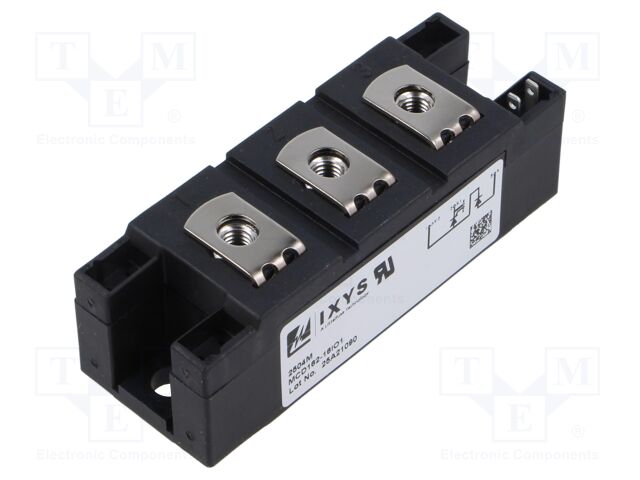

MCD162-16IO1

Hersteller: IXYS
Category: Diode - thyristor modules
Description: Module: diode-thyristor; 1.6kV; 181A; Y4-M6; Ufmax: 1.03V; Ifsm: 6kA
Case: Y4-M6
Kind of package: bulk
Features of semiconductor devices: Kelvin terminal
Mechanical mounting: screw
Gate current: 150/200mA
Threshold on-voltage: 0.88V
Max. forward voltage: 1.03V
Load current: 181A
Max. load current: 300A
Max. forward impulse current: 6kA
Max. off-state voltage: 1.6kV
Type of semiconductor module: diode-thyristor
Semiconductor structure: double series
Electrical mounting: FASTON connectors; screw

Hersteller: IXYS
Description: SCR MODULE 1.6KV 300A Y4-M6
Packaging: Box
Package / Case: Y4-M6
Mounting Type: Chassis Mount
Operating Temperature: -40°C ~ 125°C (TJ)
Structure: Series Connection - SCR/Diode
Current - Hold (Ih) (Max): 200 mA
Current - Gate Trigger (Igt) (Max): 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm): 6000A, 6400A
Number of SCRs, Diodes: 1 SCR, 1 Diode
Current - On State (It (AV)) (Max): 190 A
Voltage - Gate Trigger (Vgt) (Max): 2.5 V
Current - On State (It (RMS)) (Max): 300 A
Voltage - Off State: 1.6 kV
