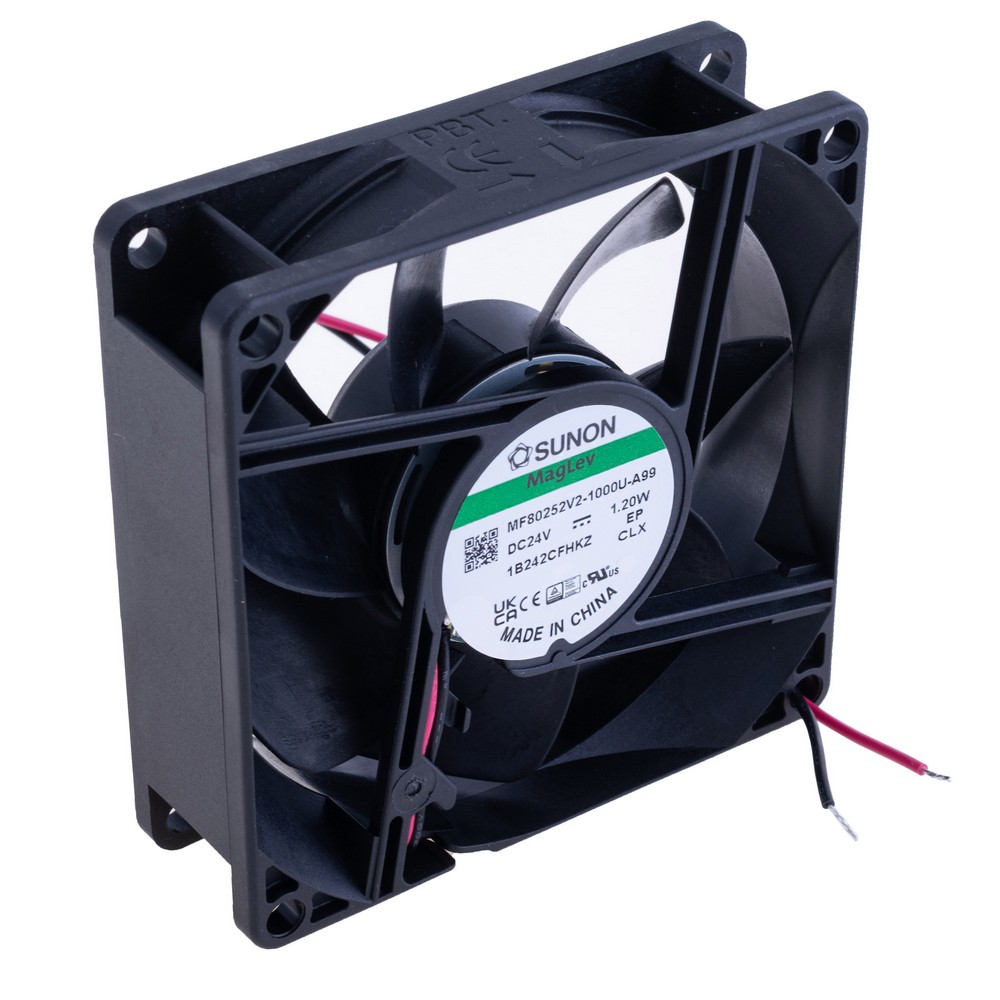

MF80252V2-1000U-A99 SUNON
Hersteller: SUNONCategory: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 61.2m3/h; 30dBA; Vapo; 2900rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 80x80x25mm
Power consumption: 1.2W
Current rating: 50mA
Fan efficiency: 61.2m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2900rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Fan motor: brushless DC
Insulation class: A
Additional functions: autorestart
Operating voltage: 8...27.6V DC
auf Bestellung 2897 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 17+ | 4.45 EUR |
| 19+ | 3.93 EUR |
| 25+ | 3.4 EUR |
| 50+ | 2.96 EUR |
| 250+ | 2.85 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF80252V2-1000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 61.2m3/h; 30dBA; Vapo; 2900rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 80x80x25mm, Power consumption: 1.2W, Current rating: 50mA, Fan efficiency: 61.2m3/h, Noise level: 30dBA, Kind of Bearing: Vapo, Rotational rate/speed: 2900rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Fan motor: brushless DC, Insulation class: A, Additional functions: autorestart, Operating voltage: 8...27.6V DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF80252V2-1000U-A99 nach Preis ab 2.85 EUR bis 12.78 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF80252V2-1000U-A99 | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x25mm; 61.2m3/h; 30dBA; Vapo; 2900rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Fan dimensions: 80x80x25mm Power consumption: 1.2W Current rating: 50mA Fan efficiency: 61.2m3/h Noise level: 30dBA Kind of Bearing: Vapo Rotational rate/speed: 2900rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Fan motor: brushless DC Insulation class: A Additional functions: autorestart Operating voltage: 8...27.6V DC Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2897 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||
 |
MF80252V2-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 80X25MM 24VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 2900 RPM Air Flow: 37.0 CFM (1.04m³/min) Width: 25.00mm Weight: 0.167 lb (75.75 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 30.0dB(A) Static Pressure: 0.150 in H2O (37.3 Pa) Part Status: Active Power (Watts): 1.2 W |
auf Bestellung 2106 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| MF80252V2-1000U-A99 | Hersteller : Sunon |
DC Brushless Fan and Blower |
auf Bestellung 3000 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
| MF80252V2-1000U-A99 | Hersteller : Sunon |
DC Brushless Fan and Blower |
auf Bestellung 1620 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
 |
MF80252V2-1000U-A99 Produktcode: 198783
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 80x80x25 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 61,2 м³/год Leistung, Watt: 1,2 Вт Lärm, dB: 30 дБ Rotationsgeschwindigkeit, r/min: 2900 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
Produkt ist nicht verfügbar
|
|||||||||||||||
 |
MF80252V2-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 80x80x25mm, 24VDC, 37CFM, 0.15"H2O, Vapo, Wire, Auto Restart |
Produkt ist nicht verfügbar |
