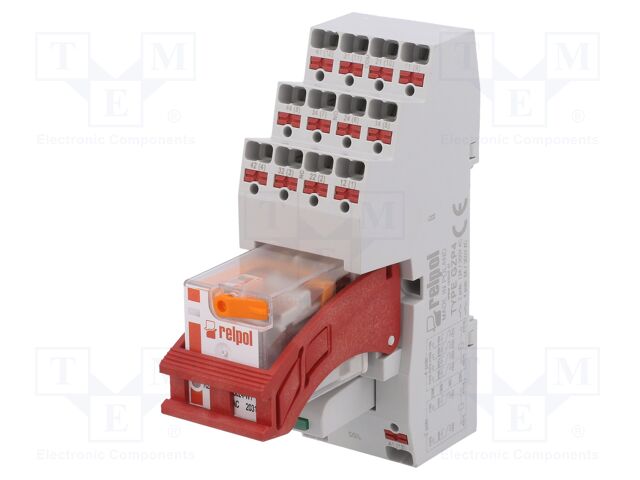

PIR2-024AC-M91G-PS-2012 RELPOL
Hersteller: RELPOL
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/24VDC
Manufacturer series: R2
Mounting: for DIN rail mounting; on panel
Operating temperature: -40...55°C
Switched voltage: max. 250V AC; max. 250V DC
Body dimensions: 97x75.8x31mm
Contact resistance: 100mΩ
Max. operating current: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Rated coil voltage: 24V AC
Coil resistance: 158Ω
Relay variant: Relay set
Contacts configuration: DPDT
Contact material: AgNi
Leads: spring clamps
Kit contents: ejector; holder; indication module; label; R2N relay
Type of relay: interface
| Anzahl | Preis |
|---|---|
| 3+ | 26.56 EUR |
| 5+ | 24.34 EUR |
| 20+ | 22.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PIR2-024AC-M91G-PS-2012 RELPOL
Category: Electromagnetic Relays - Sets, Description: Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/24VDC, Manufacturer series: R2, Mounting: for DIN rail mounting; on panel, Operating temperature: -40...55°C, Switched voltage: max. 250V AC; max. 250V DC, Body dimensions: 97x75.8x31mm, Contact resistance: 100mΩ, Max. operating current: 12A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Rated coil voltage: 24V AC, Coil resistance: 158Ω, Relay variant: Relay set, Contacts configuration: DPDT, Contact material: AgNi, Leads: spring clamps, Kit contents: ejector; holder; indication module; label; R2N relay, Type of relay: interface.
