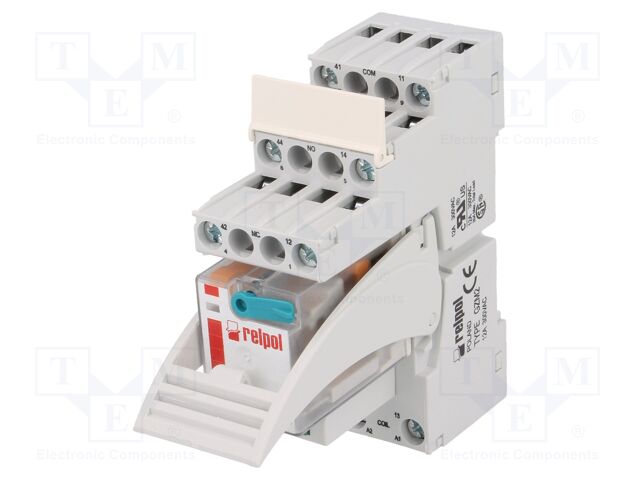

PIR2-024DC-00LD RELPOL
Hersteller: RELPOL
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VDC; 12A; 12A/250VAC; 12A/24VDC
Type of relay: interface
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 250V AC; max. 250V DC
Relay variant: Relay set
Mounting: for DIN rail mounting; on panel
Coil resistance: 640Ω
Body dimensions: 75x27x82mm
Operating temperature: -40...55°C
Relay series: R2
Contact resistance: 100mΩ
Contact material: AgNi
Leads: screw terminals
OEM number: 854795
Max. operating current: 12A
Kit contents: ejector; holder; indication module; label; R2 relay
Anzahl je Verpackung: 1 Stücke
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VDC; 12A; 12A/250VAC; 12A/24VDC
Type of relay: interface
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 250V AC; max. 250V DC
Relay variant: Relay set
Mounting: for DIN rail mounting; on panel
Coil resistance: 640Ω
Body dimensions: 75x27x82mm
Operating temperature: -40...55°C
Relay series: R2
Contact resistance: 100mΩ
Contact material: AgNi
Leads: screw terminals
OEM number: 854795
Max. operating current: 12A
Kit contents: ejector; holder; indication module; label; R2 relay
Anzahl je Verpackung: 1 Stücke
auf Bestellung 37 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 21.04 EUR |
5+ | 15.19 EUR |
100+ | 15.07 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PIR2-024DC-00LD RELPOL
Category: Electromagnetic Relays - Sets, Description: Relay: interface; DPDT; Ucoil: 24VDC; 12A; 12A/250VAC; 12A/24VDC, Type of relay: interface, Contacts configuration: DPDT, Rated coil voltage: 24V DC, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Switched voltage: max. 250V AC; max. 250V DC, Relay variant: Relay set, Mounting: for DIN rail mounting; on panel, Coil resistance: 640Ω, Body dimensions: 75x27x82mm, Operating temperature: -40...55°C, Relay series: R2, Contact resistance: 100mΩ, Contact material: AgNi, Leads: screw terminals, OEM number: 854795, Max. operating current: 12A, Kit contents: ejector; holder; indication module; label; R2 relay, Anzahl je Verpackung: 1 Stücke.
