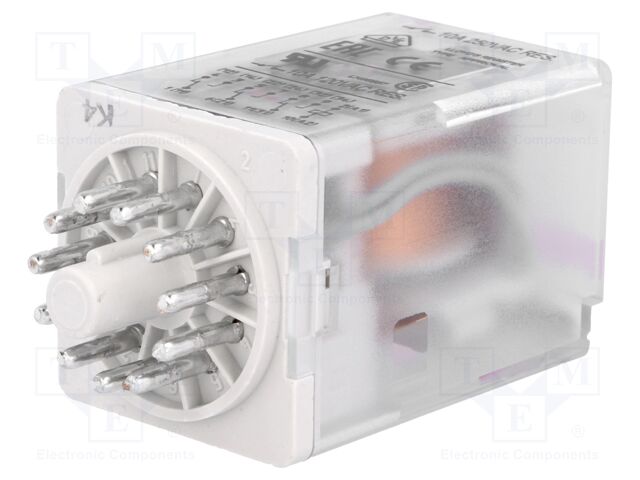

R15-2013-23-1024-WT

Hersteller: RELPOL
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: 3PDT
Rated coil voltage: 24V DC
Contact current max.: 20A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: industrial
Mounting: socket
Manufacturer series: R15
Body dimensions: 35x35x54.5mm
Operating temperature: -40...70°C
Related items: GZP11; GZU11; PZ11
Connection: undecal
Contact resistance: 100mΩ
Coil resistance: 430Ω
Number of pins: 11
Electrical connection: round socket
Optional equipment: mechanical indicator; test button with blocking function
Coil power consumption: 1.5W
Leads: stud terminals
OEM number: 802846

Hersteller: RELPOL
10A; 24V; 3PCO; coil power 1,5W; 35,0 x 35,0 x 54,4mm for socket PS11, PZ11, GZU11 R15-2013-23-1024 power relay P R15-3P024
Anzahl je Verpackung: 1 Stücke

Hersteller: RELPOL S.A.
Power Relay 24VDC 10A 3PDT(35mm 35mm 54.4mm) Socket

Hersteller: Altech Corporation
Description: RELAY GEN PURPOSE 3PDT 10A 24V
Packaging: Bulk
Features: Mechanical Indicator, Test Button
Mounting Type: Socketable
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: Plug In, 11 Pin (Octal)
Relay Type: General Purpose
Coil Current: 55.8 mA
Coil Type: Non Latching
Contact Material: Silver Nickel (AgNi)
Contact Form: 3PDT (3 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 440VAC - Max
Must Operate Voltage: 19.2 VDC
Operate Time: 18 ms
Release Time: 7 ms
Approval Agency: CCC, CE, CSA, TUV, UR
Load - Max Switching: 4400VA
