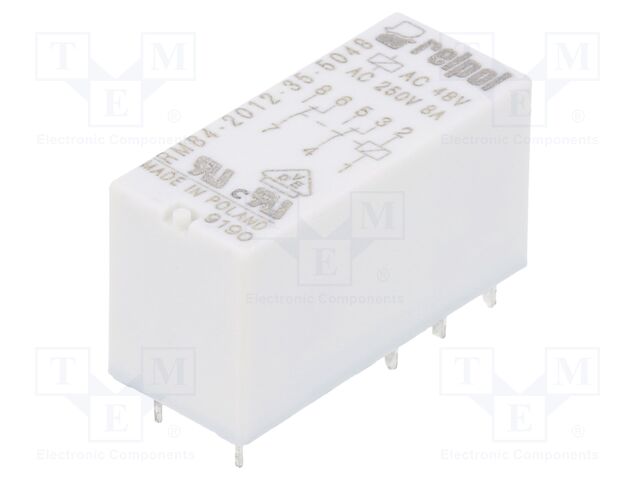

RM84-2012-35-5048 RELPOL
Hersteller: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 48V AC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.55kΩ
Coil voltage min.: 43.2V AC
Coil voltage max.: 52.8V AC
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Release time: 3ms
Coil power consumption: 0.75VA
IP rating: IP67
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Relay series: RM84
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
Height: 15.7mm
Number of pins: 8
Body colour: white
Anzahl je Verpackung: 1000 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 48V AC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.55kΩ
Coil voltage min.: 43.2V AC
Coil voltage max.: 52.8V AC
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Release time: 3ms
Coil power consumption: 0.75VA
IP rating: IP67
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Relay series: RM84
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
Height: 15.7mm
Number of pins: 8
Body colour: white
Anzahl je Verpackung: 1000 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details RM84-2012-35-5048 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 48V AC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Switched voltage: max. 250V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.55kΩ, Coil voltage min.: 43.2V AC, Coil voltage max.: 52.8V AC, Operate time: 7ms, Body dimensions: 29x12.7x15.7mm, Release time: 3ms, Coil power consumption: 0.75VA, IP rating: IP67, Mechanical durability: 30000000 cycles, Operating temperature: -40...85°C, Relay series: RM84, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80, Height: 15.7mm, Number of pins: 8, Body colour: white, Anzahl je Verpackung: 1000 Stücke.
Weitere Produktangebote RM84-2012-35-5048
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
RM84-2012-35-5048 | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE DPDT 8A 48V Packaging: Bulk Mounting Type: Through Hole Coil Voltage: 48VAC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 31 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Nickel (AgNi) Contact Form: DPDT (2 Form C) Contact Rating (Current): 8 A Switching Voltage: 440VAC - Max Must Operate Voltage: 38.4 VAC Operate Time: 7 ms Release Time: 3 ms Part Status: Active |
Produkt ist nicht verfügbar |
||
RM84-2012-35-5048 | Hersteller : Altech | Industrial Relays miniature relay, DPDT |
Produkt ist nicht verfügbar |
||
RM84-2012-35-5048 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 48V AC Contact current max.: 8A AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 8A / 24V DC Switched voltage: max. 250V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 1.55kΩ Coil voltage min.: 43.2V AC Coil voltage max.: 52.8V AC Operate time: 7ms Body dimensions: 29x12.7x15.7mm Release time: 3ms Coil power consumption: 0.75VA IP rating: IP67 Mechanical durability: 30000000 cycles Operating temperature: -40...85°C Relay series: RM84 Contact resistance: 100mΩ Contact material: AgNi Terminal pitch: 5mm Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80 Height: 15.7mm Number of pins: 8 Body colour: white |
Produkt ist nicht verfügbar |
