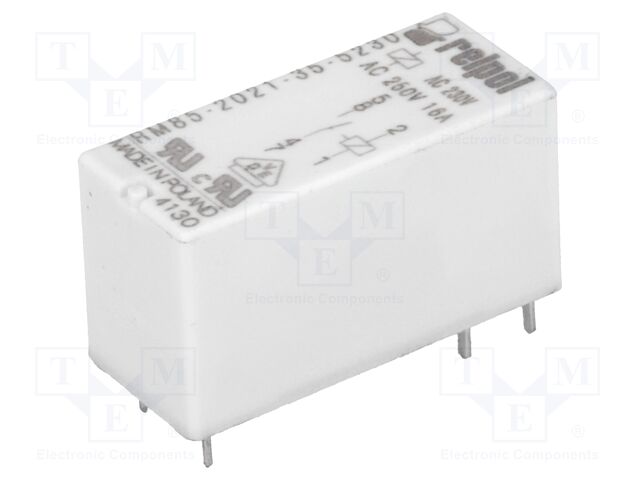

RM85-2021-35-5230 RELPOL
Hersteller: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16A
Body colour: white
Contact material: AgNi
Type of relay: electromagnetic
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
IP rating: IP67
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Terminal pitch: 5mm
Release time: 3ms
Operate time: 8ms
Body dimensions: 29x12.7x15.7mm
Current rating: 16A
Contact resistance: 100mΩ
DC contacts rating @R: 16A / 24V DC
Coil power consumption: 0.75VA
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
Coil voltage min.: 184V AC
Rated coil voltage: 230V AC
Switched voltage: max. 250V DC; max. 440V AC
Coil voltage max.: 276V AC
Coil resistance: 38.5kΩ
Manufacturer series: RM85
OEM number: 651384
Anzahl je Verpackung: 1 Stücke
auf Bestellung 178 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 9+ | 8.24 EUR |
| 14+ | 5.18 EUR |
| 15+ | 4.89 EUR |
| 500+ | 4.7 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RM85-2021-35-5230 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16A, Body colour: white, Contact material: AgNi, Type of relay: electromagnetic, Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80, IP rating: IP67, Relay variant: miniature, Mounting: PCB, Contacts configuration: SPST-NO, Operating temperature: -40...85°C, Terminal pitch: 5mm, Release time: 3ms, Operate time: 8ms, Body dimensions: 29x12.7x15.7mm, Current rating: 16A, Contact resistance: 100mΩ, DC contacts rating @R: 16A / 24V DC, Coil power consumption: 0.75VA, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, Coil voltage min.: 184V AC, Rated coil voltage: 230V AC, Switched voltage: max. 250V DC; max. 440V AC, Coil voltage max.: 276V AC, Coil resistance: 38.5kΩ, Manufacturer series: RM85, OEM number: 651384, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote RM85-2021-35-5230 nach Preis ab 4.89 EUR bis 12.44 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RM85-2021-35-5230 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16A Body colour: white Contact material: AgNi Type of relay: electromagnetic Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80 IP rating: IP67 Relay variant: miniature Mounting: PCB Contacts configuration: SPST-NO Operating temperature: -40...85°C Terminal pitch: 5mm Release time: 3ms Operate time: 8ms Body dimensions: 29x12.7x15.7mm Current rating: 16A Contact resistance: 100mΩ DC contacts rating @R: 16A / 24V DC Coil power consumption: 0.75VA Contact current max.: 16A AC contacts rating @R: 16A / 250V AC Coil voltage min.: 184V AC Rated coil voltage: 230V AC Switched voltage: max. 250V DC; max. 440V AC Coil voltage max.: 276V AC Coil resistance: 38.5kΩ Manufacturer series: RM85 OEM number: 651384 |
auf Bestellung 178 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
| RM85-2021-35-5230 | Hersteller : RELPOL S.A. | RM85-2021-35-5230 |
auf Bestellung 178 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
| RM85-2021-35-5230 | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE SPST 16A 230V Packaging: Bulk Mounting Type: Through Hole Coil Voltage: 230VAC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 6 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Nickel (AgNi) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 16 A Switching Voltage: 440VAC - Max Must Operate Voltage: 184 VAC Operate Time: 7 ms Release Time: 3 ms Part Status: Active Approval Agency: CCC, CE, CSA, UR, VDE Load - Max Switching: 7040VA |
Produkt ist nicht verfügbar |
||||||||||
 |
RM85-2021-35-5230 | Hersteller : Altech |
Industrial Relays Miniature relay, SPST(1NO) |
Produkt ist nicht verfügbar |
