Produkte > RELPOL > RSM850B-6112-85-1005
RSM850B-6112-85-1005

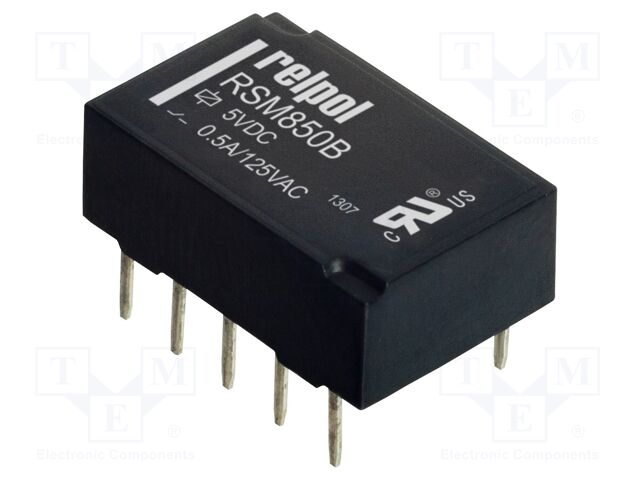

RSM850B-6112-85-1005 RELPOL


pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDB2C374E04401E0D4&compId=RSM850B_EN.pdf?ci_sign=2f94c88b333e59ae514bffa27943058805adcc9e Hersteller: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; RSM850B
Body dimensions: 14.3x9.3x5.4mm
IP rating: IP64
Electrical life: 100000 cycles
Contact material: AgPd/Au 0,2μm
Coil resistance: 250Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 14.5V DC
Coil power consumption: 100mW
Operate time: 3ms
Release time: 3ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 50mΩ
Manufacturer series: RSM850B
OEM number: 2611711
Design: single coil
Mounting: PCB
Mechanical durability: 100000000 cycles
Terminal pitch: 2.54mm
Operating temperature: -40...70°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 449 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
14+5.28 EUR
20+3.62 EUR
21+3.42 EUR
500+3.29 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details RSM850B-6112-85-1005 RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; RSM850B, Body dimensions: 14.3x9.3x5.4mm, IP rating: IP64, Electrical life: 100000 cycles, Contact material: AgPd/Au 0,2μm, Coil resistance: 250Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Type of relay: electromagnetic, Relay variant: bistable; subminiature, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 14.5V DC, Coil power consumption: 100mW, Operate time: 3ms, Release time: 3ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 2A, Contact resistance: 50mΩ, Manufacturer series: RSM850B, OEM number: 2611711, Design: single coil, Mounting: PCB, Mechanical durability: 100000000 cycles, Terminal pitch: 2.54mm, Operating temperature: -40...70°C, Anzahl je Verpackung: 1 Stücke.
