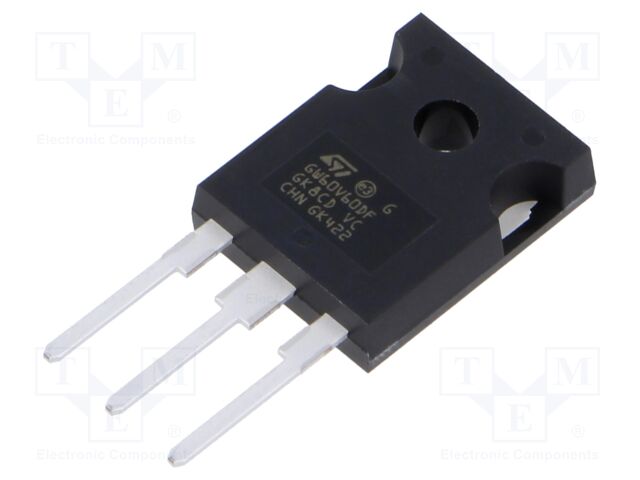

STGW60V60DF

Hersteller: STMicroelectronics
Trans IGBT Chip N-CH 600V 80A 375W 3-Pin(3+Tab) TO-247 Tube

Hersteller: STMicroelectronics
Trans IGBT Chip N-CH 600V 80A 375W 3-Pin(3+Tab) TO-247 Tube

Hersteller: STMicroelectronics
Description: IGBT TRENCH FS 600V 80A TO-247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 74 ns
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 60A
Supplier Device Package: TO-247-3
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 60ns/208ns
Switching Energy: 750µJ (on), 550µJ (off)
Test Condition: 400V, 60A, 4.7Ohm, 15V
Gate Charge: 334 nC
Part Status: Active
Current - Collector (Ic) (Max): 80 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 240 A
Power - Max: 375 W

Hersteller: STMicroelectronics
IGBTs 600V 60A High Speed Trench Gate IGBT

Hersteller: STMICROELECTRONICS
Description: STMICROELECTRONICS - STGW60V60DF - IGBT, 80 A, 1.85 V, 375 W, 600 V, TO-247, 3 Pin(s)
tariffCode: 85412900
Transistormontage: Durchsteckmontage
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
isCanonical: Y
Kollektor-Emitter-Sättigungsspannung: 1.85V
MSL: -
usEccn: EAR99
euEccn: NLR
Verlustleistung: 375W
Bauform - Transistor: TO-247
Dauerkollektorstrom: 80A
Anzahl der Pins: 3Pin(s)
Produktpalette: V
Kollektor-Emitter-Spannung, max.: 600V
productTraceability: Yes-Date/Lot Code
Betriebstemperatur, max.: 175°C
SVHC: No SVHC (25-Jun-2025)
