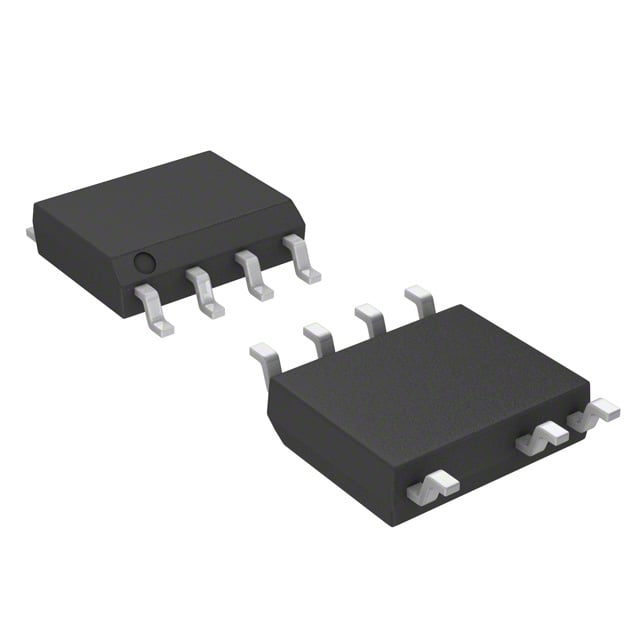

TEA1721DT/N1,118

Hersteller: NXP Semiconductors
AC to DC Switching Converter Flyback 9.5V 53kHz T/R 7-Pin SO

Hersteller: NXP USA Inc.
Description: IC OFFLINE SWITCH FLYBACK 7SOIC
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 150°C (TJ)
Duty Cycle: 75%
Frequency - Switching: 22.5kHz ~ 50.5kHz
Internal Switch(s): Yes
Voltage - Breakdown: 700V
Topology: Flyback
Voltage - Supply (Vcc/Vdd): 8.5V ~ 35V
Supplier Device Package: 7-SOIC
Fault Protection: Over Temperature, Over Voltage, Short Circuit
Voltage - Start Up: 17 V
Part Status: Active
Power (Watts): 5 W

Hersteller: NXP Semiconductors
Switching Controllers 15-19V 53KHz 78%

Hersteller: NXP
Description: NXP - TEA1721DT/N1,118 - IC, AC/DC-Schaltnetzteil-Controller, 700V AC, 430Hz, 5W, SOIC-7
AC-Eingangsspannung, max.: -
Nennleistung: 5
MSL: MSL 1 - unbegrenzt
Betriebstemperatur, min.: -40
Bauform - AC/DC-Wandler: SOIC
Topologie: Flyback
Anzahl der Pins: 7
Produktpalette: -
AC-Eingangsspannung, min.: -
Betriebstemperatur, max.: 85
SVHC: No SVHC (15-Jan-2019)

Hersteller: NXP
Description: NXP - TEA1721DT/N1,118 - IC, AC/DC-Schaltnetzteil-Controller, 700V AC, 430Hz, 5W, SOIC-7
SVHC: No SVHC (15-Jan-2019)
