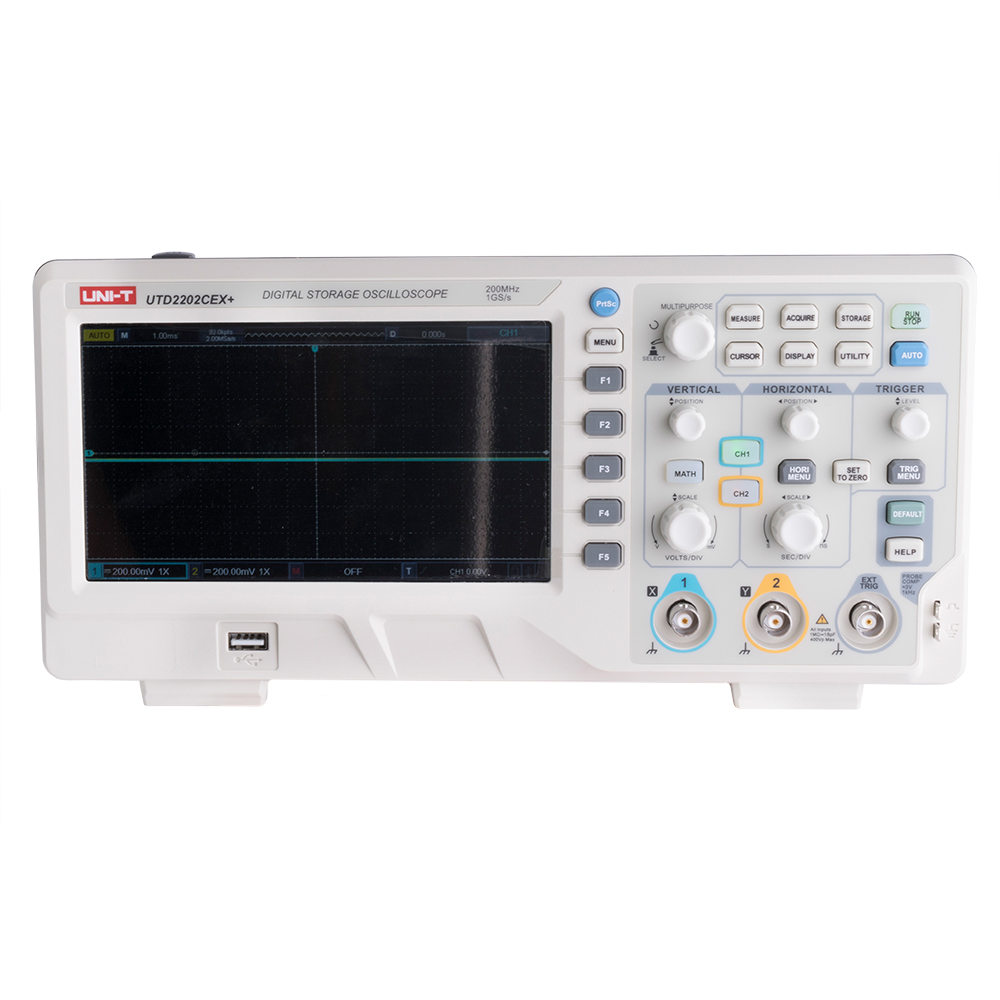

UTD2202CEX+
Produktcode: 180385
Hersteller: Gruppe: Осцилографи
Beschreibung: Настільний двоканальний осцилограф. Аналогова смуга пропускання: 200 МГц. Вхідний імпеданс: 1MOhm. Дискретизація: 1GS/s. Максимальна вхідна напруга 300VRMS. Режими тригера: Фронт, Пульс, Перехід, Альтернативний, Відео (NTSC, PAL). Автоматичні виміри, курсорні виміри. Статистика вимірювань: середнє, максимально, мінімальне, стандартне відхилення. Математичні операції. Екран: TFT ЖК 7 дюймів 800x480 пікселів. Інтерфейс USB 2.0. Живлення: 100-240VAC
200 MHz
auf Bestellung 2 Stück:
Lieferzeit 21-28 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote UTD2202CEX+ nach Preis ab 384.48 EUR bis 529.23 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
+3 |
UTD2202CEX+ | Hersteller : UNI-T |

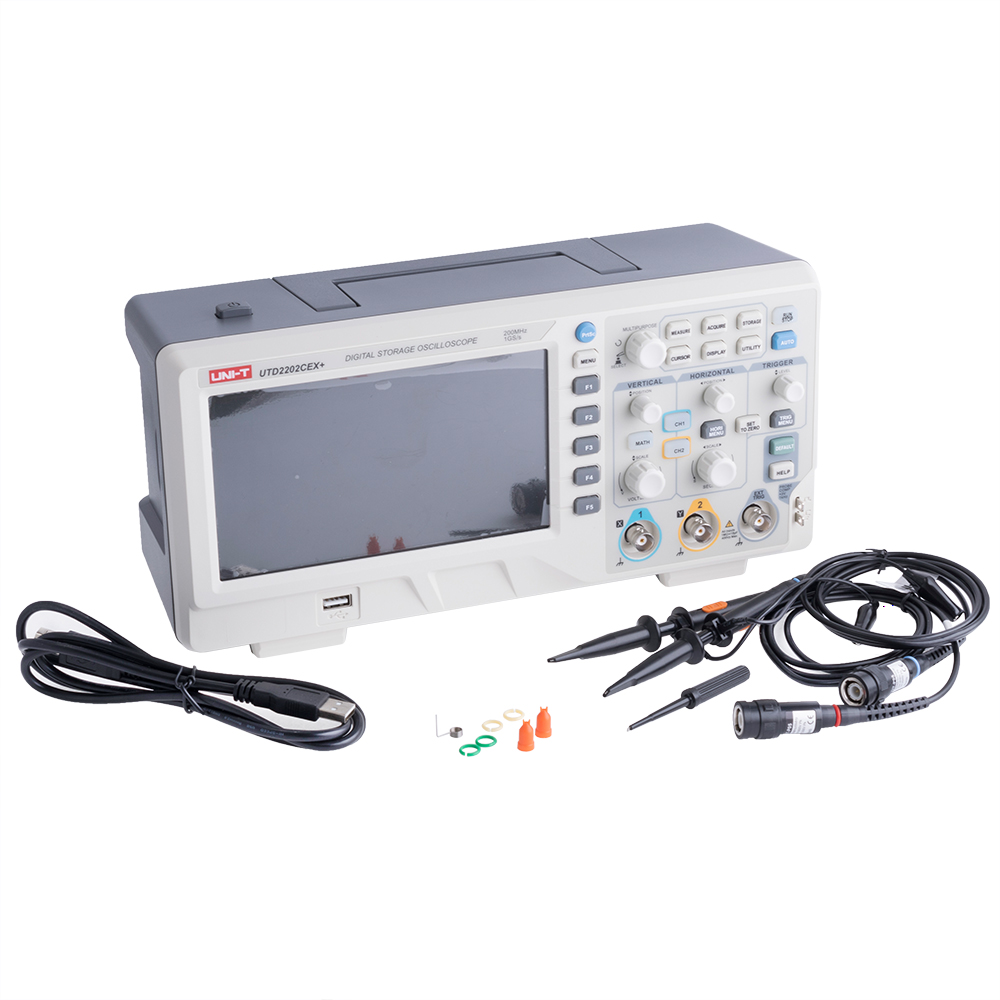

Category: Digital Oscilloscopes Description: Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 64kpts; 2n÷50s/div Interface: USB Number of channels: 2 Input impedance: 1MΩ/18pF Dimensions: 306x138x124mm Standard equipment: mains cable; oscilloscope probe x2; USB cable Measuring instrument features: automatic measurement of many parameters Sampling: 1Gsps Type of oscilloscope: digital Trigger: alternative; falling-edge; impulse width; rising-edge Input coupling: AC, DC, GND Max. input voltage: 400V Band: 200MHz Rise time: ≤1.8ns Input sensitivity: 1mV/div...20V/div Time base: 2n...50s/div Memory record length: 64kpts Kind of display used: colour; LCD TFT 7" Supply voltage: 100...240V AC Anzahl je Verpackung: 1 Stücke |
auf Bestellung 7 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||
+3 |
UTD2202CEX+ | Hersteller : UNI-T |
Category: Digital Oscilloscopes Description: Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 64kpts; 2n÷50s/div Interface: USB Number of channels: 2 Input impedance: 1MΩ/18pF Dimensions: 306x138x124mm Standard equipment: mains cable; oscilloscope probe x2; USB cable Measuring instrument features: automatic measurement of many parameters Sampling: 1Gsps Type of oscilloscope: digital Trigger: alternative; falling-edge; impulse width; rising-edge Input coupling: AC, DC, GND Max. input voltage: 400V Band: 200MHz Rise time: ≤1.8ns Input sensitivity: 1mV/div...20V/div Time base: 2n...50s/div Memory record length: 64kpts Kind of display used: colour; LCD TFT 7" Supply voltage: 100...240V AC |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
UTD2202CEX+ | Hersteller : UNI-TREND TECHNOLOGY EU GmbH |
Description: 200 MHZ, 2 CH, 1GSA/S, DSO Packaging: Tape & Box (TB) Display Type: LCD Function: Record Memory Size: 64kpts Interface: USB Type: Bench, Digital Voltage - Supply: 100 ~ 240VAC Sampling Rate (Per Second): 1G Channels: 2 Analog Input Impedance: 1M - 18pF Probe Type: Passive 10:1 (2) Bandwidth: 200 MHz Rise Time (Typ): 1.8 ns |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
