Modulare Elemente > Programmierer und Debugging-Tools
Beschreibung: Логічний аналізатор, 8 вхідних каналів, вхідний імпеданс:: 5pF / 100kOhm. Частота дискретизації: 24 МГц, 16 МГц, 12 МГц, 8 МГц, 4 МГц, 2 МГц, 1 МГц, 500 кГц, 250 кГц, 200 кГц, 100 кГц, 50 кГц, 25 кГц. Аналіз шин: CAN, DMX-512, I2C, I2S / PCM, MANCHESTER, 1-WIRE, Async Serial, SPI, Simple Parallel, UNI / O. Харчування: USB.
Entwicklungstyp: Логічний аналізатор

Hersteller: Saleae
Logic Analysers Logic 8, 8 channel ultra portable USB Logic Analyzer - Color: Black

Hersteller: Saleae
Logic Analysers Logic 8, 8 channel ultra portable USB Logic Analyzer - Color: Red

Hersteller: Saleae
Logic Analysers Logic Pro 16, 16 channel ultra portable pro USB Logic Analyzer - Color: Black

Hersteller: Saleae
Logic Analysers Logic Pro 16, 16 channel ultra portable pro USB Logic Analyzer - Color: Red

Hersteller: Saleae
Logic Analysers Logic Pro 8, 8 channel ultra portable pro USB Logic Analyzer - Color: Black

Hersteller: Saleae
Logic Analysers Logic Pro 8, 8 channel ultra portable pro USB Logic Analyzer - Color: Red

Hersteller: Soldered
Logic Analysers logic, analyser, usb

Hersteller: Digilent
Test Probes High Speed Logic Probes

Hersteller: 1BitSquared
Logic Analysers FX2 based logic analyzer

Hersteller: Keysight
Test Probes Probe, 17 channel single-ended flying leads, connects to 40-pin Logic Analyzer cable

Hersteller: Red Pitaya
Logic Analysers STEMlab Logic Analyzer Basic IZD0014

Hersteller: Red Pitaya
Logic Analysers Logic analyzer extension module

Hersteller: NXP Semiconductors
Other Development Tools KIT-TPLSNIFEVB

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 150MHz; 2,5Gsps; 5Mpts; 2n÷1ks/div
Number of channels: 4
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: MSO1000HD
Time base: 2n...1ks/div
Rise time: 2.2ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 150MHz
Memory record length: 5Mpts
Sampling: 2,5Gsps
Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; spectrum analysis; split screen function; voltmeter function

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 150MHz; 2,5Gsps; 5Mpts; 2n÷1ks/div
Number of channels: 4
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: MSO1000HD
Time base: 2n...1ks/div
Rise time: 2.2ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 150MHz
Memory record length: 5Mpts
Sampling: 2,5Gsps
Measuring instrument features: arbitrary waveform generator; automatic measurement of many parameters; built-in frequency meter; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; spectrum analysis; split screen function; voltmeter function

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 250MHz; 2,5Gsps; 5Mpts; 2n÷1ks/div
Number of channels: 4
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: MSO1000HD
Time base: 2n...1ks/div
Rise time: ≤1.4ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 250MHz
Memory record length: 5Mpts
Sampling: 2,5Gsps
Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; spectrum analysis; split screen function; voltmeter function

Hersteller: Keysight
Test Probes Cable- 8 channel MSO logic cable kit

Hersteller: Keysight
Test Probes Cable- 16 channel MSO logic cable kit

Hersteller: Saleae
Test Leads Wire Harness - 2x4 connector to test clip connector (Labeled for Channels 0-3)

Hersteller: Saleae
Test Leads Wire Harness - 2x4 connector to test clip connector (Labeled for Channels 4-7)

Hersteller: Saleae
Test Leads Wire Harness - 2x4 connector to test clip connector (Labeled for Channels 8-11)

Hersteller: Saleae
Test Leads Wire Harness - 2x4 connector to test clip connector (Labeled for Channels 12-15)

Hersteller: Saleae
Test Accessories - Other Wire Harness - 2x4 Header for Logic 8, Logic Pro 8, Logic Pro 16

Hersteller: Saleae
Test Accessories - Other Wire Harness - Logic to bare wire for Logic 8, Logic Pro 8, Logic Pro 16

Hersteller: IKALOGIC SAS
Category: Logic Analyzers and Testers
Description: Logic analyser; USB; 50V; 50x50x15mm; Ch: 4; 4Mpts/ch; 200MHz
Type of test accessories: logic analyser
Number of channels: 4
Trigger: falling-edge; impulse width; level-triggered; rising-edge; serial protocol
Interface: USB
Standard equipment: test leads; USB cable
Dimensions: 50x50x15mm
Max. input voltage: 50V
Producer guarantee (months): 36
Input impedance: 1MΩ/4pF
Band: 200MHz
Memory record length: 4Mpts/ch
Measuring instrument features: differential channels; digital signal generator; open drain outputs; serial protocols analyse; simultaneous capturing and generating signals function; variable input resistance; variable output voltage

Hersteller: IKALOGIC SAS
Category: Logic Analyzers and Testers
Description: Logic analyser; USB; 25V; 100x83.12x24.3mm; Ch: 9; 250MHz
Type of test accessories: logic analyser
Number of channels: 9
Trigger: I2C; serial protocol; SPI; UART
Interface: USB
Standard equipment: test leads; USB cable
Dimensions: 100x83.12x24.3mm
Max. input voltage: 25V
Producer guarantee (months): 36
Input impedance: 200kΩ/8pF
Band: 250MHz
Measuring instrument features: serial protocols analyse; simultaneous capturing and generating signals function

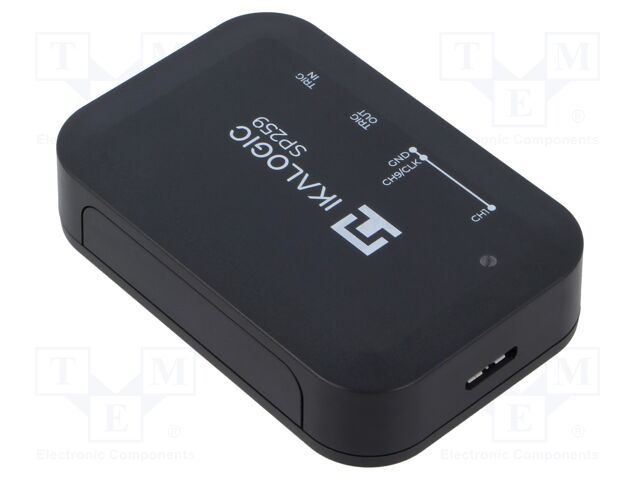

Hersteller: IKALOGIC
Description: IKALOGIC - SP259 - Logikanalysator, 9, 1, 1Gbit, 250 MHz, 24.3 mm
tariffCode: 90302000
rohsCompliant: YES
Stromverbrauch: -
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
usEccn: 3A992.a
Frequenz: 250MHz
Außenbreite: 100mm
Außentiefe: 74.47mm
euEccn: NLR
Datenspeichergröße: 1Gbit
Außenhöhe: 24.3mm
Produktpalette: -
productTraceability: No
Anzahl der Takteingänge: 1
Gewicht: 80g
Anzahl der Datenkanäle: 9
SVHC: To Be Advised

Hersteller: IKALOGIC
Description: IKALOGIC - SP259I - Logikanalysator, Industrie, 9, 1, 1Gbit, 250 MHz, 24.3 mm
tariffCode: 90302000
rohsCompliant: YES
Stromverbrauch: -
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
usEccn: 3A992.a
Frequenz: 250MHz
Außenbreite: 100mm
Außentiefe: 83.12mm
euEccn: NLR
Datenspeichergröße: 1Gbit
Außenhöhe: 24.3mm
Produktpalette: -
productTraceability: No
Anzahl der Takteingänge: 1
Gewicht: 95g
Anzahl der Datenkanäle: 9
SVHC: To Be Advised

Hersteller: Teledyne LeCroy
Test Probes Teledyne LeCroy, MSO Logic Probe Lead Set, 16 Ch, 500 MSa/s, 14 Mpts for T3DSO700HD

Hersteller: SparkFun
Logic Analysers Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART I

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 80MHz; 1,25Gsps; 5Mpts; 5n÷1ks/div
Number of channels: 2
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: UPO1000HD
Time base: 5n...1ks/div
Rise time: 4ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 80MHz
Memory record length: 5Mpts
Sampling: 1,25Gsps
Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; Histogram - graphical visualisation of measurement results; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; serial protocols analyse; spectrum analysis; voltmeter function

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 80MHz; 1,25Gsps; 5Mpts; 2n÷1ks/div
Number of channels: 4
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: UPO1000HD
Time base: 2n...1ks/div
Rise time: 4ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 80MHz
Memory record length: 5Mpts
Sampling: 1,25Gsps
Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; Histogram - graphical visualisation of measurement results; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; serial protocols analyse; spectrum analysis; voltmeter function

Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 150MHz; 1,25Gsps; 5Mpts; 2n÷1ks/div
Number of channels: 2
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Interface: AUX; HDMI; LAN; USB device; USB Host
Standard equipment: mains cable; test probe x2; USB cable
Kind of display used: LCD 7"; touch screen
Type of oscilloscope: digital
Manufacturer series: UPO1000HD
Time base: 2n...1ks/div
Rise time: 2.2ns
Input sensitivity: 500µV/div...10V/div
Dimensions: 282x175x49mm
Supply voltage: 100...240V AC
Vertical resolution: 12bit
Display resolution: 1024x600
Input impedance: 1MΩ/17pF
Band: 150MHz
Memory record length: 5Mpts
Sampling: 1,25Gsps
Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; Histogram - graphical visualisation of measurement results; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; serial protocols analyse; spectrum analysis; voltmeter function

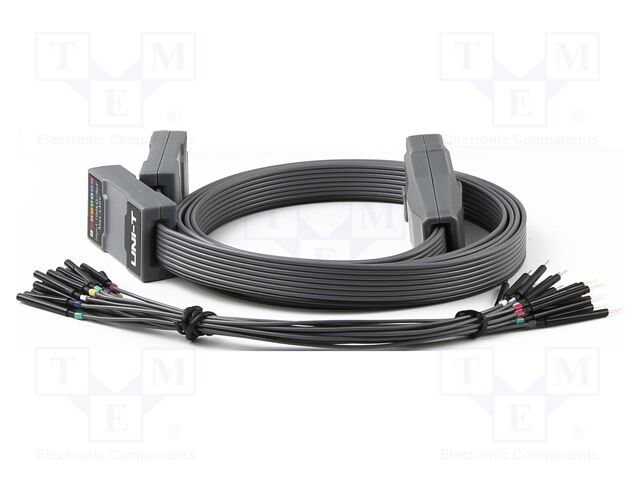

Hersteller: UNI-T
Category: Probes for Oscilloscopes and Scopometers
Description: Logic analyzer probe; Ch: 16; for oscilloscopes
Application: for oscilloscopes
Type of test accessories: logic analyzer probe
Related items: MSO2102; MSO2102-S; MSO2104; MSO2104-S; MSO2104X; MSO2202; MSO2202-S; MSO2204; MSO2204-S; MSO2204X; MSO2304X; MSO3034X; MSO3054X; MSO3152E; MSO3154E; MSO3252E; MSO3254E; MSO3352E; MSO3354E; MSO3354E-S; MSO3502E; MSO3504E; MSO3504E-S; MSO7104X; MSO7204X; UPO2102; UPO2104; UPO2202; UPO2204; UPO3352E; UPO3354E; UPO3502E; UPO3504E
Number of channels: 16

Hersteller: Teledyne LeCroy
Test Probes 1GHZ 1.0 PF ACTV DIFF PRB +-9V

Hersteller: Microchip
Saleae Logic USB Logic Analyzer MCCBOARD
Anzahl je Verpackung: 1 Stücke

Hersteller: Microchip
Saleae Logic 16 USB Logic Analyzer MCCBOARD
Anzahl je Verpackung: 1 Stücke

Hersteller: SALEAE LLC
Category: Development kits - others
Description: Dev.kit: protocol analyser
Interface: I2C; serial; SPI
Connection: USB B micro
Type of development kit: protocol analyser
Kit contents: analyzer; USB cable; user's manual; wire jumpers

Hersteller: DIGILENT
Category: PC connected oscilloscopes
Description: PC connected oscilloscope; 350MHz; Ch: 4; 1Mpts/ch; 1,5Gsps; 40V
Number of channels: 4
Input coupling: AC, DC
Measuring instruments application: Analog Discovery
Additional functions: arbitrary waveform generator; data logger; function generator; impedance analyzer; logical analyser; multimeter; network analyzer; power supply; spectrum analyzer
Trigger modes: automatic; forced; normal; single
Interface: USB 2.0 Hi-Speed
Kind of connector: BNC
Type of oscilloscope: PC connected oscilloscope
Connectors for the country: Europe; Great Britain; Japan; USA
Input sensitivity: 200µV/div...4V/div
Dimensions: 304.8x203.2x94mm
Converter resolution: 8bit
Max. input voltage: 40V
Input impedance: 1MΩ/15pF
Band: 350MHz
Memory record length: 1Mpts/ch
Sampling: 1,5Gsps
Kit contents: 2x20 Logic Analyzer MTE Cable; 4x oscilloscope probe; adapter; probe kit; screwdriver; USB A - USB B cable
Measuring instrument features: 34 digital channels

Hersteller: DIGILENT
Category: PC connected oscilloscopes
Description: PC connected oscilloscope; 30MHz; 125Msps; Resolution: 14bit; 25V
Measuring instruments application: Analog Discovery
Additional functions: arbitrary waveform generator; logical analyser
Interface: USB C
Type of oscilloscope: PC connected oscilloscope
Converter resolution: 14bit
Max. input voltage: 25V
Band: 30MHz
Sampling: 125Msps
Kit contents: 30-pin Flywire labels; male connector 6pin x5; power supply; USB C cable
Measuring instrument features: 16 digital and 2 analogue channels

Hersteller: DIGILENT
Category: PC connected oscilloscopes
Description: PC connected oscilloscope; 30MHz; 125Msps; Resolution: 14bit; 25V
Measuring instruments application: Analog Discovery
Additional functions: arbitrary waveform generator; logical analyser
Interface: USB C
Type of oscilloscope: PC connected oscilloscope
Converter resolution: 14bit
Max. input voltage: 25V
Band: 30MHz
Sampling: 125Msps
Kit contents: 30-pin Flywire labels; BNC adapter board; BNC probes pair; male connector 6pin x5; mini-grabber test clips; power supply; USB C cable
Measuring instrument features: 16 digital and 2 analogue channels

Hersteller: 1BitSquared
Logic Analysers BitMagic-Basic Logic Analyzer with Test Hooks

Hersteller: SEFRAM
Category: Data Acquisition Systems
Description: Meter: data acquisition system; Sampling: 1Msps; 100kHz; Ch: 2
Number of channels: 2
Related items: 902401000; 902402000; 902406500; 902408000; 984405500
Measurement: AC voltage; DC voltage; frequency
Interface: Ethernet; USB
Standard equipment: banana plug; case; crocodile clips; manual (CD); power supply; test leads
Conform to the norm: CAT III 600V; EN 61010
Kind of display used: LCD TFT 10"
Type of meter: data acquisition system
Software: download from manufacturers website
Input: logical x16
Power supply: rechargeable battery Li-Ion 10,8V x1
DC voltage measuring range: 0...1kV
Body dimensions: 295x210x105mm
Max. input voltage: 500V
Band: 100kHz
Sampling: 1Msps
Program memory: 32MB
Resolution: 14bit
Measuring instrument features: datalogging; power quality analyse function

Hersteller: SEFRAM
Category: Data Acquisition Systems
Description: Meter: data acquisition system; Sampling: 1Msps; 100kHz; Ch: 4
Number of channels: 4
Related items: 902401000; 902402000; 902406500; 902408000; 984405500
Measurement: AC voltage; DC voltage; frequency; temperature (external probe required Pt100); temperature (external probe required Pt100, Pt1000)
Interface: Ethernet; USB
Standard equipment: banana plug; case; crocodile clips; manual (CD); power supply; test leads
Conform to the norm: CAT III 600V; EN 61010
Kind of display used: LCD TFT 10"
Type of meter: data acquisition system
Software: download from manufacturers website
Input: logical x16; Pt 100/Pt1000 x2
Power supply: rechargeable battery Li-Ion 10,8V x1
DC voltage measuring range: 0...1kV
Body dimensions: 295x210x105mm
Max. input voltage: 500V
Band: 100kHz
Sampling: 1Msps
Program memory: 32MB
Resolution: 14bit
Measuring instrument features: datalogging; function of autocalibration for metal and wood detection function; power quality analyse function

Hersteller: SEFRAM
Category: Data Acquisition Systems
Description: Meter: data acquisition system; Sampling: 1Msps; 100kHz; Ch: 6
Number of channels: 6
Related items: 902401000; 902402000; 902406500; 902408000; 984405500
Measurement: AC voltage; DC voltage; frequency; temperature (external probe required Pt100); temperature (external probe required Pt100, Pt1000)
Interface: Ethernet; USB
Standard equipment: banana plug; case; crocodile clips; manual (CD); power supply; test leads
Conform to the norm: CAT III 600V; EN 61010
Kind of display used: LCD TFT 10"
Type of meter: data acquisition system
Software: download from manufacturers website
Input: logical x16; Pt 100/Pt1000 x2
Power supply: rechargeable battery Li-Ion 10,8V x1
DC voltage measuring range: 0...1kV
Body dimensions: 295x210x105mm
Max. input voltage: 500V
Band: 100kHz
Sampling: 1Msps
Program memory: 64MB
Resolution: 14bit
Measuring instrument features: automatic calculation of polarization index; datalogging; power quality analyse function

Hersteller: GW INSTEK
Category: Accessories for Oscilloscopes - Others
Description: Logic analyser; Features: 16 channels
Type of test accessories: logic analyser
Related items: GDS-3352A; GDS-3652A
Test accessories features: 16 channels

Hersteller: Keysight
Test Probes Probe, 17 channel differential flying leads, connects to 90-pin Logic Analyzer cable

Hersteller: Keysight
Test Probes Probe, 17 channel single-ended flying leads, connects to 90-pin Logic Analyzer cable

Hersteller: Connective Peripherals
Logic Analysers 16 CHANNEL LOGIC Analzer W/ Probes

Hersteller: Connective Peripherals
Logic Analysers 8 CHANNEL LOGIC Analzer W/ Probes

Hersteller: Connective Peripherals
Logic Analysers 8 CHANNEL LOGIC Probes Only

Hersteller: Connective Peripherals
Logic Analysers 16-Ch Logic Analyzer Probes Only

Hersteller: GW INSTEK
Category: Laboratory instruments - Others
Description: Logic analyzer probe; Ch: 8
Type of test accessories: logic analyzer probe
Number of channels: 8
Related items: GDS-2072A; GDS-2102A; GDS-2104A; GDS-2202A; GDS-2204A; GDS-2302A; GDS-2304A; GDS‐2074A

Hersteller: GW INSTEK
Category: Laboratory instruments - Others
Description: Logic analyzer probe; Ch: 16
Type of test accessories: logic analyzer probe
Number of channels: 16
Related items: MSO-2072E; MSO-2074E; MSO-2102E; MSO-2104E; MSO-2202E; MSO-2204E

Hersteller: GW INSTEK
Category: Laboratory instruments - Others
Description: Logic analyzer probe; Ch: 16
Type of test accessories: logic analyzer probe
Number of channels: 16
Related items: GDS-2072A; GDS-2102A; GDS-2104A; GDS-2202A; GDS-2204A; GDS-2302A; GDS-2304A; GDS‐2074A

Hersteller: Red Pitaya
Programmable Logic IC Development Tools 4-Input Diagnostic Kit. Includes Logic analyzer extension module, Probes oscilloscope (2pcs), Adapter SMA to BNC, wi-fi dongle with antenna and aluminium case.

Hersteller: NXP Semiconductors
Sockets & Adapters 100 Pin 0.5MM QFP Logic Analyzer Board. Allows user customization for specific MCU and MPU devices

Hersteller: NXP Semiconductors
Sockets & Adapters Qorivva MPC5746 292 Pin 0.8MM EQFP PGA Logic Analyzer Interface Adapter

Hersteller: NXP Semiconductors
Sockets & Adapters Qorivva MPC5746 292 Pin 0.8MM EQFP to 208 pin 1.0mm PGA Logic Analyzer Interface Adapter
