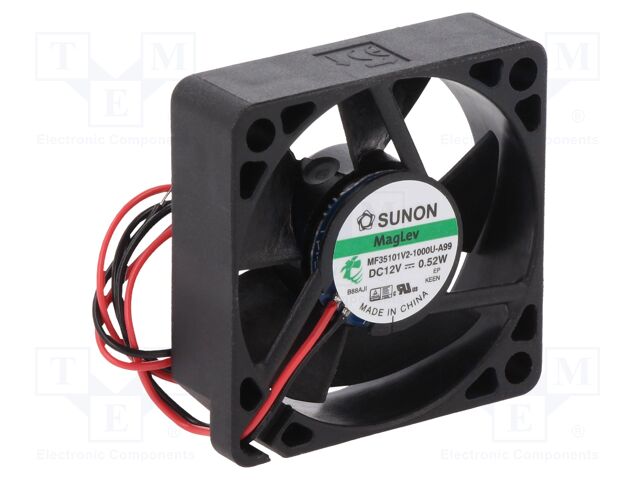

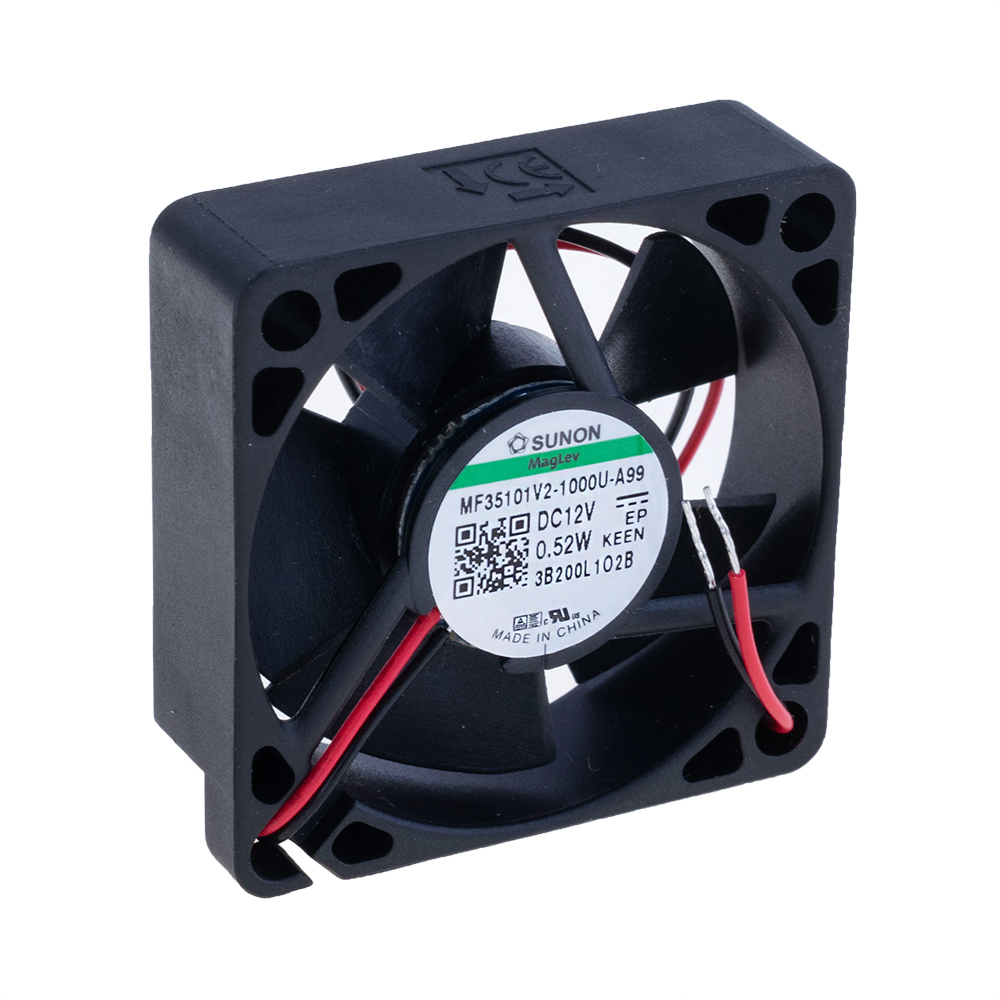

MF35101V2-1000U-A99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 35x35x10mm; 10.99m3/h; 21.8dBA; Vapo; 7500rpm
Additional functions: autorestart
Kind of fan: axial
Fan motor: brushless DC
Leads: leads x2
Type of fan: DC
Impeller material: thermoplastic
Enclosure material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: Vapo
Operating temperature: -10...70°C
Current rating: 35mA
Fan dimensions: 35x35x10mm
Lead length: 0.14m
Power consumption: 0.42W
Operating voltage: 6...13.8V DC
Static pressure: 3.3mm H2O
Supply voltage: 12V DC
Fan efficiency: 10.99m3/h
Noise level: 21.8dBA
Wire size: 28AWG
Rotational rate/speed: 7500rpm
Min. insulation resistance: 10MΩ
Insulation class: A
auf Bestellung 3382 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 11+ | 7.04 EUR |
| 50+ | 5.46 EUR |
| 100+ | 4.95 EUR |
| 200+ | 4.65 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF35101V2-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 35x35x10mm; 10.99m3/h; 21.8dBA; Vapo; 7500rpm, Additional functions: autorestart, Kind of fan: axial, Fan motor: brushless DC, Leads: leads x2, Type of fan: DC, Impeller material: thermoplastic, Enclosure material: thermoplastic, Flammability rating: UL94V-0, Kind of Bearing: Vapo, Operating temperature: -10...70°C, Current rating: 35mA, Fan dimensions: 35x35x10mm, Lead length: 0.14m, Power consumption: 0.42W, Operating voltage: 6...13.8V DC, Static pressure: 3.3mm H2O, Supply voltage: 12V DC, Fan efficiency: 10.99m3/h, Noise level: 21.8dBA, Wire size: 28AWG, Rotational rate/speed: 7500rpm, Min. insulation resistance: 10MΩ, Insulation class: A, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF35101V2-1000U-A99 nach Preis ab 4.65 EUR bis 16.49 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF35101V2-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 35x35x10mm; 10.99m3/h; 21.8dBA; Vapo; 7500rpm Additional functions: autorestart Kind of fan: axial Fan motor: brushless DC Leads: leads x2 Type of fan: DC Impeller material: thermoplastic Enclosure material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: Vapo Operating temperature: -10...70°C Current rating: 35mA Fan dimensions: 35x35x10mm Lead length: 0.14m Power consumption: 0.42W Operating voltage: 6...13.8V DC Static pressure: 3.3mm H2O Supply voltage: 12V DC Fan efficiency: 10.99m3/h Noise level: 21.8dBA Wire size: 28AWG Rotational rate/speed: 7500rpm Min. insulation resistance: 10MΩ Insulation class: A Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3382 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
 |
MF35101V2-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 35x35x10mm, 12VDC, 6.5CFM, 0.13"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 1182 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
MF35101V2-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 35X10MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 35mm L x 35mm H Bearing Type: Vapo-Bearing™ RPM: 7500 RPM Air Flow: 6.5 CFM (0.182m³/min) Width: 10.00mm Weight: 0.024 lb (10.89 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 21.8dB(A) Static Pressure: 0.130 in H2O (32.4 Pa) Part Status: Active Power (Watts): 420 mW |
auf Bestellung 1801 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| MF35101V2-1000U-A99 | Hersteller : Sunon |
DC Fan Vapo Bearing 12V 0.043A 0.5W 7500Rpm 6.5Cfm 22Db Flange Mount |
auf Bestellung 3439 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| MF35101V2-1000U-A99 | Hersteller : Sunon |
DC Fan Vapo Bearing 12V 0.043A 0.5W 7500Rpm 6.5Cfm 22Db Flange Mount |
auf Bestellung 1055 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
 |
MF35101V2-1000U-A99 Produktcode: 176143
zu Favoriten hinzufügen
Lieblingsprodukt
|
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 35x35x10 mm Spannung, V: 12 DC Luftvolumen, m3/Stunde: 10,99 м³/год. Leistung, Watt: 0,42 Вт Lärm, dB: 21,8 дБ Rotationsgeschwindigkeit, r/min: 7500 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
