Hersteller: TSC
Dioden, Diodenbrücken, Zenerdioden > Dioden superschnelle
Gehäuse: DO-201AD
Vrr, V: 600
Iav, A: 5
Trr, ns: 35

Hersteller: Phoenix Contact
PLC Controllers ILC 150 VLC

Hersteller: ACTEL

Hersteller: TE Connectivity AMP Connectors
Description: CONN HEADER R/A 6POS 2.5MM
Packaging: Bulk
Features: Board Lock
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 5A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Tab
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.098" (2.50mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.579" (14.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic, Polyester, Glass Filled

Hersteller: Mill-Max Manufacturing Corp.
Description: CONN HEADER SOCKET 16POS .100 ST
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 100V, 150VDC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 16
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Gold
Contact Length - Post: 0.095" (2.41mm)
Insulation Height: 0.071" (1.80mm)
Number of Rows: 1

Hersteller: Siemens
Description: ENC METAL,GREY TOP, 3 HOLE, 22MM
Packaging: Bulk
For Use With/Related Products: 3SU1 Series
Accessory Type: Enclosure
Part Status: Active

Hersteller: Würth Elektronik
Description: TVS DIODE 45VWM 72.7VC DO214AB
Packaging: Cut Tape (CT)
Package / Case: DO-214AB, SMC
Mounting Type: Surface Mount
Type: Zener
Operating Temperature: -65°C ~ 150°C (TJ)
Applications: General Purpose
Current - Peak Pulse (10/1000µs): 20.6A
Voltage - Reverse Standoff (Typ): 45V (Max)
Supplier Device Package: DO-214AB
Unidirectional Channels: 1
Voltage - Breakdown (Min): 52.65V (Typ)
Voltage - Clamping (Max) @ Ipp: 72.7V
Power - Peak Pulse: 1500W (1.5kW)
Power Line Protection: No
Part Status: Active

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N CH 100V 4.5A DFN 2X2B
Packaging: Cut Tape (CT)
Package / Case: 6-UDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 4.5A (Ta)
Rds On (Max) @ Id, Vgs: 72mOhm @ 4.5A, 10V
Power Dissipation (Max): 2.8W (Ta)
Vgs(th) (Max) @ Id: 2.8V @ 250µA
Supplier Device Package: 6-DFN (2x2)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 415 pF @ 50 V

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N CH 100V 4.5A DFN 2X2B
Packaging: Tape & Reel (TR)
Package / Case: 6-UDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 4.5A (Ta)
Rds On (Max) @ Id, Vgs: 72mOhm @ 4.5A, 10V
Power Dissipation (Max): 2.8W (Ta)
Vgs(th) (Max) @ Id: 2.8V @ 250µA
Supplier Device Package: 6-DFN (2x2)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 415 pF @ 50 V

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 9A/23A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9A (Ta), 23A (Tc)
Rds On (Max) @ Id, Vgs: 24mOhm @ 9A, 10V
Power Dissipation (Max): 4.1W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1170 pF @ 50 V

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 9A/23A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9A (Ta), 23A (Tc)
Rds On (Max) @ Id, Vgs: 24mOhm @ 9A, 10V
Power Dissipation (Max): 4.1W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1170 pF @ 50 V

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 5A/12.5A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 5A (Ta), 12.5A (Tc)
Rds On (Max) @ Id, Vgs: 66mOhm @ 5A, 10V
Power Dissipation (Max): 3.1W (Ta), 20.8W (Tc)
Vgs(th) (Max) @ Id: 2.8V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 415 pF @ 50 V

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 5A/12.5A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 5A (Ta), 12.5A (Tc)
Rds On (Max) @ Id, Vgs: 66mOhm @ 5A, 10V
Power Dissipation (Max): 3.1W (Ta), 20.8W (Tc)
Vgs(th) (Max) @ Id: 2.8V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 415 pF @ 50 V

Hersteller: Advanced Thermal Solutions Inc.
Description: HEATSINK 30X30X30MM R-TAB T766
Packaging: Tray
Material: Aluminum
Length: 1.181" (30.00mm)
Shape: Square, Fins
Type: Top Mount
Width: 1.181" (30.00mm)
Package Cooled: Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method: Push Pin
Thermal Resistance @ Forced Air Flow: 4.72°C/W @ 100 LFM
Fin Height: 1.181" (30.00mm)
Material Finish: Blue Anodized
Part Status: Active

Hersteller: TE Connectivity Passive Product
Description: RES 68 OHM 1% 1/2W 1210
Packaging: Tape & Reel (TR)
Power (Watts): 0.5W, 1/2W
Tolerance: ±1%
Features: Automotive AEC-Q200, Moisture Resistant
Package / Case: 1210 (3225 Metric)
Temperature Coefficient: ±200ppm/°C
Size / Dimension: 0.122" L x 0.102" W (3.10mm x 2.60mm)
Composition: Thick Film
Operating Temperature: -55°C ~ 155°C
Number of Terminations: 2
Supplier Device Package: 1210
Height - Seated (Max): 0.026" (0.65mm)
Part Status: Active
Resistance: 68 Ohms

Hersteller: TE Connectivity Passive Product
Description: RES 68 OHM 1% 1/2W 1210
Packaging: Cut Tape (CT)
Power (Watts): 0.5W, 1/2W
Tolerance: ±1%
Features: Automotive AEC-Q200, Moisture Resistant
Package / Case: 1210 (3225 Metric)
Temperature Coefficient: ±200ppm/°C
Size / Dimension: 0.122" L x 0.102" W (3.10mm x 2.60mm)
Composition: Thick Film
Operating Temperature: -55°C ~ 155°C
Number of Terminations: 2
Supplier Device Package: 1210
Height - Seated (Max): 0.026" (0.65mm)
Part Status: Active
Resistance: 68 Ohms

Hersteller: Rosenberger
Automotive Connectors RoPD cable assembly PCB plug 4-hole-flange black

Hersteller: Texas Instruments
Description: IC PWR MGMT CONV 8LDO 98BGA
Packaging: Bulk
Package / Case: 98-VFBGA
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Voltage - Supply: 2.7V ~ 5.5V
Applications: Portable Equipment
Supplier Device Package: 98-BGA MICROSTAR JUNIOR (9x6)
Part Status: Obsolete

Hersteller: Phoenix Contact
Development Software PC WORX DEMO CD

Hersteller: Phoenix Contact
Description: CONTROL LOGIC 8 IN 4 OUT 24V
Packaging: Bulk
Display Type: No Display
Mounting Type: DIN Rail
Voltage - Supply: 24VDC
Number of Inputs and Type: 8 - Digital
Number of Outputs and Type: 4 - Solid State
Communications: Ethernet, Mini-DIN, RS-232C
Part Status: Obsolete

Hersteller: TE Connectivity
Motion & Position Sensors - Industrial PT8101-0050-141-2111: CTO-11500000-03

Hersteller: TE Connectivity Deutsch Connectors

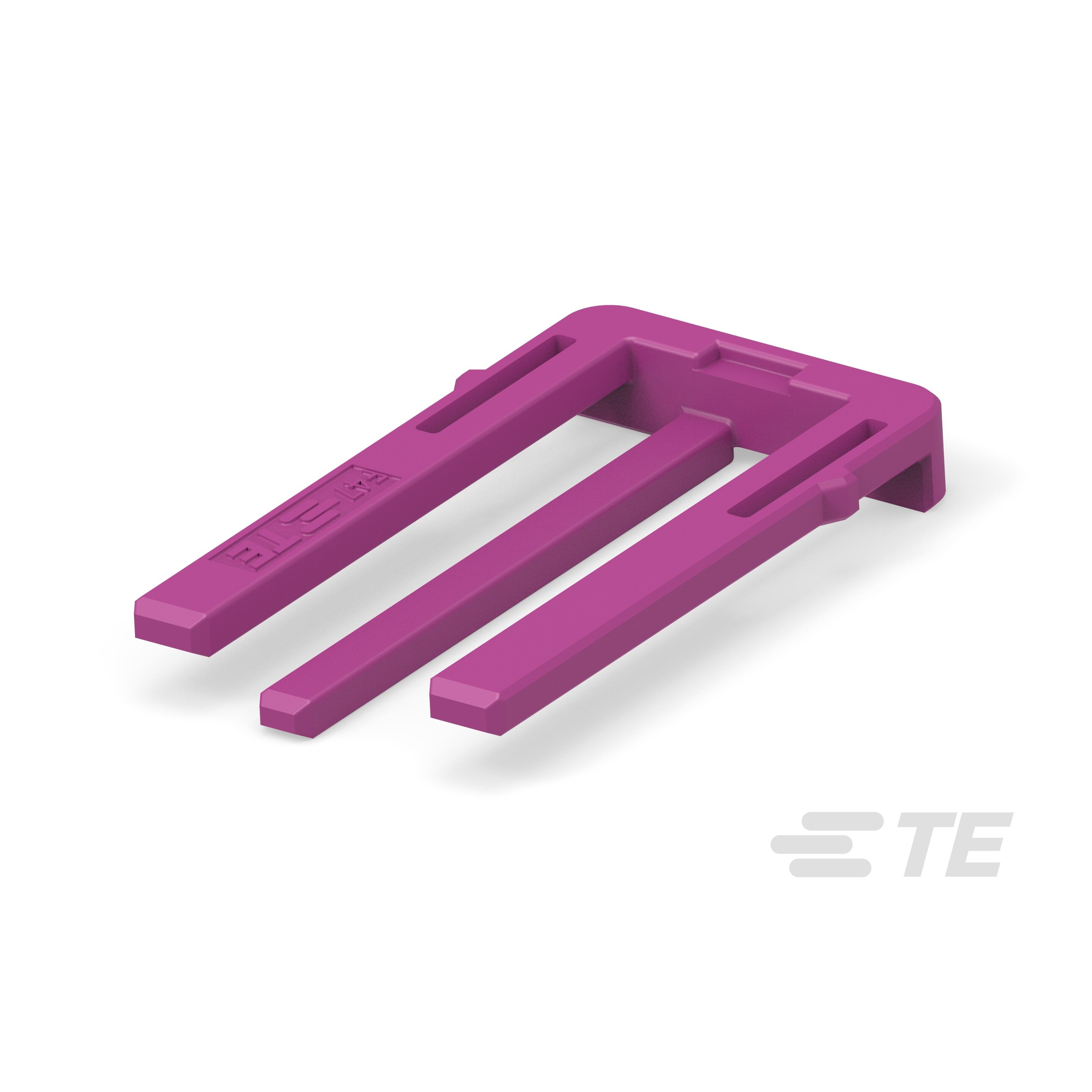

Description: RETAINER, MCP2.8, FOR 22WAY
Packaging: Bulk

Hersteller: TE Connectivity
RETAINER, MCP2.8, FOR 22WAY

Hersteller: TE Connectivity Deutsch Connectors

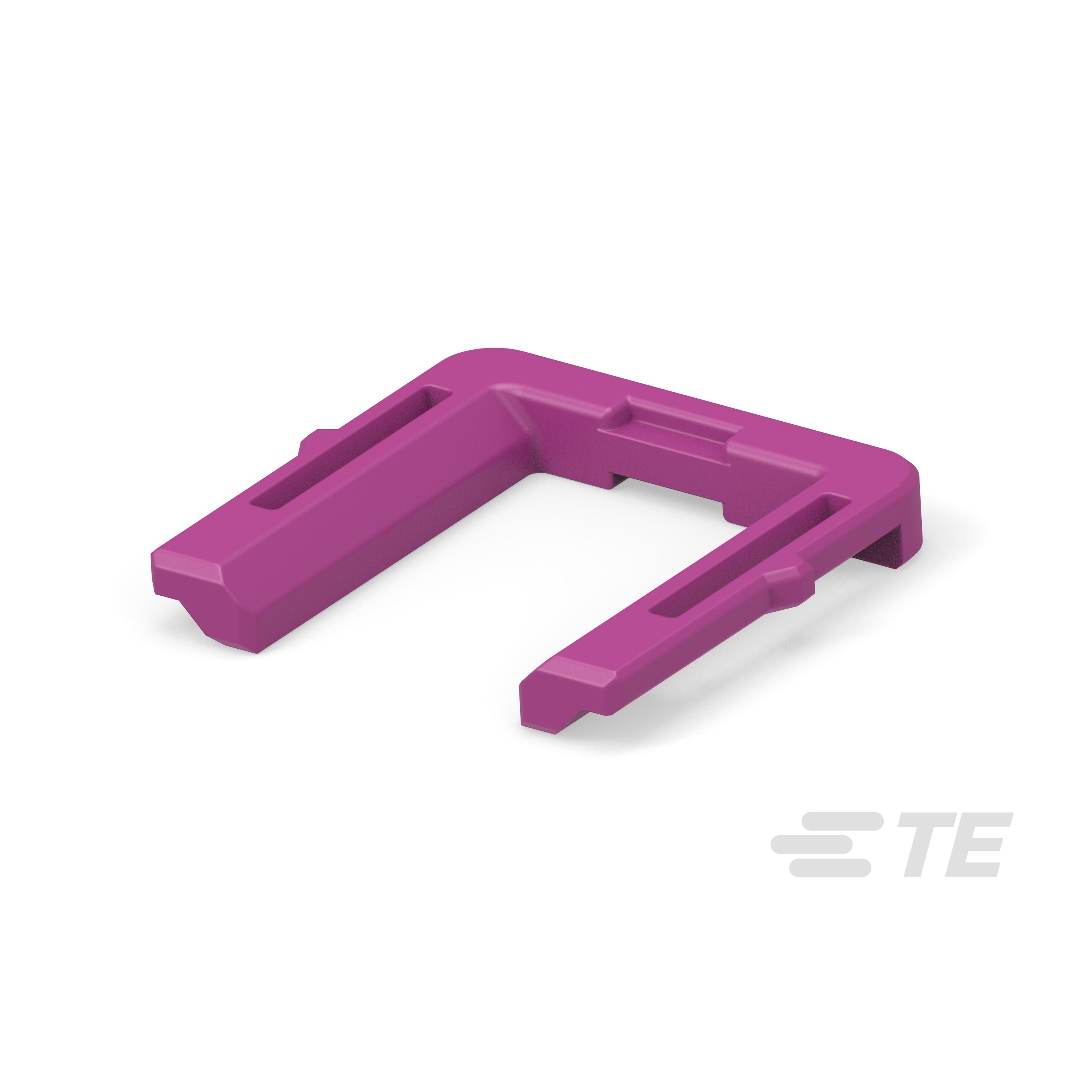

Description: RETAINER, MCON, MQS, FOR 22WAY
Packaging: Bulk

Hersteller: TE Connectivity
Automotive Connectors RETAINER, MCON, MQS, FOR 22WAY

Hersteller: FESTO
Category: Connectors and tubing
Description: Branching modules; 0÷20bar; G 1/2" x2,G 1/4" x2; 4200l/min
Type of pneumatic accessories: branching modules
Operating pressure: 0...20bar
Pneumatic connection: G 1/2" x2; G 1/4" x2
Flow: 4200l/min
Operating temperature: -10...60°C
Application: compressed air; inert gases

Hersteller: Texas Instruments
Description: FIXED POINT DIGITAL SIGNAL PROCE
Packaging: Tray
Part Status: Active
Package / Case: 429-BCBGA, FCBGA
Mounting Type: Surface Mount
Interface: Host Interface, McBSP
Type: Fixed Point
Operating Temperature: -55°C ~ 115°C (TC)
Non-Volatile Memory: External
On-Chip RAM: 128KB
Voltage - I/O: 3.30V
Voltage - Core: 1.80V
Clock Rate: 150MHz
Supplier Device Package: 429-CFCBGA (27x27)

Hersteller: 3M
Description: SURFACE BELT 6X98" S SFN
Packaging: Box
Type: Abrasive Belt

Hersteller: SICK, Inc.
Description: SWITCH,ROCK.ST.HS 2CO 2A 12
Packaging: Box

Hersteller: CROUZET
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 5A/250VAC; with lever (with roller)
Operating temperature: -40...85°C
Switches features: with lever (with roller)
Body dimensions: 32x13.6x16.6mm
Stable positions number: 1
Number of positions: 2
AC contacts rating @R: 5A / 250V AC
Manufacturer series: 83 106
Mechanical durability: 10000000 cycles
Leads: for soldering
Type of switch: microswitch SNAP ACTION
Contact material: nickel silver
Switching method: OFF-(ON); ON-(OFF)
Body material: polyamide
Contacts configuration: SPST-NO + SPST-NC

Hersteller: Crouzet
Description: MICROSWITCH, CLASSIC, 83106 SERI
Packaging: Bulk

Hersteller: Crouzet
Limit Switches Microswitch, Classic, 83106 Series, 831060 I W2 UL V/D

Hersteller: 3M
Description: TAPE BOX SEALING CLR 1 7/8"X22YD
Packaging: Bulk
Color: Clear
Length: 66' (20.1m) 22 yds
Tape Type: Box Sealing
Width: 1.88" (47.63mm) 1 7/8"
Usage: Packaging, Sealing, Shipping

Hersteller: Siemens
Description: PUSHBUTTON, MOM, YEL, FLUSH
Packaging: Box
Current Rating (Amps): 10A (AC/DC)
Mounting Type: Panel Mount, Front
Circuit: SPST-NO
Type: Standard
Switch Function: Off-Mom
Operating Temperature: -25°C ~ 70°C
Termination Style: Screw Terminal
Actuator Type: Round, Button
Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Panel Cutout Dimensions: Circular - 22.30mm Dia
Color - Actuator/Cap: Yellow
Part Status: Active
Voltage Rating - AC: 500 V
Voltage Rating - DC: 500 V

Hersteller: Würth Elektronik
Description: TVS DIODE 45VWM 72.7VC DO214AB
Packaging: Tape & Reel (TR)
Package / Case: DO-214AB, SMC
Mounting Type: Surface Mount
Type: Zener
Operating Temperature: -65°C ~ 150°C (TJ)
Applications: General Purpose
Current - Peak Pulse (10/1000µs): 20.6A
Voltage - Reverse Standoff (Typ): 45V (Max)
Supplier Device Package: DO-214AB
Unidirectional Channels: 1
Voltage - Breakdown (Min): 52.65V (Typ)
Voltage - Clamping (Max) @ Ipp: 72.7V
Power - Peak Pulse: 1500W (1.5kW)
Power Line Protection: No
Part Status: Active

Hersteller: Siemens
Description: CONFIG SW BODY PUSHBUT NON-ILLUM
Packaging: Box
Requires: Contact Block(s)
Type: Maintained
Illumination: Non-Illuminated
Actuator Type: Pushbutton, Round
(Select First, Then Apply Filters) Compatible Series: Siemens, 22mm
Panel Cutout Dimensions: 22.3mm (Round)
Part Status: Active

Hersteller: Belden Inc.
Description: XOVERCORD BCAT5E CMR RED 25FT
Packaging: Bulk
Part Status: Active

Hersteller: Qualcomm
Description: BOARD BLUECORE5-MULTIMEDIA
Packaging: Box
For Use With/Related Products: 802.15.1 RF Applications
Frequency: 2.4GHz
Type: BlueCore5
Supplied Contents: Board(s)
Part Status: Active
Contents: Board(s)
Utilized IC / Part: 802.15.1 RF Applications

Hersteller: Rosenberger
Description: ROPD CABLE ASSEMBLY PCB PLUG 4-H
Packaging: Bulk
Connector Type: Plug, Male Pins
Color: Black
Voltage Rating: 12VAC, 60VDC
Current Rating (Amps): 3A, 30A
Mounting Type: Panel Mount, Through Hole
Shielding: Unshielded
Number of Positions: 6
Orientation: Keyed
Operating Temperature: -40°C ~ 65°C
Fastening Type: Push-Pull
Termination: Solder
Ingress Protection: IP64/IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.854" (21.70mm)
Mounting Feature: Flange
Contact Finish - Mating: Gold, Silver
Part Status: Active
Shell Material: Polybutylene Terephthalate (PBT), Glass Filled
Primary Material: Plastic

Hersteller: EPSON
Description: CRYSTAL 8.0000MHZ 20PF SMD
Packaging: Tape & Reel (TR)
Package / Case: 4-SOJ, 9.60mm pitch
Load Capacitance: 20pF
Size / Dimension: 0.461" L x 0.157" W (11.70mm x 4.00mm)
Mounting Type: Surface Mount
Type: MHz Crystal
Operating Temperature: -20°C ~ 70°C
Frequency Stability: ±30ppm
Frequency Tolerance: ±50ppm
Operating Mode: Fundamental
Height - Seated (Max): 0.146" (3.70mm)
Part Status: Obsolete
ESR (Equivalent Series Resistance): 80 Ohms
Frequency: 8 MHz
Supplier Device Package: 4-SOJ

Hersteller: TE Connectivity Measurement Specialties
Description: PT8101-0050-141-2111: CTO-115000
Packaging: Bulk
Package / Case: Module
Mounting Type: Chassis Mount
Operating Temperature: -40°C ~ 90°C
Termination Style: Cable
Voltage - Supply: 30V
Linear Range: 0 ~ 1270.00mm (0 ~ 50.00")
Actuator Type: String Potentiometer
Technology: Resistive
Resistance Tolerance: ±10%
For Measuring: Linear Position
Output Signal: Clockwise Increase
Resistance: 1 kOhms

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CA 129.857145M-TJHPA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C O/E 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CA 129.857145M-TJHSA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C ST 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CB 129.857145M-TJHPA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C O/E 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CB 129.857145M-TJHSA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C ST 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CE 129.857145M-TJHPA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C O/E 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CE 129.857145M-TJHSA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C ST 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CG 129.857145M-TJHPA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C O/E 1K TR

Hersteller: Epson Timing
Standard Clock Oscillators SG-8018CG 129.857145M-TJHSA0: MHZ OSC 1.8V 3.3V +/-50PPM -40 105C ST 1K TR

Hersteller: Infineon Technologies
Description: IC RFID TRANSP 13.56MHZ MCC2-2-1
Packaging: Tape & Reel (TR)
Package / Case: MCC8 Chip Card Module
Mounting Type: Surface Mount
Frequency: 13.56MHz
Type: RFID Transponder
Standards: ISO 14443
Supplier Device Package: P-MCC8-2-3
Part Status: Obsolete

Hersteller: Texas Instruments
Description: IC PWR MGMT CONV 8LDO 98BGA
Packaging: Tape & Reel (TR)
Package / Case: 98-VFBGA
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Voltage - Supply: 2.7V ~ 5.5V
Applications: Portable Equipment
Supplier Device Package: 98-BGA MICROSTAR JUNIOR (9x6)
Part Status: Obsolete
