Suchergebnisse für "sunon 70x70" : 52

Art der Ansicht :
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde

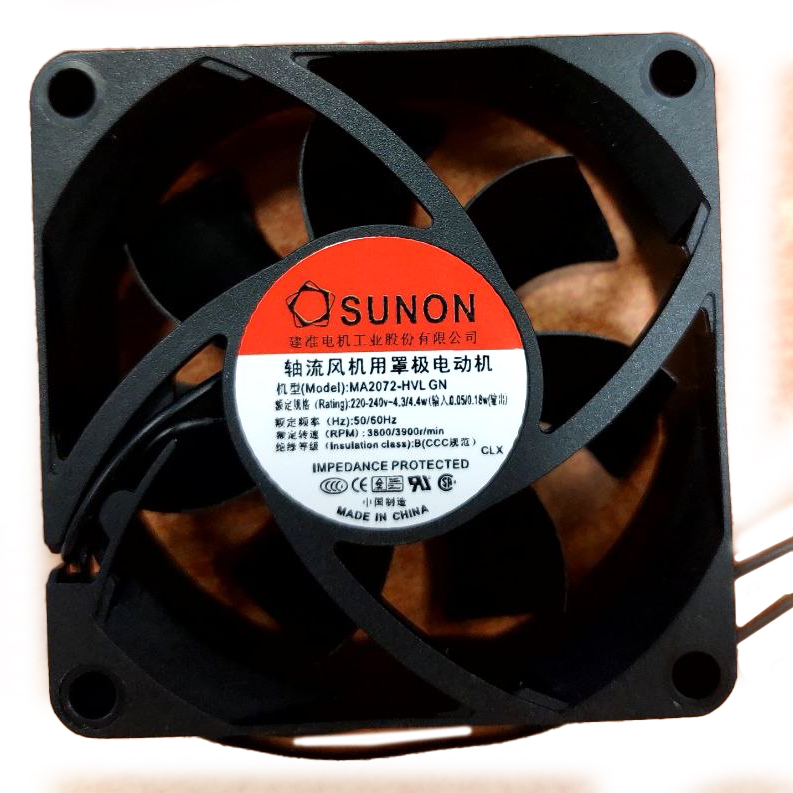

Lüfter 70x70x25 MA2072-HVL GN Lüfter 70x70x25 MA2072-HVL GN
Produktcode: 220671
zu Favoriten hinzufügen Lieblingsprodukt
Sunon ma2072hvl.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 мм
Spannung, V: 220 AC
Luftvolumen, m³/h: 47,6 m³/h
Leistung, W: 4,3 W
Lärm, dB: 30 dB
Drehzahl, rpm: 3800 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
auf Bestellung: 10 St.
  • 10 St. - Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-A99 ME70201V1-000U-A99 SUNON Sunon DC Brushless Fan & Blower.pdf ME70201V1-A99.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x20mm; axial; 12VDC; 49m3/h; 33dBA; Vapo; 3.55mmH2O
Type of fan: DC
Fan dimensions: 70x70x20mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 1.56W
Current rating: 0.13A
Fan efficiency: 49m3/h
Noise level: 33dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
auf Bestellung 2501 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH

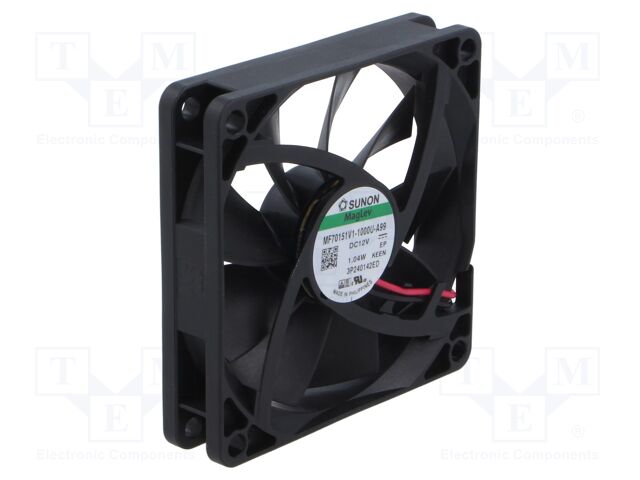

MF70151V1-1000U-A99 MF70151V1-1000U-A99 SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 949 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-F99 MF70151V1-1000U-F99 SUNON MF70151V1-1000U-F99-D07029680G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; Out: R type; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 187 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-G99 MF70151V1-1000U-G99 SUNON MF70151V1-1000U-G99-D07029690G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; Out: F type; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 351 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH

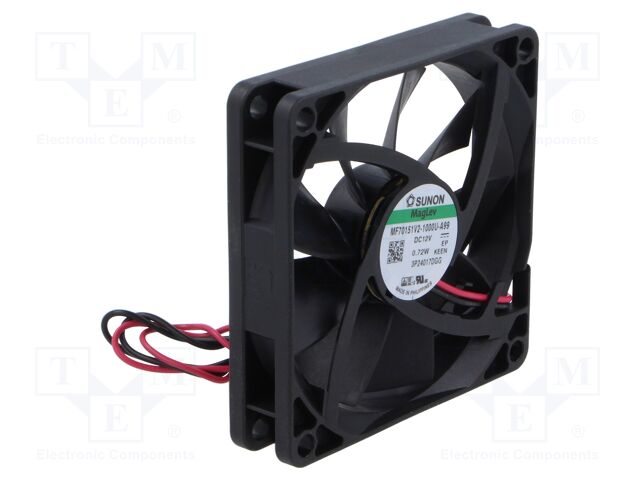

MF70151V2-1000U-A99 MF70151V2-1000U-A99 SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; 3000rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 427 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-F99 SUNON MF70151V2-1000U-F99-D07029800G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; Out: R type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-G99 MF70151V2-1000U-G99 SUNON MF70151V2-1000U-G99-D07029810G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; Out: F type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 184 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH

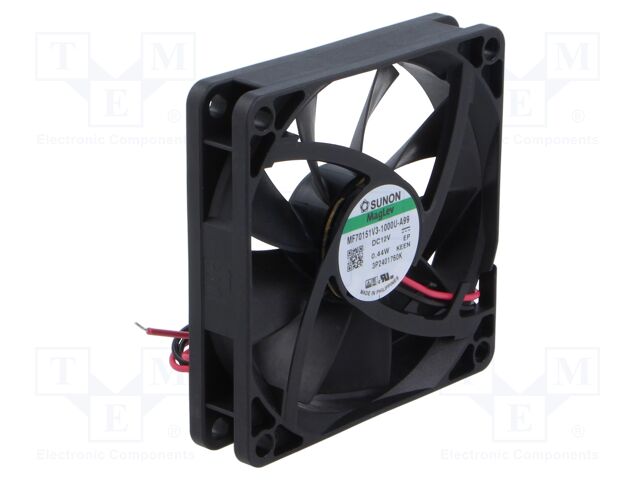

MF70151V3-1000U-A99 MF70151V3-1000U-A99 SUNON MF70151V3-1000U-A99-D07029910G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; 2500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 428 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-F99 SUNON MF70151V3-1000U-F99-D07029920G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; Out: R type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-G99 SUNON MF70151V3-1000U-G99-D07029930G-00-0.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; Out: F type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).F.GN PMD1207PTB1-A.(2).F.GN SUNON High_Air_Flow_Series_e_2012.pdf PMD1207PTB1AF.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
auf Bestellung 387 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).GN PMD1207PTB1-A.(2).GN SUNON High_Air_Flow_Series_e_2012.pdf PMD1207PTB1A.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
auf Bestellung 953 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).F.GN PMD2407PTB1-A.(2).F.GN SUNON PMD2407PTB1AF.pdf Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.19A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
auf Bestellung 109 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV1-A.GN PMD2407PTV1-A.GN SUNON High_Air_Flow_Series_e_2012.pdf PMD2407PTV1A.pdf Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 44dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
auf Bestellung 886 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x15, 12V, (KD1207PHV1) Lüfter 70x70x15, 12V, (KD1207PHV1)
Produktcode: 49963
zu Favoriten hinzufügen Lieblingsprodukt
Sunon KD1207PHV1.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x15 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 45,9 m³/h
Leistung, W: 1,9 W
Lärm, dB: 31,5 dB
Drehzahl, rpm: 3300 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+8.58 EUR
10+7.97 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x15, 12V, (YM1207PHB1)
Produktcode: 38547
zu Favoriten hinzufügen Lieblingsprodukt
Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x15 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 34 m³/h
Leistung, W: 0,22 W
Lärm, dB: 39 dB
Drehzahl, rpm: 4000 rpm
Beschreibung: Kugellager
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V (PMD1207PKB2) Lüfter 70x70x20, 12V (PMD1207PKB2)
Produktcode: 105790
zu Favoriten hinzufügen Lieblingsprodukt
Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 мм
Spannung, V: 12 DC
Luftvolumen, m³/h: 67,96 m³/h
Leistung, W: 3,7 W
Lärm, dB: 41 dB
Drehzahl, rpm: 4300 rpm
Beschreibung: Kugellager
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V, (ME70201V1-A99) Lüfter 70x70x20, 12V, (ME70201V1-A99)
Produktcode: 44379
zu Favoriten hinzufügen Lieblingsprodukt
Sunon ME70201V1-A99.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 49 m³/h
Leistung, W: 1,56 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V, (ME70201V1-G99)
Produktcode: 88608
zu Favoriten hinzufügen Lieblingsprodukt
Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 49 m³/h
Leistung, W: 1,56 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+8.19 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (EE70202S1-A99) Lüfter 70x70x20, 24V, (EE70202S1-A99)
Produktcode: 91833
zu Favoriten hinzufügen Lieblingsprodukt
Sunon ee70202s1-a99.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,54 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+7.13 EUR
10+6.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (ME70202V1-A99) Lüfter 70x70x20, 24V, (ME70202V1-A99)
Produktcode: 133105
zu Favoriten hinzufügen Lieblingsprodukt
Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 мм
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,59 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+14.68 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (ME70202V1-G99) Lüfter 70x70x20, 24V, (ME70202V1-G99)
Produktcode: 61183
zu Favoriten hinzufügen Lieblingsprodukt
Sunon ME70202V1-G99fergeg.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,59 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+6.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x25, 12V, (KD1207PTV1.13A)
Produktcode: 25018
zu Favoriten hinzufügen Lieblingsprodukt
Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 53 m³/h
Leistung, W: 1,4 W
Lärm, dB: 32 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x25, 230V, (MA2072HVL) Lüfter 70x70x25, 230V, (MA2072HVL)
Produktcode: 25496
zu Favoriten hinzufügen Lieblingsprodukt
Sunon MA2072HVL.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 mm
Spannung, V: 230 AC
Luftvolumen, m³/h: 47 m³/h
Leistung, W: 4,3 W
Lärm, dB: 30 dB
Drehzahl, rpm: 3800 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
1+33.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
CF1072HVL-1000U-999 SUNON CF1072HVL-1000U-999-E07000020G-00-1.pdf Category: EC Fans
Description: Fan: EC; 70x70x25mm; axial; 115VAC; 47.52m3/h; 30dBA; Vapo; 3500rpm
Type of fan: EC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 115V AC
Operating voltage: 100...120V
Power consumption: 3W
Current rating: 0.241A
Fan efficiency: 47.52m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Leads: leads x2
Frequency: 50...60Hz
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
CF2072HVL-1000U-999 CF2072HVL-1000U-999 SUNON CF2072HVL-1000U-999.pdf Category: EC Fans
Description: Fan: EC; 70x70x25mm; axial; 230VAC; 47.62m3/h; 30dBA; Vapo; 3550rpm
Type of fan: EC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 230V AC
Power consumption: 3.8W
Current rating: 0.19A
Fan efficiency: 47.62m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3550rpm
Leads: leads x2
Manufacturer series: ECO
Version: low power consumption
Frequency: 50Hz
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-H99 SUNON MF70151V1-1000U-H99-D07029700G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-Q99 SUNON MF70151V1-1000U-Q99-D07029710G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; 3.05mmH2O
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-S99 SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; 3.05mmH2O
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-H99 SUNON MF70151V2-1000U-H99-D07029820G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-Q99 SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-S99 SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-H99 SUNON MF70151V3-1000U-H99-D07029940G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-Q99 SUNON MF70151V3-1000U-Q99-D07029950G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-S99 SUNON MF70151V3-1000U-S99-D07029960G-00-1.pdf Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB2-A P/N:(2).GN SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 76.46m3/h; 43dBA; ball; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Power consumption: 3.7W
Current rating: 0.31A
Fan efficiency: 76.46m3/h
Noise level: 43dBA
Kind of Bearing: ball
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB3-A P/N:(2).GN SUNON Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 67.96m3/h; 39dBA; ball; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Power consumption: 2.9W
Current rating: 0.24A
Fan efficiency: 67.96m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).GN PMD2407PTB1-A.(2).GN SUNON High_Air_Flow_Series_e_2012.pdf PMD2407PTB1A.pdf Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.6W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB2-A P/N:(2).GN SUNON Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 76.46m3/h; 43dBA; ball; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.6W
Current rating: 0.15A
Fan efficiency: 76.46m3/h
Noise level: 43dBA
Kind of Bearing: ball
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB3-A P/N:(2).GN SUNON Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 67.96m3/h; 39dBA; ball; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 2.9W
Current rating: 0.12A
Fan efficiency: 67.96m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV1-A.F.GN PMD2407PTV1-A.F.GN SUNON High_Air_Flow_Series_e_2012.pdf PMD2407PTV1AF.pdf Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 44dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV2-A P/N: GN SUNON Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 76.46m3/h; 42dBA; Vapo; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.8W
Current rating: 0.16A
Fan efficiency: 76.46m3/h
Noise level: 42dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV3-A P/N:GN SUNON Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 67.96m3/h; 38dBA; Vapo; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.1W
Current rating: 0.13A
Fan efficiency: 67.96m3/h
Noise level: 38dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MA2072-HVL.GN : MA2072HVL Sunon Fan MA2072-HVL.GN : MA2072HVL MA2072-HVL.GN Вентилятор AC 70x70x25мм, Подшипник: Vapo; 47.6м3/ч; 230ВAC, 30дБА, 4,3Вт Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-A99 Sunon Fan ME70201V1-000U-A99 ME70201V1-A99 Вентилятор: DC; осевой; 12ВDC; 70x70x20мм; 49м3/ч; 33дБА; Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-G99 Sunon Fan ME70201V1-000U-G99 ME70201V1-G99 DC осевой вентилятор 12В, 70x70x20мм, 49м3/ч, 33дБА, Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70202V1-000U-A99 Sunon Fan ME70202V1-000U-A99 ME70202V1-A99 Вентилятор, DC, осевой, 24VDC, 70x70x20мм, 49,27м3/ч, 33дБА, Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).GN Sunon Fan PMD1207PTB1-A.2.GN-D07025030G-02-0_REF.pdf Вентилятор 12V, 70x70x25 mm, 0,37А, 4,4Вт, 5100об/мин Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTV1-A.GN Sunon Fan Maglev%20Catalog.pdf PMD1207PTV1-A.GN Вентилятор: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).GN Sunon Fan PMD2407PTB1-A.2.GN-D07006840G-02-0_Ref.pdf Вентилятор: DC; 70x70x25мм; Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1AF Sunon Fan PMD2407PTB1AF PMD2407PTB1-A.(2).F.GN Вентилятор: DC, осьовий, 24ВDC, 70x70x25мм, 83,25м3/г, 45дБА, 24AWG Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x25 MA2072-HVL GN
Produktcode: 220671
zu Favoriten hinzufügen Lieblingsprodukt
ma2072hvl.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 мм
Spannung, V: 220 AC
Luftvolumen, m³/h: 47,6 m³/h
Leistung, W: 4,3 W
Lärm, dB: 30 dB
Drehzahl, rpm: 3800 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
auf Bestellung: 10 St.
  • 10 St. - Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-A99 Sunon DC Brushless Fan & Blower.pdf ME70201V1-A99.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x20mm; axial; 12VDC; 49m3/h; 33dBA; Vapo; 3.55mmH2O
Type of fan: DC
Fan dimensions: 70x70x20mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 1.56W
Current rating: 0.13A
Fan efficiency: 49m3/h
Noise level: 33dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
auf Bestellung 2501 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-A99
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 949 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-F99 MF70151V1-1000U-F99-D07029680G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; Out: R type; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 187 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-G99 MF70151V1-1000U-G99-D07029690G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 30dBA; Vapo; Out: F type; 3500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.89W
Current rating: 74mA
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 351 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-A99
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; 3000rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 427 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-F99 MF70151V2-1000U-F99-D07029800G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; Out: R type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-G99 MF70151V2-1000U-G99-D07029810G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 25.6dBA; Vapo; Out: F type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.62W
Current rating: 51mA
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 184 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-A99 MF70151V3-1000U-A99-D07029910G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; 2500rpm
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
auf Bestellung 428 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-F99 MF70151V3-1000U-F99-D07029920G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; Out: R type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: R type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-G99 MF70151V3-1000U-G99-D07029930G-00-0.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 20.7dBA; Vapo; Out: F type
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 0.36W
Current rating: 30mA
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Signal output: F type
auf Bestellung 200 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).F.GN High_Air_Flow_Series_e_2012.pdf PMD1207PTB1AF.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
auf Bestellung 387 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).GN High_Air_Flow_Series_e_2012.pdf PMD1207PTB1A.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
auf Bestellung 953 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).F.GN PMD2407PTB1AF.pdf
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.19A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
auf Bestellung 109 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV1-A.GN High_Air_Flow_Series_e_2012.pdf PMD2407PTV1A.pdf
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 44dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
auf Bestellung 886 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x15, 12V, (KD1207PHV1)
Produktcode: 49963
zu Favoriten hinzufügen Lieblingsprodukt
KD1207PHV1.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x15 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 45,9 m³/h
Leistung, W: 1,9 W
Lärm, dB: 31,5 dB
Drehzahl, rpm: 3300 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+8.58 EUR
10+7.97 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x15, 12V, (YM1207PHB1)
Produktcode: 38547
zu Favoriten hinzufügen Lieblingsprodukt
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x15 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 34 m³/h
Leistung, W: 0,22 W
Lärm, dB: 39 dB
Drehzahl, rpm: 4000 rpm
Beschreibung: Kugellager
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V (PMD1207PKB2)
Produktcode: 105790
zu Favoriten hinzufügen Lieblingsprodukt
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 мм
Spannung, V: 12 DC
Luftvolumen, m³/h: 67,96 m³/h
Leistung, W: 3,7 W
Lärm, dB: 41 dB
Drehzahl, rpm: 4300 rpm
Beschreibung: Kugellager
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V, (ME70201V1-A99)
Produktcode: 44379
zu Favoriten hinzufügen Lieblingsprodukt
ME70201V1-A99.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 49 m³/h
Leistung, W: 1,56 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 12V, (ME70201V1-G99)
Produktcode: 88608
zu Favoriten hinzufügen Lieblingsprodukt
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 49 m³/h
Leistung, W: 1,56 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+8.19 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (EE70202S1-A99)
Produktcode: 91833
zu Favoriten hinzufügen Lieblingsprodukt
ee70202s1-a99.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,54 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+7.13 EUR
10+6.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (ME70202V1-A99)
Produktcode: 133105
zu Favoriten hinzufügen Lieblingsprodukt
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 мм
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,59 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+14.68 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x20, 24V, (ME70202V1-G99)
Produktcode: 61183
zu Favoriten hinzufügen Lieblingsprodukt
ME70202V1-G99fergeg.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x20 mm
Spannung, V: 24 DC
Luftvolumen, m³/h: 49,27 m³/h
Leistung, W: 1,59 W
Lärm, dB: 33 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+6.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x25, 12V, (KD1207PTV1.13A)
Produktcode: 25018
zu Favoriten hinzufügen Lieblingsprodukt
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 53 m³/h
Leistung, W: 1,4 W
Lärm, dB: 32 dB
Drehzahl, rpm: 3200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Lüfter 70x70x25, 230V, (MA2072HVL)
Produktcode: 25496
zu Favoriten hinzufügen Lieblingsprodukt
MA2072HVL.pdf
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 70x70x25 mm
Spannung, V: 230 AC
Luftvolumen, m³/h: 47 m³/h
Leistung, W: 4,3 W
Lärm, dB: 30 dB
Drehzahl, rpm: 3800 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produkt ist nicht verfügbar
AnzahlPrivatkunde
1+33.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
CF1072HVL-1000U-999 CF1072HVL-1000U-999-E07000020G-00-1.pdf
Hersteller: SUNON
Category: EC Fans
Description: Fan: EC; 70x70x25mm; axial; 115VAC; 47.52m3/h; 30dBA; Vapo; 3500rpm
Type of fan: EC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 115V AC
Operating voltage: 100...120V
Power consumption: 3W
Current rating: 0.241A
Fan efficiency: 47.52m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500rpm
Leads: leads x2
Frequency: 50...60Hz
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
CF2072HVL-1000U-999 CF2072HVL-1000U-999.pdf
Hersteller: SUNON
Category: EC Fans
Description: Fan: EC; 70x70x25mm; axial; 230VAC; 47.62m3/h; 30dBA; Vapo; 3550rpm
Type of fan: EC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 230V AC
Power consumption: 3.8W
Current rating: 0.19A
Fan efficiency: 47.62m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3550rpm
Leads: leads x2
Manufacturer series: ECO
Version: low power consumption
Frequency: 50Hz
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-H99 MF70151V1-1000U-H99-D07029700G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-Q99 MF70151V1-1000U-Q99-D07029710G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; 3.05mmH2O
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V1-1000U-S99
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 46.38m3/h; 30dBA; Vapo; 3.05mmH2O
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 1.1W
Current rating: 75mA
Fan efficiency: 46.38m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-H99 MF70151V2-1000U-H99-D07029820G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-Q99
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V2-1000U-S99
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 39.25m3/h; 25.6dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.64W
Current rating: 44mA
Fan efficiency: 39.25m3/h
Noise level: 25.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 2.29mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-H99 MF70151V3-1000U-H99-D07029940G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; Out: PWM
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-Q99 MF70151V3-1000U-Q99-D07029950G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: PWM; R type
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MF70151V3-1000U-S99 MF70151V3-1000U-S99-D07029960G-00-1.pdf
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x15mm; axial; 12VDC; 32.45m3/h; 20.7dBA; Vapo; 26AWG
Type of fan: DC
Fan dimensions: 70x70x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.8V DC
Power consumption: 0.47W
Current rating: 31mA
Fan efficiency: 32.45m3/h
Noise level: 20.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2500 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Lead length: 0.285m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; reverse polarity protection
Fan motor: brushless DC
Static pressure: 1.78mm H2O
Wire size: 26AWG
Storage time: 70000h
Signal output: F type; PWM
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB2-A P/N:(2).GN
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 76.46m3/h; 43dBA; ball; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Power consumption: 3.7W
Current rating: 0.31A
Fan efficiency: 76.46m3/h
Noise level: 43dBA
Kind of Bearing: ball
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB3-A P/N:(2).GN
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; 70x70x25mm; axial; 12VDC; 67.96m3/h; 39dBA; ball; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Power consumption: 2.9W
Current rating: 0.24A
Fan efficiency: 67.96m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).GN High_Air_Flow_Series_e_2012.pdf PMD2407PTB1A.pdf
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 45dBA; ball; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.6W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB2-A P/N:(2).GN
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 76.46m3/h; 43dBA; ball; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.6W
Current rating: 0.15A
Fan efficiency: 76.46m3/h
Noise level: 43dBA
Kind of Bearing: ball
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB3-A P/N:(2).GN
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 67.96m3/h; 39dBA; ball; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 2.9W
Current rating: 0.12A
Fan efficiency: 67.96m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV1-A.F.GN High_Air_Flow_Series_e_2012.pdf PMD2407PTV1AF.pdf
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 83.25m3/h
Noise level: 44dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Signal output: F type
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV2-A P/N: GN
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 76.46m3/h; 42dBA; Vapo; 7.87mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.8W
Current rating: 0.16A
Fan efficiency: 76.46m3/h
Noise level: 42dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4700 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 7.87mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTV3-A P/N:GN
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 70x70x25mm; axial; 24VDC; 67.96m3/h; 38dBA; Vapo; 6.35mmH2O
Type of fan: DC
Fan dimensions: 70x70x25mm
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Power consumption: 3.1W
Current rating: 0.13A
Fan efficiency: 67.96m3/h
Noise level: 38dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4200 (±15%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.35mm H2O
Wire size: 24AWG
Produkt ist nicht verfügbar
Mindestbestellmenge: 1000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
MA2072-HVL.GN : MA2072HVL
Hersteller: Sunon Fan
MA2072-HVL.GN : MA2072HVL MA2072-HVL.GN Вентилятор AC 70x70x25мм, Подшипник: Vapo; 47.6м3/ч; 230ВAC, 30дБА, 4,3Вт Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-A99
Hersteller: Sunon Fan
ME70201V1-000U-A99 ME70201V1-A99 Вентилятор: DC; осевой; 12ВDC; 70x70x20мм; 49м3/ч; 33дБА; Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70201V1-000U-G99
Hersteller: Sunon Fan
ME70201V1-000U-G99 ME70201V1-G99 DC осевой вентилятор 12В, 70x70x20мм, 49м3/ч, 33дБА, Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME70202V1-000U-A99
Hersteller: Sunon Fan
ME70202V1-000U-A99 ME70202V1-A99 Вентилятор, DC, осевой, 24VDC, 70x70x20мм, 49,27м3/ч, 33дБА, Vapo Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTB1-A.(2).GN PMD1207PTB1-A.2.GN-D07025030G-02-0_REF.pdf
Hersteller: Sunon Fan
Вентилятор 12V, 70x70x25 mm, 0,37А, 4,4Вт, 5100об/мин Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD1207PTV1-A.GN Maglev%20Catalog.pdf
Hersteller: Sunon Fan
PMD1207PTV1-A.GN Вентилятор: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 44dBA; Vapo; 9.14mmH2O Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1-A.(2).GN PMD2407PTB1-A.2.GN-D07006840G-02-0_Ref.pdf
Hersteller: Sunon Fan
Вентилятор: DC; 70x70x25мм; Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PMD2407PTB1AF
Hersteller: Sunon Fan
PMD2407PTB1AF PMD2407PTB1-A.(2).F.GN Вентилятор: DC, осьовий, 24ВDC, 70x70x25мм, 83,25м3/г, 45дБА, 24AWG Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
