Produkte > ANALOG POWER INC. > Alle Produkte des Herstellers ANALOG POWER INC. (201) > Seite 3 nach 4

Wählen Sie Seite:   [  << Vorherige Seite ]  1 2 3 4  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AM7341P AM7341P Analog Power Inc. datasheet.php?part=AM7341P Description: MOSFET P-CH -40V 35A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta)
Rds On (Max) @ Id, Vgs: 19mOhm @ 12A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 5 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
26+0.69 EUR
39+0.45 EUR
100+0.41 EUR
500+0.32 EUR
1000+0.26 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
AM7342N AM7342N Analog Power Inc. AM7342N.pdf Description: MOSFET N-CH 40V 18A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 7mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2710 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7352N AM7352N Analog Power Inc. AM7352N.PDF Description: MOSFET N-CH 40V 44A DFN3X3
Packaging: Bulk
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
auf Bestellung 2300 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7356N-CT AM7356N-CT Analog Power Inc. AM7356N.pdf Description: MOSFET N-CH 100V 20A DFN3x3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 50mOhm @ 3.5A, 4.5V
Power Dissipation (Max): 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 6.2 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 414 pF @ 50 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7358N AM7358N Analog Power Inc. datasheet.php?part=AM7358N Description: MOSFET N-CH 100V 28A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 11A (Ta), 28A (Tc)
Rds On (Max) @ Id, Vgs: 18mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta), 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 828 pF @ 50 V
auf Bestellung 3200 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
3000+0.58 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7364N AM7364N Analog Power Inc. datasheet.php?part=AM7364N Description: MOSFET N-CH 60V 14A DFN3X3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Ta)
Rds On (Max) @ Id, Vgs: 13mOhm @ 10.7A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2775 pF @ 15 V
auf Bestellung 2200 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.90 EUR
14+1.27 EUR
100+1.14 EUR
500+0.89 EUR
1000+0.73 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7365P AM7365P Analog Power Inc. datasheet.php?part=AM7365P Description: MOSFET P-CH -60V 10A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 10A (Ta)
Rds On (Max) @ Id, Vgs: 24mOhm @ 7.9A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4793 pF @ 15 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7367P AM7367P Analog Power Inc. datasheet.php?part=AM7367P Description: MOSFET P-CH 60V 5.4A DFN3X3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 5.4A (Ta)
Rds On (Max) @ Id, Vgs: 82mOhm @ 4.3A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1143 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
19+0.93 EUR
29+0.62 EUR
100+0.56 EUR
500+0.43 EUR
1000+0.35 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
AM7372N AM7372N Analog Power Inc. datasheet.php?part=AM7372N Description: MOSFET N-CH 60V 30A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 16mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta), 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 484 pF @ 20 V
auf Bestellung 3100 Stücke:
Lieferzeit 10-14 Tag (e)
19+0.93 EUR
29+0.62 EUR
100+0.56 EUR
500+0.43 EUR
1000+0.35 EUR
3000+0.31 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
AM7402N AM7402N Analog Power Inc. datasheet.php?data1=DS_AM7402N_1A_1 Description: MOSFET N-CH 30V 20A DFN5X6
Packaging: Bulk
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7410N AM7410N Analog Power Inc. datasheet.php?part=AM7410N Description: MOSFET N-CH 100V 15A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta)
Rds On (Max) @ Id, Vgs: 15mOhm @ 12A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4221 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.09 EUR
13+1.40 EUR
100+1.26 EUR
500+0.98 EUR
1000+0.80 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM7411P AM7411P Analog Power Inc. datasheet.php?part=AM7411P Description: MOSFET P-CH -100V 33A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 6A (Ta), 33A (Tc)
Rds On (Max) @ Id, Vgs: 95mOhm @ 3A, 10V
Power Dissipation (Max): 5W (Ta), 156W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 3665 pF @ 15 V
auf Bestellung 2190 Stücke:
Lieferzeit 10-14 Tag (e)
7+2.62 EUR
11+1.75 EUR
100+1.58 EUR
500+1.23 EUR
1000+1.01 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7430N AM7430N Analog Power Inc. datasheet.php?part=AM7430N Description: MOSFET N-CH 30V 16A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 16A (Ta)
Rds On (Max) @ Id, Vgs: 13mOhm @12.8A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1456 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.65 EUR
16+1.10 EUR
100+0.99 EUR
500+0.77 EUR
1000+0.63 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7432N-CT AM7432N-CT Analog Power Inc. AM7432N.pdf Description: MOSFET N-CH 30V 27A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 5.9mOhm @ 19.1A, 2.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 400mV @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5146 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.60 EUR
17+1.07 EUR
100+0.96 EUR
500+0.75 EUR
1000+0.62 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7434N AM7434N Analog Power Inc. datasheet.php?part=AM7434N Description: MOSFET N-CH 30V 27A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 4.9mOhm @ 27A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2031 pF @ 15 V
auf Bestellung 4300 Stücke:
Lieferzeit 10-14 Tag (e)
26+0.69 EUR
39+0.45 EUR
100+0.41 EUR
500+0.32 EUR
1000+0.26 EUR
3000+0.23 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
AM7436N AM7436N Analog Power Inc. datasheet.php?part=AM7436N Description: MOSFET N-CH 30V 27A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 4.6mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 3876 pF @ 15 V
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
13+1.36 EUR
20+0.91 EUR
100+0.82 EUR
500+0.64 EUR
1000+0.52 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
AM7438N AM7438N Analog Power Inc. datasheet.php?part=AM7438N Description: MOSFET N-CH 30V 22A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
Rds On (Max) @ Id, Vgs: 7.5mOhm @ 15.2A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
14+1.32 EUR
21+0.88 EUR
100+0.79 EUR
500+0.61 EUR
1000+0.50 EUR
3000+0.44 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
AM7440N AM7440N Analog Power Inc. datasheet.php?part=AM7440N Description: MOSFET N-CH 40V 15A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta)
Rds On (Max) @ Id, Vgs: 15mOhm @ 12A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1826 pF @ 15 V
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7442N AM7442N Analog Power Inc. datasheet.php?part=AM7442N Description: MOSFET N-CH 40V 20A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2060 pF @ 15 V
auf Bestellung 2800 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7443P AM7443P Analog Power Inc. datasheet.php?part=AM7443P Description: MOSFET P-CH -40V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta), 83W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4136 pF @ 15 V
auf Bestellung 2488 Stücke:
Lieferzeit 10-14 Tag (e)
14+1.27 EUR
21+0.84 EUR
100+0.76 EUR
500+0.59 EUR
1000+0.49 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
AM7446NA AM7446NA Analog Power Inc. datasheet.php?part=AM7446NA Description: MOSFET N-CH 40V 25A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 25A (Ta)
Rds On (Max) @ Id, Vgs: 5.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 32 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2829 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7450N-CT AM7450N-CT Analog Power Inc. AM7450N.pdf Description: MOSFET N-CH 60V 20A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 11.7mOhm @ 13.1A, 4.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5861 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.65 EUR
16+1.10 EUR
100+0.99 EUR
500+0.77 EUR
1000+0.63 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7452NA AM7452NA Analog Power Inc. datasheet.php?part=AM7452NA Description: MOSFET N-CH 60V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs: 4.9mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 83W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 48 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 14642 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
9+1.99 EUR
14+1.33 EUR
100+1.20 EUR
500+0.93 EUR
1000+0.77 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM7458N AM7458N Analog Power Inc. datasheet.php?part=AM7458N Description: MOSFET N-CH 150V 83.7A DFN5X6
Packaging: Strip
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta), 83.7A (Tc)
Rds On (Max) @ Id, Vgs: 14mOhm @ 10A, 10V
Power Dissipation (Max): 2.6W (Ta), 147.1W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 2670 pF @ 50 V
auf Bestellung 2800 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7460N AM7460N Analog Power Inc. datasheet.php?data1=DS_AM7460N_1A_1 Description: MOSFET N-CH 60V 12A DFN5X6
Packaging: Bulk
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7462N AM7462N Analog Power Inc. datasheet.php?part=AM7462N Description: MOSFET N-CH 60V 13A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta)
Rds On (Max) @ Id, Vgs: 22mOhm @ 10.4A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2086 pF @ 15 V
auf Bestellung 3200 Stücke:
Lieferzeit 10-14 Tag (e)
7+2.73 EUR
10+1.82 EUR
100+1.64 EUR
500+1.27 EUR
1000+1.05 EUR
3000+0.91 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7463P AM7463P Analog Power Inc. datasheet.php?part=AM7463P Description: MOSFET P-CH -60V 17A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta)
Rds On (Max) @ Id, Vgs: 12mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 90 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9258 pF @ 15 V
auf Bestellung 4000 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
3000+0.62 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7465P AM7465P Analog Power Inc. datasheet.php?data1=DS_AM7465P_1A_1 Description: MOSFET P-CH -60V 19A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta)
Rds On (Max) @ Id, Vgs: 9.8mOhm @ 9A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): -60 V
Gate Charge (Qg) (Max) @ Vgs: 66 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5960 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.92 EUR
14+1.27 EUR
100+1.15 EUR
500+0.89 EUR
1000+0.73 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7466N AM7466N Analog Power Inc. datasheet.php?part=AM7466N Description: MOSFET N-CH 60V 80A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 6mOhm @ 20A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4045 pF @ 15 V
auf Bestellung 4500 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.57 EUR
17+1.04 EUR
100+0.94 EUR
500+0.73 EUR
1000+0.60 EUR
3000+0.52 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
AM7482N AM7482N Analog Power Inc. datasheet.php?part=AM7482N Description: MOSFET N-CH 80V 18A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 11mOhm @ 14.4A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 72 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4021 pF @ 15 V
auf Bestellung 3500 Stücke:
Lieferzeit 10-14 Tag (e)
7+2.82 EUR
10+1.88 EUR
100+1.69 EUR
500+1.32 EUR
1000+1.08 EUR
3000+0.94 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7484N AM7484N Analog Power Inc. AM7484N.pdf Description: MOSFET N-CH 80V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta)
Rds On (Max) @ Id, Vgs: 8.9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 52 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 7442 pF @ 15 V
auf Bestellung 7000 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
3000+0.62 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7490N AM7490N Analog Power Inc. AM7490N.pdf Description: MOSFET N-CH 150V 8.3A DFN5x6
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 8.3A (Ta)
Rds On (Max) @ Id, Vgs: 54mOhm @ 6.4A, 5.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 58 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4388 pF @ 15 V
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.60 EUR
6000+0.57 EUR
Mindestbestellmenge: 3000
Im Einkaufswagen  Stück im Wert von  UAH
AM7490N-CT AM7490N-CT Analog Power Inc. AM7490N.pdf Description: MOSFET N-CH 150V 8.3A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 8.3A (Ta)
Rds On (Max) @ Id, Vgs: 54mOhm @ 6.4A, 5.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 58 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4388 pF @ 15 V
auf Bestellung 2700 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7492N AM7492N Analog Power Inc. datasheet.php?part=AM7492N Description: MOSFET N-CH 150V 6.2A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 6.2A (Ta)
Rds On (Max) @ Id, Vgs: 88mOhm @ 23A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2599 pF @ 15 V
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.51 EUR
18+1.01 EUR
100+0.91 EUR
500+0.70 EUR
1000+0.58 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
AM7542C AM7542C Analog Power Inc. datasheet.php?data1=DS_AM7542C_1A_1 Description: MOSFET N/P-CH 40V 6.9A 8DFN
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta)
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 6.9A (Ta), 6.6A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 1506pF @ 15V, 1264pF @ 15V
Rds On (Max) @ Id, Vgs: 39mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 10nC @ 4.5V, 15nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
15+1.21 EUR
22+0.81 EUR
100+0.72 EUR
500+0.56 EUR
1000+0.46 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM7942N AM7942N Analog Power Inc. datasheet.php?data1=DS_AM7942N_1A_1 Description: MOSFET 2N-CH 40V 17A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 63W (Tc)
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 3772pF @ 15V
Rds On (Max) @ Id, Vgs: 6mOhm @ 50A, 10V
Gate Charge (Qg) (Max) @ Vgs: 32nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.60 EUR
17+1.07 EUR
100+0.96 EUR
500+0.75 EUR
1000+0.62 EUR
3000+0.54 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7944N AM7944N Analog Power Inc. datasheet.php?part=AM7944N Description: MOSFET N-CH 40V 36A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta) 36A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 6A, 10V
Power Dissipation (Max): 2.5W (Ta), 21W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1480 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
15+1.21 EUR
22+0.81 EUR
100+0.73 EUR
500+0.57 EUR
1000+0.47 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM7966N AM7966N Analog Power Inc. datasheet.php?data1=DS_AM7966N_1A_1 Description: MOSFET 2N-CH 60V 6.8A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 19W (Tc)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 6.8A (Ta), 19A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 854pF @ 15V
Rds On (Max) @ Id, Vgs: 37mOhm @ 4A, 10V
Gate Charge (Qg) (Max) @ Vgs: 8nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 7000 Stücke:
Lieferzeit 10-14 Tag (e)
5+3.70 EUR
10+2.47 EUR
100+2.22 EUR
500+1.73 EUR
1000+1.42 EUR
3000+1.23 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AM90N03-03P AM90N03-03P Analog Power Inc. datasheet.php?data1=DS_AM90N03-03P_1A_2 Description: MOSFET P-CH 30V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-2
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: TO-220
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6725 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-04D AM90N06-04D Analog Power Inc. AM90N06-04D.pdf Description: MOSFET N-CH 60V 83A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 83A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 45A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 11698 pF @ 15 V
auf Bestellung 4970 Stücke:
Lieferzeit 10-14 Tag (e)
16+1.16 EUR
23+0.77 EUR
100+0.70 EUR
500+0.54 EUR
1000+0.44 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-10P AM90N06-10P Analog Power Inc. datasheet.php?part=AM90N06-10P Description: MOSFET N-CH 60V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 9.9mOhm @ 30A, 10V
Power Dissipation (Max): 120W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 77 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5887 pF @ 15 V
auf Bestellung 700 Stücke:
Lieferzeit 10-14 Tag (e)
16+1.13 EUR
50+0.89 EUR
100+0.72 EUR
500+0.62 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-10PCFM AM90N06-10PCFM Analog Power Inc. datasheet.php?part=AM90N06-10PCFM Description: MOSFET N-CH 60V 64A TO-220CFM
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 64A (Tc)
Rds On (Max) @ Id, Vgs: 9.9mOhm @ 45A, 10V
Power Dissipation (Max): 60W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220CFM
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 79 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 10331 pF @ 15 V
auf Bestellung 800 Stücke:
Lieferzeit 10-14 Tag (e)
15+1.21 EUR
50+0.97 EUR
100+0.79 EUR
500+0.68 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-16P AM90N06-16P Analog Power Inc. datasheet.php?part=AM90N06-16P Description: MOSFET N-CH 40V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2138 pF @ 15 V
auf Bestellung 1790 Stücke:
Lieferzeit 10-14 Tag (e)
23+0.77 EUR
50+0.61 EUR
100+0.49 EUR
500+0.43 EUR
1000+0.34 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-04B AM90N08-04B Analog Power Inc. AM90N08-04B.pdf Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 167 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 11678 pF @ 15 V
auf Bestellung 2385 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.33 EUR
10+3.56 EUR
100+3.20 EUR
500+2.49 EUR
800+1.78 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-10B AM90N08-10B Analog Power Inc. AM90N08-10B.pdf Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 13mOhm @ 44A, 4.5V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5052 pF @ 15 V
auf Bestellung 950 Stücke:
Lieferzeit 10-14 Tag (e)
800+0.67 EUR
Mindestbestellmenge: 800
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-10B-CT AM90N08-10B-CT Analog Power Inc. AM90N08-10B.pdf Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 13mOhm @ 44A, 4.5V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5052 pF @ 15 V
auf Bestellung 950 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.01 EUR
14+1.34 EUR
100+1.21 EUR
500+0.94 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM90N10-07B AM90N10-07B Analog Power Inc. datasheet.php?part=AM90N10-07B Description: MOSFET N-CH 100V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 7mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 114 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9235 pF @ 15 V
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.76 EUR
10+3.84 EUR
100+3.45 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
AM90N10-14P AM90N10-14P Analog Power Inc. datasheet.php?part=AM90N10-14P Description: MOSFET N-CH 100V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Ta)
Rds On (Max) @ Id, Vgs: 16mOhm @ 30A, 10V
Power Dissipation (Max): 300W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4221 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM90N15-20P AM90N15-20P Analog Power Inc. datasheet.php?data1=DS_AM90N15-20P_1A_1 Description: MOSFET N-CH 150V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Ta)
Rds On (Max) @ Id, Vgs: 24mOhm @ 100A, 10V
Power Dissipation (Max): 300W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 123 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9857 pF @ 15 V
auf Bestellung 2300 Stücke:
Lieferzeit 10-14 Tag (e)
5+3.59 EUR
50+2.85 EUR
100+2.30 EUR
500+1.98 EUR
1000+1.58 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AM90N20-140B AM90N20-140B Analog Power Inc. datasheet.php?data1=DS_AM90N20-140B_1A_1 Description: MOSFET N-CH 200V 29A TO-263
Packaging: Strip
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 29A (Tc)
Rds On (Max) @ Id, Vgs: 140mOhm @ 35A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1482 pF @ 15 V
auf Bestellung 698 Stücke:
Lieferzeit 10-14 Tag (e)
8+2.34 EUR
12+1.56 EUR
100+1.40 EUR
500+1.09 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
AM90N20-78B AM90N20-78B Analog Power Inc. datasheet.php?data1=DS_AM90N20-78B_1A_1 Description: MOSFET N-CH 200V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 78mOhm @ 57A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 57 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 4467 pF @ 15 V
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
6+2.97 EUR
10+1.98 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH

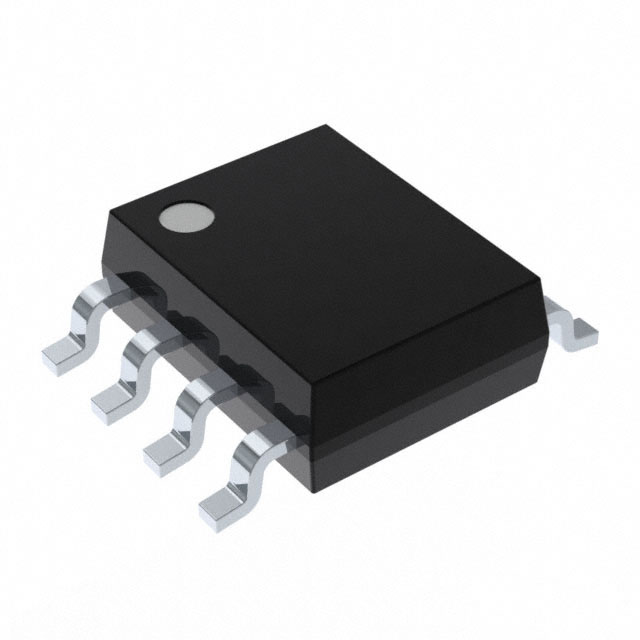

AM9926N AM9926N Analog Power Inc. datasheet.php?data1=DS_AM9926N_1A_1 Description: MOSFET N-CH 20V 6.9A SO-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Configuration: 2 N-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.1W (Ta)
Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25°C: 6.9A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 439pF @ 15V
Rds On (Max) @ Id, Vgs: 30mOhm @ 4.8A, 4.5V
Gate Charge (Qg) (Max) @ Vgs: 7nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM9945N AM9945N Analog Power Inc. datasheet.php?data1=DS_AM9945N_1A_1 Description: MOSFET N-CH 60V 3.6A SO-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
Rds On (Max) @ Id, Vgs: 89mOhm @ 2.9A, 10V
Power Dissipation (Max): 2.1W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 297 pF @ 15 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
32+0.56 EUR
47+0.38 EUR
100+0.34 EUR
500+0.26 EUR
1000+0.22 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AMC2M0025120D AMC2M0025120D Analog Power Inc. datasheet.php?part=AMC2M0025120D Description: SICFET N-CH 1200V 20A TO-247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
Rds On (Max) @ Id, Vgs: 40mOhm @ 5A, 20V
Power Dissipation (Max): 500W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA (Min)
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 15V, 20V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 7 V
Input Capacitance (Ciss) (Max) @ Vds: 2256 pF @ 50 V
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
1+147.66 EUR
30+121.51 EUR
120+91.66 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMC2M0080120D AMC2M0080120D Analog Power Inc. AMC2M0080120D.pdf Description: SICFET N-CH 1200V 36A TO247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 155°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 36A (Tc)
Rds On (Max) @ Id, Vgs: 80mOhm @ 5A, 10V
Power Dissipation (Max): 200W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 1.2 kV
Gate Charge (Qg) (Max) @ Vgs: 71 nC @ 50 V
Input Capacitance (Ciss) (Max) @ Vds: 1461 pF @ 6.5 V
auf Bestellung 1199 Stücke:
Lieferzeit 10-14 Tag (e)
1+48.98 EUR
30+40.61 EUR
120+38.07 EUR
510+32.42 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMC3M0040120D AMC3M0040120D Analog Power Inc. datasheet.php?data1=DS_AMC3M0040120D_1A_1 Description: SICFET N-CH 1200V 15A TO-247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 25mOhm @ 5A, 20V
Power Dissipation (Max): 500W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA (Min)
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 15V, 20V
Vgs (Max): ±25V
auf Bestellung 740 Stücke:
Lieferzeit 10-14 Tag (e)
1+47.03 EUR
30+30.41 EUR
120+29.19 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMIB075N15N3 AMIB075N15N3 Analog Power Inc. datasheet.php?data1=DS_AMIB075N15N3_1B_1 Description: MOSFET N-CH 150V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 10mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 55 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4329 pF @ 50 V
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
6+3.03 EUR
10+2.02 EUR
100+1.82 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
AMIB108N15N3 AMIB108N15N3 Analog Power Inc. AMIB108N15N3.pdf Description: MOSFET N-CH 150V 100A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 19mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2236 pF @ 50 V
auf Bestellung 98 Stücke:
Lieferzeit 10-14 Tag (e)
6+3.03 EUR
10+2.02 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
AMR416N AMR416N Analog Power Inc. AMR416N.pdf Description: MOSFET N-CH 100V 75A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 10mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 7442 pF @ 15 V
auf Bestellung 300 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.90 EUR
14+1.27 EUR
100+1.14 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AMR424N AMR424N Analog Power Inc. datasheet.php?part=AMR424N Description: MOSFET N-CH 100V 100A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs: 6.2mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta), 125W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2979 pF @ 15 V
auf Bestellung 790 Stücke:
Lieferzeit 10-14 Tag (e)
14+1.32 EUR
21+0.88 EUR
100+0.79 EUR
500+0.61 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
AM7341P datasheet.php?part=AM7341P
AM7341P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -40V 35A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta)
Rds On (Max) @ Id, Vgs: 19mOhm @ 12A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 5 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
26+0.69 EUR
39+0.45 EUR
100+0.41 EUR
500+0.32 EUR
1000+0.26 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
AM7342N AM7342N.pdf
AM7342N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 18A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 7mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2710 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7352N AM7352N.PDF
AM7352N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 44A DFN3X3
Packaging: Bulk
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
auf Bestellung 2300 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7356N-CT AM7356N.pdf
AM7356N-CT
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 20A DFN3x3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 50mOhm @ 3.5A, 4.5V
Power Dissipation (Max): 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 6.2 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 414 pF @ 50 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7358N datasheet.php?part=AM7358N
AM7358N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 28A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 11A (Ta), 28A (Tc)
Rds On (Max) @ Id, Vgs: 18mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta), 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 828 pF @ 50 V
auf Bestellung 3200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
3000+0.58 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7364N datasheet.php?part=AM7364N
AM7364N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 14A DFN3X3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Ta)
Rds On (Max) @ Id, Vgs: 13mOhm @ 10.7A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2775 pF @ 15 V
auf Bestellung 2200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.90 EUR
14+1.27 EUR
100+1.14 EUR
500+0.89 EUR
1000+0.73 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7365P datasheet.php?part=AM7365P
AM7365P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -60V 10A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 10A (Ta)
Rds On (Max) @ Id, Vgs: 24mOhm @ 7.9A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4793 pF @ 15 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7367P datasheet.php?part=AM7367P
AM7367P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH 60V 5.4A DFN3X3
Packaging: Bulk
Package / Case: DFN3x3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 5.4A (Ta)
Rds On (Max) @ Id, Vgs: 82mOhm @ 4.3A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN3x3
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1143 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
19+0.93 EUR
29+0.62 EUR
100+0.56 EUR
500+0.43 EUR
1000+0.35 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
AM7372N datasheet.php?part=AM7372N
AM7372N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 30A DFN3X3
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 16mOhm @ 6A, 10V
Power Dissipation (Max): 3.5W (Ta), 22W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 484 pF @ 20 V
auf Bestellung 3100 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
19+0.93 EUR
29+0.62 EUR
100+0.56 EUR
500+0.43 EUR
1000+0.35 EUR
3000+0.31 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
AM7402N datasheet.php?data1=DS_AM7402N_1A_1
AM7402N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 20A DFN5X6
Packaging: Bulk
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7410N datasheet.php?part=AM7410N
AM7410N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 15A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta)
Rds On (Max) @ Id, Vgs: 15mOhm @ 12A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4221 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
9+2.09 EUR
13+1.40 EUR
100+1.26 EUR
500+0.98 EUR
1000+0.80 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM7411P datasheet.php?part=AM7411P
AM7411P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -100V 33A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 6A (Ta), 33A (Tc)
Rds On (Max) @ Id, Vgs: 95mOhm @ 3A, 10V
Power Dissipation (Max): 5W (Ta), 156W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 3665 pF @ 15 V
auf Bestellung 2190 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
7+2.62 EUR
11+1.75 EUR
100+1.58 EUR
500+1.23 EUR
1000+1.01 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7430N datasheet.php?part=AM7430N
AM7430N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 16A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 16A (Ta)
Rds On (Max) @ Id, Vgs: 13mOhm @12.8A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1456 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.65 EUR
16+1.10 EUR
100+0.99 EUR
500+0.77 EUR
1000+0.63 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7432N-CT AM7432N.pdf
AM7432N-CT
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 27A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 5.9mOhm @ 19.1A, 2.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 400mV @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5146 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.60 EUR
17+1.07 EUR
100+0.96 EUR
500+0.75 EUR
1000+0.62 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7434N datasheet.php?part=AM7434N
AM7434N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 27A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 4.9mOhm @ 27A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2031 pF @ 15 V
auf Bestellung 4300 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
26+0.69 EUR
39+0.45 EUR
100+0.41 EUR
500+0.32 EUR
1000+0.26 EUR
3000+0.23 EUR
Mindestbestellmenge: 26
Im Einkaufswagen  Stück im Wert von  UAH
AM7436N datasheet.php?part=AM7436N
AM7436N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 27A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 27A (Ta)
Rds On (Max) @ Id, Vgs: 4.6mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 3876 pF @ 15 V
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
13+1.36 EUR
20+0.91 EUR
100+0.82 EUR
500+0.64 EUR
1000+0.52 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
AM7438N datasheet.php?part=AM7438N
AM7438N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 30V 22A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
Rds On (Max) @ Id, Vgs: 7.5mOhm @ 15.2A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
14+1.32 EUR
21+0.88 EUR
100+0.79 EUR
500+0.61 EUR
1000+0.50 EUR
3000+0.44 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
AM7440N datasheet.php?part=AM7440N
AM7440N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 15A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta)
Rds On (Max) @ Id, Vgs: 15mOhm @ 12A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1826 pF @ 15 V
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.76 EUR
16+1.17 EUR
100+1.05 EUR
500+0.82 EUR
1000+0.67 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7442N datasheet.php?part=AM7442N
AM7442N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 20A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2060 pF @ 15 V
auf Bestellung 2800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7443P datasheet.php?part=AM7443P
AM7443P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -40V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta), 83W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4136 pF @ 15 V
auf Bestellung 2488 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
14+1.27 EUR
21+0.84 EUR
100+0.76 EUR
500+0.59 EUR
1000+0.49 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
AM7446NA datasheet.php?part=AM7446NA
AM7446NA
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 25A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 25A (Ta)
Rds On (Max) @ Id, Vgs: 5.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 32 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2829 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7450N-CT AM7450N.pdf
AM7450N-CT
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 20A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 11.7mOhm @ 13.1A, 4.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5861 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.65 EUR
16+1.10 EUR
100+0.99 EUR
500+0.77 EUR
1000+0.63 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7452NA datasheet.php?part=AM7452NA
AM7452NA
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs: 4.9mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 83W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 48 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 14642 pF @ 15 V
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
9+1.99 EUR
14+1.33 EUR
100+1.20 EUR
500+0.93 EUR
1000+0.77 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM7458N datasheet.php?part=AM7458N
AM7458N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 83.7A DFN5X6
Packaging: Strip
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta), 83.7A (Tc)
Rds On (Max) @ Id, Vgs: 14mOhm @ 10A, 10V
Power Dissipation (Max): 2.6W (Ta), 147.1W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 2670 pF @ 50 V
auf Bestellung 2800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.95 EUR
14+1.30 EUR
100+1.17 EUR
500+0.91 EUR
1000+0.75 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7460N datasheet.php?data1=DS_AM7460N_1A_1
AM7460N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 12A DFN5X6
Packaging: Bulk
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM7462N datasheet.php?part=AM7462N
AM7462N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 13A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta)
Rds On (Max) @ Id, Vgs: 22mOhm @ 10.4A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2086 pF @ 15 V
auf Bestellung 3200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
7+2.73 EUR
10+1.82 EUR
100+1.64 EUR
500+1.27 EUR
1000+1.05 EUR
3000+0.91 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7463P datasheet.php?part=AM7463P
AM7463P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -60V 17A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta)
Rds On (Max) @ Id, Vgs: 12mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 90 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9258 pF @ 15 V
auf Bestellung 4000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
3000+0.62 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7465P datasheet.php?data1=DS_AM7465P_1A_1
AM7465P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH -60V 19A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta)
Rds On (Max) @ Id, Vgs: 9.8mOhm @ 9A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): -60 V
Gate Charge (Qg) (Max) @ Vgs: 66 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5960 pF @ 15 V
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.92 EUR
14+1.27 EUR
100+1.15 EUR
500+0.89 EUR
1000+0.73 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7466N datasheet.php?part=AM7466N
AM7466N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 80A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
Rds On (Max) @ Id, Vgs: 6mOhm @ 20A, 10V
Power Dissipation (Max): 3.5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4045 pF @ 15 V
auf Bestellung 4500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
12+1.57 EUR
17+1.04 EUR
100+0.94 EUR
500+0.73 EUR
1000+0.60 EUR
3000+0.52 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
AM7482N datasheet.php?part=AM7482N
AM7482N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 80V 18A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 11mOhm @ 14.4A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 72 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4021 pF @ 15 V
auf Bestellung 3500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
7+2.82 EUR
10+1.88 EUR
100+1.69 EUR
500+1.32 EUR
1000+1.08 EUR
3000+0.94 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
AM7484N AM7484N.pdf
AM7484N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 80V 60A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta)
Rds On (Max) @ Id, Vgs: 8.9mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 52 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 7442 pF @ 15 V
auf Bestellung 7000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
3000+0.62 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7490N AM7490N.pdf
AM7490N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 8.3A DFN5x6
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 8.3A (Ta)
Rds On (Max) @ Id, Vgs: 54mOhm @ 6.4A, 5.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5.2x5.55)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 58 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4388 pF @ 15 V
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3000+0.60 EUR
6000+0.57 EUR
Mindestbestellmenge: 3000
Im Einkaufswagen  Stück im Wert von  UAH
AM7490N-CT AM7490N.pdf
AM7490N-CT
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 8.3A DFN5x6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 8.3A (Ta)
Rds On (Max) @ Id, Vgs: 54mOhm @ 6.4A, 5.5V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 58 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4388 pF @ 15 V
auf Bestellung 2700 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.85 EUR
15+1.23 EUR
100+1.11 EUR
500+0.86 EUR
1000+0.71 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AM7492N datasheet.php?part=AM7492N
AM7492N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 6.2A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 6.2A (Ta)
Rds On (Max) @ Id, Vgs: 88mOhm @ 23A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2599 pF @ 15 V
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
12+1.51 EUR
18+1.01 EUR
100+0.91 EUR
500+0.70 EUR
1000+0.58 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
AM7542C datasheet.php?data1=DS_AM7542C_1A_1
AM7542C
Hersteller: Analog Power Inc.
Description: MOSFET N/P-CH 40V 6.9A 8DFN
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta)
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 6.9A (Ta), 6.6A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 1506pF @ 15V, 1264pF @ 15V
Rds On (Max) @ Id, Vgs: 39mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 10nC @ 4.5V, 15nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 1500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
15+1.21 EUR
22+0.81 EUR
100+0.72 EUR
500+0.56 EUR
1000+0.46 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM7942N datasheet.php?data1=DS_AM7942N_1A_1
AM7942N
Hersteller: Analog Power Inc.
Description: MOSFET 2N-CH 40V 17A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 63W (Tc)
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 3772pF @ 15V
Rds On (Max) @ Id, Vgs: 6mOhm @ 50A, 10V
Gate Charge (Qg) (Max) @ Vgs: 32nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.60 EUR
17+1.07 EUR
100+0.96 EUR
500+0.75 EUR
1000+0.62 EUR
3000+0.54 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
AM7944N datasheet.php?part=AM7944N
AM7944N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 36A DFN5X6
Packaging: Bulk
Package / Case: DFN5x6
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta) 36A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 6A, 10V
Power Dissipation (Max): 2.5W (Ta), 21W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: DFN5x6
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1480 pF @ 15 V
auf Bestellung 1200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
15+1.21 EUR
22+0.81 EUR
100+0.73 EUR
500+0.57 EUR
1000+0.47 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM7966N datasheet.php?data1=DS_AM7966N_1A_1
AM7966N
Hersteller: Analog Power Inc.
Description: MOSFET 2N-CH 60V 6.8A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 19W (Tc)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 6.8A (Ta), 19A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 854pF @ 15V
Rds On (Max) @ Id, Vgs: 37mOhm @ 4A, 10V
Gate Charge (Qg) (Max) @ Vgs: 8nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 7000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
5+3.70 EUR
10+2.47 EUR
100+2.22 EUR
500+1.73 EUR
1000+1.42 EUR
3000+1.23 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AM90N03-03P datasheet.php?data1=DS_AM90N03-03P_1A_2
AM90N03-03P
Hersteller: Analog Power Inc.
Description: MOSFET P-CH 30V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-2
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
Supplier Device Package: TO-220
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6725 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-04D AM90N06-04D.pdf
AM90N06-04D
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 83A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 83A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 45A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 11698 pF @ 15 V
auf Bestellung 4970 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
16+1.16 EUR
23+0.77 EUR
100+0.70 EUR
500+0.54 EUR
1000+0.44 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-10P datasheet.php?part=AM90N06-10P
AM90N06-10P
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 9.9mOhm @ 30A, 10V
Power Dissipation (Max): 120W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 77 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5887 pF @ 15 V
auf Bestellung 700 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
16+1.13 EUR
50+0.89 EUR
100+0.72 EUR
500+0.62 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-10PCFM datasheet.php?part=AM90N06-10PCFM
AM90N06-10PCFM
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 64A TO-220CFM
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 64A (Tc)
Rds On (Max) @ Id, Vgs: 9.9mOhm @ 45A, 10V
Power Dissipation (Max): 60W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220CFM
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 79 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 10331 pF @ 15 V
auf Bestellung 800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
15+1.21 EUR
50+0.97 EUR
100+0.79 EUR
500+0.68 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
AM90N06-16P datasheet.php?part=AM90N06-16P
AM90N06-16P
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 40V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2138 pF @ 15 V
auf Bestellung 1790 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
23+0.77 EUR
50+0.61 EUR
100+0.49 EUR
500+0.43 EUR
1000+0.34 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-04B AM90N08-04B.pdf
AM90N08-04B
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 167 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 11678 pF @ 15 V
auf Bestellung 2385 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+5.33 EUR
10+3.56 EUR
100+3.20 EUR
500+2.49 EUR
800+1.78 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-10B AM90N08-10B.pdf
AM90N08-10B
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 13mOhm @ 44A, 4.5V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5052 pF @ 15 V
auf Bestellung 950 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
800+0.67 EUR
Mindestbestellmenge: 800
Im Einkaufswagen  Stück im Wert von  UAH
AM90N08-10B-CT AM90N08-10B.pdf
AM90N08-10B-CT
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 80V 90A TO-263
Packaging: Bulk
Package / Case: TO-263
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 13mOhm @ 44A, 4.5V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 5052 pF @ 15 V
auf Bestellung 950 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
9+2.01 EUR
14+1.34 EUR
100+1.21 EUR
500+0.94 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM90N10-07B datasheet.php?part=AM90N10-07B
AM90N10-07B
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 7mOhm @ 45A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 114 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9235 pF @ 15 V
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+5.76 EUR
10+3.84 EUR
100+3.45 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
AM90N10-14P datasheet.php?part=AM90N10-14P
AM90N10-14P
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Ta)
Rds On (Max) @ Id, Vgs: 16mOhm @ 30A, 10V
Power Dissipation (Max): 300W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4221 pF @ 15 V
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM90N15-20P datasheet.php?data1=DS_AM90N15-20P_1A_1
AM90N15-20P
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 90A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Ta)
Rds On (Max) @ Id, Vgs: 24mOhm @ 100A, 10V
Power Dissipation (Max): 300W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220AB
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 123 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 9857 pF @ 15 V
auf Bestellung 2300 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
5+3.59 EUR
50+2.85 EUR
100+2.30 EUR
500+1.98 EUR
1000+1.58 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AM90N20-140B datasheet.php?data1=DS_AM90N20-140B_1A_1
AM90N20-140B
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 200V 29A TO-263
Packaging: Strip
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 29A (Tc)
Rds On (Max) @ Id, Vgs: 140mOhm @ 35A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1482 pF @ 15 V
auf Bestellung 698 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
8+2.34 EUR
12+1.56 EUR
100+1.40 EUR
500+1.09 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
AM90N20-78B datasheet.php?data1=DS_AM90N20-78B_1A_1
AM90N20-78B
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 200V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 78mOhm @ 57A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 57 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 4467 pF @ 15 V
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+2.97 EUR
10+1.98 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
AM9926N datasheet.php?data1=DS_AM9926N_1A_1
AM9926N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 20V 6.9A SO-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Configuration: 2 N-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.1W (Ta)
Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25°C: 6.9A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 439pF @ 15V
Rds On (Max) @ Id, Vgs: 30mOhm @ 4.8A, 4.5V
Gate Charge (Qg) (Max) @ Vgs: 7nC @ 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AM9945N datasheet.php?data1=DS_AM9945N_1A_1
AM9945N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 60V 3.6A SO-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
Rds On (Max) @ Id, Vgs: 89mOhm @ 2.9A, 10V
Power Dissipation (Max): 2.1W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 297 pF @ 15 V
auf Bestellung 1800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
32+0.56 EUR
47+0.38 EUR
100+0.34 EUR
500+0.26 EUR
1000+0.22 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AMC2M0025120D datasheet.php?part=AMC2M0025120D
AMC2M0025120D
Hersteller: Analog Power Inc.
Description: SICFET N-CH 1200V 20A TO-247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
Rds On (Max) @ Id, Vgs: 40mOhm @ 5A, 20V
Power Dissipation (Max): 500W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA (Min)
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 15V, 20V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 7 V
Input Capacitance (Ciss) (Max) @ Vds: 2256 pF @ 50 V
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+147.66 EUR
30+121.51 EUR
120+91.66 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMC2M0080120D AMC2M0080120D.pdf
AMC2M0080120D
Hersteller: Analog Power Inc.
Description: SICFET N-CH 1200V 36A TO247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 155°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 36A (Tc)
Rds On (Max) @ Id, Vgs: 80mOhm @ 5A, 10V
Power Dissipation (Max): 200W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 1.2 kV
Gate Charge (Qg) (Max) @ Vgs: 71 nC @ 50 V
Input Capacitance (Ciss) (Max) @ Vds: 1461 pF @ 6.5 V
auf Bestellung 1199 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+48.98 EUR
30+40.61 EUR
120+38.07 EUR
510+32.42 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMC3M0040120D datasheet.php?data1=DS_AMC3M0040120D_1A_1
AMC3M0040120D
Hersteller: Analog Power Inc.
Description: SICFET N-CH 1200V 15A TO-247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 25mOhm @ 5A, 20V
Power Dissipation (Max): 500W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA (Min)
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 15V, 20V
Vgs (Max): ±25V
auf Bestellung 740 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+47.03 EUR
30+30.41 EUR
120+29.19 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AMIB075N15N3 datasheet.php?data1=DS_AMIB075N15N3_1B_1
AMIB075N15N3
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 90A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
Rds On (Max) @ Id, Vgs: 10mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 55 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 4329 pF @ 50 V
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.03 EUR
10+2.02 EUR
100+1.82 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
AMIB108N15N3 AMIB108N15N3.pdf
AMIB108N15N3
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 150V 100A TO-263
Packaging: Bulk
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 19mOhm @ 20A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-263
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 150 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 6.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2236 pF @ 50 V
auf Bestellung 98 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.03 EUR
10+2.02 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
AMR416N AMR416N.pdf
AMR416N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 75A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
Rds On (Max) @ Id, Vgs: 10mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 7442 pF @ 15 V
auf Bestellung 300 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.90 EUR
14+1.27 EUR
100+1.14 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
AMR424N datasheet.php?part=AMR424N
AMR424N
Hersteller: Analog Power Inc.
Description: MOSFET N-CH 100V 100A DFN5X6
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs: 6.2mOhm @ 10A, 10V
Power Dissipation (Max): 5W (Ta), 125W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 28 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 2979 pF @ 15 V
auf Bestellung 790 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
14+1.32 EUR
21+0.88 EUR
100+0.79 EUR
500+0.61 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 2 3 4  [ Nächste Seite >> ]
