Transistoren > MOSFET N-CH

Hersteller: Infineon
Transistoren > MOSFET N-CH
Gehäuse: PG-TO247
Drain-Source-Spannung Uds, V: 650 V
Drain-Strom Idd, A: 24,3 A
Durchlasswiderstand Rds(on), Ohm: 0,16 Ohm
Eingangskapazität Ciss, pF / Gate-Ladung Qg, nC: 3000/104
Montage: THT

Hersteller: FS
Transistoren > MOSFET N-CH
Gehäuse: TO-220F
Drain-Source-Spannung Uds, V: 600 V
Drain-Strom Idd, A: 2,3 A
Durchlasswiderstand Rds(on), Ohm: 2,5 Ohm
Eingangskapazität Ciss, pF / Gate-Ladung Qg, nC: 710/22
Bemerkung: Isoliertes Gehäuse
Montage: THT

Hersteller: to-220/f
AAT

TO-220/F 08+

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -15kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, Standard Interface

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -20kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, Standard Interface

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -25kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, I5 Interface 0 to +5 Monitors/Controls, Arc detection, Male DA-15 type connector

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -2000V DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, Standard Interface

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -2000V DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, I5 Interface 0 to +5 Monitors/Controls

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -30kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, I5 Interface 0 to +5 Monitors/Controls, Male DA-15 type connector

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -4000V DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, Standard Interface

Hersteller: Advanced Energy / Ultravolt
DC/DC Converters - Through Hole HPC-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -8kV DC HVout, 60W, Chassis/Thru-hole Mount, Regulated, Standard Interface

Hersteller: ABRACON
Crystals MHz Crystal 1008 4-SMD 60MHz +/-10ppm -30C - 85C

Hersteller: ALPHA&OMEGA
Transistor N-Channel MOSFET; 600V; 30V; 2,3Ohm; 4A; 104W; -50°C ~ 150°C; AOD4N60 TAOD4n60
Anzahl je Verpackung: 10 Stücke

Hersteller: ALPHA & OMEGA SEMICONDUCTOR
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 2.7A; 104W; TO220
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 2.7A
Power dissipation: 104W
Case: TO220
Gate-source voltage: ±30V
On-state resistance: 2.2Ω
Mounting: THT
Kind of channel: enhancement
Gate charge: 15nC

Hersteller: ALPHA&OMEGA
Transistor N-Channel MOSFET; 600V; 30V; 2,2Ohm; 4A; 104W; -55°C ~ 150°C; AOT4N60 TAOT4n60
Anzahl je Verpackung: 25 Stücke

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 600V 4A TO220
Packaging: Tube
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 4A (Tc)
Rds On (Max) @ Id, Vgs: 2.2Ohm @ 2A, 10V
Power Dissipation (Max): 104W (Tc)
Vgs(th) (Max) @ Id: 4.5V @ 250µA
Supplier Device Package: TO-220
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 615 pF @ 25 V

Hersteller: ALPHA&OMEGA
Transistor N-Channel MOSFET; 600V; 30V; 2,2Ohm; 4A; 35W; -55°C ~ 150°C; AOTF4N60 TAOTF4n60
Anzahl je Verpackung: 25 Stücke

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CHANNEL 600V 4A TO220F
Packaging: Tube
Package / Case: TO-220-3 Full Pack
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 4A (Tc)
Rds On (Max) @ Id, Vgs: 2.2Ohm @ 2A, 10V
Power Dissipation (Max): 35W (Tc)
Vgs(th) (Max) @ Id: 4.5V @ 250µA
Supplier Device Package: TO-220F
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 615 pF @ 25 V

Hersteller: ONSEMI
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 2.5A; 50W; DPAK
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 2.5A
Power dissipation: 50W
Case: DPAK
Gate-source voltage: ±30V
On-state resistance: 1.2Ω
Mounting: SMD
Kind of package: reel; tape
Kind of channel: enhancement

Hersteller: onsemi
Description: MOSFET N-CH 600V 3.9A DPAK
Packaging: Cut Tape (CT)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 3.9A (Tc)
Rds On (Max) @ Id, Vgs: 1.2Ohm @ 2A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-252AA
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 16.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 25 V

Hersteller: onsemi
MOSFETs N-CH/600V/7A/ SuperFET

Hersteller: onsemi
Description: MOSFET N-CH 600V 3.9A DPAK
Packaging: Tape & Reel (TR)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 3.9A (Tc)
Rds On (Max) @ Id, Vgs: 1.2Ohm @ 2A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-252AA
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 16.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 25 V

Hersteller: ONSEMI
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 24A; 357W; TO247
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 24A
Power dissipation: 357W
Case: TO247
Gate-source voltage: ±20V
On-state resistance: 0.104Ω
Mounting: THT
Kind of package: tube
Kind of channel: enhancement

Hersteller: onsemi
MOSFETs N-Channel SuperFET

Hersteller: onsemi
Description: MOSFET N-CH 600V 37A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
Rds On (Max) @ Id, Vgs: 104mOhm @ 18.5A, 10V
Power Dissipation (Max): 357W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 139 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5950 pF @ 100 V

Hersteller: onsemi
Description: MOSFET N-CH 600V 37A TO220-3
Packaging: Tube
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
Rds On (Max) @ Id, Vgs: 104mOhm @ 18.5A, 10V
Power Dissipation (Max): 357W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: TO-220-3
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 82 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4165 pF @ 380 V

Hersteller: onsemi
MOSFETs SuperFET2 600V Fast ver

Hersteller: onsemi
MOSFETs N-Channel SuperFET II FRFET MOSFET 600V, 37A, 104mO

Hersteller: onsemi
Description: MOSFET N-CH 600V 37A TO220-3
Packaging: Tube
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
Rds On (Max) @ Id, Vgs: 104mOhm @ 18.5A, 10V
Power Dissipation (Max): 357W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-220-3
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6130 pF @ 25 V

Hersteller: ONSEMI
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 14.9A; 310W; TO3PN
Type of transistor: N-MOSFET
Technology: QFET®
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 14.9A
Power dissipation: 310W
Case: TO3PN
Gate-source voltage: ±30V
On-state resistance: 0.24Ω
Mounting: THT
Kind of package: tube
Kind of channel: enhancement
Gate charge: 145nC

Hersteller: ON-Semiconductor
Trans MOSFET N-CH 600V 23.5A 3-Pin(3+Tab) TO-3PN Rail FQA24N60 Fairchild TFQA24n60
Anzahl je Verpackung: 2 Stücke

Hersteller: onsemi
Description: MOSFET N-CH 600V 23.5A TO3PN
Packaging: Tube
Package / Case: TO-3P-3, SC-65-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23.5A (Tc)
Rds On (Max) @ Id, Vgs: 240mOhm @ 11.8A, 10V
Power Dissipation (Max): 310W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-3PN
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5500 pF @ 25 V

Hersteller: onsemi
MOSFETs 600V N-Channel QFET

Hersteller: Infineon
Transistor IGBT ; 600V; 20V; 8A; 12A; 75W; 4,3V~5,7V; 27nC; -40°C~175°C;   IKD04N60R TIKD04n60r
Anzahl je Verpackung: 10 Stücke

Hersteller: INFINEON TECHNOLOGIES
Category: SMD IGBT transistors
Description: Transistor: IGBT; TRENCHSTOP™ RC; 600V; 4A; 75W; DPAK
Type of transistor: IGBT
Collector-emitter voltage: 600V
Collector current: 4A
Power dissipation: 75W
Case: DPAK
Gate-emitter voltage: ±20V
Pulsed collector current: 12A
Mounting: SMD
Gate charge: 27nC
Kind of package: reel; tape
Technology: TRENCHSTOP™ RC
Features of semiconductor devices: integrated anti-parallel diode
Turn-on time: 22ns
Turn-off time: 317ns

Hersteller: Infineon Technologies
Description: IGBT TRENCH FS 600V 8A TO252-3
Packaging: Tape & Reel (TR)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 43 ns
Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 4A
Supplier Device Package: PG-TO252-3
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 14ns/146ns
Switching Energy: 90µJ (on), 150µJ (off)
Test Condition: 400V, 4A, 43Ohm, 15V
Gate Charge: 27 nC
Part Status: Active
Current - Collector (Ic) (Max): 8 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 75 W

Hersteller: Infineon Technologies
Description: IGBT TRENCH FS 600V 8A TO252-3
Packaging: Cut Tape (CT)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 43 ns
Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 4A
Supplier Device Package: PG-TO252-3
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 14ns/146ns
Switching Energy: 90µJ (on), 150µJ (off)
Test Condition: 400V, 4A, 43Ohm, 15V
Gate Charge: 27 nC
Part Status: Active
Current - Collector (Ic) (Max): 8 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 75 W

Hersteller: Infineon Technologies
IGBTs IGBT w/ INTG DIODE 600V 8A

Hersteller: Infineon Technologies
Description: IGBT TRENCH FS 600V 8A TO252-3
Packaging: Tape & Reel (TR)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 80 ns
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 4A
Supplier Device Package: PG-TO252-3
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 4ns/90ns
Switching Energy: 100µJ (on), 40µJ (off)
Test Condition: 400V, 4A, 49Ohm, 15V
Gate Charge: 24 nC
Part Status: Active
Current - Collector (Ic) (Max): 8 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 36.6 W

Hersteller: Infineon Technologies
Description: IGBT TRENCH FS 600V 8A TO252-3
Packaging: Cut Tape (CT)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 80 ns
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 4A
Supplier Device Package: PG-TO252-3
IGBT Type: Trench Field Stop
Td (on/off) @ 25°C: 4ns/90ns
Switching Energy: 100µJ (on), 40µJ (off)
Test Condition: 400V, 4A, 49Ohm, 15V
Gate Charge: 24 nC
Part Status: Active
Current - Collector (Ic) (Max): 8 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 36.6 W

Hersteller: Infineon Technologies
IGBTs 600 V, 4 A IGBT Discrete with Reverse Conducting Drive 2-diode in TO-252 package

Hersteller: Infineon Technologies
IGBTs IGBT w/ INTG DIODE 600V 8A

Hersteller: Infineon Technologies
Description: IGBT TRENCH 600V 8A TO252-3
Packaging: Cut Tape (CT)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 34 ns
Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 4A
Supplier Device Package: PG-TO252-3
IGBT Type: Trench
Td (on/off) @ 25°C: 12ns/116ns
Switching Energy: 60µJ (on), 50µJ (off)
Test Condition: 400V, 4A, 43Ohm, 15V
Gate Charge: 27 nC
Part Status: Active
Current - Collector (Ic) (Max): 8 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 75 W

Hersteller: Infineon Technologies
IGBTs HOME APPLIANCES

Hersteller: Infineon Technologies
Description: IGBT 600V 7.5A SOT223-3
Packaging: Cut Tape (CT)
Package / Case: TO-261-4, TO-261AA
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 150°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 39 ns
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 4A
Supplier Device Package: PG-SOT223-3
Td (on/off) @ 25°C: 8ns/126ns
Switching Energy: 95µJ (on), 62µJ (off)
Test Condition: 400V, 4A, 49Ohm, 15V
Gate Charge: 24 nC
Part Status: Active
Current - Collector (Ic) (Max): 7.5 A
Voltage - Collector Emitter Breakdown (Max): 600 V
Current - Collector Pulsed (Icm): 12 A
Power - Max: 6.8 W

Hersteller: INFINEON TECHNOLOGIES
Category: THT IGBT transistors
Description: Transistor: IGBT; 600V; 4A; 42W; TO220-3
Type of transistor: IGBT
Technology: TRENCHSTOP™
Power dissipation: 42W
Case: TO220-3
Mounting: THT
Kind of package: tube
Gate-emitter voltage: ±20V
Collector current: 4A
Collector-emitter voltage: 600V
Gate charge: 27nC
Features of semiconductor devices: integrated anti-parallel diode
Pulsed collector current: 12A
Turn-on time: 21ns
Turn-off time: 207ns

Hersteller: IXYS
Description: MOSFET N-CH 600V 14A TO263
Packaging: Tube
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Tc)
Rds On (Max) @ Id, Vgs: 550mOhm @ 7A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 5.5V @ 2.5mA
Supplier Device Package: TO-263AA (IXFA)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2500 pF @ 25 V

Hersteller: IXYS

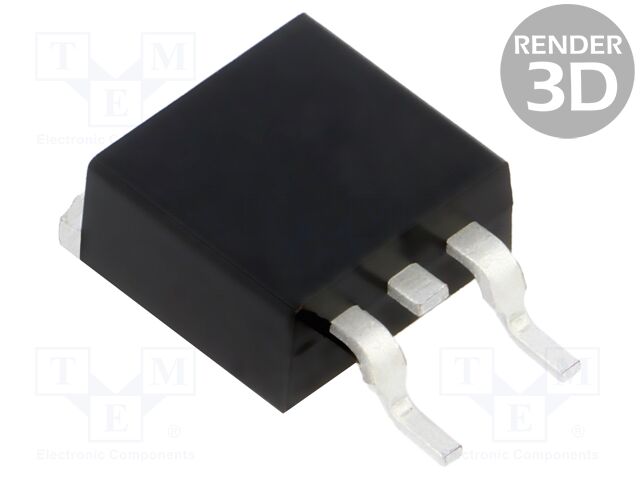

Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 24A; 400W; TO263; 140ns
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 24A
Power dissipation: 400W
Case: TO263
On-state resistance: 0.175Ω
Mounting: SMD
Kind of package: tube
Kind of channel: enhancement
Reverse recovery time: 140ns
Gate charge: 47nC
Features of semiconductor devices: ultra junction x-class

Hersteller: IXYS
MOSFETs 600V 14A

Hersteller: IXYS
Category: THT N channel transistors
Description: Transistor: N-MOSFET; X2-Class; unipolar; 600V; 34A; Idm: 68A; 540W
Type of transistor: N-MOSFET
Technology: HiPerFET™; X2-Class
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 34A
Power dissipation: 540W
Case: TO247-3
Gate-source voltage: ±30V
On-state resistance: 0.1Ω
Mounting: THT
Kind of package: tube
Kind of channel: enhancement
Reverse recovery time: 164ns
Pulsed drain current: 68A
Gate charge: 56nC
Features of semiconductor devices: ultra junction x-class
Application: automotive industry

Hersteller: IXYS
MOSFETs 600V 64A

Hersteller: IXYS
Description: MOSFET N-CH 600V 64A TO264AA
Packaging: Tube
Package / Case: TO-264-3, TO-264AA
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 64A (Tc)
Rds On (Max) @ Id, Vgs: 96mOhm @ 500mA, 10V
Power Dissipation (Max): 1040W (Tc)
Vgs(th) (Max) @ Id: 5V @ 8mA
Supplier Device Package: TO-264AA (IXFK)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 200 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 12000 pF @ 25 V

Hersteller: IXYS
Category: THT N channel transistors
Description: Transistor: N-MOSFET; Polar3™; unipolar; 600V; 64A; 1130W; TO264
Type of transistor: N-MOSFET
Technology: HiPerFET™; Polar3™
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 64A
Power dissipation: 1.13kW
Case: TO264
Gate-source voltage: ±30V
On-state resistance: 0.1Ω
Mounting: THT
Kind of package: tube
Kind of channel: enhancement
Reverse recovery time: 250ns
Gate charge: 145nC
