Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis

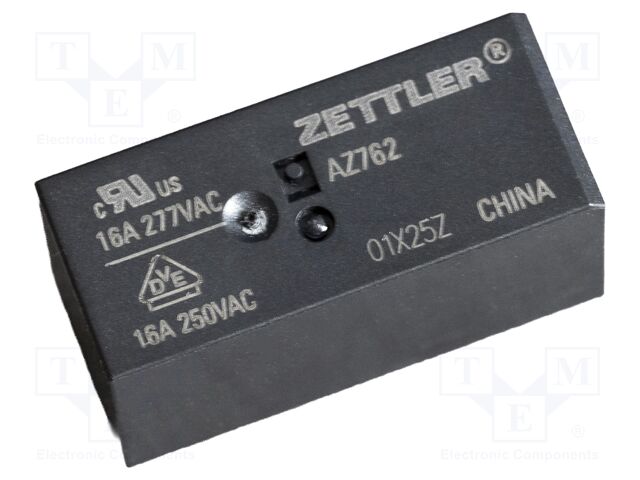

AZ762-1A-24DE AZ762-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE7406E4FA60E1&compId=AZ762.pdf?ci_sign=ff93e56358beaa2ceb451d56786ab7cfcba7619c Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Mounting: PCB
Terminal pitch: 5.04mm
Manufacturer series: AZ762
Operating temperature: -40...85°C
Release time: 4ms
Operate time: 7ms
Contact resistance: 10mΩ
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 400mW
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 24V DC
AC contacts rating @R: 16A / 250V AC
Coil voltage max.: 49.4V DC
Switched voltage: max. 30V DC; max. 440V AC
Coil resistance: 1.44kΩ
Type of relay: electromagnetic
Relay variant: miniature
Contacts configuration: SPST-NO
auf Bestellung 482 Stücke:
Lieferzeit 14-21 Tag (e)
41+1.74 EUR
44+1.63 EUR
50+1.44 EUR
53+1.36 EUR
Mindestbestellmenge: 41
Im Einkaufswagen  Stück im Wert von  UAH
AZ762-1A-24DE AZ762-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE7406E4FA60E1&compId=AZ762.pdf?ci_sign=ff93e56358beaa2ceb451d56786ab7cfcba7619c Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Mounting: PCB
Terminal pitch: 5.04mm
Manufacturer series: AZ762
Operating temperature: -40...85°C
Release time: 4ms
Operate time: 7ms
Contact resistance: 10mΩ
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 400mW
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 24V DC
AC contacts rating @R: 16A / 250V AC
Coil voltage max.: 49.4V DC
Switched voltage: max. 30V DC; max. 440V AC
Coil resistance: 1.44kΩ
Type of relay: electromagnetic
Relay variant: miniature
Contacts configuration: SPST-NO
Anzahl je Verpackung: 1 Stücke
auf Bestellung 482 Stücke:
Lieferzeit 7-14 Tag (e)
41+1.74 EUR
44+1.63 EUR
50+1.44 EUR
53+1.36 EUR
500+1.34 EUR
Mindestbestellmenge: 41
Im Einkaufswagen  Stück im Wert von  UAH
AZ762-1C-24DE ZETTLER AZ762-1C-24DE Miniature Electromagnetic Relays
auf Bestellung 2519 Stücke:
Lieferzeit 7-14 Tag (e)
28+2.56 EUR
43+1.67 EUR
46+1.57 EUR
Mindestbestellmenge: 28
Im Einkaufswagen  Stück im Wert von  UAH

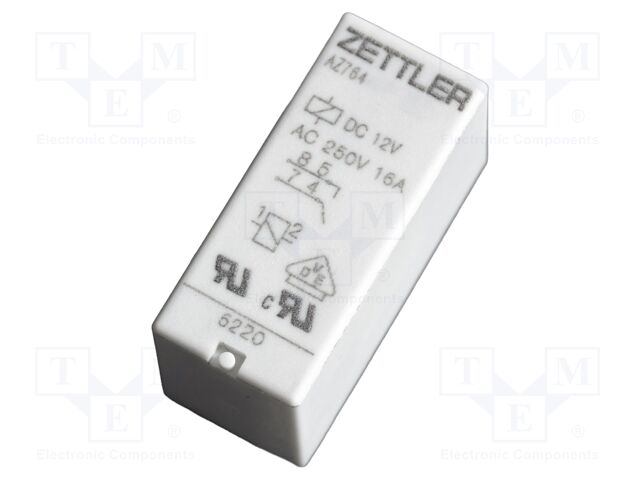

AZ764-1A-24DE AZ764-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE8C05F46220E1&compId=AZ764.pdf?ci_sign=5e2417ac879a297dee265a2d15c1eb0adba9e8c1 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Release time: 3ms
Terminal pitch: 5mm
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Contact resistance: 100mΩ
Coil power consumption: 400mW
AC contacts rating @R: 16A / 250V AC
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 30V DC
Switched voltage: max. 30V DC; max. 400V AC
Coil voltage max.: 61.2V DC
Coil resistance: 1.44kΩ
Manufacturer series: AZ764
auf Bestellung 1373 Stücke:
Lieferzeit 14-21 Tag (e)
33+2.17 EUR
38+1.93 EUR
46+1.57 EUR
49+1.49 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
AZ764-1A-24DE AZ764-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE8C05F46220E1&compId=AZ764.pdf?ci_sign=5e2417ac879a297dee265a2d15c1eb0adba9e8c1 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Release time: 3ms
Terminal pitch: 5mm
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Contact resistance: 100mΩ
Coil power consumption: 400mW
AC contacts rating @R: 16A / 250V AC
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 30V DC
Switched voltage: max. 30V DC; max. 400V AC
Coil voltage max.: 61.2V DC
Coil resistance: 1.44kΩ
Manufacturer series: AZ764
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1373 Stücke:
Lieferzeit 7-14 Tag (e)
33+2.17 EUR
38+1.93 EUR
46+1.57 EUR
49+1.49 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
AZ764-1C-24DE ZETTLER AZ764-1C-24DE Miniature Electromagnetic Relays
auf Bestellung 877 Stücke:
Lieferzeit 7-14 Tag (e)
35+2.06 EUR
43+1.7 EUR
45+1.62 EUR
Mindestbestellmenge: 35
Im Einkaufswagen  Stück im Wert von  UAH
AZ770-1A-5DSE AZ770-1A-5DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; AZ770
Body dimensions: 17.85x10.35x12.55mm
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
DC contacts rating @R: 5A / 30V DC
Contact current max.: 5A
Rated coil voltage: 5V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 125Ω
Contact material: AgNi
Manufacturer series: AZ770
Type of relay: electromagnetic
auf Bestellung 350 Stücke:
Lieferzeit 14-21 Tag (e)
50+1.44 EUR
52+1.39 EUR
54+1.34 EUR
100+1.26 EUR
Mindestbestellmenge: 50
Im Einkaufswagen  Stück im Wert von  UAH
AZ770-1A-5DSE AZ770-1A-5DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; AZ770
Body dimensions: 17.85x10.35x12.55mm
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
DC contacts rating @R: 5A / 30V DC
Contact current max.: 5A
Rated coil voltage: 5V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 125Ω
Contact material: AgNi
Manufacturer series: AZ770
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 350 Stücke:
Lieferzeit 7-14 Tag (e)
50+1.44 EUR
52+1.39 EUR
54+1.34 EUR
100+1.26 EUR
Mindestbestellmenge: 50
Im Einkaufswagen  Stück im Wert von  UAH
AZ770T-1AE-12DSEK AZ770T-1AE-12DSEK ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Mounting: PCB
Body dimensions: 17.85x10.35x12.55mm
Manufacturer series: AZ770
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
Contact current max.: 10A
Rated coil voltage: 12V DC
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 720Ω
Contact material: AgSnO2
Contacts configuration: SPST-NO
Type of relay: electromagnetic
Relay variant: miniature
auf Bestellung 400 Stücke:
Lieferzeit 14-21 Tag (e)
36+2.03 EUR
38+1.93 EUR
54+1.34 EUR
57+1.26 EUR
Mindestbestellmenge: 36
Im Einkaufswagen  Stück im Wert von  UAH
AZ770T-1AE-12DSEK AZ770T-1AE-12DSEK ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Mounting: PCB
Body dimensions: 17.85x10.35x12.55mm
Manufacturer series: AZ770
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
Contact current max.: 10A
Rated coil voltage: 12V DC
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 720Ω
Contact material: AgSnO2
Contacts configuration: SPST-NO
Type of relay: electromagnetic
Relay variant: miniature
Anzahl je Verpackung: 1 Stücke
auf Bestellung 400 Stücke:
Lieferzeit 7-14 Tag (e)
36+2.03 EUR
38+1.93 EUR
54+1.34 EUR
57+1.26 EUR
Mindestbestellmenge: 36
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE AZ822-2C-12DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 960Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 30V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
auf Bestellung 11414 Stücke:
Lieferzeit 14-21 Tag (e)
66+1.09 EUR
74+0.97 EUR
77+0.93 EUR
100+0.84 EUR
200+0.8 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-24DSE AZ822-2C-24DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 52.9V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 98mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
auf Bestellung 8756 Stücke:
Lieferzeit 14-21 Tag (e)
66+1.09 EUR
73+0.99 EUR
76+0.94 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-3DSE AZ822-2C-3DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Manufacturer series: AZ822
Body dimensions: 20x9.8x12mm
Coil resistance: 60Ω
Contact resistance: 50mΩ
Coil power consumption: 74mW
IP rating: IP64
Operating temperature: -55...90°C
Operate time: 5ms
Terminal pitch: 5mm
Release time: 2ms
Coil voltage max.: 7.5V DC
Coil voltage min.: 2.1V DC
auf Bestellung 2081 Stücke:
Lieferzeit 14-21 Tag (e)
34+2.16 EUR
39+1.87 EUR
53+1.36 EUR
56+1.29 EUR
500+1.24 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-48DSE AZ822-2C-48DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; 2A; 0.5A/120VAC; AZ822
IP rating: IP64
Contacts configuration: DPDT
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Body dimensions: 20x9.8x12mm
Contact resistance: 50mΩ
Coil power consumption: 147mW
DC contacts rating @R: 1A / 24V DC
AC contacts rating @R: 0.5A / 120V AC
Contact current max.: 2A
Coil voltage min.: 33.6V DC
Rated coil voltage: 48V DC
Coil voltage max.: 84.9V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 7.68kΩ
Manufacturer series: AZ822
auf Bestellung 1141 Stücke:
Lieferzeit 14-21 Tag (e)
39+1.86 EUR
46+1.59 EUR
61+1.17 EUR
65+1.12 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-5DSE AZ822-2C-5DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 167Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 12.5V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
IP rating: IP64
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
auf Bestellung 5471 Stücke:
Lieferzeit 14-21 Tag (e)
53+1.36 EUR
55+1.3 EUR
80+1.22 EUR
100+1.19 EUR
200+1.09 EUR
Mindestbestellmenge: 53
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-9DSE AZ822-2C-9DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; 2A; 0.5A/120VAC; AZ822
Body dimensions: 20x9.8x12mm
IP rating: IP64
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Contact resistance: 50mΩ
Coil power consumption: 74mW
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Contact current max.: 2A
Coil voltage min.: 6.3V DC
Rated coil voltage: 9V DC
Coil voltage max.: 22.5V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 540Ω
Manufacturer series: AZ822
Relay variant: miniature
Contacts configuration: DPDT
Type of relay: electromagnetic
auf Bestellung 732 Stücke:
Lieferzeit 14-21 Tag (e)
54+1.34 EUR
59+1.22 EUR
65+1.1 EUR
100+0.97 EUR
500+0.9 EUR
Mindestbestellmenge: 54
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE Zettler az822.pdf  2A; 12V;  DPDT; Coil power  75mW; 20,0 x 9,8 x 12mm; IP67 SMT               equivalent: JRC-27F, V23102/V23105, G5V-2, 30.22, RSM822 AZ822-2C-12DSE signal relay P AZ822p012
Anzahl je Verpackung: 20 Stücke
auf Bestellung 100 Stücke:
Lieferzeit 7-14 Tag (e)
20+4.11 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE AZ822-2C-12DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 960Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 30V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
Anzahl je Verpackung: 1 Stücke
auf Bestellung 11414 Stücke:
Lieferzeit 7-14 Tag (e)
66+1.09 EUR
74+0.97 EUR
77+0.93 EUR
100+0.84 EUR
200+0.8 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-24DSE AZ822-2C-24DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 52.9V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 98mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8756 Stücke:
Lieferzeit 7-14 Tag (e)
66+1.09 EUR
73+0.99 EUR
76+0.94 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-3DSE AZ822-2C-3DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Manufacturer series: AZ822
Body dimensions: 20x9.8x12mm
Coil resistance: 60Ω
Contact resistance: 50mΩ
Coil power consumption: 74mW
IP rating: IP64
Operating temperature: -55...90°C
Operate time: 5ms
Terminal pitch: 5mm
Release time: 2ms
Coil voltage max.: 7.5V DC
Coil voltage min.: 2.1V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2081 Stücke:
Lieferzeit 7-14 Tag (e)
34+2.16 EUR
39+1.87 EUR
53+1.36 EUR
56+1.29 EUR
500+1.24 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-48DSE AZ822-2C-48DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; 2A; 0.5A/120VAC; AZ822
IP rating: IP64
Contacts configuration: DPDT
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Body dimensions: 20x9.8x12mm
Contact resistance: 50mΩ
Coil power consumption: 147mW
DC contacts rating @R: 1A / 24V DC
AC contacts rating @R: 0.5A / 120V AC
Contact current max.: 2A
Coil voltage min.: 33.6V DC
Rated coil voltage: 48V DC
Coil voltage max.: 84.9V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 7.68kΩ
Manufacturer series: AZ822
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1141 Stücke:
Lieferzeit 7-14 Tag (e)
39+1.86 EUR
46+1.59 EUR
61+1.17 EUR
65+1.12 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-5DSE AZ822-2C-5DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 167Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 12.5V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
IP rating: IP64
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5471 Stücke:
Lieferzeit 7-14 Tag (e)
53+1.36 EUR
55+1.3 EUR
80+1.22 EUR
100+1.19 EUR
200+1.09 EUR
Mindestbestellmenge: 53
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-9DSE AZ822-2C-9DSE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; 2A; 0.5A/120VAC; AZ822
Body dimensions: 20x9.8x12mm
IP rating: IP64
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Contact resistance: 50mΩ
Coil power consumption: 74mW
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Contact current max.: 2A
Coil voltage min.: 6.3V DC
Rated coil voltage: 9V DC
Coil voltage max.: 22.5V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 540Ω
Manufacturer series: AZ822
Relay variant: miniature
Contacts configuration: DPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 732 Stücke:
Lieferzeit 7-14 Tag (e)
54+1.34 EUR
59+1.22 EUR
65+1.1 EUR
100+0.97 EUR
500+0.9 EUR
Mindestbestellmenge: 54
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE 24VDC ZETTLER DIP-8-24VDC
auf Bestellung 6073 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE 24VDC DIP ZETTLER
auf Bestellung 4600 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE24VDCDIP-8-24VDC ZETTLER
auf Bestellung 4600 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-4C-5DSEA ZETTLER 0038+
auf Bestellung 45 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-12 AZ850-12 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Relay variant: subminiature
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 113mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 30V DC
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Coil resistance: 1028Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 13456 Stücke:
Lieferzeit 14-21 Tag (e)
49+1.47 EUR
50+1.43 EUR
52+1.4 EUR
100+1.07 EUR
Mindestbestellmenge: 49
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-24 AZ850-24 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 48V DC
Operate time: 2ms
Body dimensions: 14x9x5mm
Release time: 1ms
Coil power consumption: 113mW
Mechanical durability: 100000000 cycles
Contact resistance: 70mΩ
Case: DIP10
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Terminal pitch: 2.54mm
Design: single coil
Test voltage: 1.5kV
Operating temperature: -55...90°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5 AZ850-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Body dimensions: 14x9x5mm
Coil power consumption: 113mW
Terminal pitch: 2.54mm
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Case: DIP10
auf Bestellung 5757 Stücke:
Lieferzeit 14-21 Tag (e)
48+1.5 EUR
51+1.42 EUR
53+1.36 EUR
55+1.32 EUR
Mindestbestellmenge: 48
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-12 AZ850-12 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Relay variant: subminiature
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 113mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 30V DC
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Coil resistance: 1028Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 13456 Stücke:
Lieferzeit 7-14 Tag (e)
49+1.47 EUR
50+1.43 EUR
52+1.4 EUR
100+1.07 EUR
Mindestbestellmenge: 49
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5 AZ850-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Body dimensions: 14x9x5mm
Coil power consumption: 113mW
Terminal pitch: 2.54mm
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Case: DIP10
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5757 Stücke:
Lieferzeit 7-14 Tag (e)
48+1.5 EUR
51+1.42 EUR
53+1.36 EUR
55+1.32 EUR
Mindestbestellmenge: 48
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5
+1
 		AZ850-5
Produktcode: 91994
zu Favoriten hinzufügen Lieblingsprodukt

ZETTLER paz850p005-datasheet.pdf Relais
Relaistyp: Мініатюрне
Beschreibung: Реле: електромагнітне; DPDT; Uобмотки: 5VDC; 0,5A / 125VAC; 1А
Abmessungen: 14x9x5 mm
Spulenspannung: 5 VDC
Strom max: 1 A
Kontaktkonfiguration: DPDT(2C)
Schaltspannung: 125 VAC / 30 VDC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-24 AZ850P1-24 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 57.6V DC
Switching capacity: 30W; 50VA
Coil resistance: 3.84kΩ
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 917 Stücke:
Lieferzeit 14-21 Tag (e)
68+1.06 EUR
72+1 EUR
76+0.94 EUR
100+0.87 EUR
500+0.86 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-3 ZETTLER az850.pdf Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 2.25V DC
Rated coil voltage: 3V DC
Coil voltage max.: 8.7V DC
Switching capacity: 30W; 50VA
Coil resistance: 90Ω
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-5 AZ850P1-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 14.5V DC
Coil resistance: 250Ω
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 652 Stücke:
Lieferzeit 14-21 Tag (e)
39+1.84 EUR
45+1.6 EUR
50+1.44 EUR
100+1.2 EUR
500+1.09 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-24 AZ850P1-24 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 57.6V DC
Switching capacity: 30W; 50VA
Coil resistance: 3.84kΩ
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 917 Stücke:
Lieferzeit 7-14 Tag (e)
68+1.06 EUR
72+1 EUR
76+0.94 EUR
100+0.87 EUR
500+0.86 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-5 AZ850P1-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 14.5V DC
Coil resistance: 250Ω
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 652 Stücke:
Lieferzeit 7-14 Tag (e)
39+1.84 EUR
45+1.6 EUR
50+1.44 EUR
100+1.2 EUR
500+1.09 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-12 AZ850P2-12 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Manufacturer series: AZ850
Operating temperature: -55...90°C
Case: DIP10
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
Design: two coils
Operate time: 2ms
Release time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil voltage max.: 24V DC
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Coil resistance: 720Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Relay variant: bistable; subminiature
auf Bestellung 4138 Stücke:
Lieferzeit 14-21 Tag (e)
25+2.97 EUR
27+2.7 EUR
30+2.43 EUR
100+2.03 EUR
500+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-24 AZ850P2-24 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contacts configuration: DPDT
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Case: DIP10
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Relay variant: bistable; subminiature
Switching capacity: 30W; 50VA
Coil voltage max.: 36V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil resistance: 1.92kΩ
Mechanical durability: 100000000 cycles
Mounting: PCB
Design: two coils
Type of relay: electromagnetic
auf Bestellung 681 Stücke:
Lieferzeit 14-21 Tag (e)
29+2.53 EUR
32+2.29 EUR
35+2.06 EUR
100+1.73 EUR
500+1.59 EUR
Mindestbestellmenge: 29
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-3 AZ850P2-3 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 45Ω
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Design: two coils
Operating temperature: -55...90°C
Case: DIP10
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil voltage min.: 2.25V DC
Operate time: 2ms
Contact resistance: 70mΩ
Release time: 2ms
Terminal pitch: 2.54mm
Coil voltage max.: 6V DC
Switching capacity: 30W; 50VA
auf Bestellung 1758 Stücke:
Lieferzeit 14-21 Tag (e)
27+2.67 EUR
30+2.45 EUR
41+1.77 EUR
43+1.67 EUR
500+1.66 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-5 AZ850P2-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Terminal pitch: 2.54mm
Design: two coils
Operating temperature: -55...90°C
Mechanical durability: 100000000 cycles
Case: DIP10
Release time: 2ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
auf Bestellung 607 Stücke:
Lieferzeit 14-21 Tag (e)
32+2.29 EUR
42+1.73 EUR
50+1.62 EUR
75+1.57 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-12 AZ850P2-12 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Manufacturer series: AZ850
Operating temperature: -55...90°C
Case: DIP10
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
Design: two coils
Operate time: 2ms
Release time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil voltage max.: 24V DC
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Coil resistance: 720Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Relay variant: bistable; subminiature
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4138 Stücke:
Lieferzeit 7-14 Tag (e)
25+2.97 EUR
27+2.7 EUR
30+2.43 EUR
100+2.03 EUR
500+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-24 AZ850P2-24 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contacts configuration: DPDT
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Case: DIP10
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Relay variant: bistable; subminiature
Switching capacity: 30W; 50VA
Coil voltage max.: 36V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil resistance: 1.92kΩ
Mechanical durability: 100000000 cycles
Mounting: PCB
Design: two coils
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 681 Stücke:
Lieferzeit 7-14 Tag (e)
29+2.53 EUR
32+2.29 EUR
35+2.06 EUR
100+1.73 EUR
500+1.59 EUR
Mindestbestellmenge: 29
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-3 AZ850P2-3 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 45Ω
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Design: two coils
Operating temperature: -55...90°C
Case: DIP10
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil voltage min.: 2.25V DC
Operate time: 2ms
Contact resistance: 70mΩ
Release time: 2ms
Terminal pitch: 2.54mm
Coil voltage max.: 6V DC
Switching capacity: 30W; 50VA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1758 Stücke:
Lieferzeit 7-14 Tag (e)
27+2.67 EUR
30+2.45 EUR
41+1.77 EUR
43+1.67 EUR
500+1.66 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-5 AZ850P2-5 ZETTLER pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Terminal pitch: 2.54mm
Design: two coils
Operating temperature: -55...90°C
Mechanical durability: 100000000 cycles
Case: DIP10
Release time: 2ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 607 Stücke:
Lieferzeit 7-14 Tag (e)
32+2.29 EUR
42+1.73 EUR
50+1.62 EUR
75+1.57 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AZ8521S-12 ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8B8F888D666520D5&compId=AZ8521.pdf?ci_sign=021875bae5e296edad045f38fbab3c5d01843d6f Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/125VAC; AZ8521
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: AZ8521
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: signal; subminiature
Mounting: SMT
Coil resistance: 1028Ω
Body dimensions: 10x6.5x5.65mm
Coil power consumption: 79mW
Contact resistance: 70mΩ
Contact material: AgNi + Au
Terminal pitch: 2.2mm
Operating temperature: -40...85°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-12DE AZ921-1A-12DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
Relay variant: interface
Manufacturer series: AZ921
Coil resistance: 1.2kΩ
Coil power consumption: 58mW
Contact material: AgNi
Operating temperature: -40...85°C
Body dimensions: 20.3x5.3x12.8mm
Mounting: PCB
Operate time: 6ms
Terminal pitch: 5.08mm
Contact resistance: 50mΩ
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 150V DC; max. 250V AC
Release time: 3ms
auf Bestellung 10689 Stücke:
Lieferzeit 14-21 Tag (e)
43+1.7 EUR
50+1.46 EUR
54+1.33 EUR
100+1.23 EUR
500+1.13 EUR
Mindestbestellmenge: 43
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-24DEK ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Manufacturer series: AZ921
Switched voltage: max. 150V DC; max. 250V AC
Relay variant: interface
Mounting: PCB
Coil resistance: 3.2kΩ
Body dimensions: 20.3x5.3x12.8mm
Coil power consumption: 88mW
Contact resistance: 50mΩ
Contact material: AgNi
Terminal pitch: 7.65mm
Operating temperature: -40...85°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-12DE AZ921-1A-12DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
Relay variant: interface
Manufacturer series: AZ921
Coil resistance: 1.2kΩ
Coil power consumption: 58mW
Contact material: AgNi
Operating temperature: -40...85°C
Body dimensions: 20.3x5.3x12.8mm
Mounting: PCB
Operate time: 6ms
Terminal pitch: 5.08mm
Contact resistance: 50mΩ
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 150V DC; max. 250V AC
Release time: 3ms
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10689 Stücke:
Lieferzeit 7-14 Tag (e)
43+1.7 EUR
50+1.46 EUR
54+1.33 EUR
100+1.23 EUR
500+1.13 EUR
Mindestbestellmenge: 43
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-12D AZ9371-1A-12D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Manufacturer series: AZ9371
Contact material: AgNi
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Release time: 3ms
Operate time: 6ms
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 12V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 720Ω
auf Bestellung 1506 Stücke:
Lieferzeit 14-21 Tag (e)
68+1.06 EUR
79+0.91 EUR
86+0.84 EUR
100+0.76 EUR
450+0.7 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-24DE AZ9371-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/277VAC; PCB
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 24V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 2.88kΩ
auf Bestellung 3456 Stücke:
Lieferzeit 14-21 Tag (e)
87+0.83 EUR
92+0.78 EUR
99+0.72 EUR
Mindestbestellmenge: 87
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5D AZ9371-1A-5D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
auf Bestellung 316 Stücke:
Lieferzeit 14-21 Tag (e)
55+1.32 EUR
57+1.27 EUR
59+1.23 EUR
100+1.13 EUR
Mindestbestellmenge: 55
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5DE AZ9371-1A-5DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
auf Bestellung 186 Stücke:
Lieferzeit 14-21 Tag (e)
57+1.27 EUR
59+1.23 EUR
61+1.19 EUR
100+1.1 EUR
Mindestbestellmenge: 57
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-12D AZ9371-1A-12D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Manufacturer series: AZ9371
Contact material: AgNi
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Release time: 3ms
Operate time: 6ms
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 12V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 720Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1506 Stücke:
Lieferzeit 7-14 Tag (e)
68+1.06 EUR
79+0.91 EUR
86+0.84 EUR
100+0.76 EUR
450+0.7 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-24DE AZ9371-1A-24DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/277VAC; PCB
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 24V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 2.88kΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3456 Stücke:
Lieferzeit 7-14 Tag (e)
87+0.83 EUR
92+0.78 EUR
99+0.72 EUR
Mindestbestellmenge: 87
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5D AZ9371-1A-5D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 316 Stücke:
Lieferzeit 7-14 Tag (e)
55+1.32 EUR
57+1.27 EUR
59+1.23 EUR
100+1.13 EUR
Mindestbestellmenge: 55
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5DE AZ9371-1A-5DE ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 186 Stücke:
Lieferzeit 7-14 Tag (e)
57+1.27 EUR
59+1.23 EUR
61+1.19 EUR
100+1.1 EUR
Mindestbestellmenge: 57
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371T-1A-12D AZ9371T-1A-12D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: AZ9371
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.5x7.2x15.3mm
Coil power consumption: 113mW
Contact material: AgNi
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Operate time: 6ms
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Release time: 3ms
Terminal pitch: 7mm
auf Bestellung 988 Stücke:
Lieferzeit 14-21 Tag (e)
56+1.29 EUR
59+1.22 EUR
81+0.89 EUR
85+0.84 EUR
Mindestbestellmenge: 56
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371T-1AE-12D AZ9371T-1AE-12D ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/277VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: AZ9371
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.5x7.2x15.3mm
Coil power consumption: 113mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 277V AC
Terminal pitch: 7mm
auf Bestellung 148 Stücke:
Lieferzeit 14-21 Tag (e)
59+1.23 EUR
69+1.04 EUR
85+0.84 EUR
90+0.8 EUR
Mindestbestellmenge: 59
Im Einkaufswagen  Stück im Wert von  UAH
AZ762-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE7406E4FA60E1&compId=AZ762.pdf?ci_sign=ff93e56358beaa2ceb451d56786ab7cfcba7619c
AZ762-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Mounting: PCB
Terminal pitch: 5.04mm
Manufacturer series: AZ762
Operating temperature: -40...85°C
Release time: 4ms
Operate time: 7ms
Contact resistance: 10mΩ
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 400mW
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 24V DC
AC contacts rating @R: 16A / 250V AC
Coil voltage max.: 49.4V DC
Switched voltage: max. 30V DC; max. 440V AC
Coil resistance: 1.44kΩ
Type of relay: electromagnetic
Relay variant: miniature
Contacts configuration: SPST-NO
auf Bestellung 482 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
41+1.74 EUR
44+1.63 EUR
50+1.44 EUR
53+1.36 EUR
Mindestbestellmenge: 41
Im Einkaufswagen  Stück im Wert von  UAH
AZ762-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE7406E4FA60E1&compId=AZ762.pdf?ci_sign=ff93e56358beaa2ceb451d56786ab7cfcba7619c
AZ762-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Mounting: PCB
Terminal pitch: 5.04mm
Manufacturer series: AZ762
Operating temperature: -40...85°C
Release time: 4ms
Operate time: 7ms
Contact resistance: 10mΩ
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 400mW
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 24V DC
AC contacts rating @R: 16A / 250V AC
Coil voltage max.: 49.4V DC
Switched voltage: max. 30V DC; max. 440V AC
Coil resistance: 1.44kΩ
Type of relay: electromagnetic
Relay variant: miniature
Contacts configuration: SPST-NO
Anzahl je Verpackung: 1 Stücke
auf Bestellung 482 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
41+1.74 EUR
44+1.63 EUR
50+1.44 EUR
53+1.36 EUR
500+1.34 EUR
Mindestbestellmenge: 41
Im Einkaufswagen  Stück im Wert von  UAH
AZ762-1C-24DE
Hersteller: ZETTLER
AZ762-1C-24DE Miniature Electromagnetic Relays
auf Bestellung 2519 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
28+2.56 EUR
43+1.67 EUR
46+1.57 EUR
Mindestbestellmenge: 28
Im Einkaufswagen  Stück im Wert von  UAH
AZ764-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE8C05F46220E1&compId=AZ764.pdf?ci_sign=5e2417ac879a297dee265a2d15c1eb0adba9e8c1
AZ764-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Release time: 3ms
Terminal pitch: 5mm
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Contact resistance: 100mΩ
Coil power consumption: 400mW
AC contacts rating @R: 16A / 250V AC
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 30V DC
Switched voltage: max. 30V DC; max. 400V AC
Coil voltage max.: 61.2V DC
Coil resistance: 1.44kΩ
Manufacturer series: AZ764
auf Bestellung 1373 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
33+2.17 EUR
38+1.93 EUR
46+1.57 EUR
49+1.49 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
AZ764-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1FD09FCE8C05F46220E1&compId=AZ764.pdf?ci_sign=5e2417ac879a297dee265a2d15c1eb0adba9e8c1
AZ764-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Release time: 3ms
Terminal pitch: 5mm
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Contact resistance: 100mΩ
Coil power consumption: 400mW
AC contacts rating @R: 16A / 250V AC
Coil voltage min.: 16.8V DC
Rated coil voltage: 24V DC
Contact current max.: 16A
DC contacts rating @R: 16A / 30V DC
Switched voltage: max. 30V DC; max. 400V AC
Coil voltage max.: 61.2V DC
Coil resistance: 1.44kΩ
Manufacturer series: AZ764
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1373 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
33+2.17 EUR
38+1.93 EUR
46+1.57 EUR
49+1.49 EUR
Mindestbestellmenge: 33
Im Einkaufswagen  Stück im Wert von  UAH
AZ764-1C-24DE
Hersteller: ZETTLER
AZ764-1C-24DE Miniature Electromagnetic Relays
auf Bestellung 877 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
35+2.06 EUR
43+1.7 EUR
45+1.62 EUR
Mindestbestellmenge: 35
Im Einkaufswagen  Stück im Wert von  UAH
AZ770-1A-5DSE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93
AZ770-1A-5DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; AZ770
Body dimensions: 17.85x10.35x12.55mm
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
DC contacts rating @R: 5A / 30V DC
Contact current max.: 5A
Rated coil voltage: 5V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 125Ω
Contact material: AgNi
Manufacturer series: AZ770
Type of relay: electromagnetic
auf Bestellung 350 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
50+1.44 EUR
52+1.39 EUR
54+1.34 EUR
100+1.26 EUR
Mindestbestellmenge: 50
Im Einkaufswagen  Stück im Wert von  UAH
AZ770-1A-5DSE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93
AZ770-1A-5DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/250VAC; AZ770
Body dimensions: 17.85x10.35x12.55mm
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
DC contacts rating @R: 5A / 30V DC
Contact current max.: 5A
Rated coil voltage: 5V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 125Ω
Contact material: AgNi
Manufacturer series: AZ770
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 350 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
50+1.44 EUR
52+1.39 EUR
54+1.34 EUR
100+1.26 EUR
Mindestbestellmenge: 50
Im Einkaufswagen  Stück im Wert von  UAH
AZ770T-1AE-12DSEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93
AZ770T-1AE-12DSEK
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Mounting: PCB
Body dimensions: 17.85x10.35x12.55mm
Manufacturer series: AZ770
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
Contact current max.: 10A
Rated coil voltage: 12V DC
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 720Ω
Contact material: AgSnO2
Contacts configuration: SPST-NO
Type of relay: electromagnetic
Relay variant: miniature
auf Bestellung 400 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
36+2.03 EUR
38+1.93 EUR
54+1.34 EUR
57+1.26 EUR
Mindestbestellmenge: 36
Im Einkaufswagen  Stück im Wert von  UAH
AZ770T-1AE-12DSEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9ACD83213248A0D3&compId=AZ770.pdf?ci_sign=c6a1398cb1894fcf0778464a0c4714bb5ce0ca93
AZ770T-1AE-12DSEK
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Mounting: PCB
Body dimensions: 17.85x10.35x12.55mm
Manufacturer series: AZ770
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Coil power consumption: 200mW
Contact current max.: 10A
Rated coil voltage: 12V DC
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Switched voltage: max. 30V DC; max. 400V AC
Coil resistance: 720Ω
Contact material: AgSnO2
Contacts configuration: SPST-NO
Type of relay: electromagnetic
Relay variant: miniature
Anzahl je Verpackung: 1 Stücke
auf Bestellung 400 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
36+2.03 EUR
38+1.93 EUR
54+1.34 EUR
57+1.26 EUR
Mindestbestellmenge: 36
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-12DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 960Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 30V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
auf Bestellung 11414 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
66+1.09 EUR
74+0.97 EUR
77+0.93 EUR
100+0.84 EUR
200+0.8 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-24DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-24DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 52.9V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 98mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
auf Bestellung 8756 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
66+1.09 EUR
73+0.99 EUR
76+0.94 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-3DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-3DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Manufacturer series: AZ822
Body dimensions: 20x9.8x12mm
Coil resistance: 60Ω
Contact resistance: 50mΩ
Coil power consumption: 74mW
IP rating: IP64
Operating temperature: -55...90°C
Operate time: 5ms
Terminal pitch: 5mm
Release time: 2ms
Coil voltage max.: 7.5V DC
Coil voltage min.: 2.1V DC
auf Bestellung 2081 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
34+2.16 EUR
39+1.87 EUR
53+1.36 EUR
56+1.29 EUR
500+1.24 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-48DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-48DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; 2A; 0.5A/120VAC; AZ822
IP rating: IP64
Contacts configuration: DPDT
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Body dimensions: 20x9.8x12mm
Contact resistance: 50mΩ
Coil power consumption: 147mW
DC contacts rating @R: 1A / 24V DC
AC contacts rating @R: 0.5A / 120V AC
Contact current max.: 2A
Coil voltage min.: 33.6V DC
Rated coil voltage: 48V DC
Coil voltage max.: 84.9V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 7.68kΩ
Manufacturer series: AZ822
auf Bestellung 1141 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
39+1.86 EUR
46+1.59 EUR
61+1.17 EUR
65+1.12 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-5DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-5DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 167Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 12.5V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
IP rating: IP64
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
auf Bestellung 5471 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
53+1.36 EUR
55+1.3 EUR
80+1.22 EUR
100+1.19 EUR
200+1.09 EUR
Mindestbestellmenge: 53
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-9DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-9DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; 2A; 0.5A/120VAC; AZ822
Body dimensions: 20x9.8x12mm
IP rating: IP64
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Contact resistance: 50mΩ
Coil power consumption: 74mW
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Contact current max.: 2A
Coil voltage min.: 6.3V DC
Rated coil voltage: 9V DC
Coil voltage max.: 22.5V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 540Ω
Manufacturer series: AZ822
Relay variant: miniature
Contacts configuration: DPDT
Type of relay: electromagnetic
auf Bestellung 732 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
54+1.34 EUR
59+1.22 EUR
65+1.1 EUR
100+0.97 EUR
500+0.9 EUR
Mindestbestellmenge: 54
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE az822.pdf
Hersteller: Zettler
 2A; 12V;  DPDT; Coil power  75mW; 20,0 x 9,8 x 12mm; IP67 SMT               equivalent: JRC-27F, V23102/V23105, G5V-2, 30.22, RSM822 AZ822-2C-12DSE signal relay P AZ822p012
Anzahl je Verpackung: 20 Stücke
auf Bestellung 100 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
20+4.11 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-12DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-12DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 960Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 30V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
Anzahl je Verpackung: 1 Stücke
auf Bestellung 11414 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
66+1.09 EUR
74+0.97 EUR
77+0.93 EUR
100+0.84 EUR
200+0.8 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-24DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-24DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 52.9V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 98mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
IP rating: IP64
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8756 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
66+1.09 EUR
73+0.99 EUR
76+0.94 EUR
Mindestbestellmenge: 66
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-3DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-3DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Manufacturer series: AZ822
Body dimensions: 20x9.8x12mm
Coil resistance: 60Ω
Contact resistance: 50mΩ
Coil power consumption: 74mW
IP rating: IP64
Operating temperature: -55...90°C
Operate time: 5ms
Terminal pitch: 5mm
Release time: 2ms
Coil voltage max.: 7.5V DC
Coil voltage min.: 2.1V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2081 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
34+2.16 EUR
39+1.87 EUR
53+1.36 EUR
56+1.29 EUR
500+1.24 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-48DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-48DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; 2A; 0.5A/120VAC; AZ822
IP rating: IP64
Contacts configuration: DPDT
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Body dimensions: 20x9.8x12mm
Contact resistance: 50mΩ
Coil power consumption: 147mW
DC contacts rating @R: 1A / 24V DC
AC contacts rating @R: 0.5A / 120V AC
Contact current max.: 2A
Coil voltage min.: 33.6V DC
Rated coil voltage: 48V DC
Coil voltage max.: 84.9V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 7.68kΩ
Manufacturer series: AZ822
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1141 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
39+1.86 EUR
46+1.59 EUR
61+1.17 EUR
65+1.12 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-5DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-5DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/120VAC; AZ822
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Manufacturer series: AZ822
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 167Ω
Coil voltage min.: 3.5V DC
Coil voltage max.: 12.5V DC
Body dimensions: 20x9.8x12mm
Coil power consumption: 74mW
Terminal pitch: 5mm
Operating temperature: -55...90°C
IP rating: IP64
Release time: 2ms
Operate time: 5ms
Contact resistance: 50mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5471 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
53+1.36 EUR
55+1.3 EUR
80+1.22 EUR
100+1.19 EUR
200+1.09 EUR
Mindestbestellmenge: 53
Im Einkaufswagen  Stück im Wert von  UAH
AZ822-2C-9DSE pVersion=0046&contRep=ZT&docId=005056AB752F1ED886F46F81F64E6A18&compId=az822.pdf?ci_sign=11180363118e245ca1c932f0de9bc9237bf670ef
AZ822-2C-9DSE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; 2A; 0.5A/120VAC; AZ822
Body dimensions: 20x9.8x12mm
IP rating: IP64
Mounting: PCB
Operating temperature: -55...90°C
Release time: 2ms
Terminal pitch: 5mm
Operate time: 5ms
Contact resistance: 50mΩ
Coil power consumption: 74mW
AC contacts rating @R: 0.5A / 120V AC
DC contacts rating @R: 1A / 24V DC
Contact current max.: 2A
Coil voltage min.: 6.3V DC
Rated coil voltage: 9V DC
Coil voltage max.: 22.5V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 540Ω
Manufacturer series: AZ822
Relay variant: miniature
Contacts configuration: DPDT
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 732 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
54+1.34 EUR
59+1.22 EUR
65+1.1 EUR
100+0.97 EUR
500+0.9 EUR
Mindestbestellmenge: 54
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE 24VDC
Hersteller: ZETTLER
DIP-8-24VDC
auf Bestellung 6073 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE 24VDC DIP
Hersteller: ZETTLER
auf Bestellung 4600 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-2C-24DSE24VDCDIP-8-24VDC
Hersteller: ZETTLER
auf Bestellung 4600 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ830-4C-5DSEA
Hersteller: ZETTLER
0038+
auf Bestellung 45 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-12 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850-12
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Relay variant: subminiature
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 113mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 30V DC
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Coil resistance: 1028Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 13456 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
49+1.47 EUR
50+1.43 EUR
52+1.4 EUR
100+1.07 EUR
Mindestbestellmenge: 49
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-24 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850-24
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 2.88kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 48V DC
Operate time: 2ms
Body dimensions: 14x9x5mm
Release time: 1ms
Coil power consumption: 113mW
Mechanical durability: 100000000 cycles
Contact resistance: 70mΩ
Case: DIP10
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Terminal pitch: 2.54mm
Design: single coil
Test voltage: 1.5kV
Operating temperature: -55...90°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Body dimensions: 14x9x5mm
Coil power consumption: 113mW
Terminal pitch: 2.54mm
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Case: DIP10
auf Bestellung 5757 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
48+1.5 EUR
51+1.42 EUR
53+1.36 EUR
55+1.32 EUR
Mindestbestellmenge: 48
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-12 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850-12
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Relay variant: subminiature
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 113mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 30V DC
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Coil resistance: 1028Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 13456 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
49+1.47 EUR
50+1.43 EUR
52+1.4 EUR
100+1.07 EUR
Mindestbestellmenge: 49
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Body dimensions: 14x9x5mm
Coil power consumption: 113mW
Terminal pitch: 2.54mm
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Case: DIP10
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5757 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
48+1.5 EUR
51+1.42 EUR
53+1.36 EUR
55+1.32 EUR
Mindestbestellmenge: 48
Im Einkaufswagen  Stück im Wert von  UAH
AZ850-5
Produktcode: 91994
zu Favoriten hinzufügen Lieblingsprodukt

paz850p005-datasheet.pdf
AZ850-5
+1
Hersteller: ZETTLER
Relais
Relaistyp: Мініатюрне
Beschreibung: Реле: електромагнітне; DPDT; Uобмотки: 5VDC; 0,5A / 125VAC; 1А
Abmessungen: 14x9x5 mm
Spulenspannung: 5 VDC
Strom max: 1 A
Kontaktkonfiguration: DPDT(2C)
Schaltspannung: 125 VAC / 30 VDC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-24 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P1-24
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 57.6V DC
Switching capacity: 30W; 50VA
Coil resistance: 3.84kΩ
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 917 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
68+1.06 EUR
72+1 EUR
76+0.94 EUR
100+0.87 EUR
500+0.86 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-3 az850.pdf
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 2.25V DC
Rated coil voltage: 3V DC
Coil voltage max.: 8.7V DC
Switching capacity: 30W; 50VA
Coil resistance: 90Ω
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P1-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 14.5V DC
Coil resistance: 250Ω
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
auf Bestellung 652 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
39+1.84 EUR
45+1.6 EUR
50+1.44 EUR
100+1.2 EUR
500+1.09 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-24 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P1-24
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Operating temperature: -55...90°C
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Body dimensions: 14x9x5mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 57.6V DC
Switching capacity: 30W; 50VA
Coil resistance: 3.84kΩ
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 917 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
68+1.06 EUR
72+1 EUR
76+0.94 EUR
100+0.87 EUR
500+0.86 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P1-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P1-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Type of relay: electromagnetic
Mounting: PCB
Design: single coil
Operating temperature: -55...90°C
Release time: 1ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 84mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 14.5V DC
Coil resistance: 250Ω
Switching capacity: 30W; 50VA
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Manufacturer series: AZ850
Relay variant: bistable; subminiature
Case: DIP10
Contacts configuration: DPDT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 652 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
39+1.84 EUR
45+1.6 EUR
50+1.44 EUR
100+1.2 EUR
500+1.09 EUR
Mindestbestellmenge: 39
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-12 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-12
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Manufacturer series: AZ850
Operating temperature: -55...90°C
Case: DIP10
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
Design: two coils
Operate time: 2ms
Release time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil voltage max.: 24V DC
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Coil resistance: 720Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Relay variant: bistable; subminiature
auf Bestellung 4138 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
25+2.97 EUR
27+2.7 EUR
30+2.43 EUR
100+2.03 EUR
500+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-24 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-24
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contacts configuration: DPDT
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Case: DIP10
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Relay variant: bistable; subminiature
Switching capacity: 30W; 50VA
Coil voltage max.: 36V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil resistance: 1.92kΩ
Mechanical durability: 100000000 cycles
Mounting: PCB
Design: two coils
Type of relay: electromagnetic
auf Bestellung 681 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
29+2.53 EUR
32+2.29 EUR
35+2.06 EUR
100+1.73 EUR
500+1.59 EUR
Mindestbestellmenge: 29
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-3 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-3
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 45Ω
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Design: two coils
Operating temperature: -55...90°C
Case: DIP10
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil voltage min.: 2.25V DC
Operate time: 2ms
Contact resistance: 70mΩ
Release time: 2ms
Terminal pitch: 2.54mm
Coil voltage max.: 6V DC
Switching capacity: 30W; 50VA
auf Bestellung 1758 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
27+2.67 EUR
30+2.45 EUR
41+1.77 EUR
43+1.67 EUR
500+1.66 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Terminal pitch: 2.54mm
Design: two coils
Operating temperature: -55...90°C
Mechanical durability: 100000000 cycles
Case: DIP10
Release time: 2ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
auf Bestellung 607 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
32+2.29 EUR
42+1.73 EUR
50+1.62 EUR
75+1.57 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-12 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-12
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Manufacturer series: AZ850
Operating temperature: -55...90°C
Case: DIP10
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
Design: two coils
Operate time: 2ms
Release time: 2ms
Terminal pitch: 2.54mm
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil voltage max.: 24V DC
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Coil resistance: 720Ω
Test voltage: 1.5kV
Mechanical durability: 100000000 cycles
Relay variant: bistable; subminiature
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4138 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+2.97 EUR
27+2.7 EUR
30+2.43 EUR
100+2.03 EUR
500+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-24 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-24
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; AZ850
Body dimensions: 14x9x5mm
Operating temperature: -55...90°C
Release time: 2ms
Operate time: 2ms
Terminal pitch: 2.54mm
Contacts configuration: DPDT
Contact resistance: 70mΩ
Coil power consumption: 169mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Case: DIP10
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Relay variant: bistable; subminiature
Switching capacity: 30W; 50VA
Coil voltage max.: 36V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil resistance: 1.92kΩ
Mechanical durability: 100000000 cycles
Mounting: PCB
Design: two coils
Type of relay: electromagnetic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 681 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
29+2.53 EUR
32+2.29 EUR
35+2.06 EUR
100+1.73 EUR
500+1.59 EUR
Mindestbestellmenge: 29
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-3 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-3
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 3VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 3V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 45Ω
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Design: two coils
Operating temperature: -55...90°C
Case: DIP10
Soldering temperature: 250°C
Test voltage: 1.5kV
Coil voltage min.: 2.25V DC
Operate time: 2ms
Contact resistance: 70mΩ
Release time: 2ms
Terminal pitch: 2.54mm
Coil voltage max.: 6V DC
Switching capacity: 30W; 50VA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1758 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
27+2.67 EUR
30+2.45 EUR
41+1.77 EUR
43+1.67 EUR
500+1.66 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
AZ850P2-5 pVersion=0046&contRep=ZT&docId=E1C045DC97245EF1A6F5005056AB5A8F&compId=az850.pdf?ci_sign=efb6717fc8e0d297329ee6d57eaa87e14bc94649
AZ850P2-5
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Body dimensions: 14x9x5mm
Coil power consumption: 169mW
Terminal pitch: 2.54mm
Design: two coils
Operating temperature: -55...90°C
Mechanical durability: 100000000 cycles
Case: DIP10
Release time: 2ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 607 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
32+2.29 EUR
42+1.73 EUR
50+1.62 EUR
75+1.57 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
AZ8521S-12 pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8B8F888D666520D5&compId=AZ8521.pdf?ci_sign=021875bae5e296edad045f38fbab3c5d01843d6f
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/125VAC; AZ8521
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: AZ8521
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: signal; subminiature
Mounting: SMT
Coil resistance: 1028Ω
Body dimensions: 10x6.5x5.65mm
Coil power consumption: 79mW
Contact resistance: 70mΩ
Contact material: AgNi + Au
Terminal pitch: 2.2mm
Operating temperature: -40...85°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-12DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed
AZ921-1A-12DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
Relay variant: interface
Manufacturer series: AZ921
Coil resistance: 1.2kΩ
Coil power consumption: 58mW
Contact material: AgNi
Operating temperature: -40...85°C
Body dimensions: 20.3x5.3x12.8mm
Mounting: PCB
Operate time: 6ms
Terminal pitch: 5.08mm
Contact resistance: 50mΩ
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 150V DC; max. 250V AC
Release time: 3ms
auf Bestellung 10689 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
43+1.7 EUR
50+1.46 EUR
54+1.33 EUR
100+1.23 EUR
500+1.13 EUR
Mindestbestellmenge: 43
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-24DEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Manufacturer series: AZ921
Switched voltage: max. 150V DC; max. 250V AC
Relay variant: interface
Mounting: PCB
Coil resistance: 3.2kΩ
Body dimensions: 20.3x5.3x12.8mm
Coil power consumption: 88mW
Contact resistance: 50mΩ
Contact material: AgNi
Terminal pitch: 7.65mm
Operating temperature: -40...85°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AZ921-1A-12DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AF54E78C33B80D5&compId=az921.pdf?ci_sign=791e8bec7740e3f9d77a16a0fd598bef6d2f57ed
AZ921-1A-12DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; AZ921
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
Relay variant: interface
Manufacturer series: AZ921
Coil resistance: 1.2kΩ
Coil power consumption: 58mW
Contact material: AgNi
Operating temperature: -40...85°C
Body dimensions: 20.3x5.3x12.8mm
Mounting: PCB
Operate time: 6ms
Terminal pitch: 5.08mm
Contact resistance: 50mΩ
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Switched voltage: max. 150V DC; max. 250V AC
Release time: 3ms
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10689 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
43+1.7 EUR
50+1.46 EUR
54+1.33 EUR
100+1.23 EUR
500+1.13 EUR
Mindestbestellmenge: 43
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-12D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-12D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Manufacturer series: AZ9371
Contact material: AgNi
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Release time: 3ms
Operate time: 6ms
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 12V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 720Ω
auf Bestellung 1506 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
68+1.06 EUR
79+0.91 EUR
86+0.84 EUR
100+0.76 EUR
450+0.7 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/277VAC; PCB
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 24V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 2.88kΩ
auf Bestellung 3456 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
87+0.83 EUR
92+0.78 EUR
99+0.72 EUR
Mindestbestellmenge: 87
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-5D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
auf Bestellung 316 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
55+1.32 EUR
57+1.27 EUR
59+1.23 EUR
100+1.13 EUR
Mindestbestellmenge: 55
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-5DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
auf Bestellung 186 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
57+1.27 EUR
59+1.23 EUR
61+1.19 EUR
100+1.1 EUR
Mindestbestellmenge: 57
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-12D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-12D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; PCB
Manufacturer series: AZ9371
Contact material: AgNi
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Release time: 3ms
Operate time: 6ms
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 12V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 720Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1506 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
68+1.06 EUR
79+0.91 EUR
86+0.84 EUR
100+0.76 EUR
450+0.7 EUR
Mindestbestellmenge: 68
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-24DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-24DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/277VAC; PCB
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 24V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 2.88kΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3456 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
87+0.83 EUR
92+0.78 EUR
99+0.72 EUR
Mindestbestellmenge: 87
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-5D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 316 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
55+1.32 EUR
57+1.27 EUR
59+1.23 EUR
100+1.13 EUR
Mindestbestellmenge: 55
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371-1A-5DE pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371-1A-5DE
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; AZ9371
Manufacturer series: AZ9371
Operating temperature: -40...105°C
Type of relay: electromagnetic
Mounting: PCB
Relay variant: miniature
Contacts configuration: SPST-NO
Terminal pitch: 7mm
Body dimensions: 20.5x7.2x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 113mW
Contact current max.: 5A
Rated coil voltage: 5V DC
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 277V AC
Switched voltage: max. 30V DC; max. 277V AC
Coil resistance: 125Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 186 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
57+1.27 EUR
59+1.23 EUR
61+1.19 EUR
100+1.1 EUR
Mindestbestellmenge: 57
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371T-1A-12D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371T-1A-12D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: AZ9371
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.5x7.2x15.3mm
Coil power consumption: 113mW
Contact material: AgNi
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Operate time: 6ms
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 250V AC
Release time: 3ms
Terminal pitch: 7mm
auf Bestellung 988 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
56+1.29 EUR
59+1.22 EUR
81+0.89 EUR
85+0.84 EUR
Mindestbestellmenge: 56
Im Einkaufswagen  Stück im Wert von  UAH
AZ9371T-1AE-12D pVersion=0046&contRep=ZT&docId=005056AB281E1EDD8285C8A06DD940D2&compId=AZ9371.pdf?ci_sign=de53f661274fe895782e264547108232833cd7fd
AZ9371T-1AE-12D
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/277VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: AZ9371
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 720Ω
Body dimensions: 20.5x7.2x15.3mm
Coil power consumption: 113mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
DC contacts rating @R: 10A / 30V DC
AC contacts rating @R: 10A / 277V AC
Terminal pitch: 7mm
auf Bestellung 148 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
59+1.23 EUR
69+1.04 EUR
85+0.84 EUR
90+0.8 EUR
Mindestbestellmenge: 59
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 2 3 4 5 6  [ Nächste Seite >> ]
